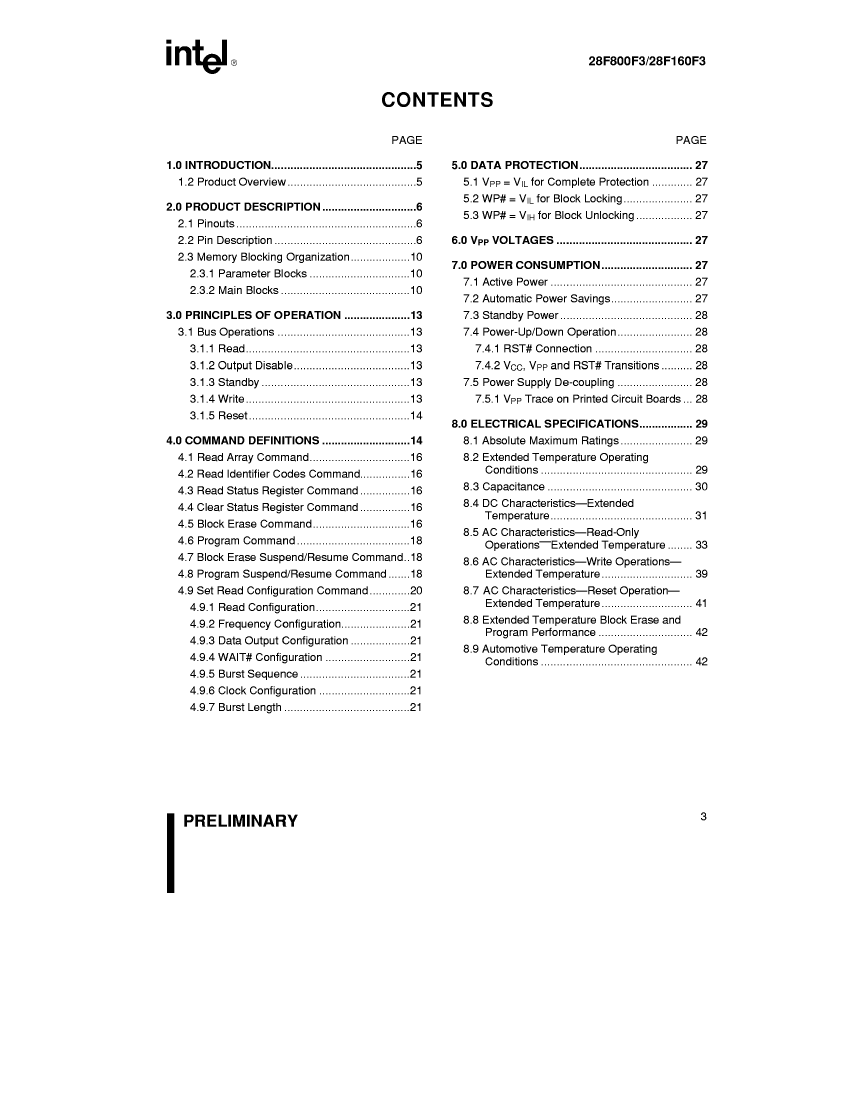

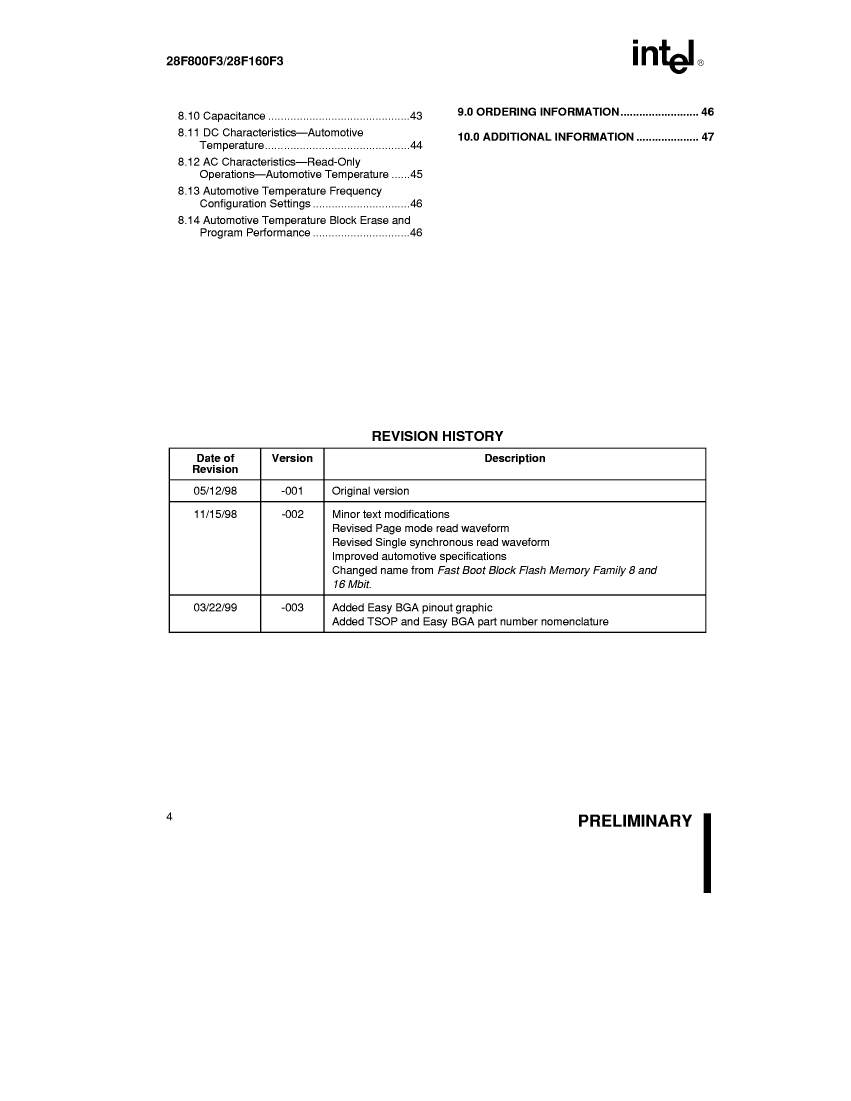

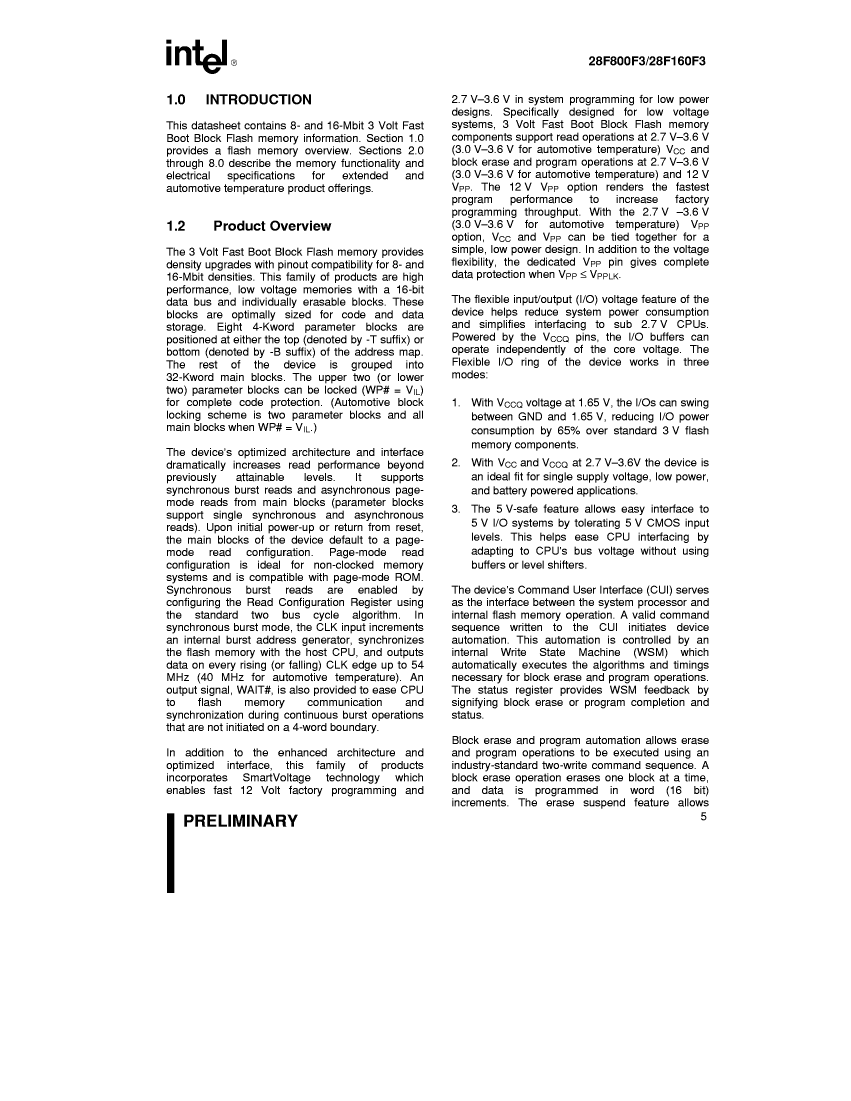

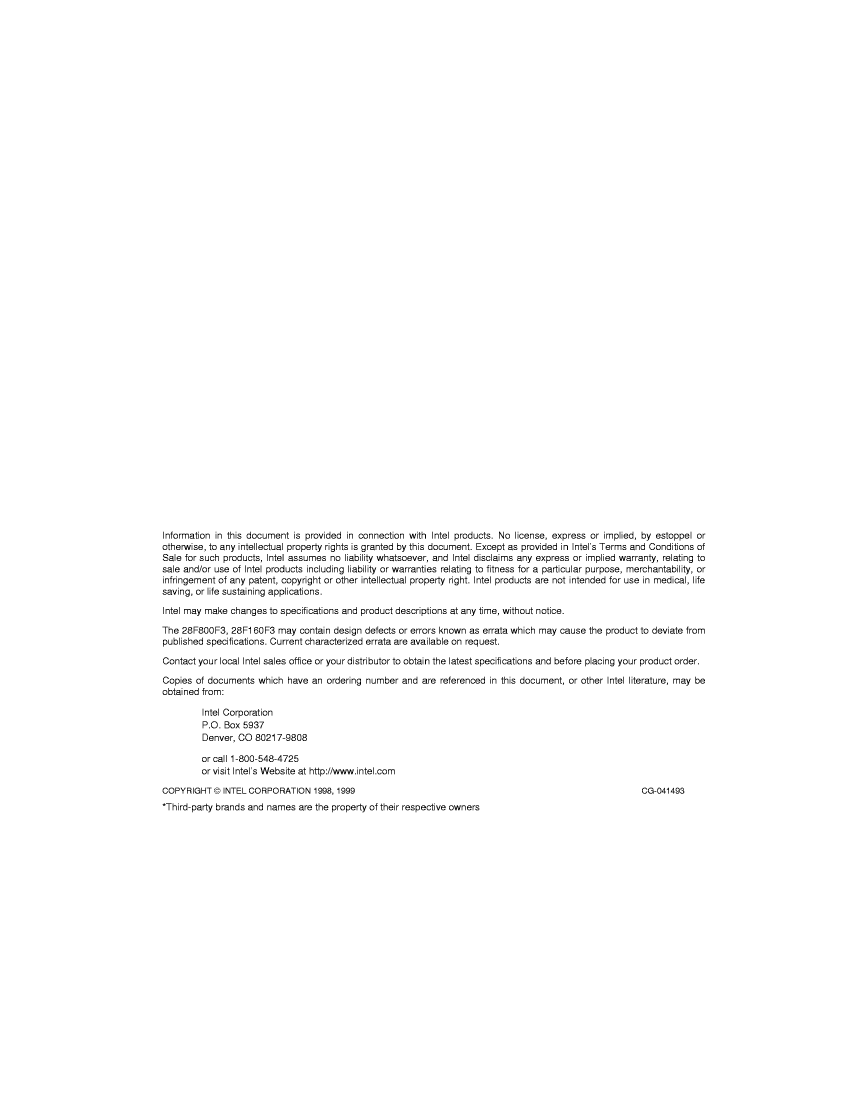

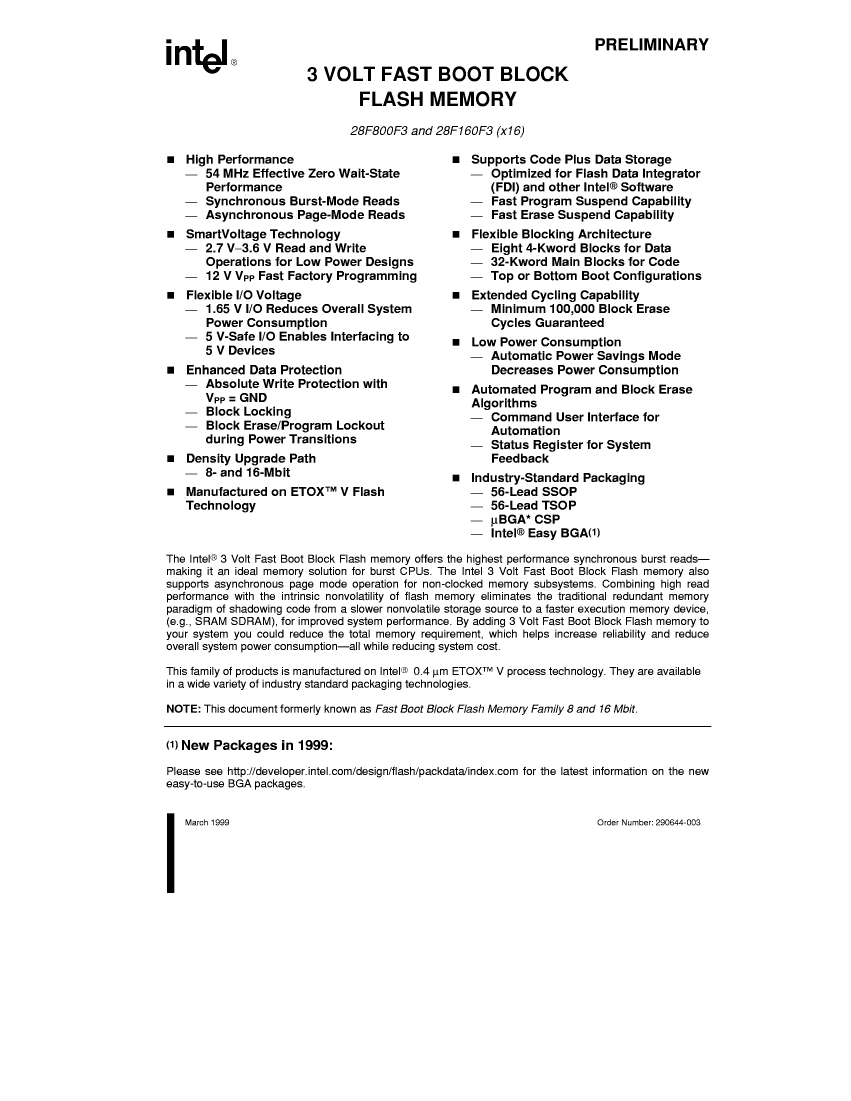

Preview

DE28F800F3B115: DescriptionFlash, 512KX16, 19ns, PDSO56, 16 X 23.70 MM, SSOP-56; Categorystorage storage; File Size1MB，48 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

DE28F800F3B115 Overview

Flash, 512KX16, 19ns, PDSO56, 16 X 23.70 MM, SSOP-56

DE28F800F3B115 Parametric

Parameter Name	Attribute value
Parts packaging code	SSOP
package instruction	16 X 23.70 MM, SSOP-56
Contacts	56
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	19 ns
Other features	MIN 100,000 BLOCK ERASE CYCLES; BOTTOM BOOT BLOCK
startup block	BOTTOM
JESD-30 code	R-PDSO-G56
length	23.7 mm
memory density	8388608 bi
Memory IC Type	FLASH
memory width	16
Number of functions	1
Number of terminals	56
word count	524288 words
character code	512000
Operating mode	SYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
organize	512KX16
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Parallel/Serial	PARALLEL
Programming voltage	3 V
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
type	NOR TYPE
width	13.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DE28F800F3B115 Related Products

	DE28F800F3B115	RC28F160F3B95	DE28F800F3T115
Description	Flash, 512KX16, 19ns, PDSO56, 16 X 23.70 MM, SSOP-56	Flash, 512KX16, 95ns, PBGA64, BGA-64	Flash, 512KX16, 19ns, PDSO56, 16 X 23.70 MM, SSOP-56
Parts packaging code	SSOP	BGA	SSOP
package instruction	16 X 23.70 MM, SSOP-56	TBGA, BGA64,8X8,40	16 X 23.70 MM, SSOP-56
Contacts	56	64	56
Reach Compliance Code	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
Maximum access time	19 ns	95 ns	19 ns
Other features	MIN 100,000 BLOCK ERASE CYCLES; BOTTOM BOOT BLOCK	MIN 100,000 BLOCK ERASE CYCLES; BOTTOM BOOT BLOCK	MIN 100,000 BLOCK ERASE CYCLES; TOP BOOT BLOCK
startup block	BOTTOM	BOTTOM	TOP
JESD-30 code	R-PDSO-G56	R-PBGA-B64	R-PDSO-G56
length	23.7 mm	13 mm	23.7 mm
memory density	8388608 bi	8388608 bi	8388608 bi
Memory IC Type	FLASH	FLASH	FLASH
memory width	16	16	16
Number of functions	1	1	1
Number of terminals	56	64	56
word count	524288 words	524288 words	524288 words
character code	512000	512000	512000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	125 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
organize	512KX16	512KX16	512KX16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TBGA	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	GRID ARRAY, THIN PROFILE	SMALL OUTLINE, SHRINK PITCH
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Programming voltage	3 V	2.7 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	1.2 mm	1.9 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	2.7 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	INDUSTRIAL	AUTOMOTIVE
Terminal form	GULL WING	BALL	GULL WING
Terminal pitch	0.8 mm	1 mm	0.8 mm
Terminal location	DUAL	BOTTOM	DUAL
type	NOR TYPE	NOR TYPE	NOR TYPE
width	13.3 mm	10 mm	13.3 mm
Base Number Matches	1	1	1
