TC4421CAT: DescriptionBuffer/Inverter Based MOSFET Driver, 9A, CMOS, PSFM5; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size211KB，7 Pages; ManufacturerTeledyne Technologies Incorporated; Websitehttp://www.teledyne.com/; Related ProductsFound20parts with similar functions to TC4421CAT

Download Datasheet Parametric Compare View All

TC4421CAT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TC4421CAT	-	-	View	Buy Now

TC4421CAT Overview

Buffer/Inverter Based MOSFET Driver, 9A, CMOS, PSFM5

TC4421CAT Parametric

Parameter Name	Attribute value
Maker	Teledyne Technologies Incorporated
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
high side driver	NO
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-PSFM-T5
Number of functions	1
Number of terminals	5
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	TOTEM-POLE
Nominal output peak current	9 A
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum slew rate	3 mA
Maximum supply voltage	18 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Disconnect time	0.08 µs
connection time	0.08 µs

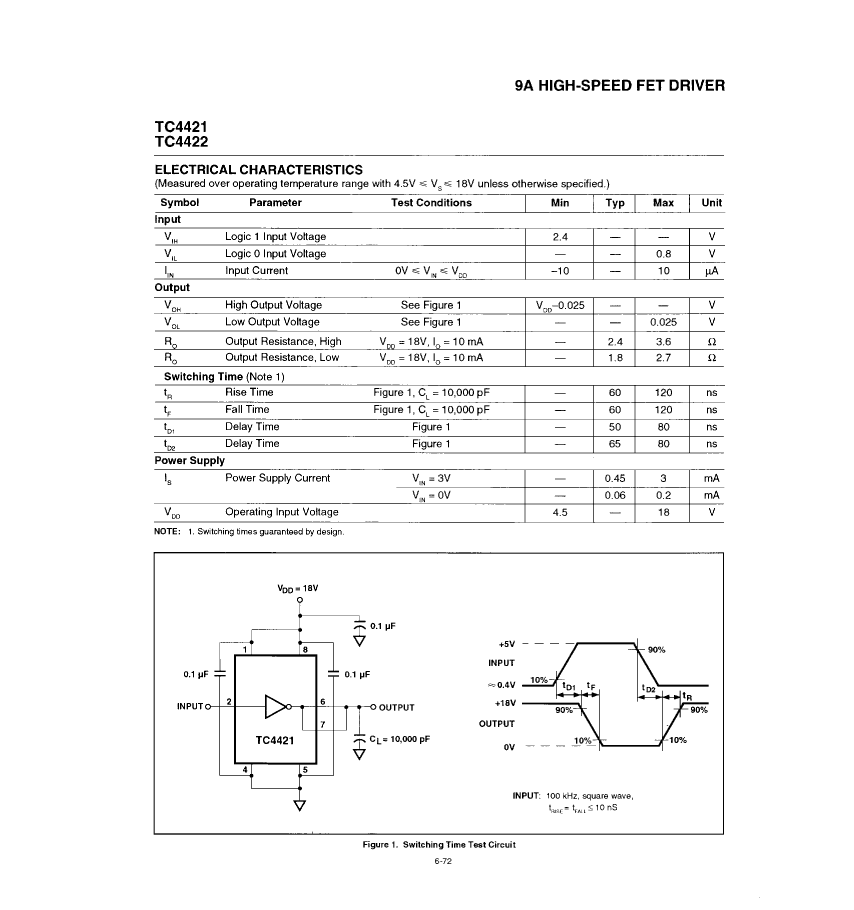

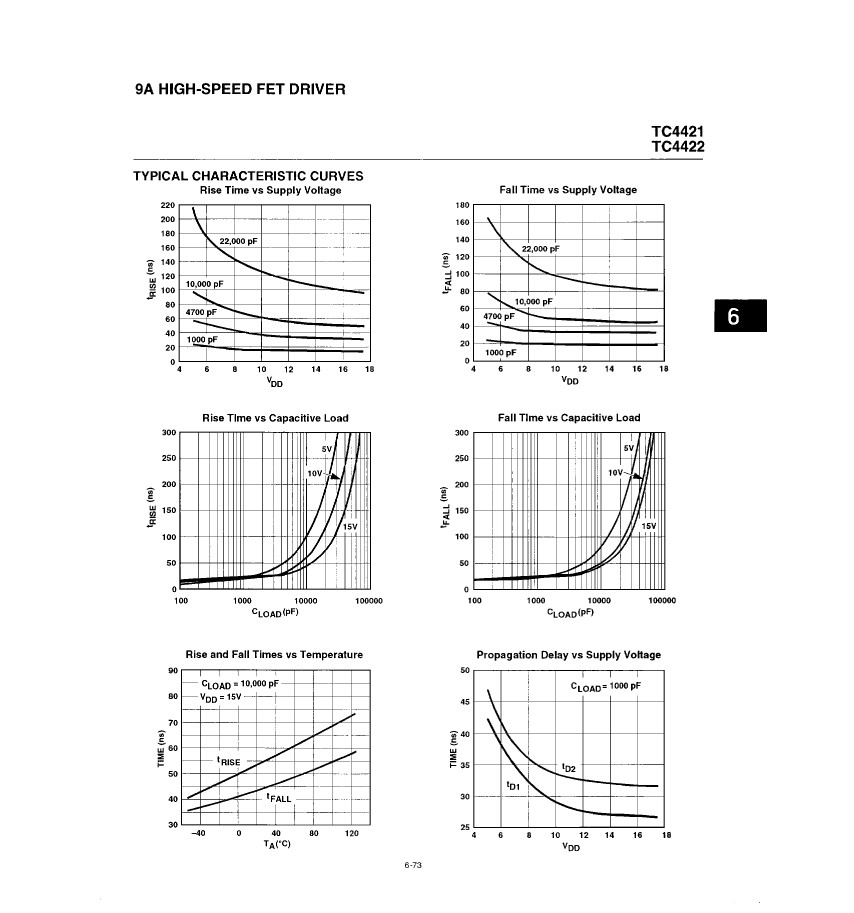

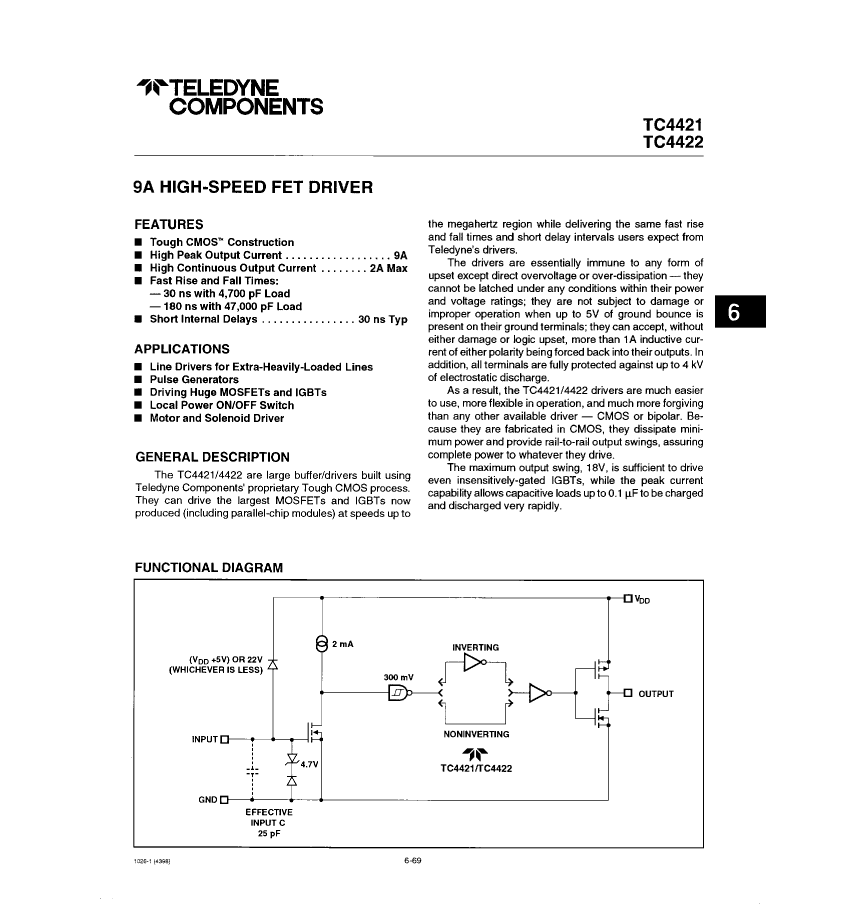

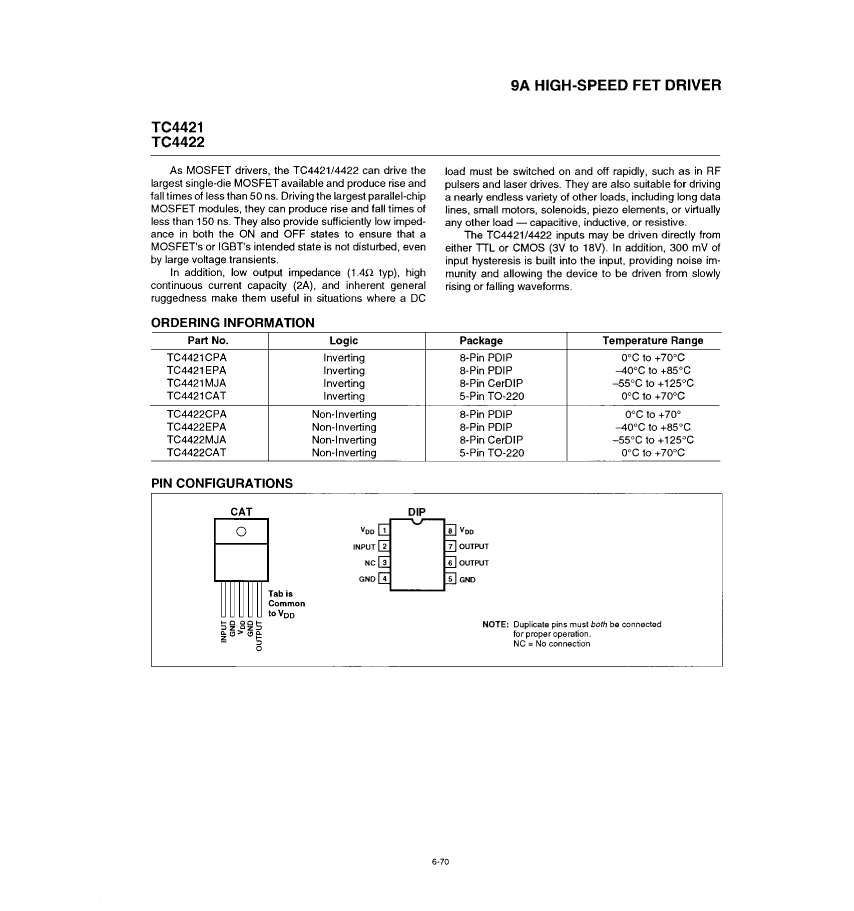

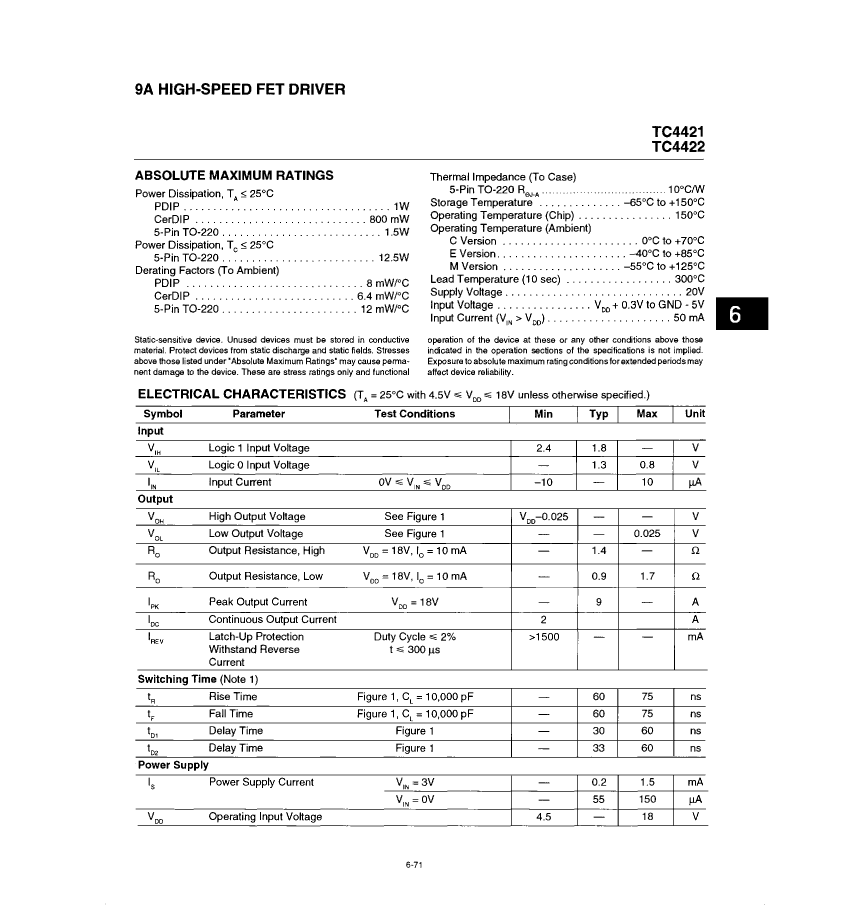

TC4421CAT Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TC4421CAT Related Products

	TC4421CAT	TC4421MJA	TC4421EPA	TC4422MJA	TC4422CAT	TC4422CPA
Description	Buffer/Inverter Based MOSFET Driver, 9A, CMOS, PSFM5	Buffer/Inverter Based MOSFET Driver, 9A, CMOS, CDIP8	Buffer/Inverter Based MOSFET Driver, 9A, CMOS, PDIP8	Buffer/Inverter Based MOSFET Driver, 9A, CMOS, CDIP8	Buffer/Inverter Based MOSFET Driver, 9A, CMOS, PSFM5	Buffer/Inverter Based MOSFET Driver, 9A, CMOS, PDIP8
Maker	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
high side driver	NO	NO	NO	NO	NO	NO
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-PSFM-T5	R-GDIP-T8	R-PDIP-T8	R-GDIP-T8	R-PSFM-T5	R-PDIP-T8
Number of functions	1	1	1	1	1	1
Number of terminals	5	8	8	8	5	8
Maximum operating temperature	70 °C	125 °C	85 °C	125 °C	70 °C	70 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Nominal output peak current	9 A	9 A	9 A	9 A	9 A	9 A
Output polarity	INVERTED	INVERTED	INVERTED	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	IN-LINE	IN-LINE	IN-LINE	FLANGE MOUNT	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA
Maximum supply voltage	18 V	18 V	18 V	18 V	18 V	18 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	INDUSTRIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	DUAL	DUAL	DUAL	SINGLE	DUAL
Disconnect time	0.08 µs	0.08 µs	0.08 µs	0.08 µs	0.08 µs	0.08 µs
connection time	0.08 µs	0.08 µs	0.08 µs	0.08 µs	0.08 µs	0.08 µs
