DM74ALS240AWMX

Description
Bus Driver, ALS Series, 2-Func, 4-Bit, Inverted Output, TTL, PDSO20, 0.300 INCH, MS-013, SOIC-20
Categorylogic    logic
File Size78KB，7 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Environmental Compliance
Download Datasheet Parametric View All

DM74ALS240AWMX Online Shopping

Suppliers Part Number Price MOQ In stock
DM74ALS240AWMX - - View Buy Now

DM74ALS240AWMX Overview

Bus Driver, ALS Series, 2-Func, 4-Bit, Inverted Output, TTL, PDSO20, 0.300 INCH, MS-013, SOIC-20

DM74ALS240AWMX Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerFairchild
Parts packaging codeSOIC
package instruction0.300 INCH, MS-013, SOIC-20
Contacts20
Reach Compliance Codeunknown
Control typeENABLE LOW
seriesALS
JESD-30 codeR-PDSO-G20
JESD-609 codee3
length12.8 mm
Logic integrated circuit typeBUS DRIVER
MaximumI(ol)0.024 A
Humidity sensitivity level1
Number of digits4
Number of functions2
Number of ports2
Number of terminals20
Maximum operating temperature70 °C
Minimum operating temperature
Output characteristics3-STATE
Output polarityINVERTED
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP20,.3
Package shapeRECTANGULAR
Package formSMALL OUTLINE
method of packingTAPE AND REEL
Peak Reflow Temperature (Celsius)260
power supply5 V
Maximum supply current (ICC)25 mA
Prop。Delay @ Nom-Sup9 ns
propagation delay (tpd)9 ns
Certification statusNot Qualified
Maximum seat height2.642 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.49 mm

DM74ALS240AWMX Preview

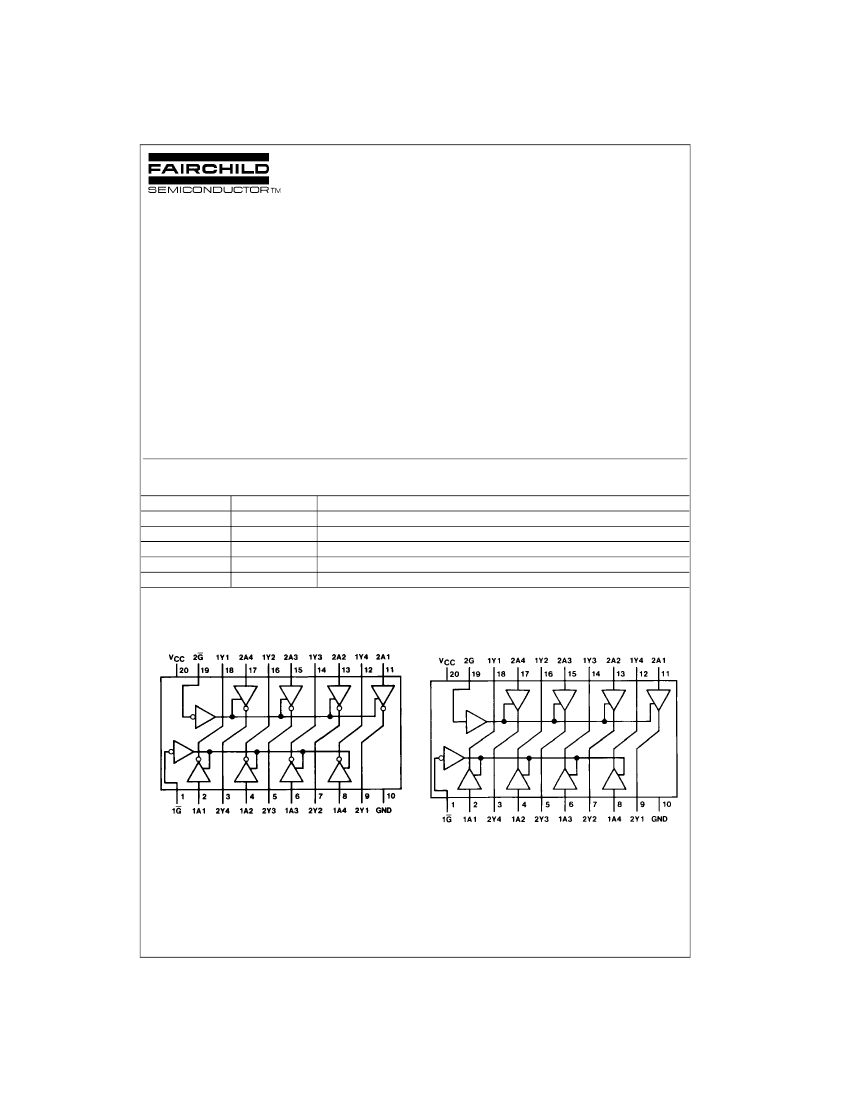

DM74ALS240A • DM74ALS241A Octal 3-STATE Bus Driver
September 1986
Revised February 2000
DM74ALS240A • DM74ALS241A
Octal 3-STATE Bus Driver
General Description
These octal 3-STATE bus drivers are designed to provide
the designer with flexibility in implementing a bus interface
with memory, microprocessor, or communication systems.
The output 3-STATE gating control is organized into two
separate groups of four buffers. The DM74ALS240A con-
trol inputs symmetrically enable the respective outputs
when set logic LOW, while the DM74ALS241A has comple-
mentary enable gating. The 3-STATE circuitry contains a
feature that maintains the buffer outputs in 3-STATE (high
impedance state) during power supply ramp-up or ramp-
down. This eliminates bus glitching problems that arise
during power-up and power-down.
Features
s
Advanced low power
Schottky TTL process
oxide-isolated
ion-implanted
s
Functional and pin compatible with the DM74LS coun-
terpart
s
Improved switching performance with less power dissi-
pation compared with the DM74LS counterpart
s
Switching response specified into 500Ω and 50 pF load
s
Switching response specifications guaranteed over full
temperature and V
CC
supply range
s
PNP input design reduces input loading
s
Low level drive current: 74ALS
=
24 mA
Ordering Code:
Order Number
DM74ALS240AWM
DM74ALS240ASJ
DM74ALS240AN
DM74ALS241AWM
DM74ALS241AN
Package Number
M20B
M20D
N20A
M20B
N20A
Package Description
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagrams
DM74ALS240A
DM74ALS241A
© 2000 Fairchild Semiconductor Corporation
DS006210
www.fairchildsemi.com
DM74ALS240A • DM74ALS241A
Function Tables
DM74ALS240A
Input
G
L
L
H
A
L
H
X
Output
Y
H
L
Z
1G
L
L
H
Input
1A
L
H
X
DM74ALS241A
Output
Y
L
H
Z
2G
H
H
L
Input
2A
L
H
X
Output
Y
L
H
Z
Logic Diagrams
DM74ALS240A
DM74ALS241A
www.fairchildsemi.com
2
DM74ALS240A • DM74ALS241A
Absolute Maximum Ratings
(Note 1)
Supply Voltage, V
CC
Input Voltage
Voltage Applied to Disabled Output
Operating Free Air Temperature Range
Storage Temperature Range
Typical
θ
JA
N Package
M Package
60.5°C/W
79.8°C/W
7V
7V
5.5V
0°C to
+70°C
−65°C
to
+150°C
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Recommended Operating Conditions
Symbol
V
CC
V
IH
V
IL
I
OH
I
OL
T
A
Supply Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
HIGH Level Output Current
LOW Level Output Current
Operating Free Air Temperature
0
Parameter
Min
4.5
2
0.8
−15
24
70
Typ
5
Max
5.5
Units
V
V
V
mA
mA
°C
Electrical Characteristics
over recommended operating free-air temperature range (unless otherwise specified)
Symbol
V
IK
V
OH
Parameter
Input Clamp Voltage
HIGH Level
Output Voltage
V
OL
I
I
I
IH
I
IL
I
O
I
OZH
I
OZL
I
CC
LOW Level
Output Voltage
Input Current at Max
Input Voltage
HIGH Level Input Current
LOW Level Input Current
Output Drive Current
HIGH Level 3-STATE
Output Current
LOW Level 3-STATE
Output Current
Supply Current
V
CC
=
4.5V to 5.5V
V
CC
=
4.5V
V
CC
=
4.5V
I
OL
=
Max
V
CC
=
5.5V, V
I
=
7V
V
CC
=
5.5V, V
I
=
2.7V
V
CC
=
5.5V, V
IL
=
0.4V
V
CC
=
5.5V, V
O
=
2.25V
V
CC
=
5.5V, V
O
=
2.7V
V
CC
=
5.5V, V
O
=
0.4V
V
CC
=
5.5V, ALS240A
Outputs HIGH
Outputs LOW
Outputs 3-STATE
V
CC
=
5.5V, ALS241A
Outputs HIGH
Outputs LOW
Outputs 3-STATE
4
13
14
9
15
17
−30
Conditions
V
CC
=
4.5V, I
I
= −18
mA
I
OH
= −0.4
mA
I
OH
= −3
mA
I
OH
=
Max
V
CC
−
2
2.4
2
0.35
0.5
0.1
20
−0.1
−112
20
−20
10
23
25
15
26
30
Min
Typ
Max
−1.5
Units
V
V
V
V
V
mA
µA
mA
mA
µA
µA
mA
mA
mA
mA
mA
mA
3
www.fairchildsemi.com
DM74ALS240A • DM74ALS241A
Switching Characteristics DM74ALS240A
over recommended operating free air temperature range
Symbol
t
PLH
t
PHL
t
PZH
t
PZL
t
PHZ
t
PLZ
Parameter
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
Output Enable Time
to HIGH Level Output
Output Enable Time
to LOW Level Output
Output Disable Time
from HIGH Level Output
Output Disable Time
from LOW Level Output
G
Y
3
12
ns
Conditions
V
CC
=
4.5V to 5.5V,
C
L
=
50 pF,
R1
=
500Ω,
R2
=
500Ω,
T
A
=
Min to Max
G
Y
3
2
18
10
ns
ns
A
Y
2
3
9
13
ns
ns
From
(Input)
To
(Output)
Min
2
Max
9
Units
ns
Switching Characteristics DM74ALS241A
over recommended operating free air temperature range
Symbol
t
PLH
t
PHL
t
PZH
t
PZL
t
PHZ
t
PLZ
t
PZH
t
PZL
t
PHZ
t
PLZ
Parameter
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
Output Enable Time
to HIGH Level Output
Output Enable Time
to HIGH Level Output
Output Disable Time
to HIGH Level Output
Output Disable Time
to LOW Level Output
Output Enable Time
to HIGH Level Output
Output Enable Time
to LOW Level Output
Output Disable Time
from HIGH Level Output
Output Disable Time
from LOW Level Output
2G
Y
3
15
ns
2G
Y
7
2
21
10
ns
ns
1G
Y
3
7
15
21
ns
ns
Conditions
V
CC
=
4.5V to 5.5V,
C
L
=
50 pF,
R1
=
500Ω,
R2
=
500Ω,
T
A
=
Min to Max
1G
Y
3
2
21
10
ns
ns
A
Y
3
3
10
21
ns
ns
From
(Input)
To
(Output)
Min
3
Max
11
Units
ns
www.fairchildsemi.com
4
DM74ALS240A • DM74ALS241A
Physical Dimensions
inches (millimeters) unless otherwise noted
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
Package Number M20B
5
www.fairchildsemi.com
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

PWM DC motor speed regulation circuit diagram composed of LM324

Typical Reference Voltage and Power Supply Circuits

One of multiple groups of high-power colored light chain circuits that flash in turn b

Milk thermostat controller circuit

C534J1 vertical lathe main circuit

Sound circuit: AN5265

KernelIoControl finds the device number problem
Problem of KernelIoControl finding device number if(!KernelIoControl(IOCTL_HAL_REQUEST_SYSINTR,&g_Irq,sizeof(UINT32),&g_SysIntr,sizeof(UINT32),NULL)) { RETAILMSG(1,TEXT("ERROR:Failed to request sysint...
xinbao77 Embedded System
What is the art of plugging vias on PCB boards?
Via hole is also called conduction hole. In order to meet customer requirements, the circuit board conduction hole must be plugged. After a lot of practice, the traditional aluminum sheet plugging pro...
ohahaha PCB Design
Four challenges in LED living lighting driver design
Four challenges of driver design Due to the differences in the physical properties of LED original devices, the concept of making a light source system is very different from traditional design and re...
探路者 LED Zone
RF wireless transmission distance
The transmission distance is related to the transmit power of the sender. The higher the transmit power, the farther the data can be transmitted. The transmission distance is related to the receiver's...
Jacktang RF/Wirelessly
Doubts about WinCE memory mapping
How to read and write GPIO registers. However, I still have many doubts after reading it. Why is it defined like this in the memory map table: DCD 0x91600000, 0x56000000, 1; I/O Port register, and in ...
zhaoboqian Embedded System
TMS320C6678 Evaluation Module
TMS320C6678 Lite Evaluation Module The TMS320C6678 Lite Evaluation Module (EVM) is an easy-to-use, cost-effective development tool that helps developers quickly start designing with the C6678 or C6674...
Aguilera DSP and ARM Processors
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. 240-0321-15SCD6J2-18K
  2. HM53-60350VLF
  3. CP00052R400JE14
  4. 04022R273J7B20D
  5. PH3114WB
  6. RNS1/2CC2154F
  7. DBP-M959-00-3611-BA
  8. 1M3039-016-3539-001.7-12-AD-02-1
  9. A2005WRB-2x5P-C350
  10. MF1/4WSC86K6W05
  11. GZ1005U601CTF
  12. 0603WAF2741T5E

Popular Articles

  1. Main categories of cable fault testers
  2. Element14 Releases: Growing Demand for Low-Cost Single Board Computers for Industrial and IoT Applications
  3. Ziguang Cloud completed a 600 million yuan financing, led by China Mobile Capital
  4. Omdia: Mini LED TV shipments to reach 25 million units in 2025
  5. 51 MCU 12864 large LCD screen Tetris
  6. Introduction to the functions and common classifications of signal sources
  7. wifi analyzer android 9,Wifi analyzer (wireless signal detection)
  8. Improving customer engagement: Siemens’ recipe for wealth with low-code
  9. How AR/VR headsets work
  10. Design of automatic coin sorting and change system based on single chip microcomputer

Technical ResourceMore

  1. KMP string matching algorithm source code and detailed explanation
  2. A lossless snubber circuit for flyback converter
  3. How 5G will impact self-driving cars
  4. Texas Instruments High-Performance Analog Devices Efficient Application Guide
  5. Protues simulation example (8051)-LCD1602.rar
  6. High-speed dual MOSFET driver and its application in switching power supplies.
  7. 51 single chip microcomputer makes alarm clock
  8. Relationship between PCB line width and current
  9. FUJITSU EMC Design Guide
  10. The use of transformer model in Pspice circuit simulation

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2808  1918  2500  2713  296  57  39  51  55  6
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
