R38B4B datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> R38B4B

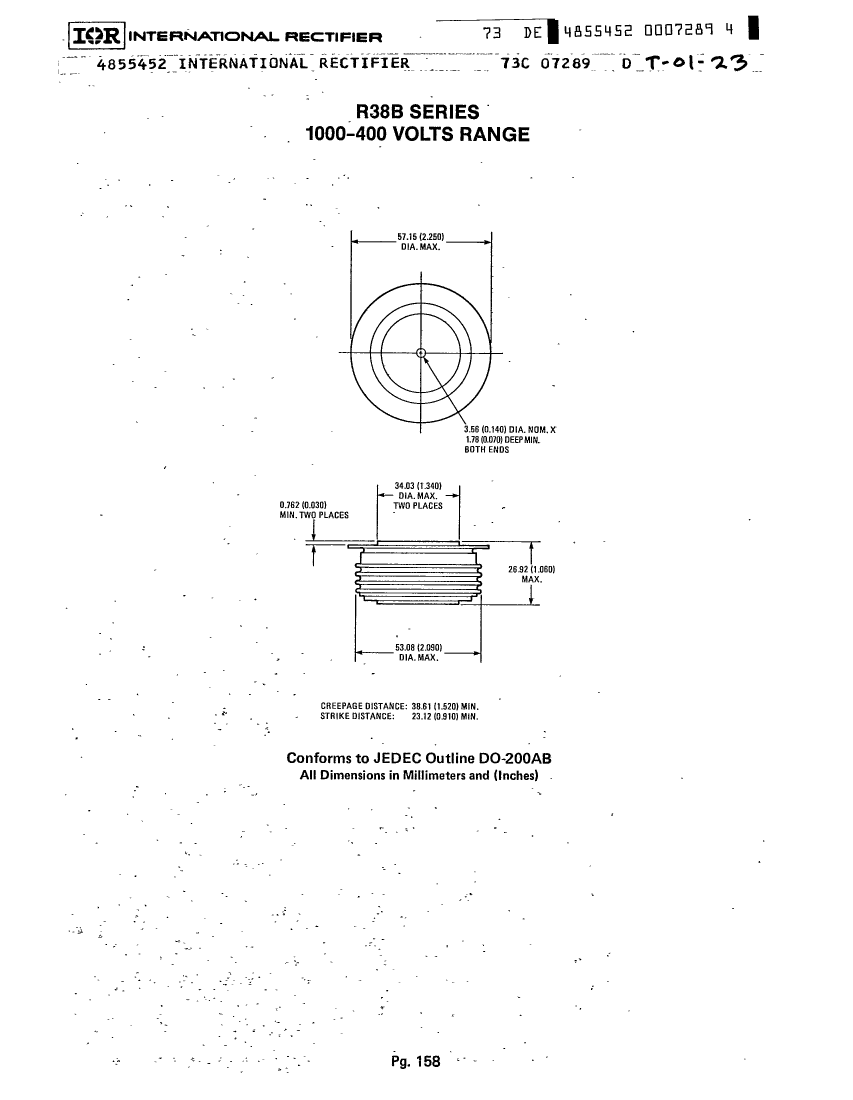

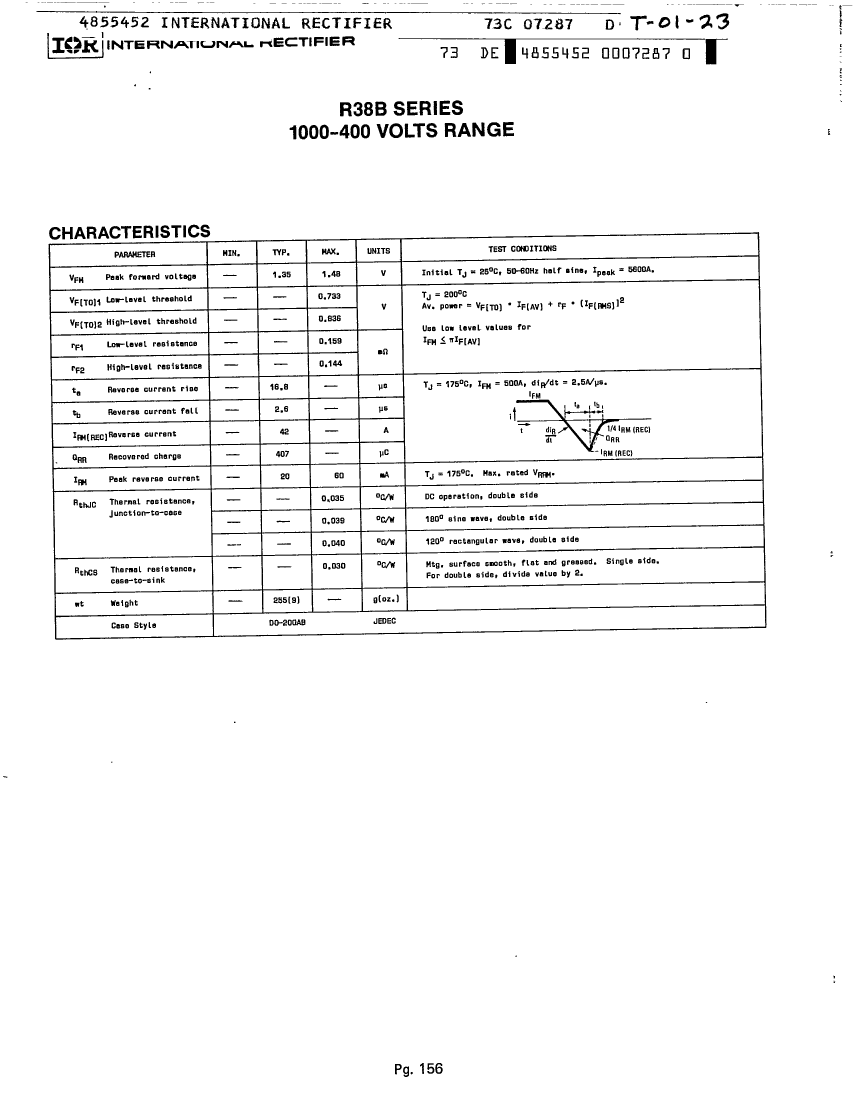

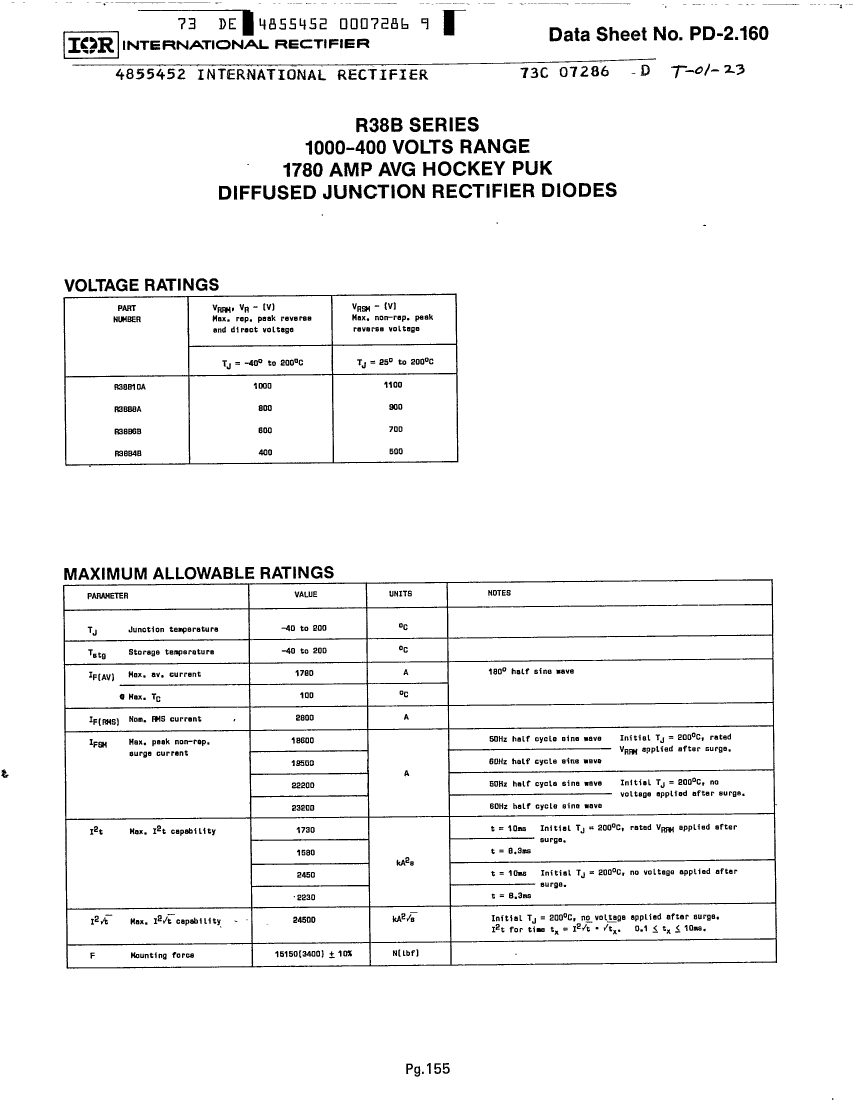

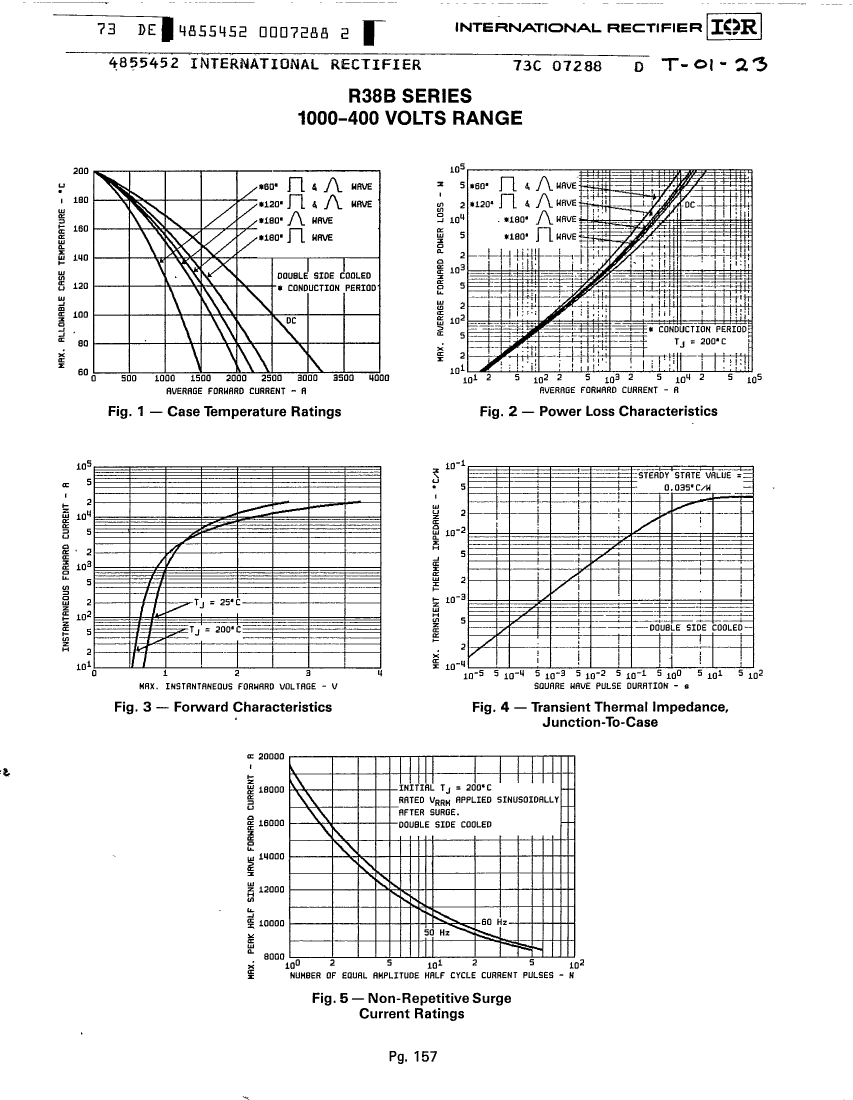

Preview

R38B4B: DescriptionRectifier Diode, 1 Phase, 1 Element, 1780A, 400V V(RRM), Silicon, DO-200AB,; CategoryDiscrete semiconductor diode; File Size123KB，4 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

R38B4B Overview

Rectifier Diode, 1 Phase, 1 Element, 1780A, 400V V(RRM), Silicon, DO-200AB,

R38B4B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	O-CEDB-N2
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.48 V
JEDEC-95 code	DO-200AB
JESD-30 code	O-CEDB-N2
Maximum non-repetitive peak forward current	19500 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	200 °C
Maximum output current	1780 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END

Preview

Download Datasheet

View All

R38B4B Related Products

	R38B4B	R38B6B	R38B10A	R38B8A
Description	Rectifier Diode, 1 Phase, 1 Element, 1780A, 400V V(RRM), Silicon, DO-200AB,	Rectifier Diode, 1 Phase, 1 Element, 1780A, 600V V(RRM), Silicon, DO-200AB,	Rectifier Diode, 1 Phase, 1 Element, 1780A, 1000V V(RRM), Silicon, DO-200AB,	Rectifier Diode, 1 Phase, 1 Element, 1780A, 800V V(RRM), Silicon, DO-200AB,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.48 V	1.48 V	1.48 V	1.48 V
JEDEC-95 code	DO-200AB	DO-200AB	DO-200AB	DO-200AB
JESD-30 code	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2
Maximum non-repetitive peak forward current	19500 A	19500 A	19500 A	19500 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C
Maximum output current	1780 A	1780 A	1780 A	1780 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	600 V	1000 V	800 V
surface mount	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	END	END	END	END
Maker	International Rectifier （ Infineon ）	-	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
