ACTM-1009PM12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ACTM-1009PM12

ACTM-1009PM12: DescriptionThreshold Detector, 2000MHz Min, 18000MHz Max, 14dBm Input Power-Max, HERMETIC SEALED, CASE M12, 2 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size261KB，2 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

ACTM-1009PM12 Overview

Threshold Detector, 2000MHz Min, 18000MHz Max, 14dBm Input Power-Max, HERMETIC SEALED, CASE M12, 2 PIN

ACTM-1009PM12 Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
package instruction	HERMETIC SEALED, CASE M12, 2 PIN
Reach Compliance Code	unknown
structure	MODULE
Maximum input power (CW)	14 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency	2000 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	POSITIVE
Minimum output voltage sensitivity	650 mV/mW
RF/Microwave Device Types	THRESHOLD DETECTOR
Maximum voltage standing wave ratio	3

Preview

Download Datasheet

View All

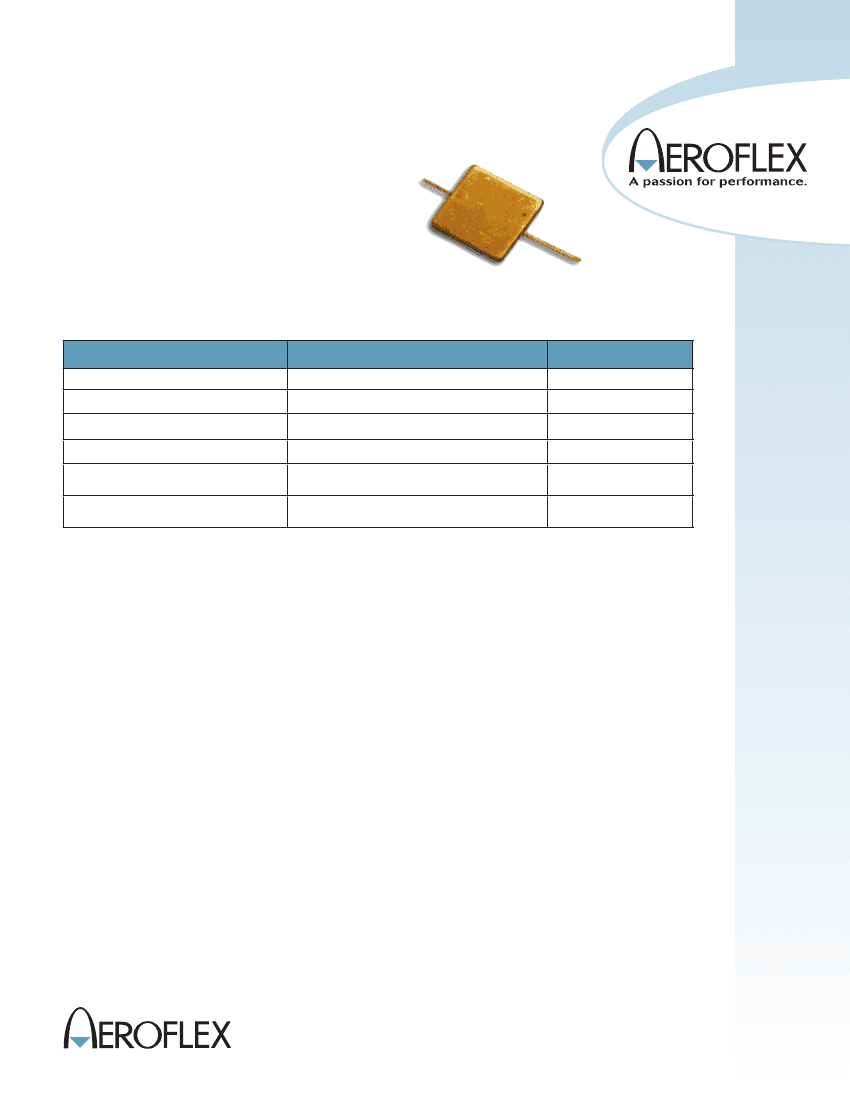

ACTM-1009

Tunnel Diode Detector Modules

Features:

•

Contains hermetically sealed modules, inter-

nal RF matching, DC return, and RF bypass

capacitor.

The video port is protected from static or

transient charges.

Input impedance matching.

Models may be chosen for broadband RF

performance of for optimized narrow bands

•

Specifications:

Parameter

Frequency Range (min)

Sensitivity (min)

Flatness vs. Frequency (max)

Typical TSS

Typical VSWR

Nominal Video Capacitance

Specification

2 – 18

Units

GHz

mV/mW

±dB

dBm

Ratio

650

1.0

-50

3.0:1

Notes:

Maximum input power: +14 dBm (3 dB guardband

for +17 dBm possible burnout)

Sensitivity is measured into an open circuit load

(>10k ohm).

VSWR is measured at or below -20 dBm input power

level.

Video capacitance is used for RF bypass. This value

can be changed if required for video response time.

Contact the factory for more information.

SCREENING:

Internal Visual per MIL-STD-883, Method 2017

Temperature Cycle: -65 °C to +100 °C, 10 cycles

OPTIONAL HIGH-REL SCREENING

(Ref MIL-PRF-38534):

Stabilization Bake per MIL-STD-883, Method 1008

Temperature Cycle per MIL-STD-883, Method 1010

Constant Acceleration per MIL-STD-883, Method

2001

Burn-in per MIL-STD-883, Method 1015

Leak Test per MIL-STD-883, Method 1014

External Visual per MIL-STD-883, Method 2009

Environmental Specifications:

Designed to meet:

MIL-E-5400, MIL-STD-202, MIL-E-16400

Operating Temp: -55°C to +125°C

Storage Temp: -65°C to +150°C

Humidity: MIL-STD-202F, M103, Cond B

Shock: MIL-STD-202F, M213, Cond B

Altitude: MIL-STD-202F, M105, Cond B

Vibration: MIL-STD-202F, M204, Cond B

Thermal Shock: MIL-STD-202F, M107, Cond A

Temperature Cycle: MIL-STD-202F, M105C, Cond D

SIGNAL & CONTROL SOLUTIONS

Revision Date: 11/4/2013

40 Industrial Way East, Eatontown , NJ 07724 [USA]

Phone: (732) 460-0212, Fax: (732) 460-0214

www.aeroflex.com/ascs, email: ascs-sales@aeroflex.com
