The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Connections of the Various Units and Device Interious
GT 5
GT 13

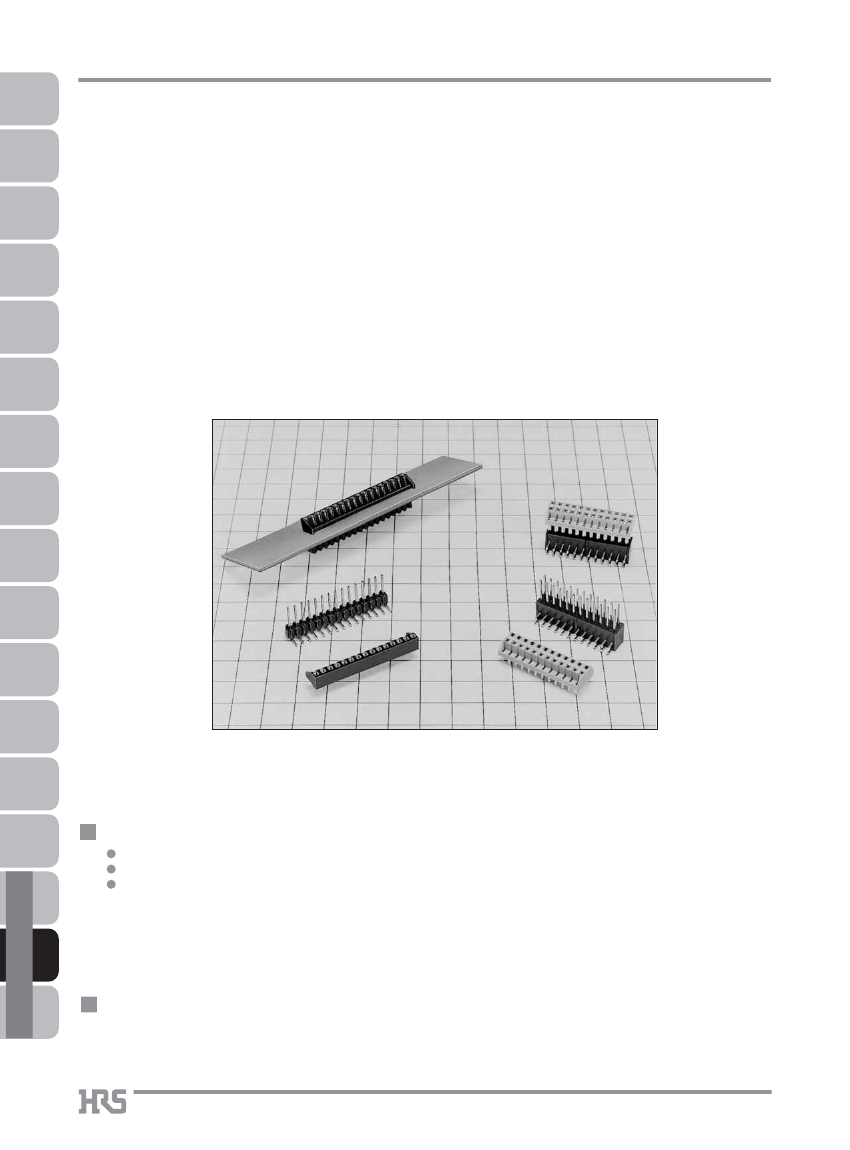

GT9 Series
Developed for Equipment
Exposed to Harsh Environmental Conditions
GT 14
GT 11
PO5G
GT 16
<
12 Pos., 15 Pos., 16 Pos., 18 Pos., 19 Pos., and 25 Pos.
>
GT 15
GT 18W
GT 10
GT 7
GT 6W
GT 3
GT 19
GT 17
Features
Bottom entry type
High-pressure type with dimple processing at contact portion
Flux prevention processing specification also available.* (Specification 75)
* Flux prevention processing: The hole connector is immersed in a flux prevention processing liquid and the
surface is coated to prevent flux wicking.
Custom orders of other numbers of Pos. can be accommodated.
Connections of the Various Units
and Device Interiors
GT 25
GT 9
GT 8
Applications
Automotive equipment, IPM, and IGBT.
204
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

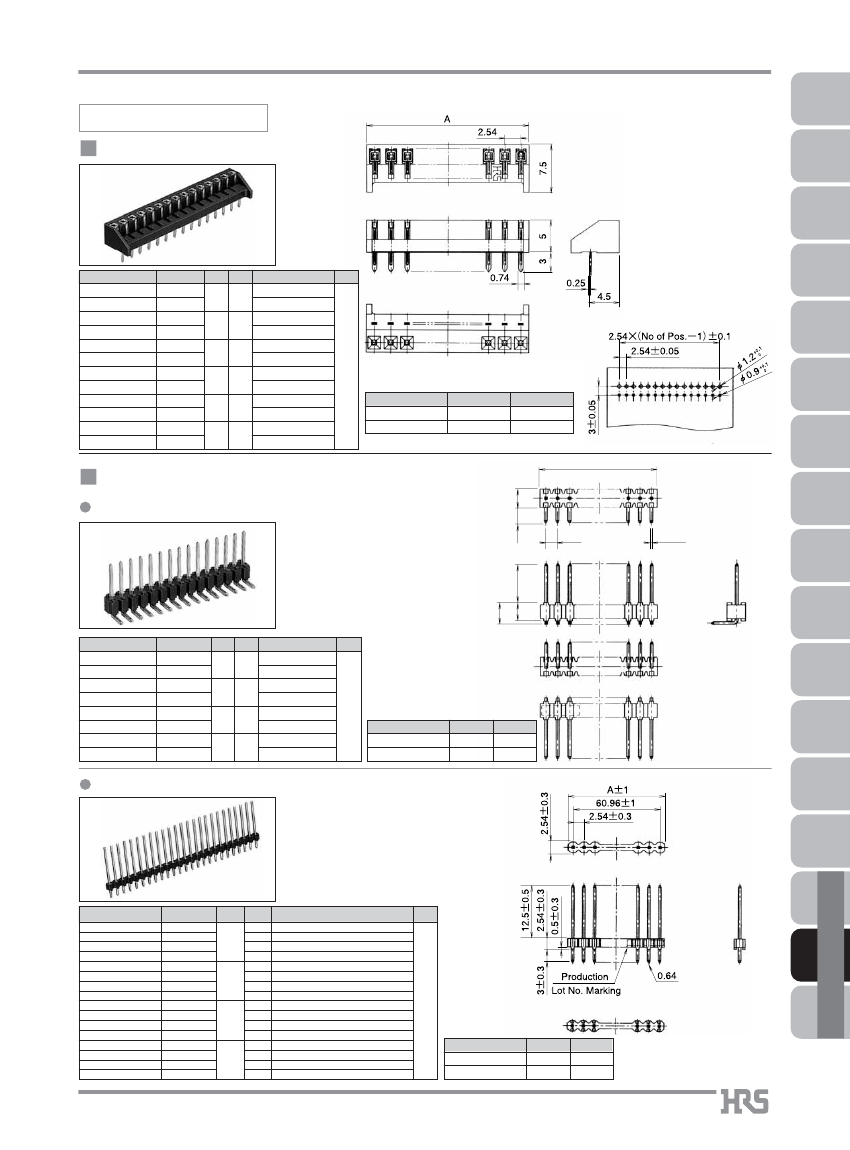

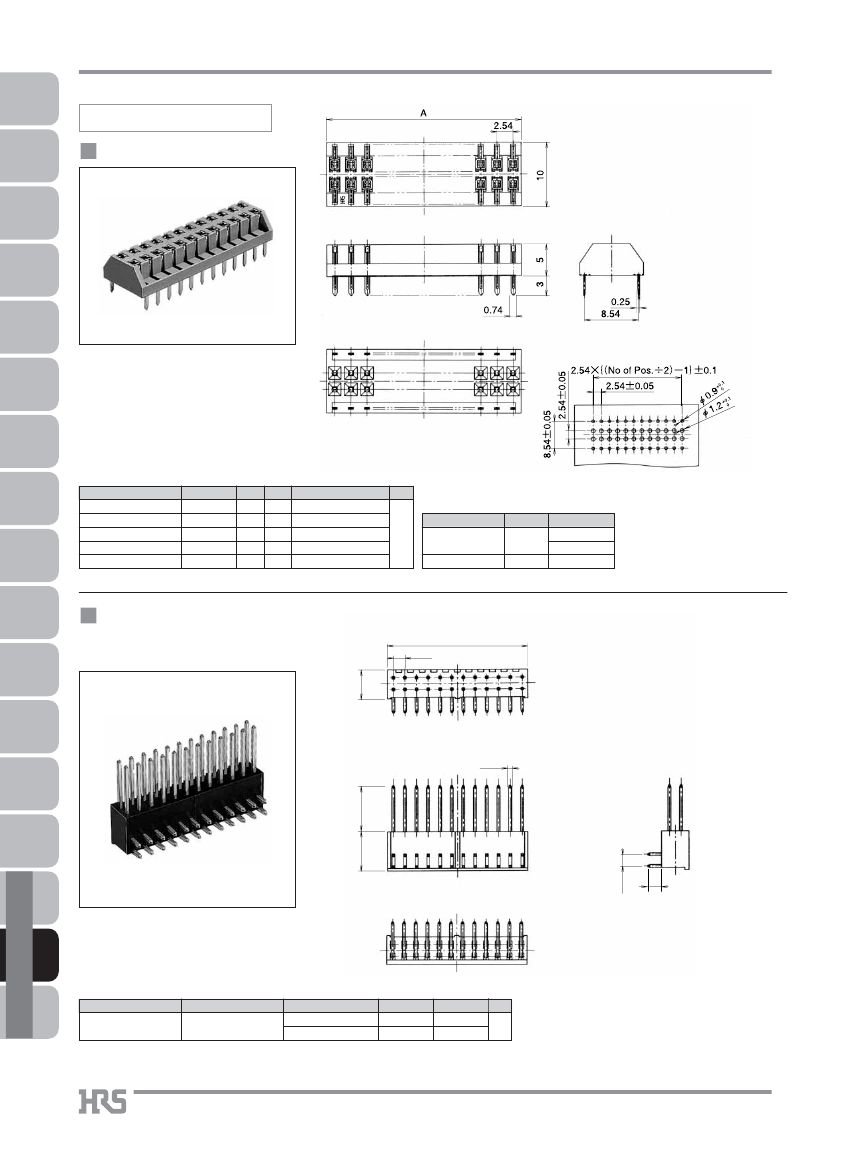

GT9 Series
GT 5
Single-Row Type
F Connectors
GT 13
GT 16
PO5G
Part Number
CL No.
Number of
A
positions dimension
Remarks
RoHS
GT9-12S-2.54DSA (70) 759-0011-8-70
GT9-12S-2.54DSA (75) 759-0011-8-75
GT9-15S-2.54DSA (70) 759-0001-4-70
GT9-15S-2.54DSA (75) 759-0001-4-75
GT9-16S-2.54DSA (70) 759-0008-3-70
GT9-16S-2.54DSA (75) 759-0008-3-75
GT9-18S-2.54DSA (70) 759-0002-7-70
GT9-18S-2.54DSA (75) 759-0002-7-75
GT9-19S-2.54DSA (70) 759-0009-6-70
GT9-19S-2.54DSA (75) 759-0009-6-75
GT9-25S-2.54DSA (70) 759-0006-8-70
GT9-25S-2.54DSA (75) 759-0006-8-75
12
30.48
Flux prevention finish
GT 11
15
38.10
BRecommended
PCB Mounting Pattern
Flux prevention finish
Flux prevention finish
16
40.64
YES
GT 14
18
45.72
Flux prevention finish
19
48.26
Flux prevention finish
25
63.50
Flux prevention finish
Material
Finish
PA (Note)
Color: Black
Phosphor bronze Tin plating
Note: The material is PBT for the 12-pos. type only.
Item
Housing
Terminal
GT 17
A
M Connectors
Right-angle Type
3.3
4
2.54
0.64
GT 19
GT 3
8.43
GT 6W
4.77
Part Number
CL No.
Number of
A
positions dimension
Remarks
RoHS
GT9-12P-2.54DS (70) 759-0012-0-70
GT9-12P-2.54DS (75) 759-0012-0-75
GT9-15P-2.54DS (70) 759-0004-2-70
GT9-15P-2.54DS (75) 759-0004-2-75
GT9-18P-2.54DS (70) 759-0005-5-70
GT9-18P-2.54DS (75) 759-0005-5-75
GT9-25P-2.54DS (70) 759-0007-0-70
GT9-25P-2.54DS (75) 759-0007-0-75
4
GT 7
12
30.48
Flux prevention finish
15
38.10
Flux prevention finish
YES
GT 10
18
45.72
Flux prevention finish
25
63.50
Flux prevention finish
Item
Housing
Terminal
Material Finish
PBT
Color: Black
Brass Tin plating
GT 18W
Straight Type
GT 15
Connections of the Various Units
and Device Interiors
GT 8
Part Number
GT9P-12P-2.54DSA (70)
GT9P-12P-2.54DSA (75)
GT9P-12P-2.54DSA (71)
GT9P-12P-2.54DSA (72)
GT9P-16P-2.54DSA (70)
GT9P-16P-2.54DSA (75)
GT9P-16P-2.54DSA (71)
GT9P-16P-2.54DSA (72)
GT9P-19P-2.54DSA (70)
GT9P-19P-2.54DSA (75)
GT9P-19P-2.54DSA (71)
GT9P-19P-2.54DSA (72)
GT9P-25P-2.54DSA (70)
GT9P-25P-2.54DSA (75)
GT9P-25P-2.54DSA (71)
GT9P-25P-2.54DSA (72)
CL No.
759-0014-6-70
759-0014-6-75
759-0014-6-71
759-0014-6-72
759-0015-9-70
759-0015-9-75
759-0015-9-71
759-0015-9-72
759-0016-1-70
759-0016-1-75
759-0016-1-71
759-0016-1-72
759-0010-5-70
759-0010-5-75
759-0010-5-71
759-0010-5-72
Number of
A
positions dimension
Remarks
Flux prevention processing
Flux prevention processing, with locator, cost effective item
Flux prevention processing, with locator
Flux prevention processing
Flux prevention processing, with locator, cost effective item
Flux prevention processing, with locator
Flux prevention processing
Flux prevention processing, with locator, cost effective item
Flux prevention processing, with locator
Flux prevention processing
Flux prevention processing, with locator, cost effective item
Flux prevention processing, with locator
RoHS
12
16
19
25
30.48
30.48
30.48
30.48
40.64
40.64
40.64
40.64
48.26
48.26
48.26
48.26
63.50
63.50
63.50
63.50
GT 9
GT 25
YES
Item
Housing
Terminal
Material Finish
PBT
Color: Black
Brass Tin plating
205
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
GT9 Series
GT 5

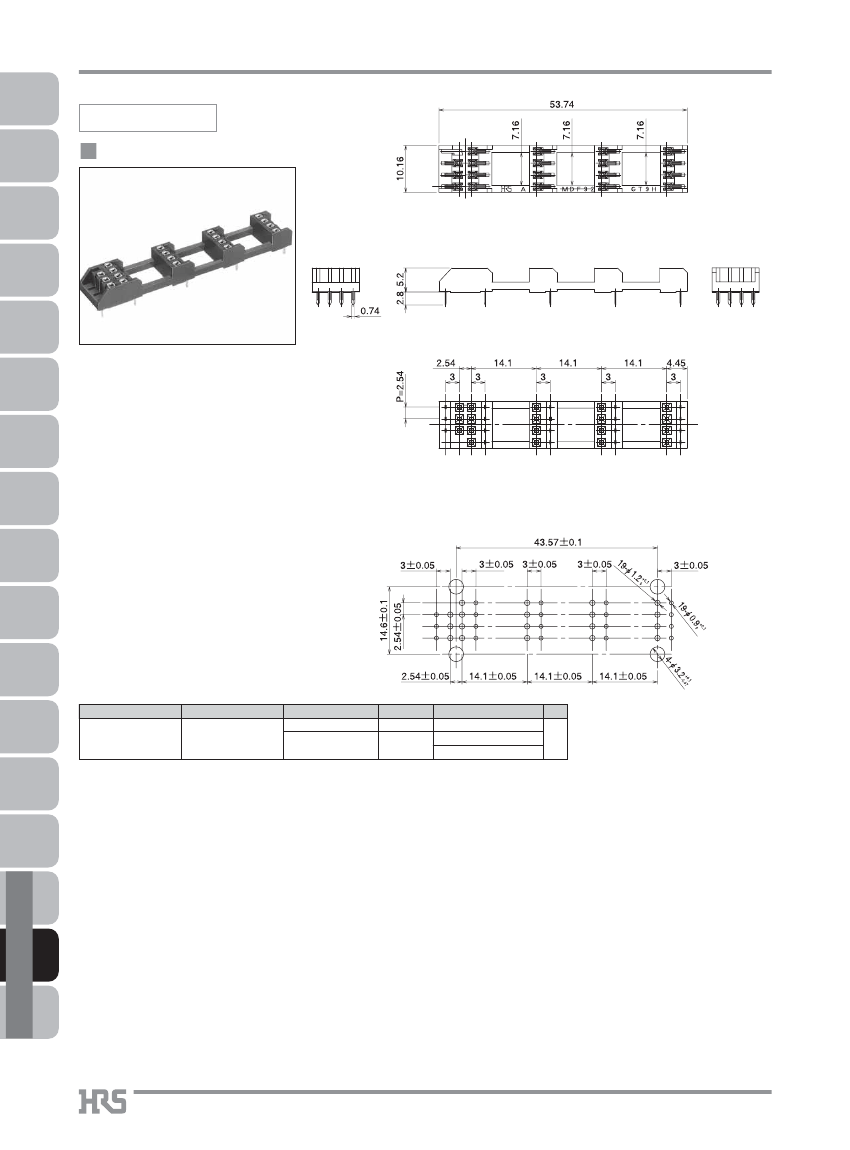

Double-Row Type
F Connectors
GT 11
PO5G
GT 16
GT 13
BRecommended
PCB Mounting Pattern
GT 14
GT 19
GT 17
GT 3
Part Number
GT9-24D-2.54DSA (70)
GT9-24D-2.54DSA (75)
GT9-24D-2.54DSA (71)
GT9-30D-2.54DSA (70)
GT9-30D-2.54DSA (75)
A
CL No.
Number of dimension
Remarks
positions
759-0003-0-70 24 30.48
759-0003-0-75 24 30.48 Flux prevention finish
Color: Natural
759-0003-0-71 24 30.48
759-0018-7-70 30 38.10
759-0018-7-75 30 38.10 Flux prevention finish
RoHS
Item
YES
Housing
Terminal
Finish
Color: Black
PA
Color: Natural
Phosphor brass Tin plating
Material
GT 6W
M Connectors
30.48
2.54
6
GT 10
GT 7
GT 18W
0.64
GT 15
8.5
10
2.54
Connections of the Various Units
and Device Interiors
GT 25
GT 9
GT 8
3

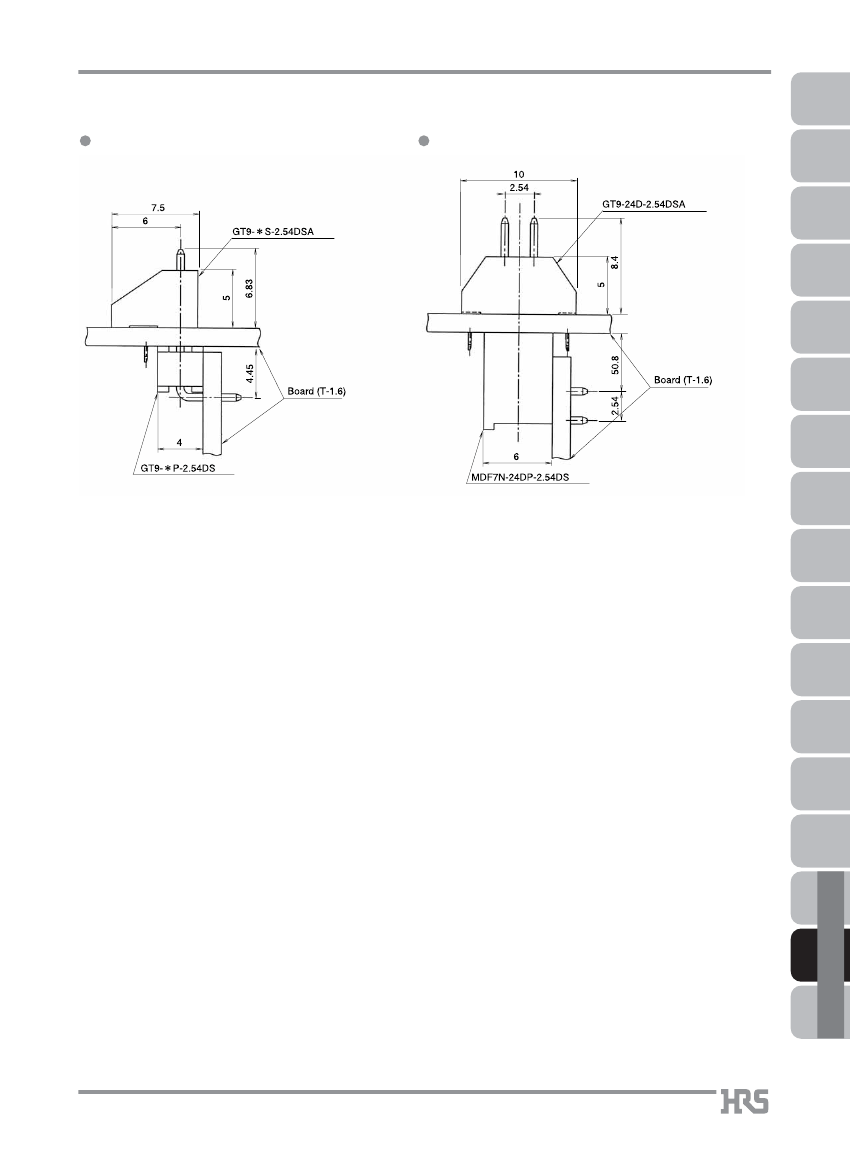

Part Number
MDF7N-24DP-2.54DS (55)
CL No.
547-0226-8-55
Item
Housing
Terminal
Material
PBT
Brass
RoHS
Finish
Color: Black
YES
Tin plating
206
