OXL/MIL50/15/YW datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> OXL/MIL50/15/YW

OXL/MIL50/15/YW: DescriptionSingle Color LED, Yellow, Diffused, T-1 3/4, 5mm, SUBMINIATURE, METAL PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size237KB，5 Pages; ManufacturerOxley Group Ltd; Websitehttps://www.oxleygroup.com; Environmental Compliance

Download Datasheet Parametric View All

OXL/MIL50/15/YW Overview

Single Color LED, Yellow, Diffused, T-1 3/4, 5mm, SUBMINIATURE, METAL PACKAGE-2

OXL/MIL50/15/YW Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Oxley Group Ltd
package instruction	SUBMINIATURE, METAL PACKAGE-2
Reach Compliance Code	compliant
color	YELLOW
color@wavelength	Yellow
Configuration	SINGLE
Maximum forward current	0.015 A
Maximum forward voltage	15 V
Lens type	DIFFUSED
Nominal luminous intensity	15.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5.5 mm
method of packing	BULK
Maximum reverse voltage	15 V
shape	CYLINDRICAL
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	1.4 mm
perspective	60 deg

Preview

Download Datasheet

View All

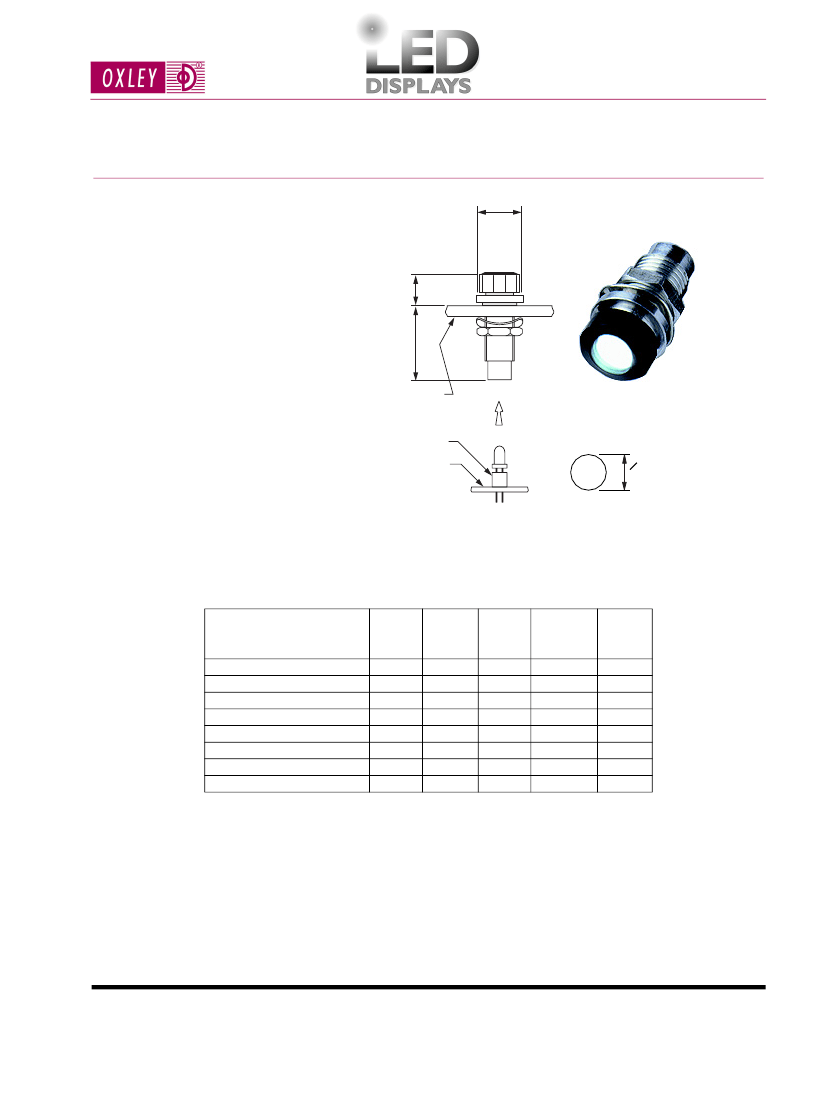

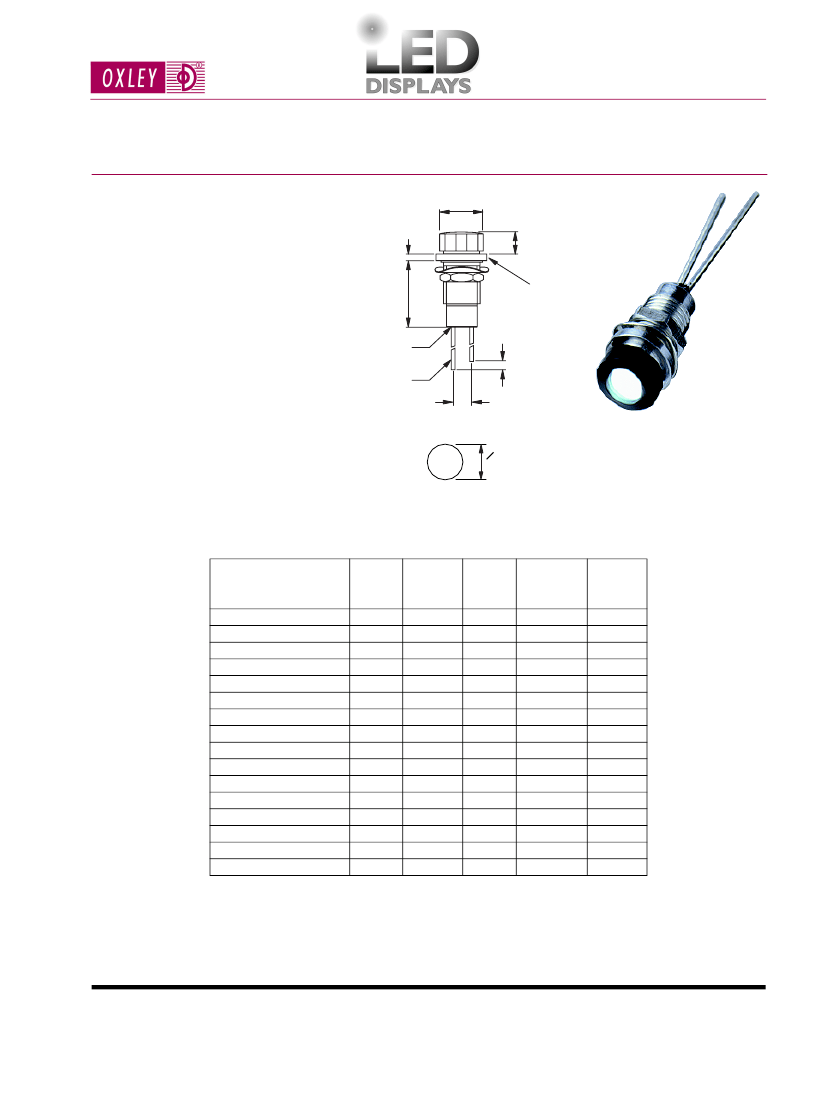

Type No. - OXL/MIL50

Sub-Miniature

Flat Lens

Features

• Rugged glass and metal

construction

• Sealed top and rear to IP67

• Ideal where panel space is

at a premium

• Black anodised bezel for

harsh environment

• Clear flat diffused lens

• 60° Viewing angle

• Operating temp -40 to 85°C

• Storage temp -55 to 100°C

11 mm

(0.433") max.

1 mm

(0.039")

6 mm

(0.236") A/F

Single Chip LED

IP67 - Ø5.0

4.5 mm

(0.177") max.

Red mark

denotes anode (+Ve)

Terminations

0.45 mm (0.018") Nom

x 12 mm (0.427") min.

1.4 mm (0.055")

Nom CRS

1.2 mm

(0.047") Typ

O5 mm

(0.197")

7.5 mm Dia

(0.295")

Mounting Hole

(OXL/MIL50/- or OXL/MIL50/SES/-)

Ordering Information and Technical Characteristics

Ordering

Information

OXL/MIL50/RD

OXL/MIL50/YW

OXL/MIL50/GN

OXL/MIL50/AlGaAsRD

OXL/MIL50/H/YW

OXL/MIL50/H/GN

OXL/MIL50/H/BE

OXL/MIL50/H/WE

OXL/MIL50/SES/RD

OXL/MIL50/SES/YW

OXL/MIL50/SES/GN

OXL/MIL50/SES/H/YW

OXL/MIL50/SES/H/GN

OXL/MIL50/SES/H/BE

OXL/MIL50/SES/H/WE

Colour

Red

Yellow

Green

Red

Yellow

Green

Blue

White

Red

Yellow

Green

Yellow

Green

Blue

White

Luminous Reverse

Forward

Current

Intensity

Voltage

(mA)

(mcd)

(V)

2.2

1.9

2.2

3.6

2.2

1.9

2.2

3.6

1200

1000

1250

1200

1000

1200

1000

1250

1200

1000

OXL/MIL50/SES/H/AlGaAsRD Red

Mean time before failure 90,000 hrs

1) For Night Vision Goggle compatible options please add

RAF/NVG

to the end of the order information.

e.g. OXL/MIL50/RAF/NVG plus 10 - Green, 20 - Yellow or 30 - Red (RAF denotes sunlight readability)

2) Flying lead terminations available on request.

www.oxleygroup.com/lamps

ODCSM40565/2/2005

Oxley Group Australia Pty Ltd

Email:

sales@oxleygroup.com

Tel +61 (0) 2 9967 9488

Oxley Inc.

Email:

sales@oxleyinc.com

Tel: +1 (203) 488 1033

Oxley Developments Company Ltd

Email:

sales@oxley.co.uk

Tel: +44 (0)1229 840609
