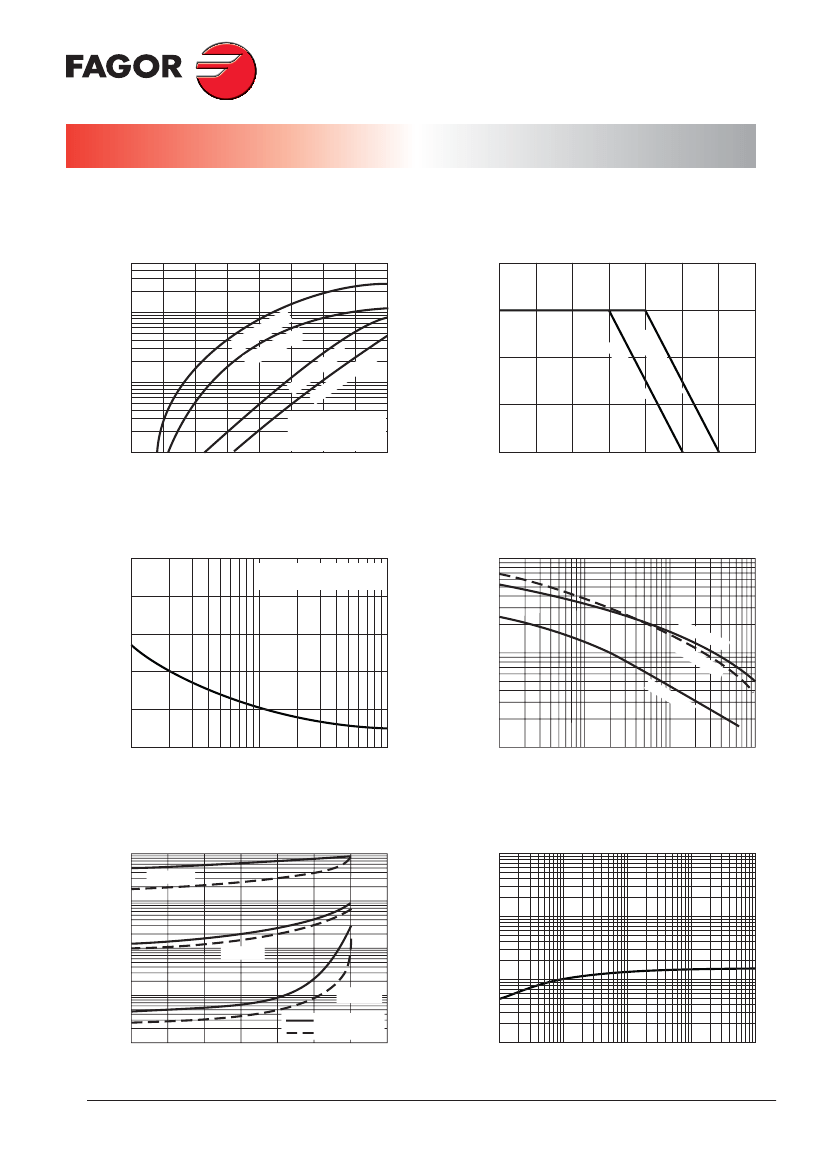

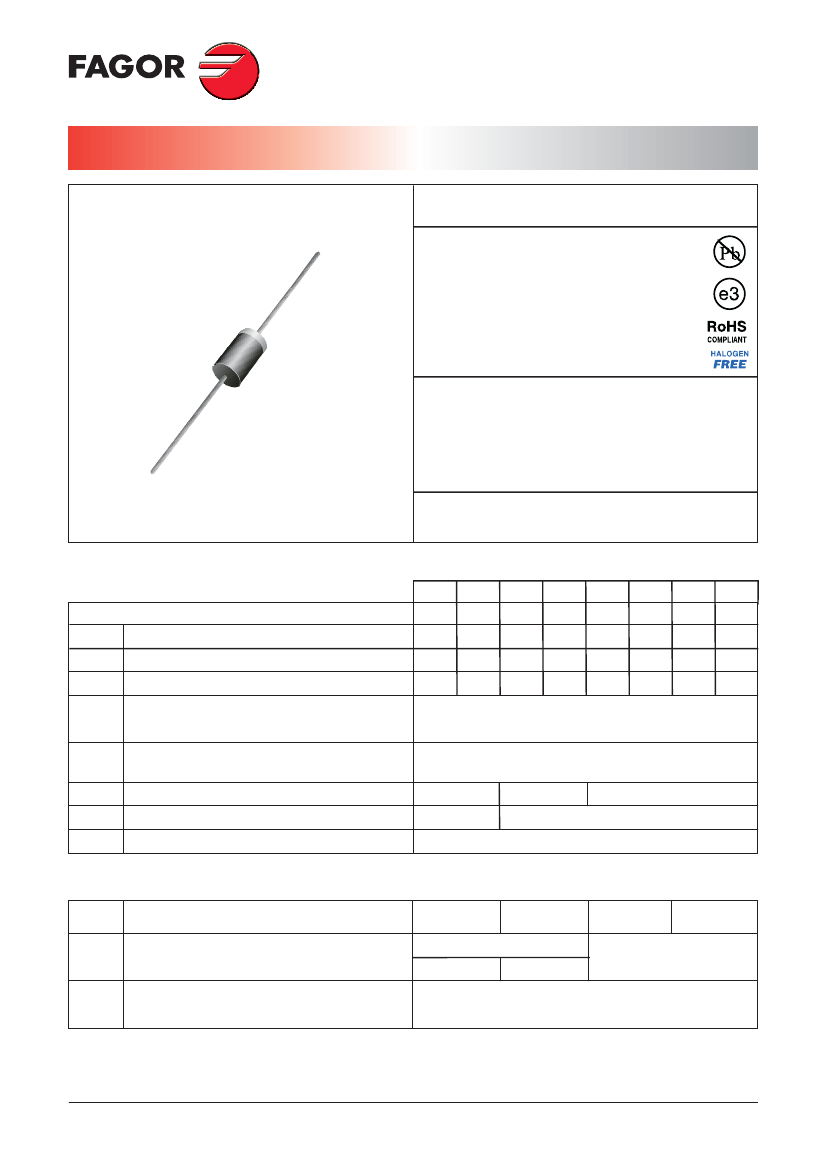

SB320 - SB3200
3.0 Amp. Schottky Barrier Rectifier
Voltage
20 V to 200 V
Current
3.0 A
DO-201AD (DO-27)
FEATURES
Low power losses, high efficiency
High surge current capability
High frequency operation
Guarding for overvoltage protection
Low forward voltage drop
Solder dip 260ºC, 10s
Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
MECHANICAL DATA
Case
:
DO-201AD (DO-27). Epoxy meets UL 94V-0
flammability rating.
Polarity
:
Color band denotes cathode end.
Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test
TYPICAL APPLICATIONS
Used in low voltage high frequency inverters, freewheeling,
dc-to-dc converters, and polarity protection applications.
Maximum Ratings and Electrical Characteristics at 25 ºC
SB320 SB340 SB350 SB360 SB390 SB3100 SB3150 SB3200
Marking Code
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
C
j
T
j
T
stg
Maximum Recurrent Peak Reverse Voltage (V)
Maximum RMS Voltage (V)
Maximum DC Blocking Voltage (V)
Maximum Average Forward Rectified Current
(See graphic)
8.3 ms.Peak Forward Surge Current
(Jedec Method)
SB320 SB340 SB350 SB360 SB390 SB3100 SB3150 SB3200
20
14
20
40
28
40
50
35
50
60
42
60
3.0 A
80 A
90
63
90
100
70
100
150
105
150
200
140
200
Typical Junction Capacitance
Storage Temperature Range
(Note 2)
200 pF
-65 to +125 °C
130 pF
-65 to +150 °C
90 pF
-65 to +150 °C
Operating Temperature Range
Electrical Characteristics at Tamb = 25 °C
V
F
I
R
R
th (j-a)
R
th (j-c)
Maximum Instantaneous Forward Voltage
(Note 1)
I
F
= 3.0 A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Typical Thermal Resistance
Tj = 25 °C
Tj =125°C
(Note 2)
(Note 3)
0.55 V
0.5 mA
10 mA
0.70 V
5 mA
50 °C/W
15 °C/W
0.85 V
0.1 mA
2.0 mA
0.95 V
Notes: 1. Pulse Test: 300µ Pulse Width, 1% Duty Cycle
2. Thermal Resistance from Junction to Case per diode
3. Pulse test: Pulse width
£
40ms
www.fagorelectronica.com
Document Name: sb3
Version: May-12
Page Number: 1/4
SB320 - SB3200
3.0 Amp. Schottky Barrier Rectifier
Ordering information
PREFERRED P/N
SB360 AMP
SB360 TR
SB360 HF AMP
SB360 HF TR
PACKAGE CODE
AMP
TR
AMP
TR
DELIVERY MODE
AMMO BOX
13" diameter tape and reel
AMMO BOX
13" diameter tape and reel
BASE QUANTITY
800
1,200
800
1,200
UNIT WEIGHT (g)
1.100
1.100
1.100
1.100
Package Outline Dimensions: (mm)
DO-201AD (DO-27)
ø1.27
±0.05
9
±0.5
62.5
±0.1
www.fagorelectronica.com
Document Name: sb3
ø5.3
±0.3
Version: May-12
Page Number: 2/4
SB320 - SB3200
3.0 Amp. Schottky Barrier Rectifier
Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)
I
F
, instantaneous forward current (A)
TYPICAL FORWARD CHARACTERISTIC
MAXIMUM FORWARD CURRENT DERATING
CURVE
I
F(AV)
, average forward Current (A)
50
4
10
3
SB
-S
20
3
SB
4
B3
0
60
00
31
B
3
3
SB
SB
3
SB
50-
1
00
32
S
B
0-
-S
39
50
31
SB
SB
2
50
32
-SB
00
40
32
0-S
B3
0.1
0.2
T
j
= 25 °C
Pulse Width = 300µs
1% Duty Cycle
1
0
0.3
0.4
V
F
, forward voltage (V)
0.5
0.6
0.7
0.8
0.9
1.0
0
25
Lead temperature (°C)
50
75
100
125
150
175
I
FSM
, peak forward surge current (A)
MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
TYPICAL JUNCTION CAPACITANCE
Cj, junction capacitance (pF)
150
120
90
60
30
0
8.3ms Single Half Sine Wave
JEDEC Method
1000
600
400
200
100
60
40
20
10
0.1
0.4
1
4
10
SB
39
0-S
SB
SB
320
-
35
0-S
SB
340
B3
60
B3
20
0
1
2
Number of cycles at 60 Hz
4
6
10
20
40 60
100
V
R
, reverse voltage (V)
40
100
10
Transient thermal impedance (°C/W)
TYPICAL REVERSE CHARACTERISTIC
TYPICAL TRANSIENT THERMAL
CHARACTERISTIC
100
I
R
, Reverse current (mA)
T
j
= 125 °C
1
0.1
10
T
j
= 75 °C
1
0.01
0.001
T
j
= 25 °C
SB320-SB340
SB350-SB3200
0
20
40
60
80
100
120
140
Percent of rated peak reverse voltage (%)
www.fagorelectronica.com
Document Name: sb3
0.1
0.01
0.1
t, Pulse duration (sec)
1
10
100
Version: May-12
Page Number: 3/4
SB320 - SB3200
3.0 Amp. Schottky Barrier Rectifier
