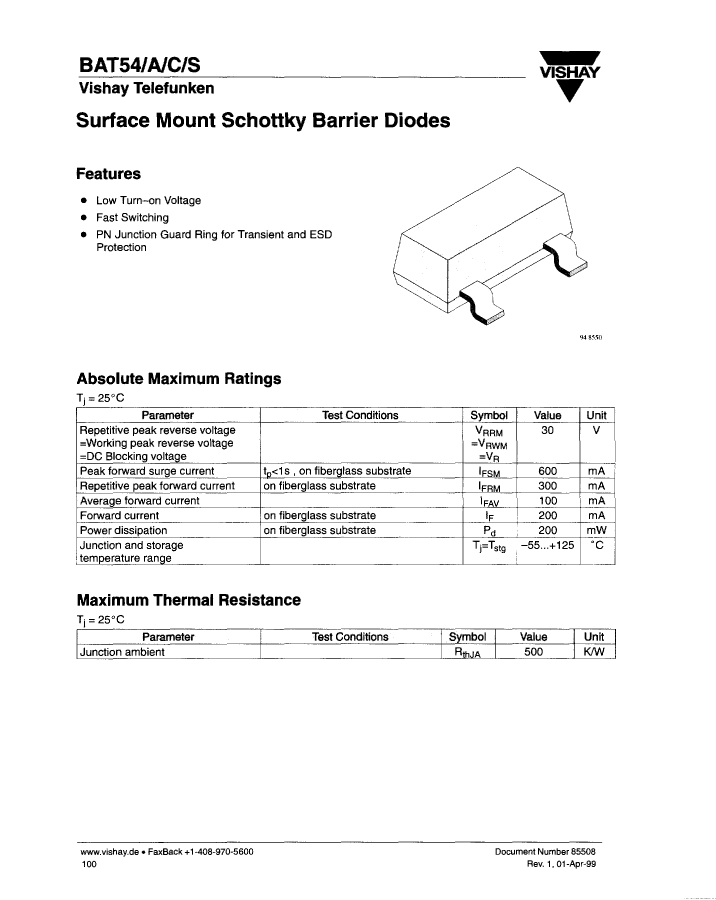

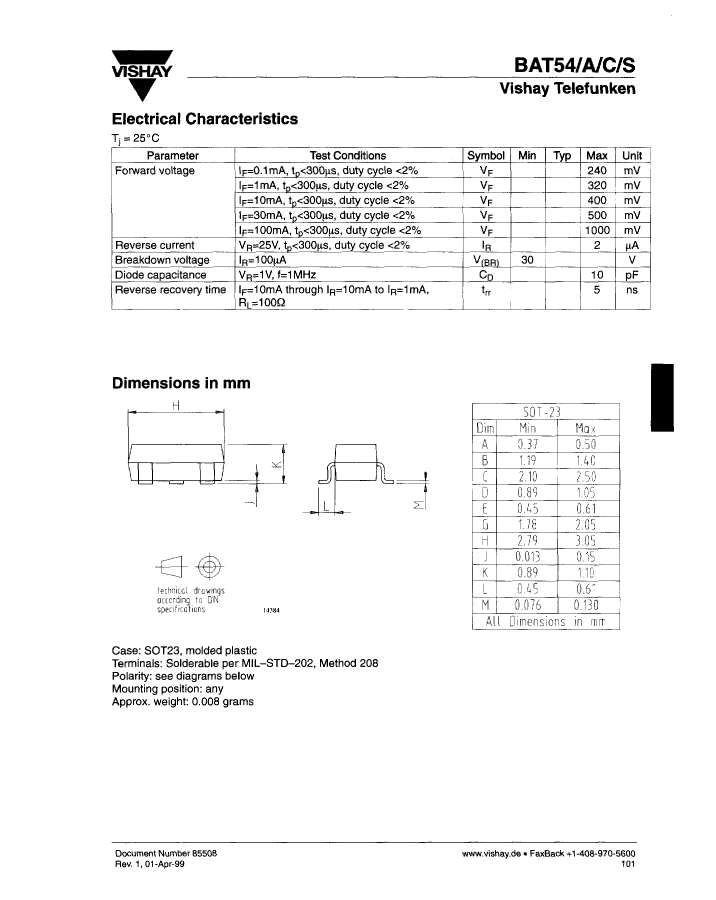

BAT54A-13

Description
Rectifier Diode, Schottky, 2 Element, 0.1A, 30V V(RRM), Silicon,
CategoryDiscrete semiconductor    diode
File Size209KB,12 Pages
ManufacturerVishay
Websitehttp://www.vishay.com

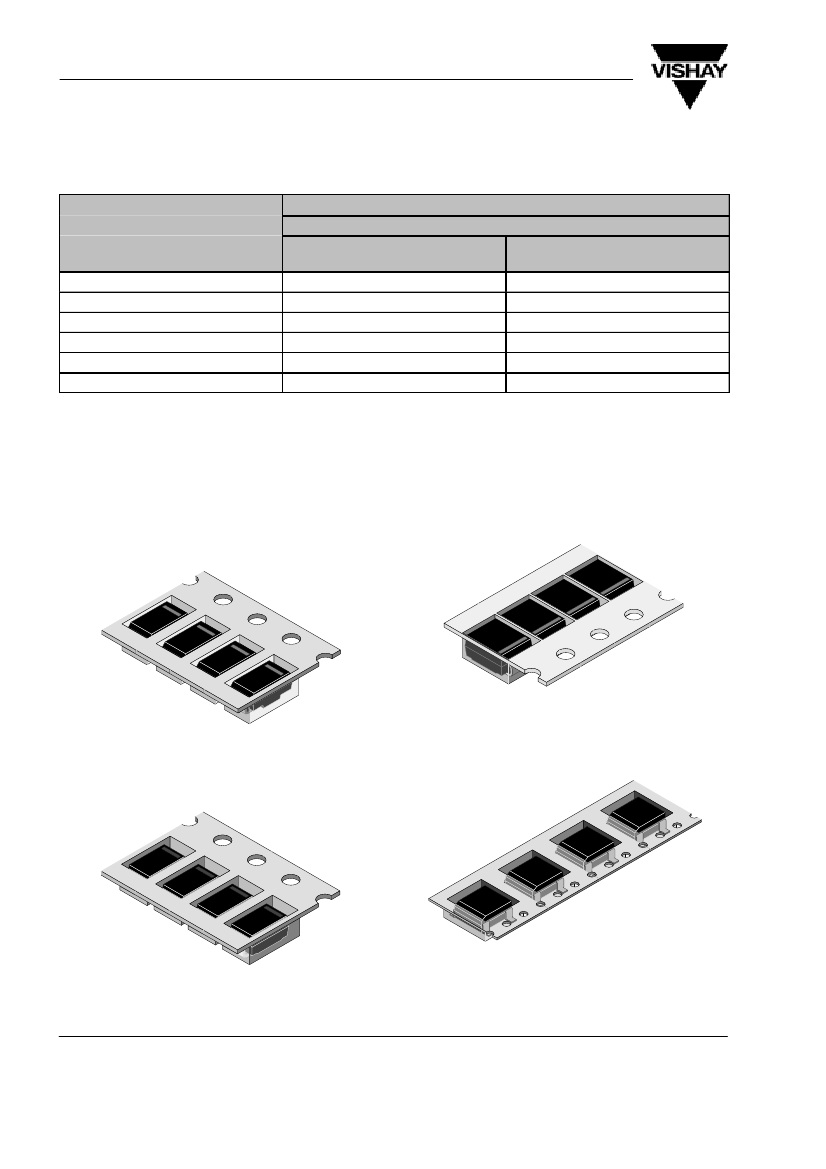

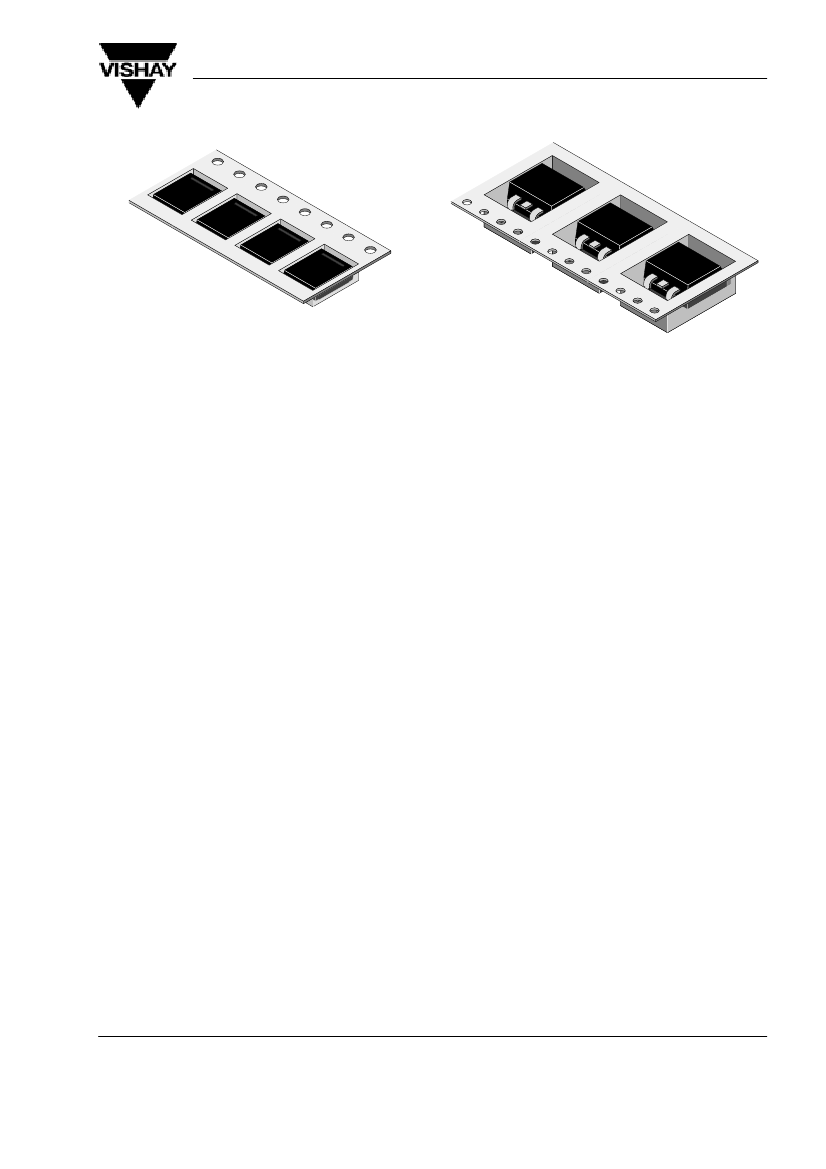

Download Datasheet Parametric View All

BAT54A-13 Overview

Rectifier Diode, Schottky, 2 Element, 0.1A, 30V V(RRM), Silicon,

BAT54A-13 Parametric

Parameter NameAttribute value
MakerVishay
package instructionR-PDSO-G3
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationCOMMON ANODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeR-PDSO-G3
Number of components2
Number of terminals3
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Maximum output current0.1 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum power dissipation0.2 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage30 V
Maximum reverse recovery time0.005 µs
surface mountYES
technologySCHOTTKY
Terminal formGULL WING
Terminal locationDUAL
