MSM2764A-15AS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MSM2764A-15AS

MSM2764A-15AS: DescriptionUVPROM, 8KX8, 150ns, NMOS, CDIP28, 0.600 INCH, WINDOWED, CERDIP-28; Categorystorage storage; File Size131KB，7 Pages; ManufacturerOKI; Websitehttp://www.oki.com

Download Datasheet Parametric Compare View All

MSM2764A-15AS Overview

UVPROM, 8KX8, 150ns, NMOS, CDIP28, 0.600 INCH, WINDOWED, CERDIP-28

MSM2764A-15AS Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	WDIP,
Contacts	28
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	150 ns
JESD-30 code	R-GDIP-T28
memory density	65536 bi
Memory IC Type	UVPROM
memory width	8
Number of functions	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX8
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	WDIP
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.1 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

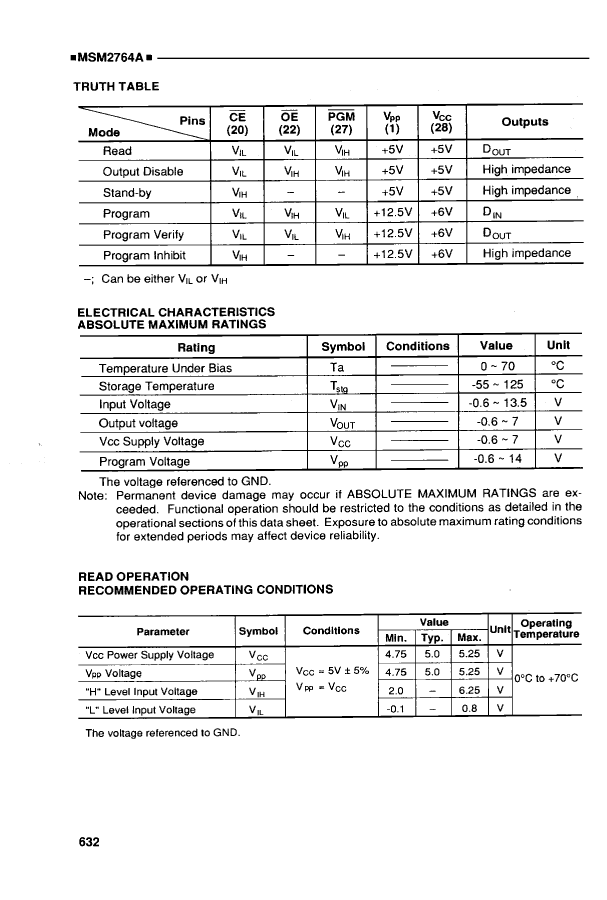

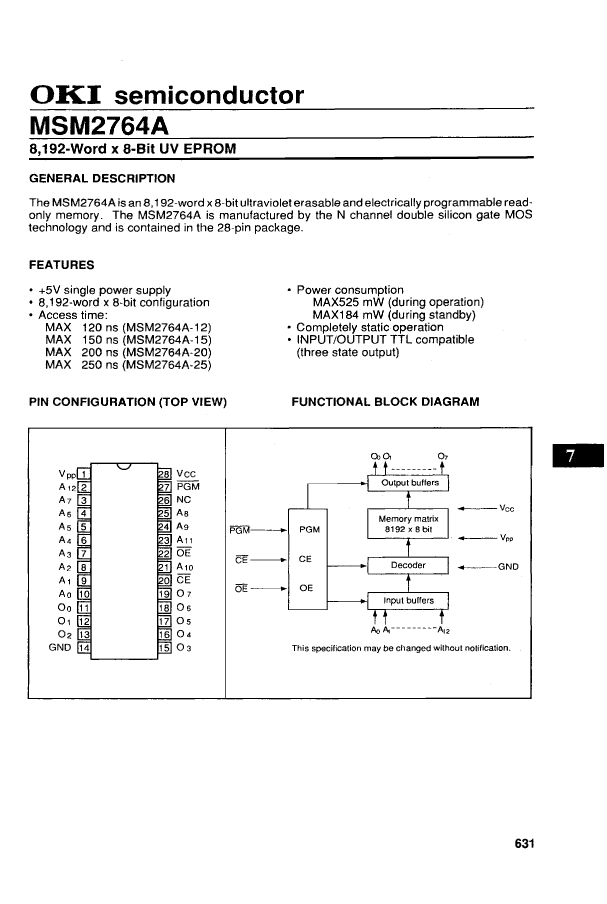

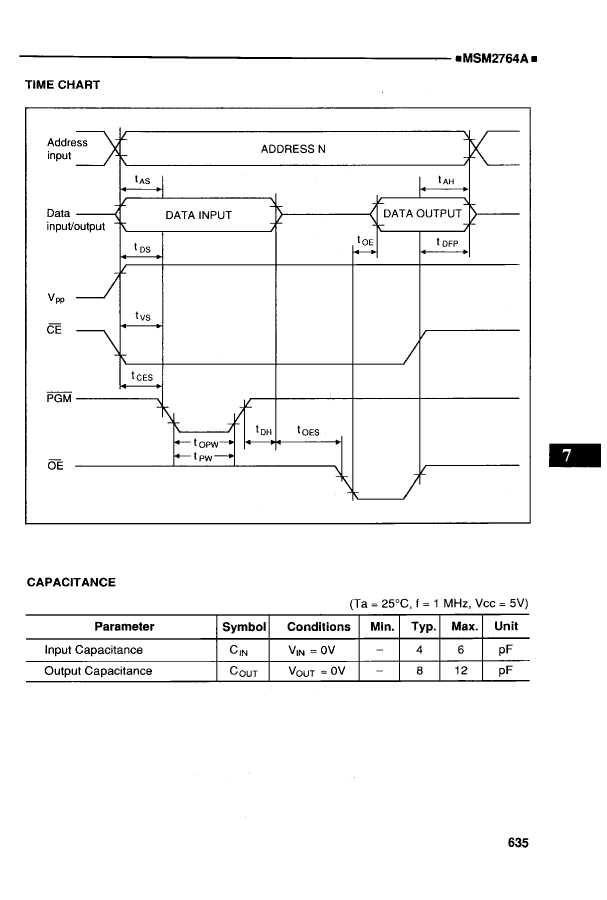

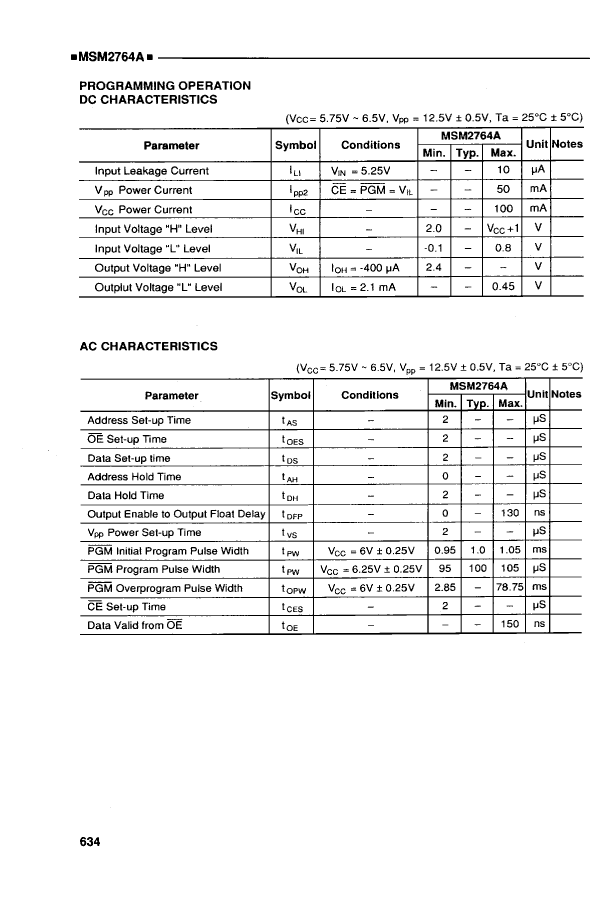

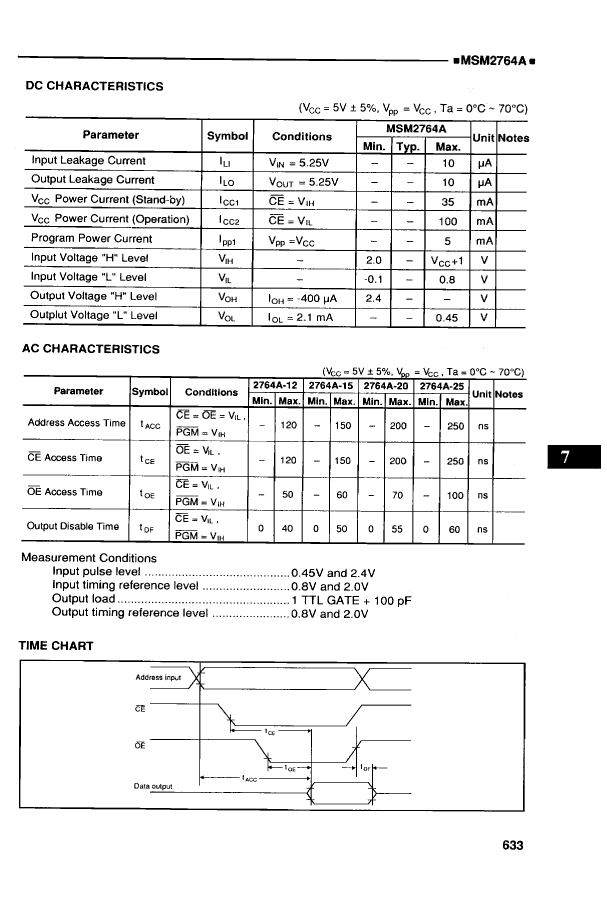

Preview

Download Datasheet

View All

MSM2764A-15AS Related Products

	MSM2764A-15AS	MSM2764A-12AS	MSM2764A-25AS	MSM2764A-20AS
Description	UVPROM, 8KX8, 150ns, NMOS, CDIP28, 0.600 INCH, WINDOWED, CERDIP-28	UVPROM, 8KX8, 120ns, NMOS, CDIP28, 0.600 INCH, WINDOWED, CERDIP-28	UVPROM, 8KX8, 25ns, NMOS, CDIP28, 0.600 INCH, WINDOWED, CERDIP-28	UVPROM, 8KX8, 200ns, NMOS, CDIP28, 0.600 INCH, WINDOWED, CERDIP-28
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	WDIP,	WDIP,	WDIP,	WDIP,
Contacts	28	28	28	28
Reach Compliance Code	unknow	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	150 ns	120 ns	25 ns	200 ns
JESD-30 code	R-GDIP-T28	R-GDIP-T28	R-GDIP-T28	R-GDIP-T28
memory density	65536 bi	65536 bi	65536 bit	65536 bit
Memory IC Type	UVPROM	UVPROM	UVPROM	UVPROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	28	28	28	28
word count	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	8KX8	8KX8	8KX8	8KX8
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	WDIP	WDIP	WDIP	WDIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.1 mm	5.1 mm	5.1 mm	5.1 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	NMOS	NMOS	NMOS	NMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm
