H Series Crystal
3.5mm x 6 mm x1.2mm
Ceramic Package
Tight Tolerance and Stability
Wide Frequency Range
Tape and Reel Packaging Available
Frequency Range
Frequency Tolerance / Stability
Operating Temperature Range
Storage Temperature
Aging
Shunt Capacitance
Load Capacitance
Equivalent Series Resistance
Mode of Operation
Drive Level
Insulation Resistance
8.000MHZ to 100.000MHZ
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-40°C to +85°C
±5ppm per year max
7pF max
20pF Standard
(See Part Number Guide for Options)
See ESR Chart
Fundamental <40 MHZ/ 3
rd
OT 40 >MHZ
100µW max
500 M ohms min at 100VDC ±15VDC
Environmental & Mechanical Detail
Shock
Solderability
Solvent Resistance
Vibration
Gross Leak Test
Fine Leak Test
MSL
MIL-STD-883, Method 2002 Cond B
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
MIL-STD-883, Method 2007, Cond A
MIL-STD-883, Method 1014, Cond C
MIL-STD-883, Method 1014, Cond A2
Level 1 per IPC/JEDEC J-STD 20
Marking Detail
Line 1: MXX.XXX
XX.XXX = Frequency in MHz
Line 2: SYMCCL
S = Internal Code
YM = Numerical Date Code (Year/
CC = Crystal Parameters Code
L = Denotes RoHS Compliant
MMD MONITOR/QUARTZEK – An ILSI Company,
5458 Louie Lane, Reno, NV 89511
Phone: (775) 851-8880,
www.mmdcomp.com
Revision:
Specifications are subject to change without notice.
07/10/13 J
Pg 1

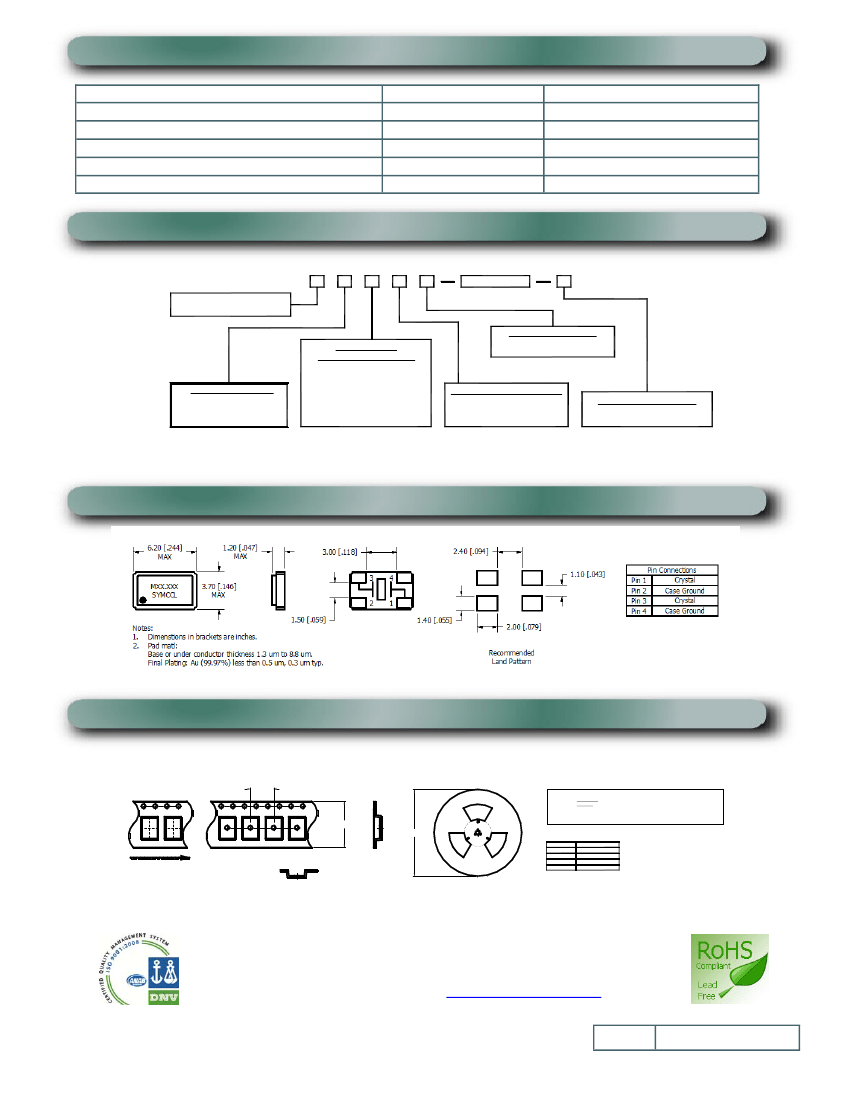

ESR Chart
Frequency Range
8.000MHZ to 10.999MHZ
11.000MHZ to 11.999MHZ
12.000MHZ to 15.999MHZ
16.000MHZ to 39.999MHZ
40.000MHZ to100.000MHZ
ESR (Ohms)
100 max
80 max
60 max
40 max
70 max
Mode / Cut
Fund / AT
Fund / AT
Fund / AT
Fund / AT
3
rd
OT/ AT
Part Number Guide
H
6 m m X 3 .5 m m x 1 .2 m m
4 Pads
M o d e o f O p e ra tio n
1 = Fu n d am e n tal
3 = 3rd O ve rto n e
F re q u e n cy
L o a d C a p a cita n ce
S = S eries
2 0 = 2 0 pF (S tan d ard )
X X = XX pF (8 p F to 5 0 pF)
A
B
C
D
E
N
T e m p e ra tu re
T o le ra n ce / S ta b ility *
= ± 5 0 pp m / ± 1 0 0 pp m
= ± 3 0 p pm / ± 5 0 p pm
= ± 1 5 p pm / ± 3 0 p pm
= ± 1 0 p pm / ± 1 5 p pm
= ± 5 0 p pm / ± 5 0 p pm
= ± 1 0 p pm / ± 1 0 p pm
O p e ra tin g T e m p e ra tu re
A = 0 °C to + 7 0°C
B = -2 0 °C to + 7 0 °C
C = -4 0 °C to + 8 5 °C * *
V a lu e A d d e d O p tio n s
B lan k = N o A dd ed O p tion s
T = T ap e and R eel
* P le ase con su lt w ith M M D sale s d ep artm e n t for an y o th e r param eters or o ption s.
* * N o t all Freq u e n cy T o leran ce/S tab ility op tion s available at th is te m peratu re ran g e.
Mechanical Details
Tape & Reel
PITCH
Q1 Q2
Q3 Q4
Q1 Q2
Q3 Q4
TAPE WIDTH
REEL DIA
NOTES: UNLESS OTHERWISE SPECIFIED
1. Applicable Standards / Specifications
ANSI Y14.5M, Dimensions and Tolerances
EIA-481-B, 8 mm through 200mm Embossed Carrier Taping and 8 mm and 12 mm
Punched Carrier Taping of Surface Mount Components for Automatic Handling.
2. Dimensions are in millimeters.
3. Tolerances are ±0.10 [.004] mm unless otherwise specified.
4. Do not scale drawing.
PITCH
TAPE WIDTH
REEL DIA
QTY PER REEL
DIRECTION OF FEED
PIN 1 ORIENT.
8.00 [.315]
16.00 [.630]
180[7 IN]
1000
Q1
MMD MONITOR/QUARTZEK – An ILSI Company,
5458 Louie Lane, Reno, NV 89511
Phone: (775) 851-8880,
www.mmdcomp.com
Revision:
Specifications are subject to change without notice.
07/10/13 J
Pg 2
