230-010

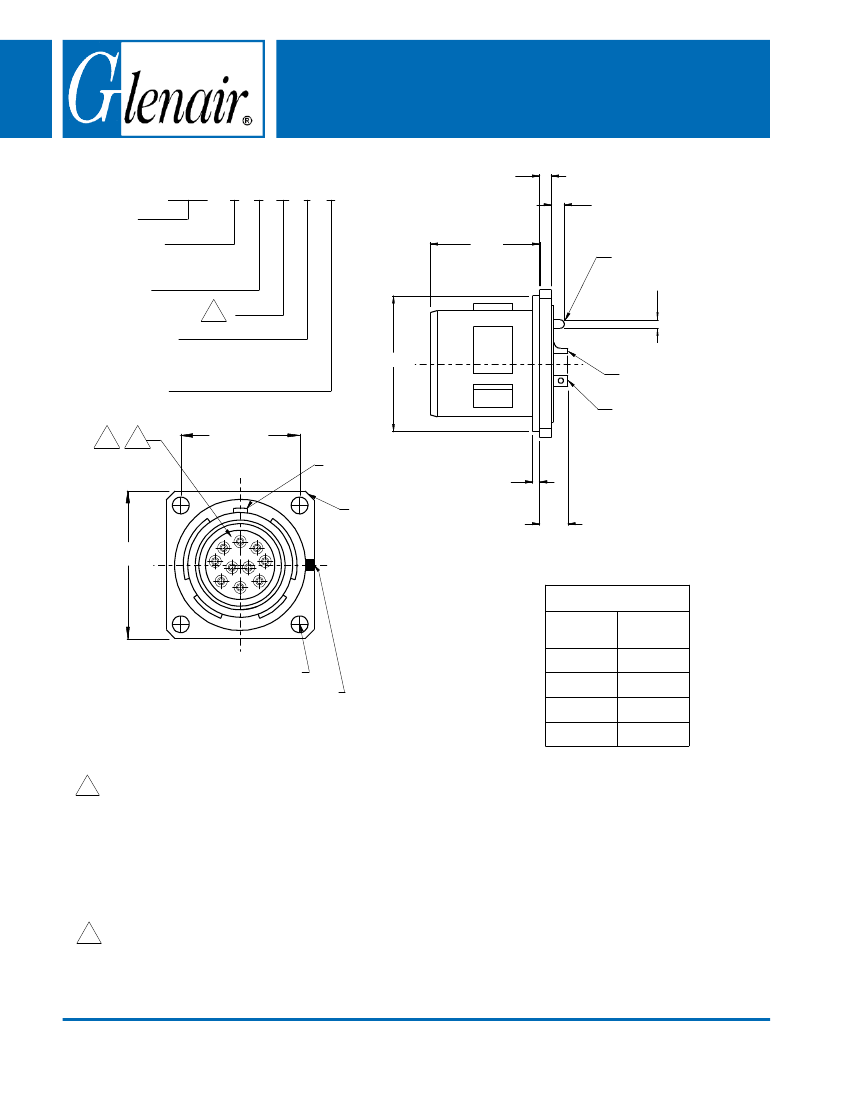

CONNECTOR, HERMETIC,
Hermetic Receptacle, Flange Mount
BOX MOUNT
MIL-DTL-38999 Series IV
RECEPTACLE, SERIES IV
HOW TO ORDER:
EXAMPLE:
BASIC NO
MAT'L & FINISH
P = CRES, NICKEL FINISH
Z1 = CRES, PASSIVATED
SHELL SIZE
INSERT ARRANGEMENT 2
CONTACT STYLE:
P = PIN, SOLDER CUP
X = PIN, EYELET
C = PIN, FEED THROUGH
POLARIZATION
A,B,C,D,K (N = NORMAL)
5
2
4X B BSC
MASTER KEY(BLUE)
.035
.007
.421
MAX
.819
.756
230-010
P
11 - 35
P
N
.175/.125
.098
MAX
230-010
MIL-DTL-38999
A SQ
H
G
F
A
K J C
D
E
B
NOTES:
© 2004 Glenair, Inc.
www.glenair.com
FEED THROUGH
CONTACT (C)
L (SEE TABLE III)
C
SOLDER CUP
CONTACT (P)
EYELET
CONTACT (X)
4X CHAMFERED
OR ROUNDED
TABLE III: CONTACT
SIZE
CONTACT
SIZE
22D
20
16
12
ø L
.011 (0.3)
.015 (0.4)
.024 (0.6)
.028 (0.7)
.0635 (1.6)
.0615 (1.6)
.095 (2.4)
.093 (2.4)
4 X D HOLES
FULL-MATE INDICATOR (BLUE)
1. ASSEMBLY IDENTIFIED WITH GLENAIR'S NAME, PART NO
AND DATE CODE
2 INSERT ARRANGEMENTS IN ACCORDANCE WITH MIL-STD-1560, SEE TABLE II.
3. GLENAIR 230-010 RECEPTACLE CONNECTOR IS DESIGNED TO
MATE WITH ANY QPL MANUFACTURER'S MIL-C-38999 SERIES IV
PLUG CONNECTOR HAVING THE SAME INSERT ARRANGEMENT AND POLARIZATION.
4. MATERIAL/FINISH:
SHELL - CRES/PASSIVATED OR CRES/NICKEL PLATED PER QQ-N-290.
CONTACTS - NICKEL IRON ALLOY 52/GOLD PLATED
INSULATOR - FUSED VITREOUS GLASS/N.A.
SEALS - FLUOROSILICONE RUBBER/N.A.
5 INSERT ARRANGEMENT SHOWN FOR REFERENCE ONLY.
6. GLENAIR'S 230-010 SAME AS D38999/41.
7. 10
-7
cm
3
He/sec@ 1 ATMOSPHERE DIFFERENTIAL
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
B-74
