TDA8706PN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> TDA8706PN

TDA8706PN: DescriptionIC 3-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, PDIP20, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size188KB，10 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

TDA8706PN Overview

IC 3-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, PDIP20, Analog to Digital Converter

TDA8706PN Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DIP
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Converter type	ADC, FLASH METHOD
JESD-30 code	R-PDIP-T20
length	26.73 mm
Maximum linear error (EL)	1.1719%
Number of analog input channels	3
Number of digits	6
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY
Output format	PARALLEL, 6 BITS
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.2 mm
Maximum slew rate	39 mA
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

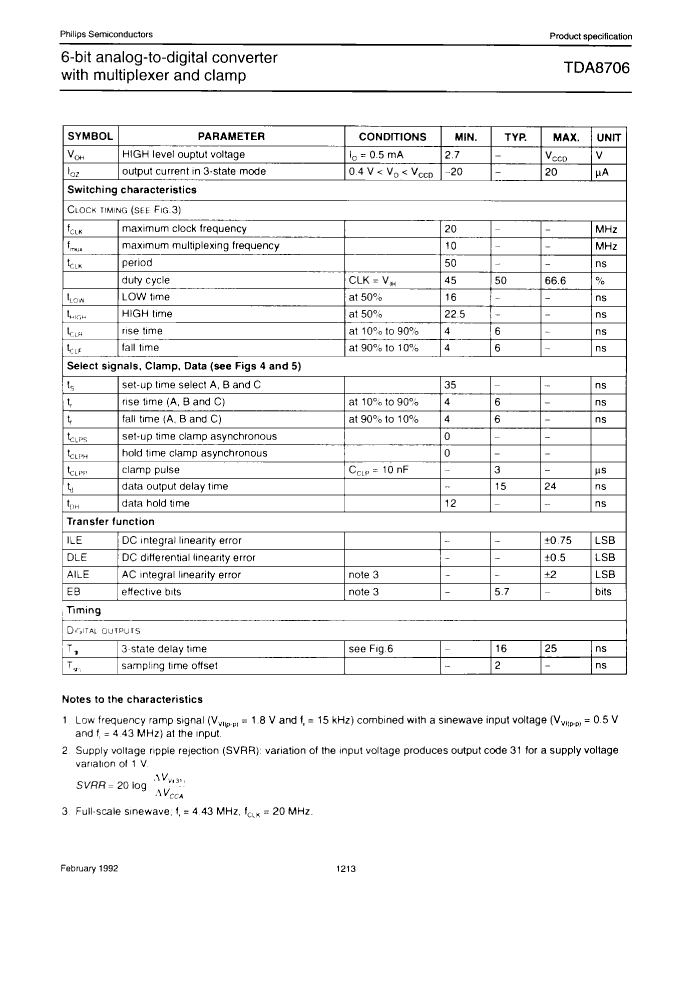

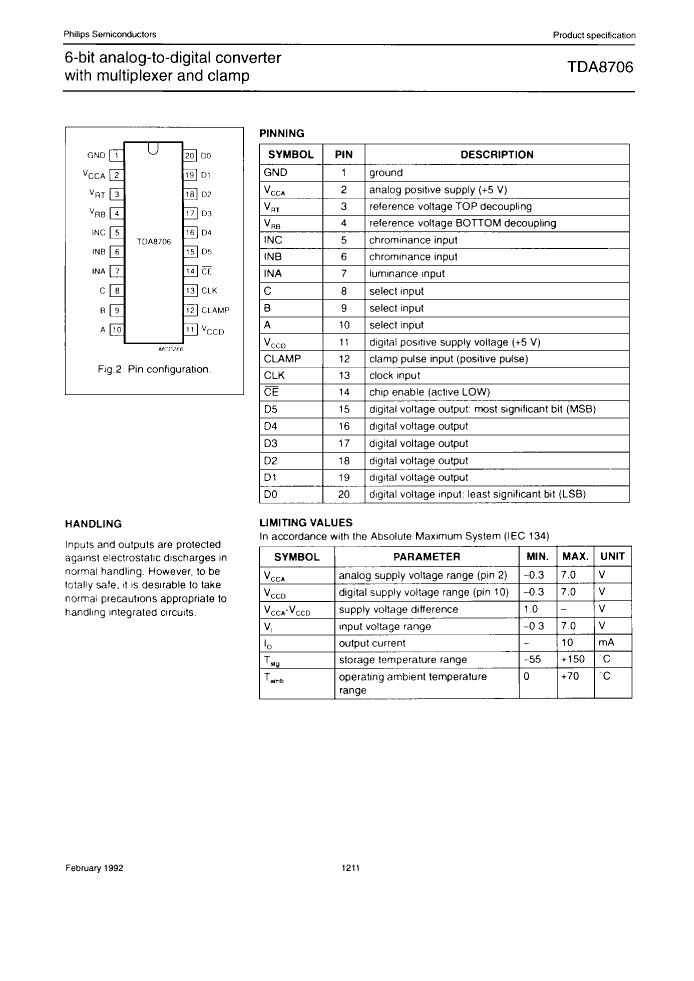

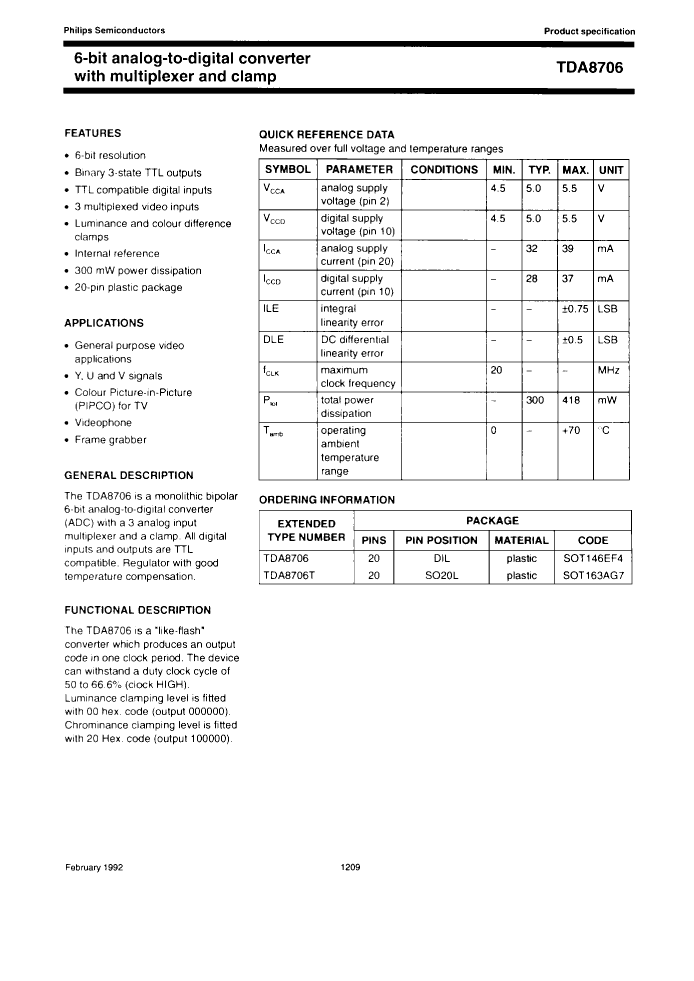

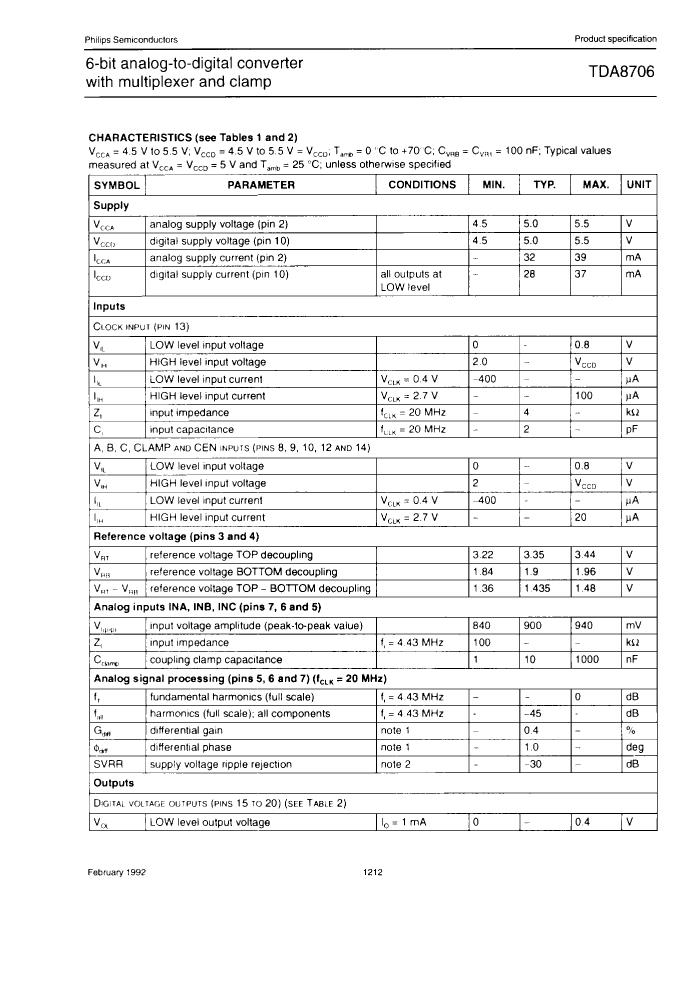

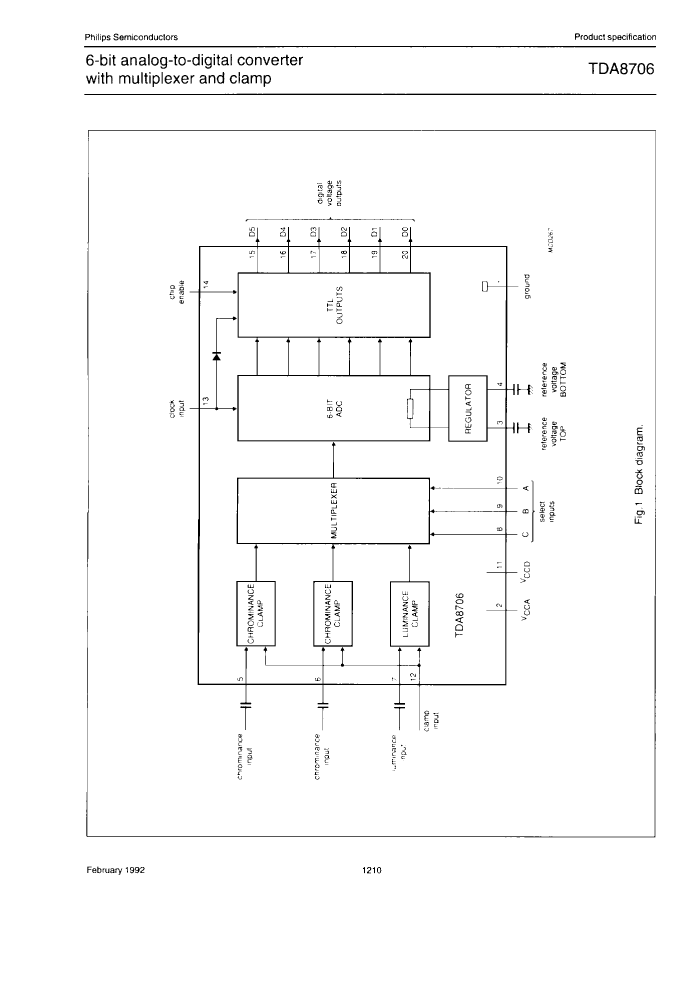

Preview

Download Datasheet

View All

TDA8706PN Related Products

	TDA8706PN	TDA8706TD	TDA8706TD-T	TDA8706P	TDA8706T-T
Description	IC 3-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, PDIP20, Analog to Digital Converter	IC 3-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, PDSO20, Analog to Digital Converter	IC 3-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, PDSO20, Analog to Digital Converter	IC 3-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, PDIP20, Analog to Digital Converter	IC 3-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, PDSO20, Analog to Digital Converter
Maker	NXP	NXP	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	R-PDIP-T20	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20
length	26.73 mm	12.8 mm	12.8 mm	26.73 mm	12.8 mm
Maximum linear error (EL)	1.1719%	1.1719%	1.1719%	1.1719%	1.1719%
Number of analog input channels	3	3	3	3	3
Number of digits	6	6	6	6	6
Number of functions	1	1	1	1	1
Number of terminals	20	20	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Output bit code	BINARY	BINARY	BINARY	BINARY	BINARY
Output format	PARALLEL, 6 BITS	PARALLEL, 6 BITS	PARALLEL, 6 BITS	PARALLEL, 6 BITS	PARALLEL, WORD
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.2 mm	2.65 mm	2.65 mm	4.2 mm	2.65 mm
Maximum slew rate	39 mA	39 mA	39 mA	39 mA	39 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.5 mm	7.5 mm	7.62 mm	7.5 mm
package instruction	-	SOP,	SOP,	DIP,	SOP,
Base Number Matches	-	1	1	1	1
