8535MP: DescriptionInside DC Block, 0.016MHz Min, 50000MHz Max, 2dB Insertion Loss-Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size37KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

8535MP Overview

Inside DC Block, 0.016MHz Min, 50000MHz Max, 2dB Insertion Loss-Max,

8535MP Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum insertion loss	2 dB
JESD-609 code	e4
Maximum operating frequency	50000 MHz
Minimum operating frequency	0.016 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	GOLD
Maximum voltage standing wave ratio	2

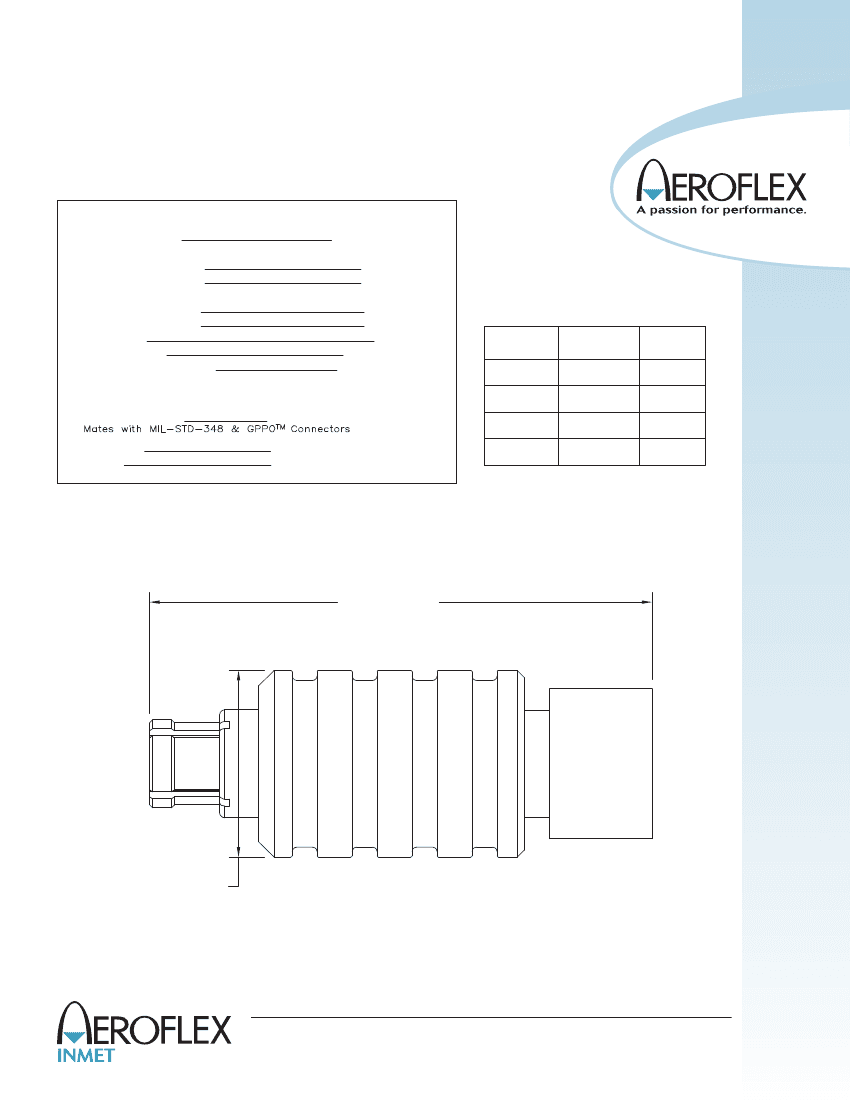

8535MP Preview

DC BLOCKS

SMPM, 16 kHz - 50 GHz,

SPECIFICATIONS:

Models: 8535MP

Electrical:

Frequency Range

VSWR

10 MHz - 40 GHz

40 GHz - 50 GHz

Insertion Loss

10 MHz - 40 GHz

40 GHz - 50 GHz

Impedance

Voltage Rating

Operating Temp. Range

16 KHz - 50 GHz

1.50:1 Max.

2.00:1 Max.

1.50 dB Max.

2.00 dB Max.

50 Ohms

10 Volts Max.

-65°C to +125°C

Typical Low Frequency Performance

Frequency

Range

1 kHz

16 kHz

Gold Plated Beryllium Copper

GPPO

TM

Insertion

Loss

24dB

3dB

0.5dB

0.1dB

VSWR

-

6:1

2:1

1.35:1

Mechanical:

SMPM Connectors

Conductors

Housing

50 kHz

110 kHz

is a Trademark of Corning-Gilbert, Inc.

Model Number:

8535MP

.503±.020

[12.77±0.51]

Ø.187±.010

[4.75±0.25]

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

8535MP: REV B

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

8535MP Related Products

	8535MP
Description	Inside DC Block, 0.016MHz Min, 50000MHz Max, 2dB Insertion Loss-Max,
Maker	API Technologies
Reach Compliance Code	compliant
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum insertion loss	2 dB
JESD-609 code	e4
Maximum operating frequency	50000 MHz
Minimum operating frequency	0.016 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	GOLD
Maximum voltage standing wave ratio	2
