Surface Mount LVCMOS
Clock Oscillator Series
Description:
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
US Headquarters:
630-851-4722
European Headquarters:
+353-61-472221
Features:
Model Xxxx - Series
5.0 x7.0mm Surface Mount Package
2.5V or 3.3V Operation
LVCMOS Output Logic
Frequency Stabilities Available:
X14x / X24x / X34x / X44x: +/-20ppm
X11x / X21x / X31x / X41x: +/-25ppm
X12x / X22x / X32x / X42x: +/-50ppm
X13x / X23x / X33x / X43x: +/-100ppm
Temperature Ranges Available:
X1xx Series: 0 to 70°C
X2xx Series: -40 to 85°C
X3xx Series: 0 to 85°C
X4xx Series: -20 to 70°C
Low Jitter <0.2 ps RMS
Tri-State Enable/Disable
Tape and Reel Packaging
RoHS Compliant / Lead (Pb) Free
The Connor Winfield Xxxx - Series
is a 5.0x7.0mm Surface Mount,
LVCMOS, Fixed Frequency Crystal
Controlled Oscillator (XO) designed
for applications requiring tight
frequency stability, wide temperature
range and low jitter. Operating at
2.5V or 3.3V supply voltage, the
Xxxx - Series provides an LVCMOS
Output with enable / disable function.
The surface mount package is
designed for high-density mounting
and is optimum for mass production.
1347
156.2 X123
5 MH
Z
Parameter
Absolute Maximum Ratings
Minimum
-55
-0.5
-0.5
Storage Temperature
Supply Voltage (Vcc)
Input Voltage (OE)
Nominal
-
-
-
Maximum
125
5.0
Vcc + 0.5
Units
°C
Vdc
Vdc
Notes
Absolute Ratings: Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage
to the device. These are stress ratings only. The functional operation of the device at those or any other conditions
beyond those indicated under "recommended operating conditions" is not implied. Exposure to conditions outside
the "recommended operating conditions" for any extended period of time may adversely impact device reliability
and result in failures not covered by warranty.
Parameter
Bulletin
Page
Revision
Date
Sm118
1 of 4
11
22 Nov 2013
Output Frequency (Fo)
Models Xx4x, Xx1x Series
20
-
200
MHz
1
Models Xx2x, Xx3x Series
20
-
225
MHz
Total Frequency Tolerance (See Ordering Information or Model Matrix for full part number, page 3)
Model Xx4x
-20
-
20
ppm
2
Model Xx1x
-25
-
25
ppm
2
Model Xx2x
-50
-
50
ppm
2
Model Xx3x
-100
-
100
ppm
2
Operating Temperature Range
Model X1xx
0
-
70
°C
Model X2xx
-40
-
85
°C
Model X3xx
0
-
85
°C
Model X4xx
-20
-
70
°C
Supply Voltage (Vcc)
Model Xxx2,
2.375
2.5
2.625
Vdc
Model Xxx3
3.135
3.3
3.465
Vdc
Supply Current (Icc)
40 to 79.999 MHz
-
-
15
mA
80 to 89.999 MHz
-
-
26
mA
90 to 124.999 MHz
-
-
36
mA
125 to 164.999 MHz
-
-
46
mA
165 to 225 MHz
-
-
61
mA
Jitter:
Period Jitter
-
3.0
5.0
ps RMS
Integrated Phase Jitter (BW = 12 KHz to 20 MHz)
Fo = 156.25 MHz
-
0.15
0.20
ps RMS
Jitter Peak to Peak (BW = 10 Hz to 20 MHz)
-
-
25
ps RMS
SSB Phase Noise (Fo = 156.25 MHz)
-
-60
-
dBc/Hz
@ 10 Hz offset
@ 100 Hz offset
-
-90
-
dBc/Hz
@ 1 KHz offset
-
-120
-
dBc/Hz
@ 10 KHz offset
-
-135
-
dBc/Hz
-
-142
-
dBc/Hz
@ 100 KHz offset
@ 1 MHz offset
-
-148
-
dBc/Hz
@ 10 MHz offset
-
-154
-
dBc/Hz
Start-Up Time
-
-
2
ms
Specifications subject to change without notification. See Connor-Winfield's website for latest revision. Not intended for life support applications.
All dimensions in inches. © Copyright 2013 The Connor-Winfield Corporation
Minimum
Operating Specifications
Nominal
Maximum
Units
Notes
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
OE Input Characteristics
Enable Voltage (High) (Vih)
Disable Voltage (Low) (Vil)
Enable Time
Disable Time
Output Disable Current (Standby Current) (Icc)
Parameter
Minimum
70%Vcc
-
-
-
-
Nominal
-
-
-
-
-
Maximum
-
30%Vcc
2
200
10
Units
Vdc
Vdc
ms
ns
uA
Notes
3
3
CMOS Output Characteristics
Parameter
Load
3.3 Vdc Models
Output Voltage: High (Voh)
Low (Vol)
Output Current: High (Ioh)
Low (Iol)
Duty Cycle at 50% of Vcc
Rise / Fall Time: 10% to 90%
Minimum
-
Vcc-0.4
-
-8
-
45
-
Nominal
15
-
-
-
-
50
1
Maximum
-
-
0.4
-
8
55
2
Units
pF
V
V
mA
mA
%
ns
Notes
-
Notes:
1) Maximum output frequency for the +/-20 ppm and the +/-25 ppm models is 200 MHz.
2) Inclusive of calibration @ 25°C, frequency vs. temperature stability, supply voltage change, load change, shock and vibration, 10 years aging.
3) When the oscillator is disabled, the outputs are at High Impedance. Output is enabled with no connection on pad 1.
Package Characteristics
Package
Moisture Sensitivity Level
Termination Finish
Shock
Sinusoidal Vibration
Random Vibration
Moisture
Marking Permanency
Solder Process
Ceramic Surface Mount Package
MSL-1
0.7um Gold (Au) over 2.5um Nickel (Ni)
Environmental Characteristics
500 G’s 1ms, Halfsine, 3 shocks per direction, per MIL-STD 202G, Method 213B Test Condition D.
0.06” D.A. or 10G’s Peak, 10 to 500 Hz, per MIL-STD-202G, Method 204D, Test Condition A.
5.35 G’s rms. 20 to 2000 Hz per MIL-STD-202G, Method 214,Test Condition 1A, 15 minutes each axis.
10 cycles, 95% RH, Per MIL-STD-202G, Method 112.
Per MIL-STD-202G, Method 215J.
RoHS compliant, lead free. See solder profile on page 3.
Package Outline
E
C
L
Marking
A
L
b
3
4
Suggested Pad Layout
Keep Out Area
0.165
(4.2mm)
1
4
C
L
1347
X123
156.25 MHZ
Top View
D
(Bottom View)
2
e
1
Pin 1 ID
Bottom View
Pin 1
Index
Side View
Top
View
A1
Side View
Symbol
A
D
E
A1
L
b
e
Min
-
4.85
6.86
-
-
-
-
mm
Nom.
-
5.0
7.00
0.65
1.20
1.40
5.08
Max.
1.5
5.15
7.16
-
-
-
-
Min
-
0.191
0.270
-
-
-
-
inches
Nom.
-
0.197
0.275
0.0265
0.0470
0.055
0.200
0.070
(1.8mm)
Max.
0.060
0.203
0.282
-
-
-
-
0.200
(5.08mm)
0.079
(2.0mm)
2
3
Pad Connections
1: Enable / Disable (OE)
2: Ground (Cover)
3: Output
4: Supply Voltage (Vcc)
Enable / Disable Function (OE)
Function (Pad 1)
High (Vih) or Open
Low (Vil)
Output
Enabled
Disabled
(High Impedance)
Bulletin
Page
Revision
Date
Sm118
2 of 4
11
22 Nov 2013
Specifications subject to change without notification. See Connor-Winfield's website for latest revision. Not intended for life support applications.
All dimensions in inches. © Copyright 2013 The Connor-Winfield Corporation
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Ordering Information
X
Type
LVCMOS
Clock Series
5x7 mm
1
Temperature
Range
1 = 0 to 70°C
2 = -40 to 85°C
3 = 0 to 85°C
4 = -20 to 70°C
2
Frequency
Stability
4 = ±20 ppm
1 = ±25 ppm
2 = ±50 ppm
3 = ±100 ppm
3
Supply Voltage
2 = 2.5 Vdc
3 = 3.3 Vdc
- 156.25M
Output Frequency
Frequency Format
-xxx.xM Min
-xxx.xxxxxxM Max
*Amount of numbers
after the decimal
point. M = MHz
Example Part Numbers:
X123-156.25M = LVCMOS Output, 0 to 70, +/-50 ppm, 3.3 Vdc, E/D Pad 1, Output Frequency 156.25 MHz
X412-100.0M = LVCMOS Output, -20 to 70, +/-25 ppm, 2.5 Vdc, E/D Pad 1, Output Frequency 100.0 MHz
Model Matrix
Frequency
Tolerance
±20 ppm
X142
X242
X342
X442
X143
X243
X343
X443
Frequency
Tolerance
±25 ppm
X112
X212
X312
X412
X113
X213
X313
X413
Frequency
Tolerance
±50 ppm
X122
X222
X322
X422
X123
X223
X323
X423
Frequency
Tolerance
±100 ppm
X132
X232
X332
X432
X133
X233
X333
X433
Supply
Voltage
2.5Vdc
2.5Vdc
2.5Vdc
2.5Vdc
3.3Vdc
3.3Vdc
3.3Vdc
3.3Vdc
Temperature
Range
0 to 70°C
-40 to 85°C
0 to 85°C
-20 to 70°C
0 to 70°C
-40 to 85°C
0 to 85°C
-20 to 70°C
Solder Profile
Temperature
260°C
220°C
180°C
150°C
120°C
260°C
0
10 s
Up to 120 s
60 to 90 s
Typical
Typical
Meets IPC/JEDEC J-STD-020C
Bulletin
Page
Revision
Date
Specifications subject to change without notification. See Connor-Winfield's website for latest revision. Not intended for life support applications.
All dimensions in inches. © Copyright 2013 The Connor-Winfield Corporation
Sm118
3 of 4
11
22 Nov 2013
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com

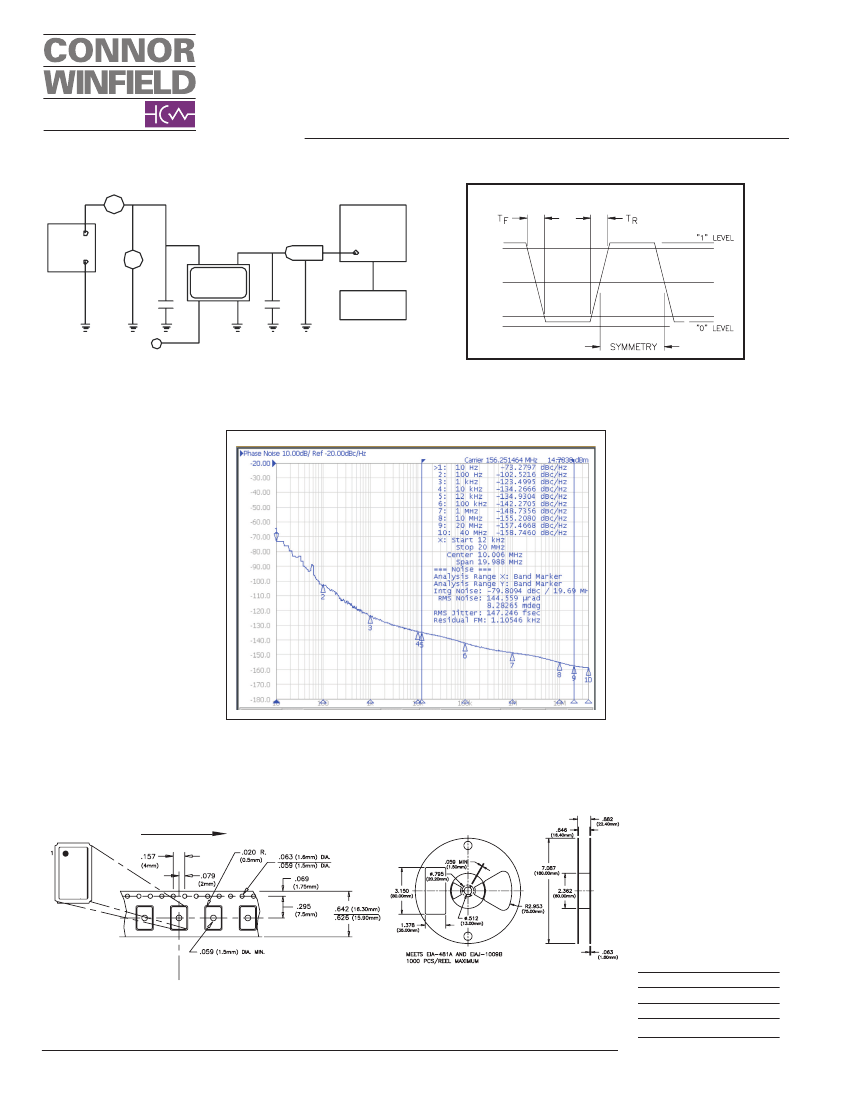

Test Circuit
Vcc
POWER
SUPPL
Y
CMOS Output Waveform
OSCILLOSCOPE
PROBE
CMOS Output, Squarewave
A
V
.01uf
4
3
90%
50%
10%
OSC
1
2
CL
INPUT for E/D
FREQ
COUNTER
Phase Noise Plot
Typical Phase Noise Plot for Model X123-156.25M
Tape and Reel Dimensions
Direction of Feed (Customer)
16mm Tape
Bulletin
Page
Revision
Date
Sm118
4 of 4
11
22 Nov 2013
Specifications subject to change without notification. See Connor-Winfield's website for latest revision. Not intended for life support applications.
All dimensions in inches. © Copyright 2013 The Connor-Winfield Corporation
