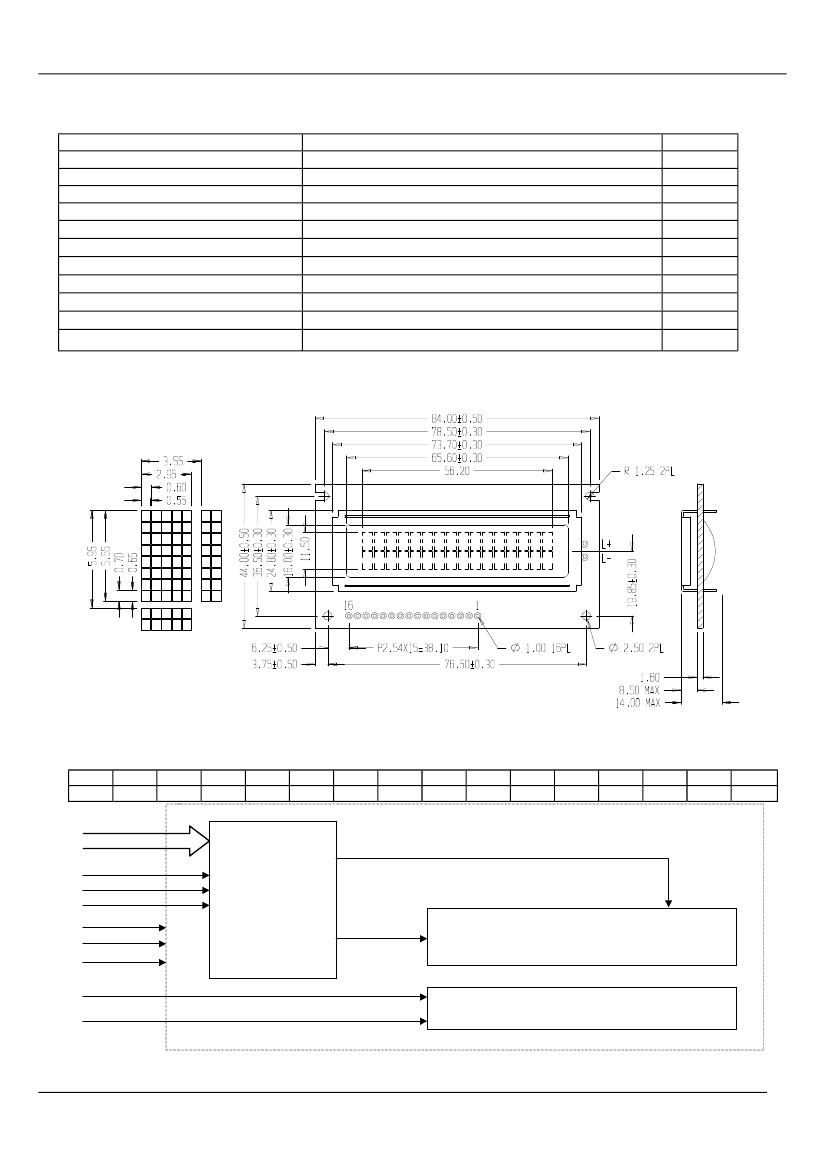

Physical data
Ite m
LCD MODULE
MC-162-4
Co nt e nt s
LCD type
STN
LCD duty
1/16
LCD bias
1/5
Viewing direction
3
Module size (WxHxT)
84 x 44 x 14MAX (3.31" x 1.73" x 0.55"MAX)
Viewing area (WxH)
65.6 x 16 (2.58" x 0.63")
Number of characters (charactersxlines) 16 x 2
Character matrix (WxH)
5x8
Character size (WxH)
2.95 x 5.55 (0.116" x 0.219")
Dot size (WxH)
0.55 x 0.65 (0.022" x 0.026")
Dot pitch (WxH)
0.60 x 0.70 (0.024" x 0.028")
Unit
---
---
---
o’clock
mm
mm
---
dot
mm
mm
mm
!
External dimensions
!
Block diagram
16
DB7
15
DB6
14
DB5
13
DB4
12
DB3
11
DB2
10
DB1
9
DB0
8
E
7
R/W
6
RS
5
VO
4
VDD
3
VSS
2
BLK
1
BLA
DB0
~
DB7
RS
R/W
E
VSS
VDD
VO
BLA
BLK
SEG80
CONTROLLER IC
KS0070B
COM16
LCD PANEL
16 CHARACTERS
×2
LINES
LED BACK LIGHT
TEIDEC LTD.
