VB32M02750K: DescriptionVaristor, 369V, 260J, Through Hole Mount; CategoryPassive components The resistor; File Size35KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

VB32M02750K Overview

Varistor, 369V, 260J, Through Hole Mount

VB32M02750K Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compli
ECCN code	EAR99
Circuit maximum DC voltage	369 V
Circuit RMS maximum voltage	275 V
Maximum energy absorption capacity	260 J
Manufacturer's serial number	VB32
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Resistor type	VARISTOR
surface mount	NO
Terminal location	RADIAL
Terminal shape	FLEXIBLE LEAD

Preview

Download Datasheet

View All

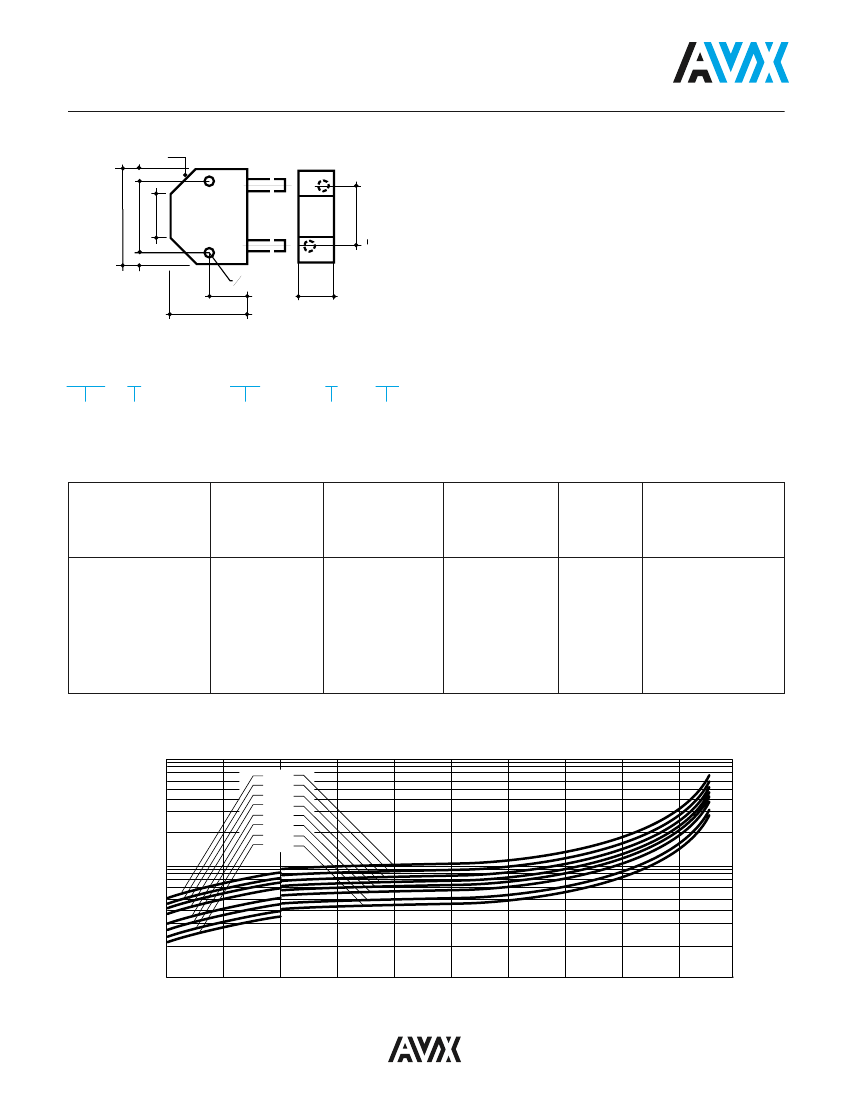

Zinc Oxide Varistors

VB 32 Blocks

DIMENSIONS

15...45°

5 (.197)

millimeters (inches)

GENERAL CHARACTERISTICS

Max. operating temperature: +85°C

Storage temperature: -40°C to +85°C

40 (1.57)

54 (2.13)

44 (1.73)

24 (.945)

MOUNTING

Ø 5 mm holes for screwing

500 mm long, 6 mm

2

insulated copper cables

~

5 (.197)

o

5.1 (.201)

20 (.787)

44 (1.73)

20 (.787)

PACKAGING

Bulk or three units per box (one for each phase)

HOW TO ORDER

VB32

Type

MARKING

0421

K

Tolerance

M

Material

0

––

Suffix

RMS

Operating Voltage

Type

AC nominal voltage (EIA code)

Logo

PARTICULAR CHARACTERISTICS

Max. operating

voltage

Type

V

RMS

(V)

250

275

320

380

420

460

510

575

V

DC

(V)

330

369

420

500

560

615

675

730

V

R

(V)

390

430

510

610

680

750

820

910

Vp

(V)

970

1075

1200

1350

1500

1650

1800

2000

Nominal voltage

at 1 mA DC

Clamping voltage

at 2.5 kA

Energy

Max. peak current

1 surge

with insulating coating

(10 x 1000 µs)

(8 x 20 µs)

W

lp (kA)

(J)

1 pulse

2 pulses

200

25

15

260

25

15

300

25

15

350

25

15

400

25

15

450

25

15

500

25

15

550

25

15

VB32M00251K-

VB32M02750K-

VB32M00321K-

VB32M00381K-

VB32M00421K-

VB32M00461K-

VB32M00511K-

VB32M05750K-

-

VOLTAGE-CURRENT CHARACTERISTICS

10,000

5

4

2

U (v)

1,000

8

5

4

5750

0511

0461

0421

0381

0321

2750

0251

2

100

10

-5

10

-4

10

-3

10

-2

10

-1

1

I (A)

10

100

1,000

10,000

30

VB32M02750K Related Products

	VB32M02750K	VB32M00461K
Description	Varistor, 369V, 260J, Through Hole Mount	Varistor, 615V, 450J, Through Hole Mount
Maker	AVX	AVX
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Circuit maximum DC voltage	369 V	615 V
Circuit RMS maximum voltage	275 V	460 V
Maximum energy absorption capacity	260 J	450 J
Manufacturer's serial number	VB32	VB32
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	BULK	BULK
Resistor type	VARISTOR	VARISTOR
surface mount	NO	NO
Terminal location	RADIAL	RADIAL
Terminal shape	FLEXIBLE LEAD	FLEXIBLE LEAD
