MB40778HPF datasheet, PDF - EEWORLD Datasheet

MB40778HPF: DescriptionPARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, PDSO20, PLASTIC, FP-20; CategoryAnalog mixed-signal IC converter; File Size228KB，10 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

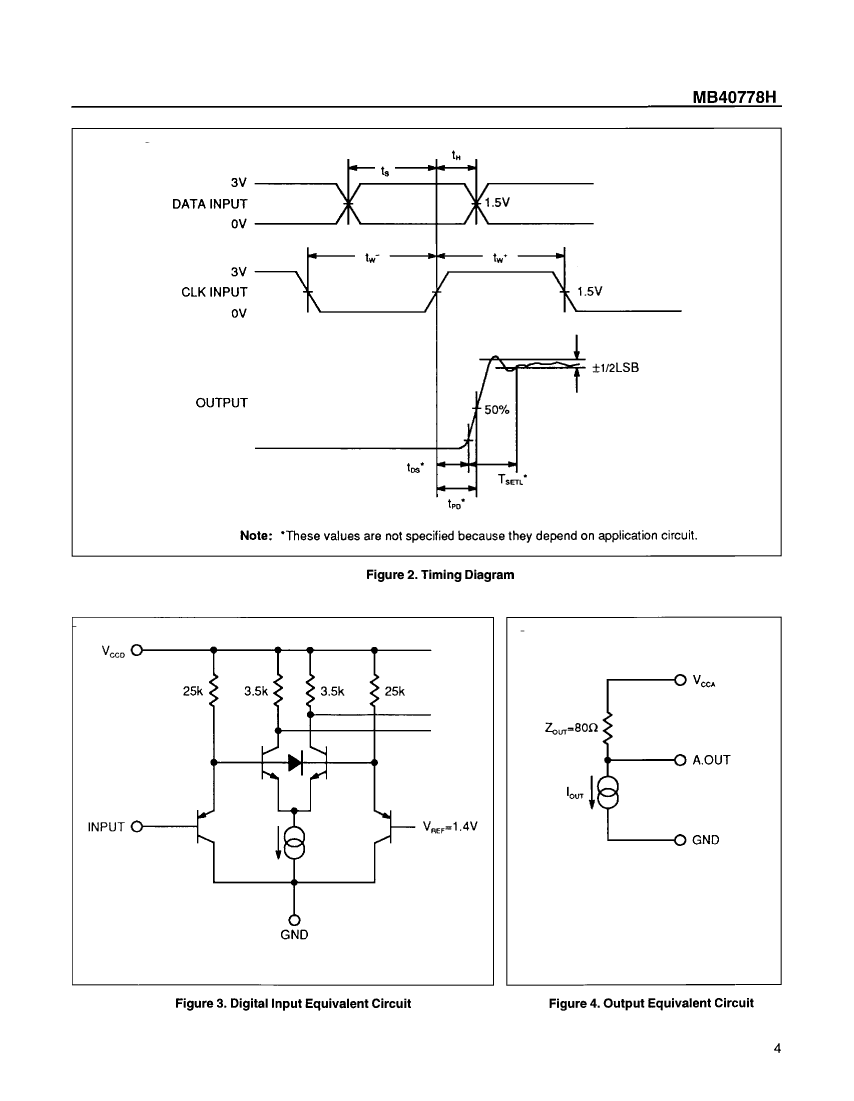

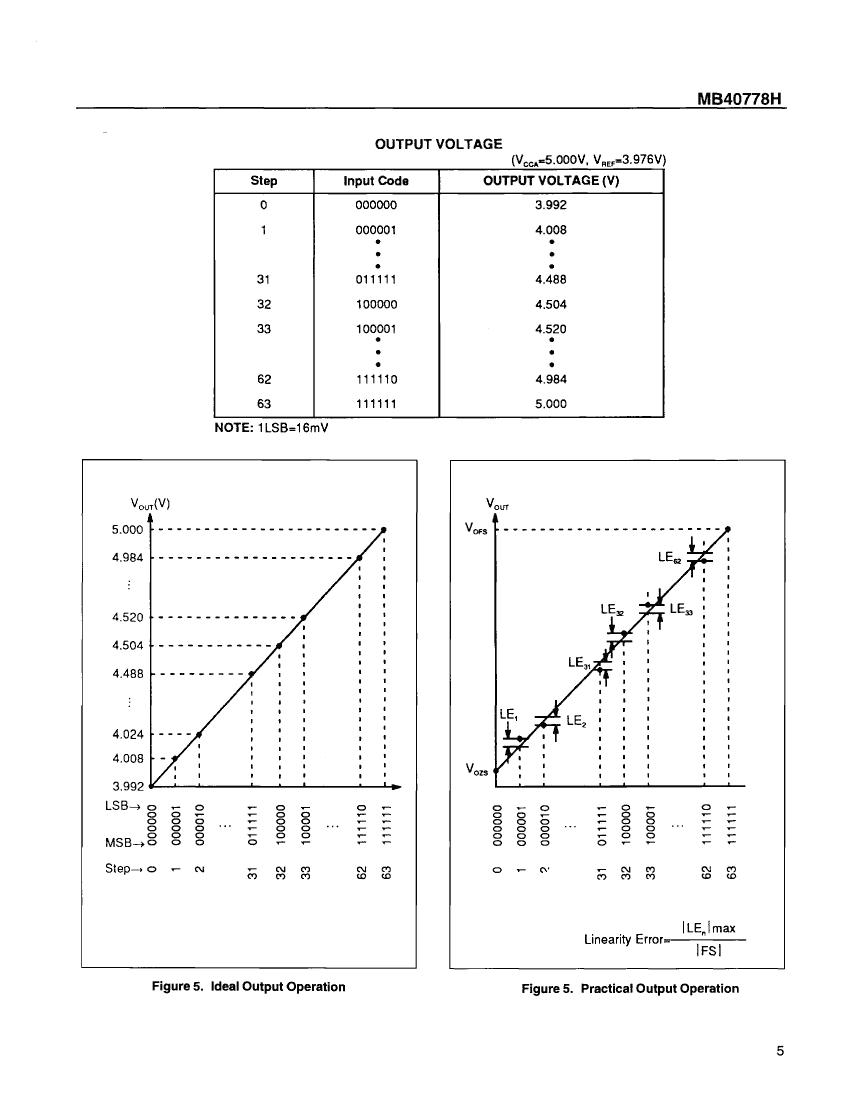

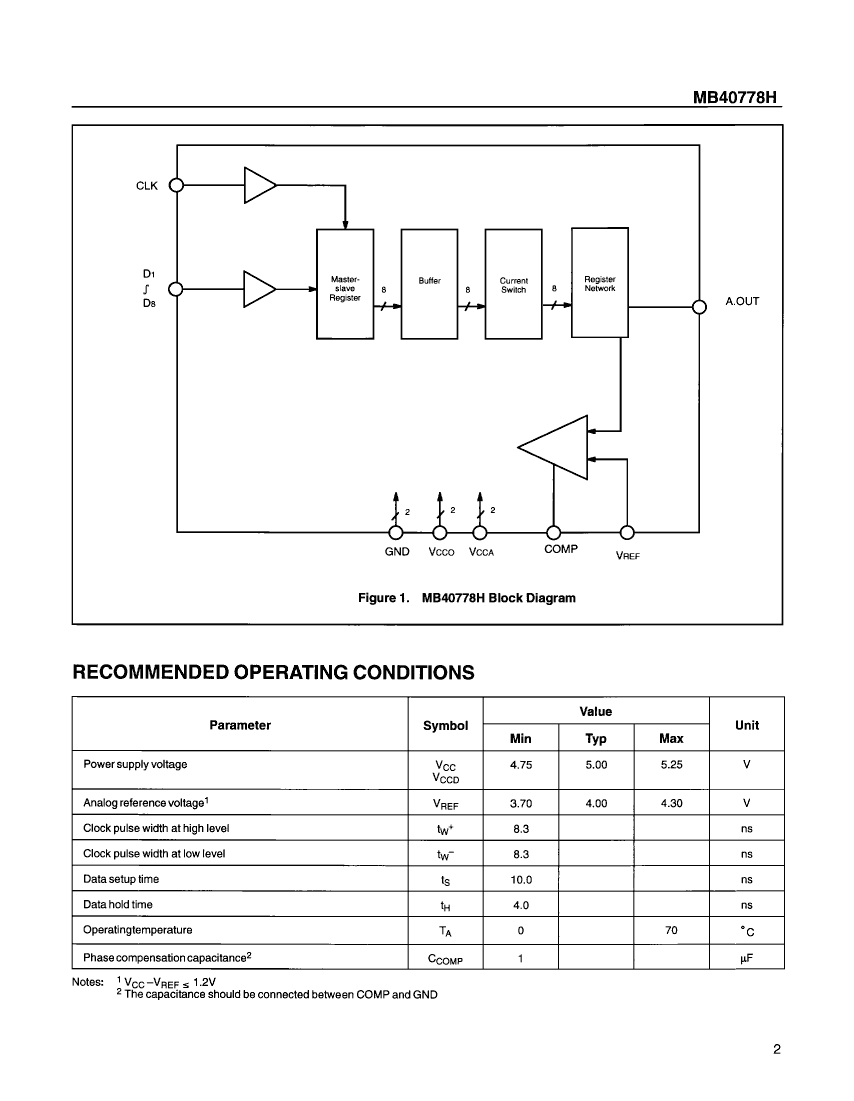

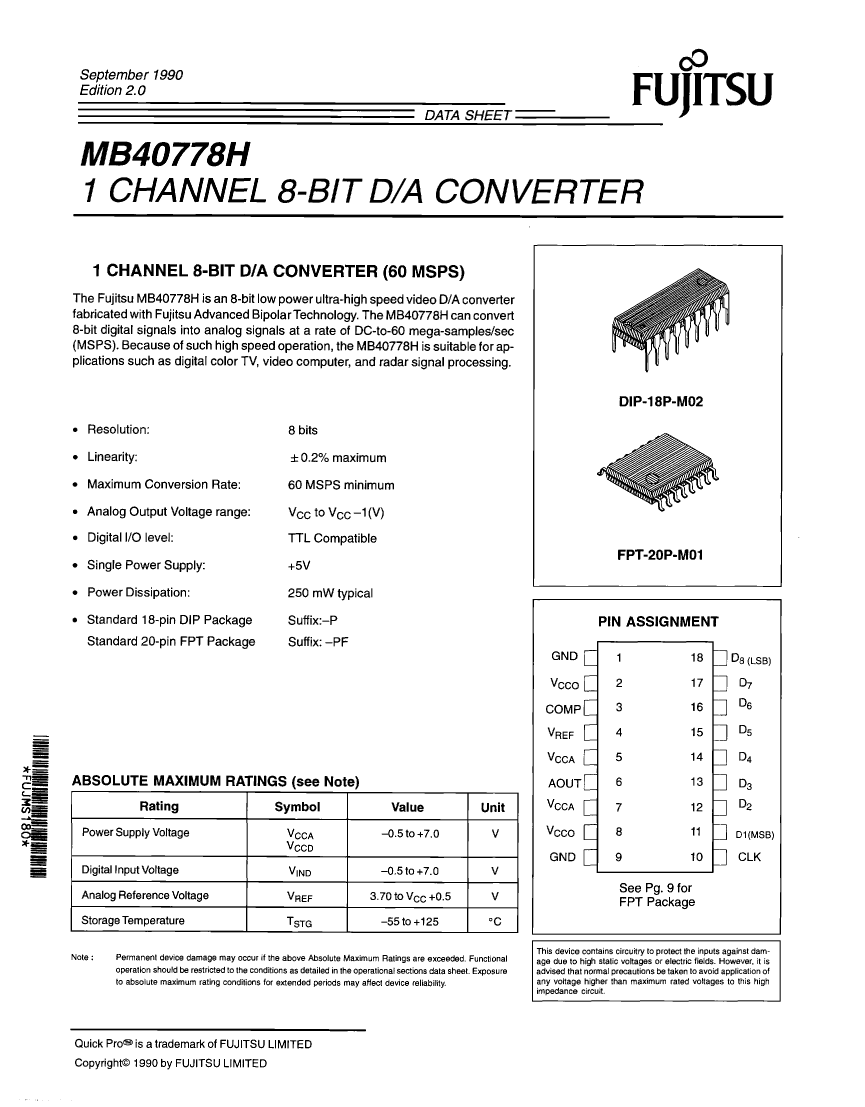

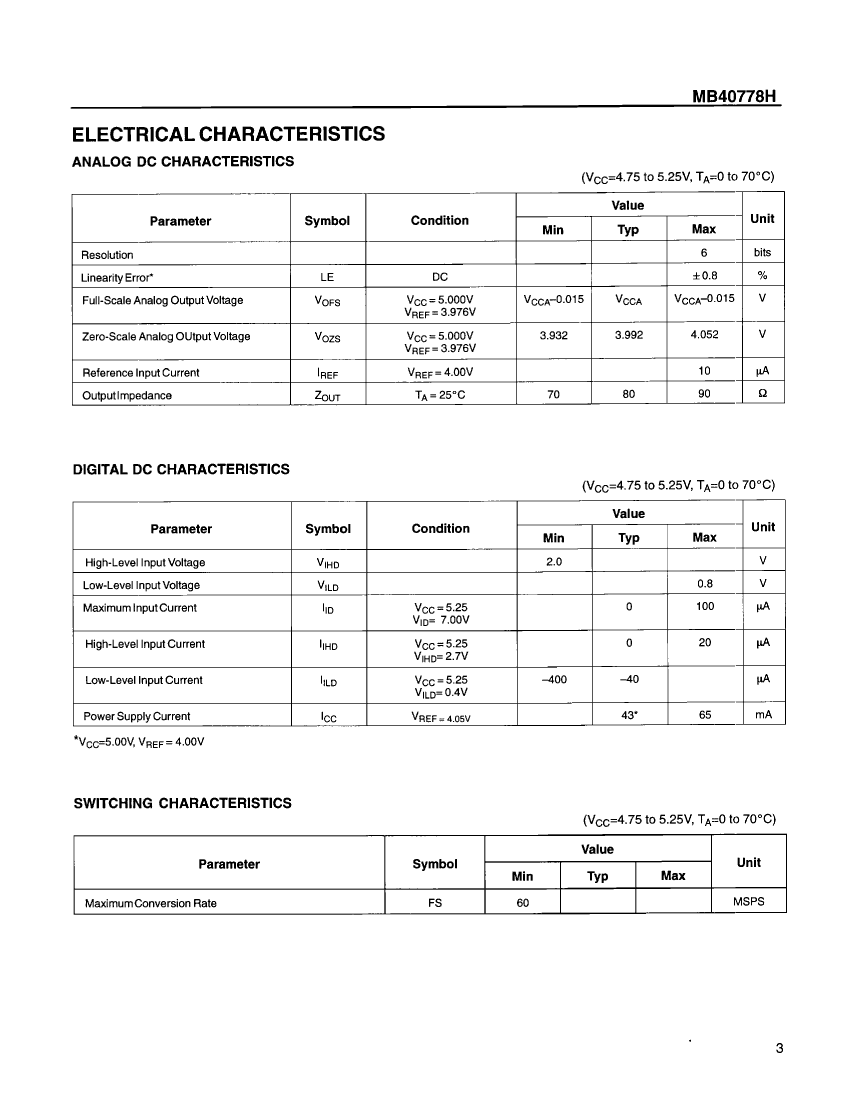

MB40778HPF Overview

PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, PDSO20, PLASTIC, FP-20

Parameter Name	Attribute value
Maker	FUJITSU
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	R-PDSO-G20
length	12.7 mm
Maximum linear error (EL)	0.8%
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.25 mm
Maximum slew rate	65 mA
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm

	MB40778HPF	MB40778HP
Description	PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, PDSO20, PLASTIC, FP-20	PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, PDIP18, PLASTIC, DIP-18
Maker	FUJITSU	FUJITSU
Parts packaging code	SOIC	DIP
package instruction	SOP,	DIP,
Contacts	20	18
Reach Compliance Code	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY
Input format	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	R-PDSO-G20	R-PDIP-T18
length	12.7 mm	22.05 mm
Maximum linear error (EL)	0.8%	0.8%
Number of digits	8	8
Number of functions	1	1
Number of terminals	20	18
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.25 mm	5 mm
Maximum slew rate	65 mA	65 mA
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	5.3 mm	7.62 mm
