HIGH POWER
CONNECTORS
HPC Series
Panel Mounts and Cord Plugs
Switchcraft recently introduced a complete line of panel mount
speaker connectors that are completely compatible with the
Neutrik
®
Speakon
®
4 pole series. We are now introducing a
complete line of cable mounts as well. The complete HPC
Series offers both panel mount
and
cord mount connectors.
The HPC panel mounts have been updated with new
silver-plated contact materials that boost the contact ratings to
30A per UL 1977 on PC mount versions, 50A per UL 1977
on Faston
®
versions.
They are still available with either 0.100"
depth flanges or 0.200" depth flanges. The 0.200" depth flange
allows for rear mounting of the HPC Series, and proper mating
of all cord plugs. The panel mount versions are available with
either 0.187" or 0.250" Faston
®
terminals, and either straight or
right angle PC mount terminals. The right angle PC mount
version also has, as an option, a mounting post which allows
the connector to snap onto the PC board for wave soldering.
The HPC cord plugs are available in either straight, right
angle, or as an in-line. The in-line version mates with either the
straight or right angle cord plug, allowing the end user to
extend cable runs. All cord plugs are compatible with Speakon
®
panel mounts. The in-line mates with our HPC cord plugs, as
well as Speakon
®
cord plugs. The unique feature of the HPC
series cord plugs are the “push to lock” feature, similar to the
connection of an XLR connector. The HPC cord plugs, when
mated to either HPC panel mounts or Speakon
®
panel mounts
do not require a 1/4" turn to engage. Simply push the connector
in until it locks. To disengage, push forward on the latch lever
and pull the connector out. This feature eliminates the need to
remember to turn the connector to make contact. All HPC cord
plugs utilize 0.250" Faston
®
terminals, which allow for easy
assembly, and make it easy to change cord plugs. To change
from a straight cord plug to an in-line cord plug, back off the
strain relief nut, twist off the handle, disconnect the Faston
®
terminals, fasten the new cord connector, twist on the handle
and the strain relief. Barbs on the handle keep the handle from
vibrating loose from the front shell.
Both HPC panel mounts and cord plugs incorporate a built-in
gasket, which allows them to meet IP 25 harsh environment
ratings, as well as IEC 529 and IEC 1010-1 safety ratings.
Features and Benefits
• Completely compatible with Neutrik
®
Speakon
®
4 pole
connectors
• 30A rating per UL 1977 on PC mount versions
• 50A rating per UL 1977 on Faston
®
versions
• Panel mounts have two different Faston
®
terminal sizes,
0.187” and 0.250”
Continued
PRODUCT
BULLETIN
544
Speakon® is a registered trademark of Neutrik Inc
2
HIGH POWER CONNECTORS
PRODUCT BULLETIN
544
Features and Benefits
continued
• Panel mounts offered with two different flange depths, 0.100” and 0.200”
• 0.200" depth flange offers easy rear mounting
• Right angle or straight PC board terminals on panel mounts
• Built in gasket gives all HPC connectors IP 25 environmental ratings
• All HPC Series meet IEC 529 and IEC 1010-1 safety ratings
• Cord plug versions offer “push to lock” design, no 1/4" turn to engage
• Cord plug versions accept 10 AWG wire, 0.560” cable OD max
Markets
• Loudspeakers
• Power audio amplifiers
Specifications
Materials
Housings:
Thermoplastic
UL 94V-O rated
Seal Rings:
Thermoplastic rubber
Contacts:
Silver-plated over
copper alloy
Electrical
PC Terminals Current Rating:
30A per
UL 1977
Faston
®
Terminals Current Rating:
50A RMS w/10AWG wire, normal
ambient, per UL 1977
Voltage Rating:
1,500 AC RMS, Per
Mil-Std 202 Method 301
Insulation Resistance:
> 2T Ohms
Contact Resistance:
1m Ohm,
1.5mOhm after 1,000
insertion/withdrawals
Mechanical
Shock:
Mil-Std 202, Method 213B
Cond.K
Vibration:
Mil-Std 202, Method 201A
Life:
1,000 insertion/withdrawals
Cable Range:
0.560” OD max
Environmental
Salt Spray:
Mil-Std 202, Method 101D
Cond. B
Thermal Shock:
Mil-Std 202, Method
107G
Temperature Limits:
-55 C to +85 C
Moisture Resistance:
Mil-Std 202,
Method 106E
Life@Ambient Temperature:
Mil-Std
202, Method 108A
Touch Proof:
IEC 65 and 1010-1
Weather Tightness:
IEC 529, IP 25
• Medical
• Process Controls

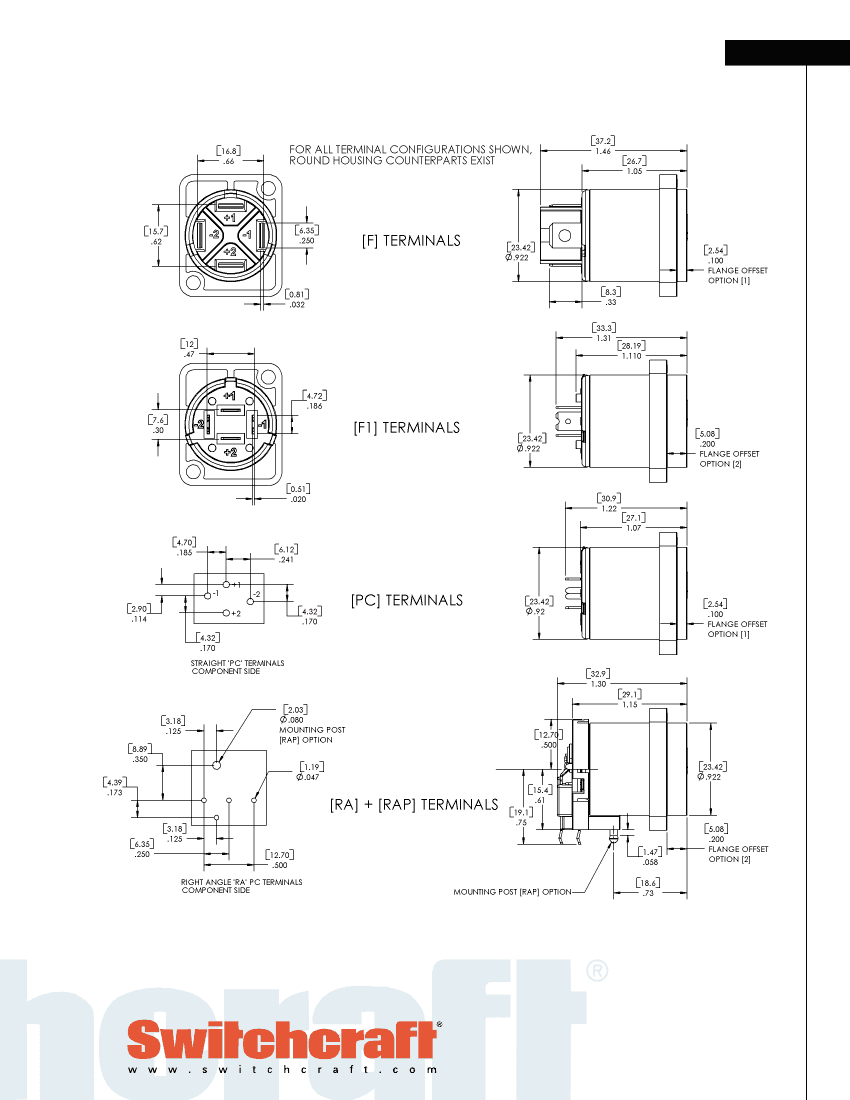

Panel Mount Ordering information
HPC
___ ___ ___ ___ ___ ___
4
___
P
Series
High Power Connector
Type of Connector
P - Panel
Type of Housing
Blank - rectangle
R - round
Number of Contacts
4
Termination
F - .250" Faston
®
F1 - .187" Faston
®
PC - Printed Circuit
RA - Right angle PC
RAP - Right angle PC with mounting post
Mounting Holes
Blank - Rectangle: .140” dia. w/Countersink Hole
Blank - Round: .152” dia. w/Countersink Hole
0 - Rec./ Round: .093” Dia. Hole
Recessed Flange (Dim. “A”)
1 - .100”
2 - .200”

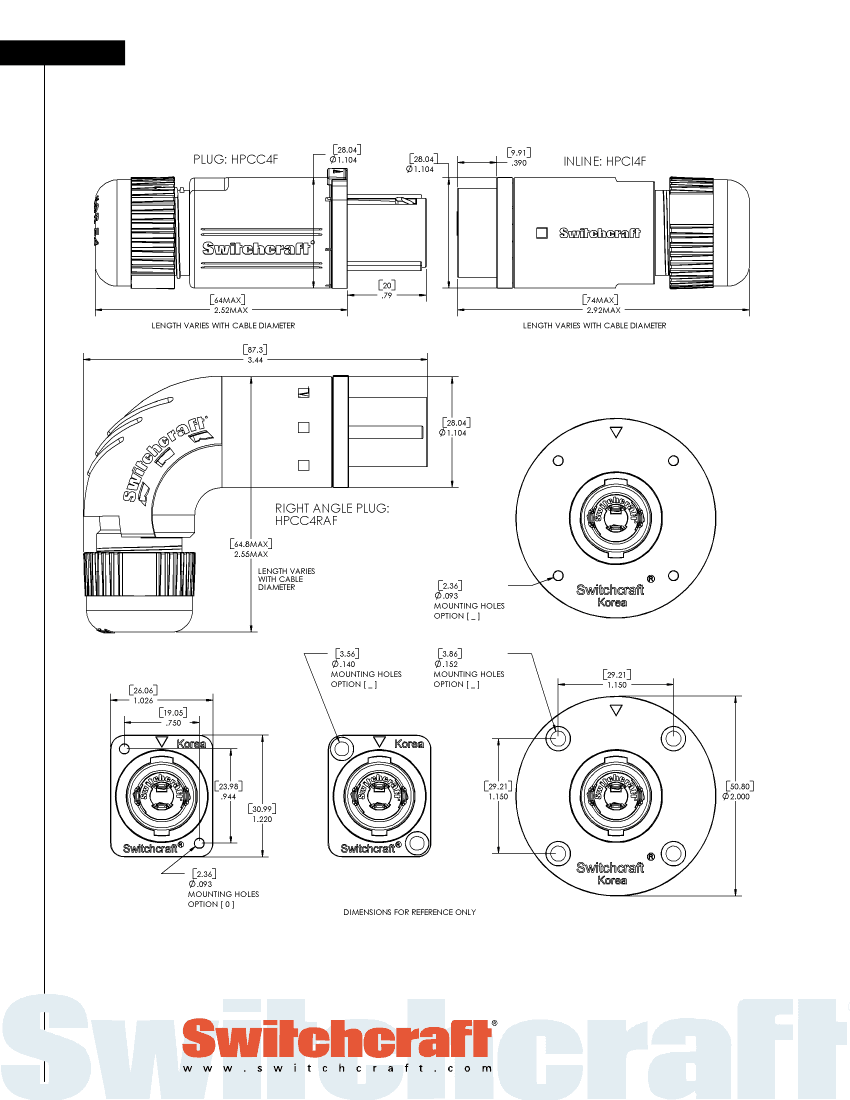

Cord Mount Ordering Information
Part Number
HPCC4F
HPCC4FRAF
Description
Straight Cord Plug
Right Angle Cord Plug
Part Number
HPCI4F
Description
Inline Cord Plug
HIGH POWER CONNECTORS
3
-2
+1
-1
+2
