OP-07CJ8: DescriptionOP-AMP, 250 uV OFFSET-MAX, 0.6 MHz BAND WIDTH, CDIP8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size1MB，8 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Related ProductsFound12parts with similar functions to OP-07CJ8

Download Datasheet Parametric Compare View All

OP-07CJ8 Overview

OP-AMP, 250 uV OFFSET-MAX, 0.6 MHz BAND WIDTH, CDIP8

OP-07CJ8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	HERMETIC SEALED, DIP-8
Contacts	8
Reach Compliance Code	unknow
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.009 µA
Maximum bias current (IIB) at 25C	0.007 µA
Minimum Common Mode Rejection Ratio	100 dB
Nominal Common Mode Rejection Ratio	120 dB
frequency compensation	YES
Maximum input offset voltage	250 µV
JESD-30 code	R-CDIP-T8
JESD-609 code	e0
length	10.31 mm
low-dissonance	YES
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
minimum slew rate	0.1 V/us
Nominal slew rate	0.25 V/us
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	600 kHz
Minimum voltage gain	120000
width	7.62 mm
Base Number Matches	1

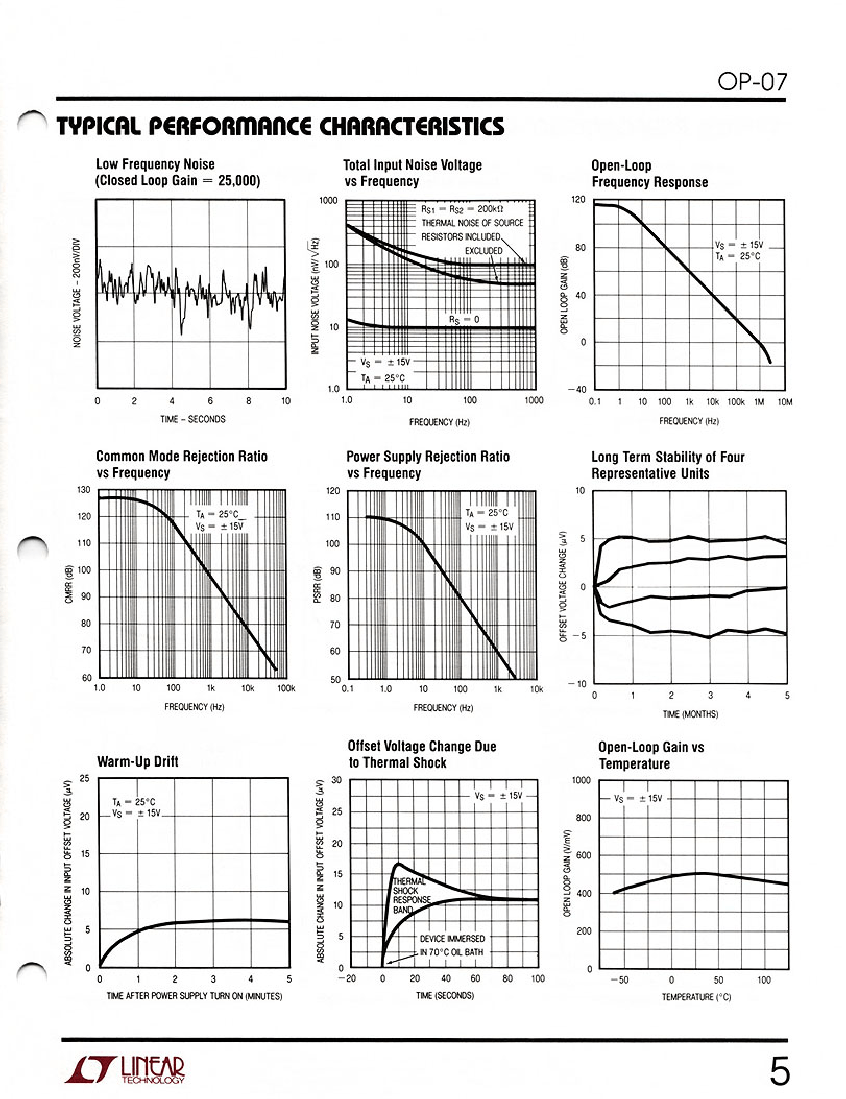

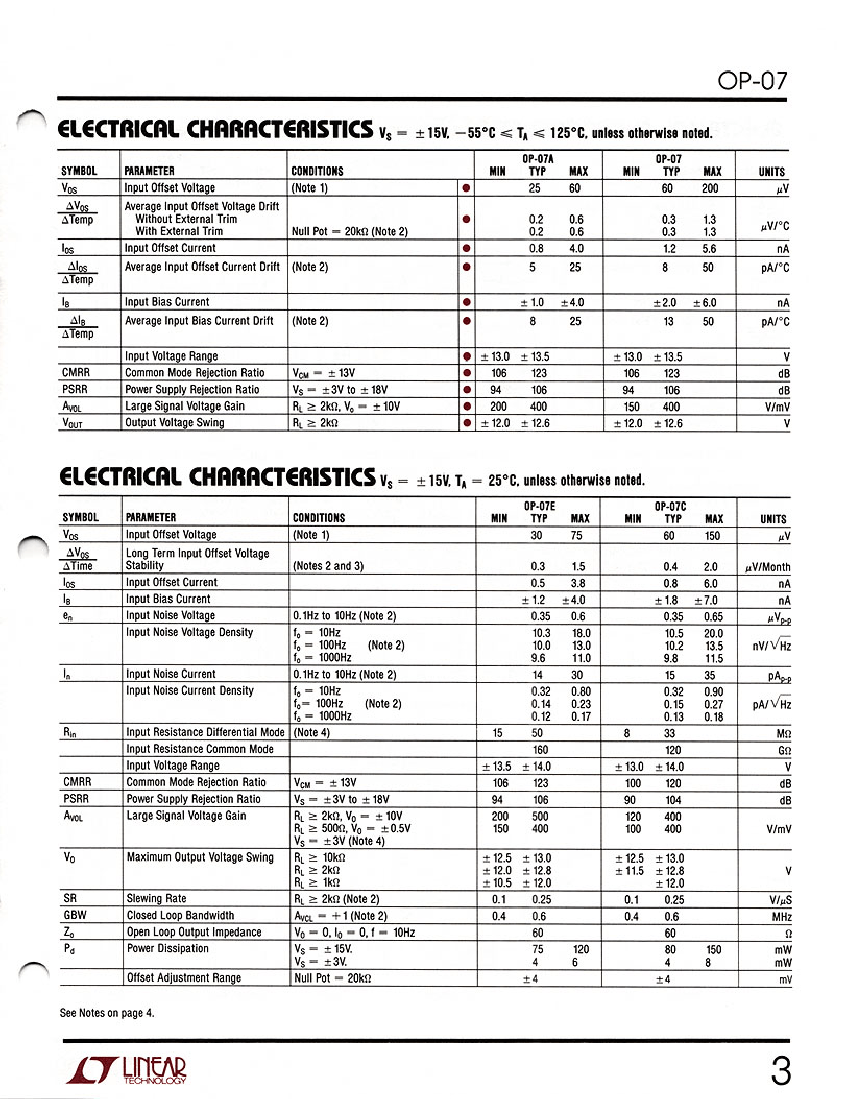

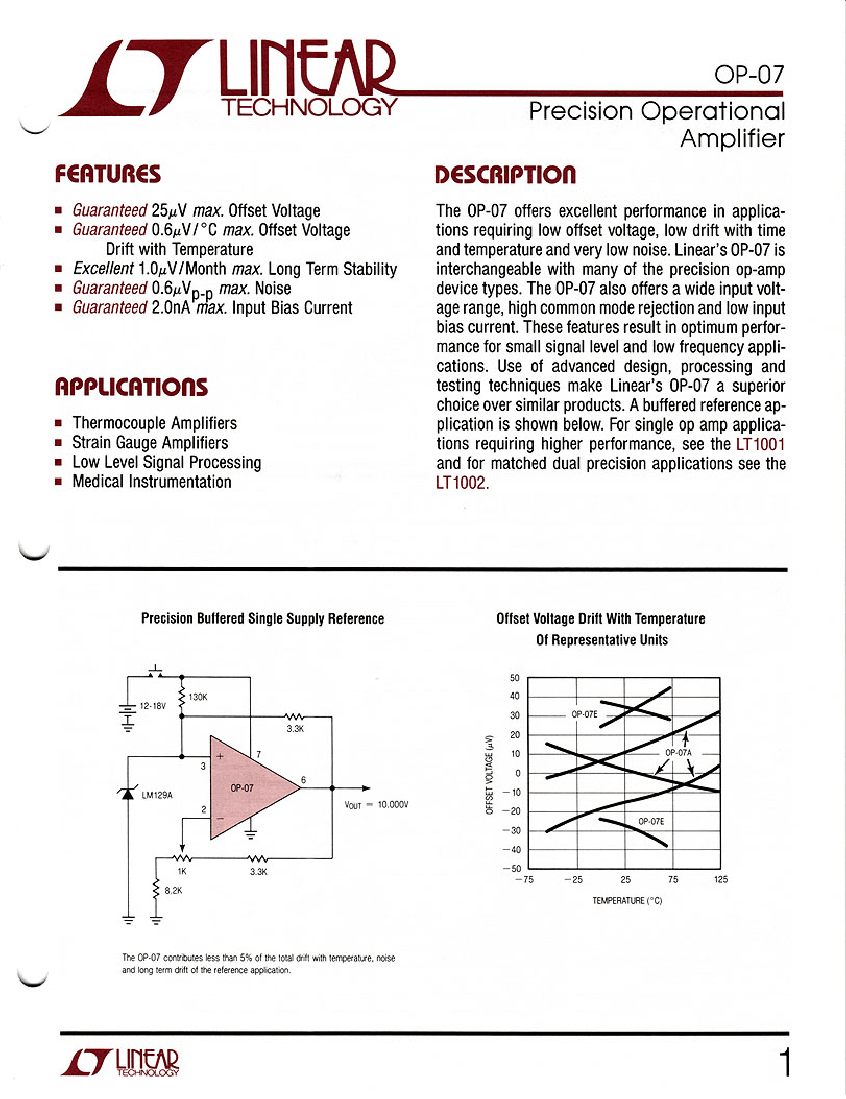

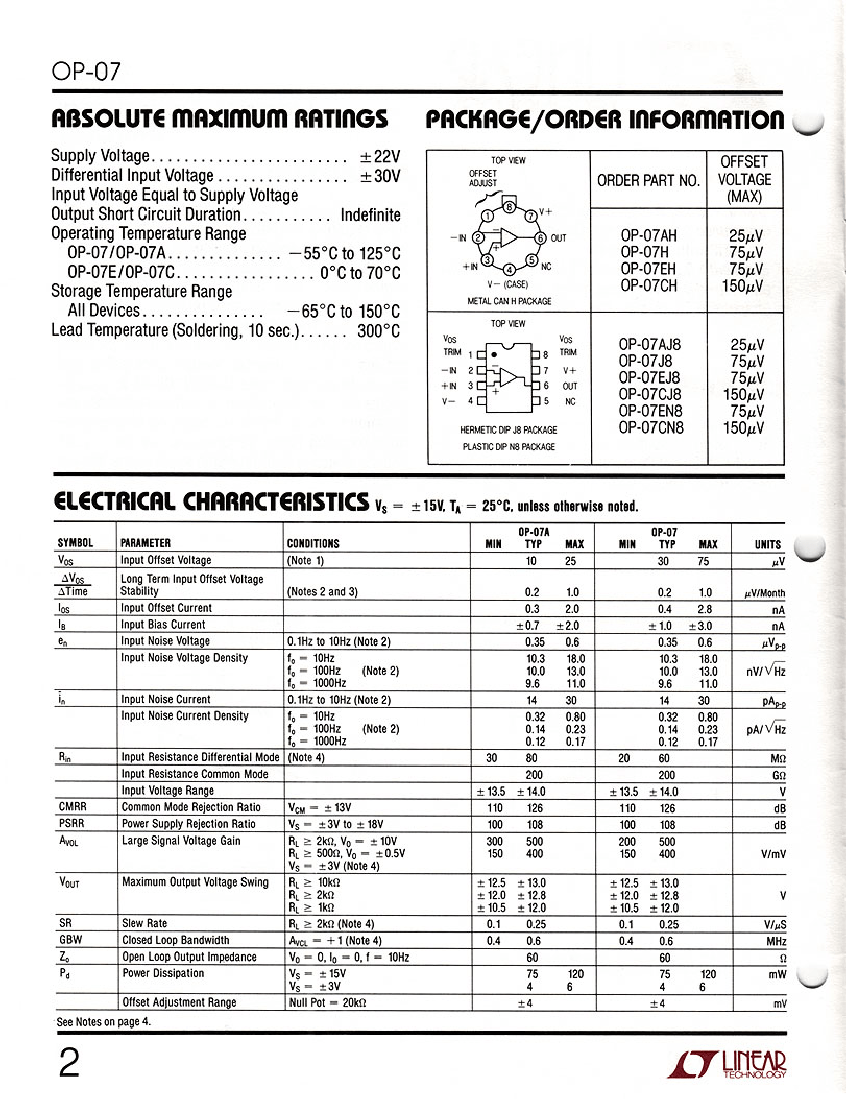

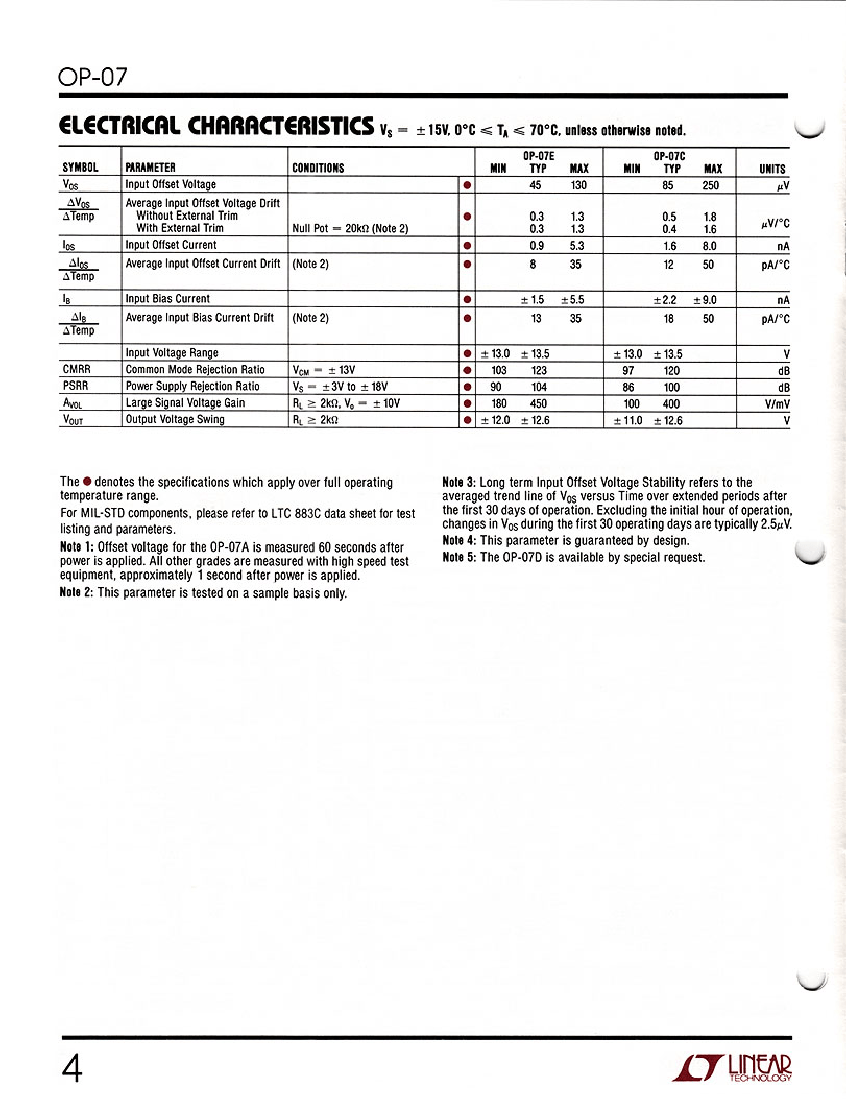

Preview

Download Datasheet

View All

OP-07CJ8 Related Products

	OP-07CJ8	OP-07AJ8	OP-07CN8	2SC4833_15	OP07DH	OP-07H
Description	OP-AMP, 250 uV OFFSET-MAX, 0.6 MHz BAND WIDTH, CDIP8	OP-AMP, 60 uV OFFSET-MAX, 0.6 MHz BAND WIDTH, CDIP8	OP-AMP, 150 uV OFFSET-MAX, 0.6 MHz BAND WIDTH, PDIP8	Silicon NPN Power Transistors	OP-AMP, 60 uV OFFSET-MAX, 0.6 MHz BAND WIDTH, CDIP8	OP-AMP, 75 uV OFFSET-MAX, 0.6 MHz BAND WIDTH, MBCY8
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	-	TO-5	BCY
package instruction	HERMETIC SEALED, DIP-8	DIP, DIP8,.3	DIP, DIP8,.3	-	, CAN8,.2	, CAN8,.2
Contacts	8	8	8	-	8	8
Reach Compliance Code	unknow	compli	compli	-	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	-	-	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	-	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	-	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.009 µA	0.004 µA	0.009 µA	-	-	0.006 µA
Maximum bias current (IIB) at 25C	0.007 µA	0.002 µA	0.007 µA	-	0.003 µA	0.003 µA
Minimum Common Mode Rejection Ratio	100 dB	110 dB	100 dB	-	-	110 dB
Nominal Common Mode Rejection Ratio	120 dB	123 dB	120 dB	-	-	123 dB
frequency compensation	YES	YES	YES	-	YES	YES
Maximum input offset voltage	250 µV	60 µV	250 µV	-	200 µV	200 µV
JESD-30 code	R-CDIP-T8	R-CDIP-T8	R-PDIP-T8	-	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0	e0	-	e0	e0
low-dissonance	YES	YES	YES	-	YES	YES
Negative supply voltage upper limit	-22 V	-22 V	-22 V	-	-	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-	-15 V	-15 V
Number of functions	1	1	1	-	1	1
Number of terminals	8	8	8	-	8	8
Maximum operating temperature	70 °C	125 °C	70 °C	-	70 °C	125 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	-	METAL	METAL
Encapsulate equivalent code	DIP8,.3	DIP8,.3	DIP8,.3	-	CAN8,.2	CAN8,.2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	ROUND	ROUND
Package form	IN-LINE	IN-LINE	IN-LINE	-	CYLINDRICAL	CYLINDRICAL
power supply	+-15 V	+-15 V	+-15 V	-	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
minimum slew rate	0.1 V/us	0.1 V/us	0.1 V/us	-	0.1 V/us	0.1 V/us
Nominal slew rate	0.25 V/us	0.25 V/us	0.25 V/us	-	-	0.25 V/us
Supply voltage upper limit	22 V	22 V	22 V	-	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	-	15 V	15 V
surface mount	NO	NO	NO	-	-	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	-	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	-	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	WIRE	WIRE
Terminal location	DUAL	DUAL	DUAL	-	BOTTOM	BOTTOM
Nominal Uniform Gain Bandwidth	600 kHz	600 kHz	600 kHz	-	-	600 kHz
Minimum voltage gain	120000	300000	120000	-	150000	200000
Maker	-	Linear ( ADI )	Linear ( ADI )	-	Linear ( ADI )	Linear ( ADI )
