Special
Application
Products
Special Application products are
those that offer a unique
interconnect solution and
generally do not fit into the other
major connector product
categories. Our design engineers
are continuously developing new
specialty products to meet the
changing needs of the
telecommunications industry.
• Tap Bypass Jumper
• "F" Female Test Adapter
• TX10-15 Connectors
• Power Connectors
• Power Adapters

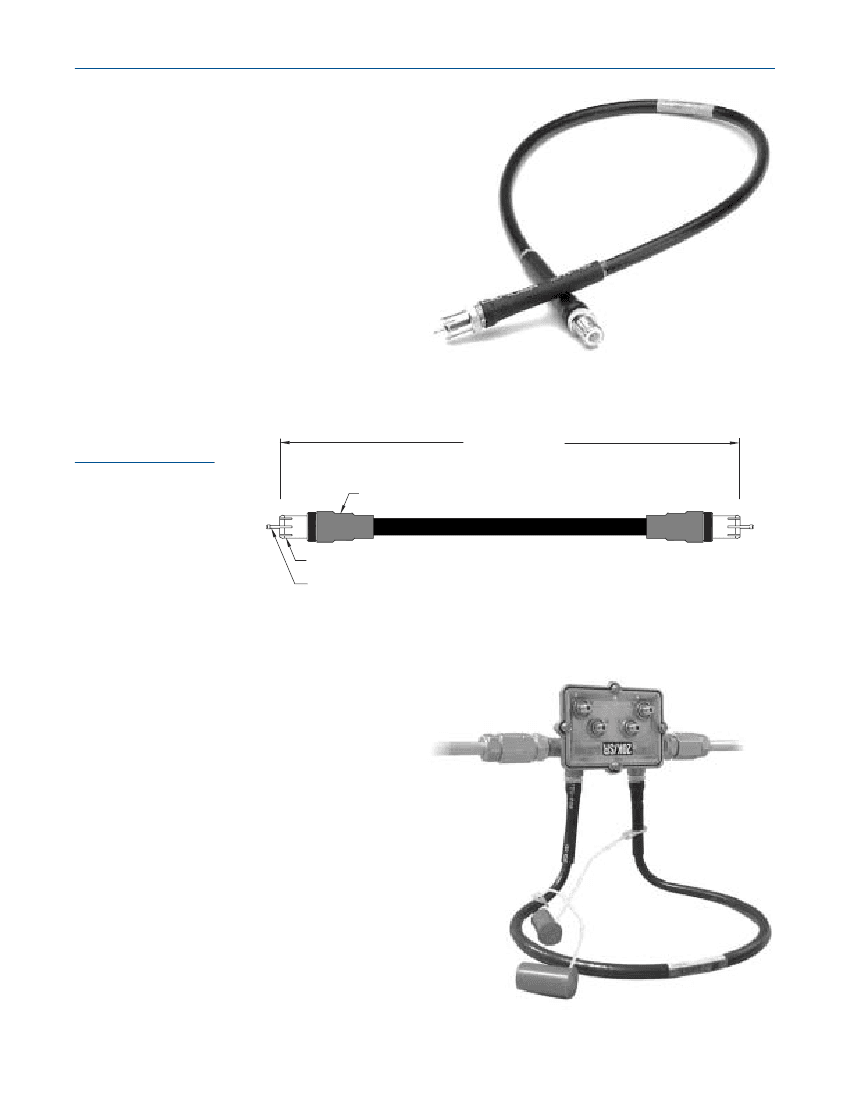

Tap Bypass Jumper
The Corning Gilbert Tap Bypass Jumper is designed to maintain power
and RF integrity through a tap housing when the normal circuit is
interrupted by removing the tap face plate. The contact probe is
spring loaded axially to accommodate a wide range of tap seizure
mechanisms and dimensions.
The 5/8" male jumper employs a beryllium copper quick disconnect
interface to eliminate threading. This allows quick insertion or
removal. The jumper assembly is a male—male version.
Standard length is 36" (GIC-KSMP-KSMP-36).
Tap Bypass Jumper
Part Number
GIC-KSMP-KSMP-36
36 [91.44 cm]
Heat Shrink Tubing
Strain Relief TYP
5/8 [15.9 mm] Quick Disconnect TYP
Spring Loaded Contact ("Pogo-Stick") TYP
Product Application
Features:
• Spring loaded (axially) gold plated center
conductor contact
• 5/8" quick disconnect outer contact design of
bright alloy plated beryllium copper
• Designed for rapid insertion and removal
• 15 amps AC Power Rating
• Manufactured from flexible quad shield
coaxial cable
• Heat shrink tubing strain relief
• Standard length is 36" (available in custom
lengths)
52
Corning Gilbert Broadband Products
Tel: 800 528 5567 / 623 245 1050 • Fax: 800 344 6358 / 623 939 3538

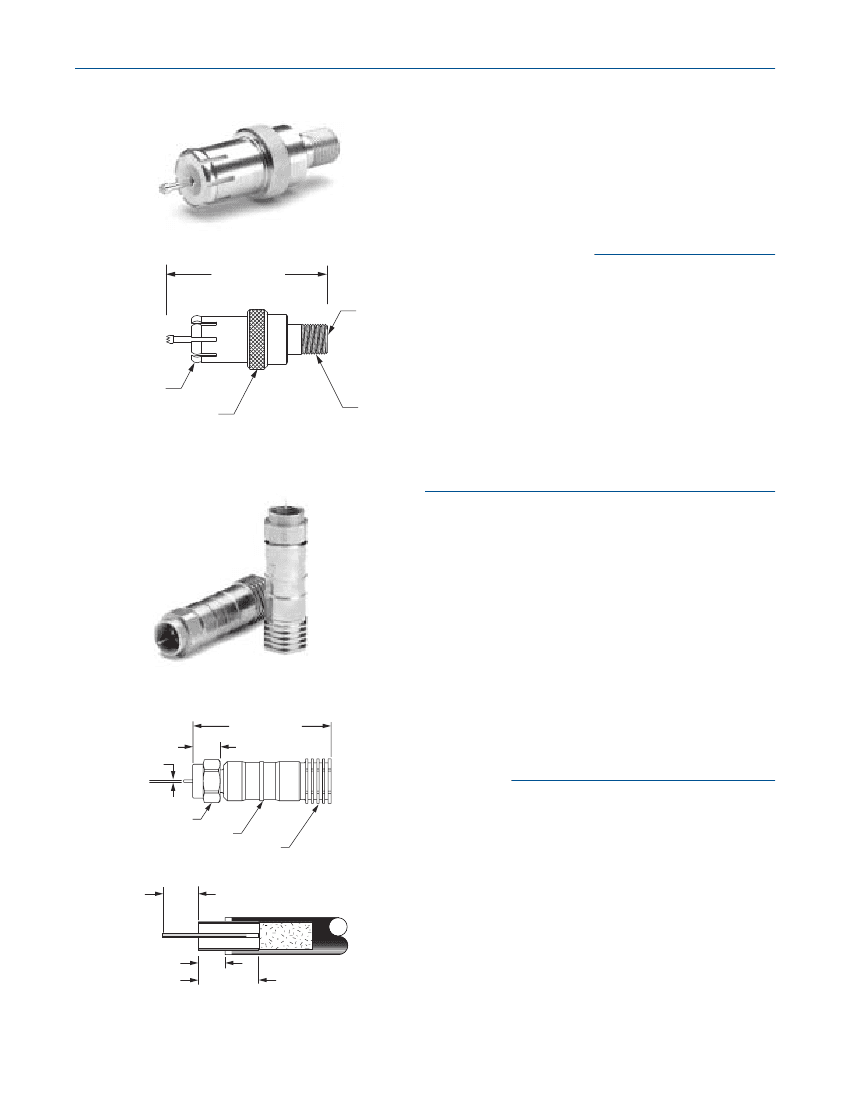

“F” Female Test Adapter
This product is designed to allow extraction of test signals and AC
power from a female KS interface. The contact probe is spring loaded
axially to accommodate a wide range of seizure mechanisms and
dimensions. The 5/8" male interface employs a beryllium copper quick
disconnect interface to eliminate threading. This allows quick insertion
or removal. The female "F" connector has machined contacts for
improved RF performance and maximum center conductor contact.
This product passes AC power and can be used for a temporary voltage
test point.
“F” Female Test Adapter
2.017 [51.2 mm]
Accepts .032 dia. [0.8 mm]
to .040 dia. [1.0 mm]
Center Conductor
Part Number
NS-9178-1
Product Application
Features:
• Spring loaded (axially) gold plated center
conductor contact
• 5/8" quick disconnect outer contact design of
bright alloy plated beryllium copper
• Designed for rapid insertion and removal
• Machined contacts in “F” female interface
• Passes AC power & RF signals
Mates with 5/8-24
Female Interface
.740 dia. [18.8 mm]
Diamond Knurl
3/8-32 THD
320 QR (MDU 320) Crimp Connector
The patented GAF-360-320-QR is a crimp style male "F" connector that
provides a circular seal to the cable outer conductor and jacket. Before
crimping, this unique patented crimp ring is hex shaped on the outside
with a round bore. After crimping, this bore remains round providing a
360 degree contact to the cable. This connector has a separate external
crimp to seize the pin to the center conductor of the cable. This pro-
vides a highly reliable connection between the integral pin and cable
center conductor. Connector installation requires coring of the cable.
See preparation dimensions below.
For outdoor use, this connector should be used in combination with the
Corning Gilbert Seal Ring (G-SR-1/2). This seal ring has been designed
to work in conjunction with a standard outdoor "F" female port (SCTE-
IPS-SP-400) to insure moisture integrity.
1.73 [44.0 mm]
.34 [8.7 mm]
.032 Dia. [0.8 mm]
320 QR (MDU 320) Crimp Connector
Part Number
GAF-360-320-QR
1/2 [12.7 mm] Hex
Center Conductor Crimp Ring
Outer Conductor Crimp Ring
Product Application
Features:
• Patented Gilbert 360 crimp design
• Integral pin
• Free spinning sealed nut design (Patent
Pending)
• Cadmium plated brass body
• Small profile for use in confined areas.
• Uses G-CRT-41Q crimp tool (.452" hex crimp)
• Uses G-SCT-F320-QR Cable coring tool
• "F" male interface meets SCTE-IPS-SP-401
requirements
7/16" [11.1 mm]
3/8" [9.5 mm]
9/16" [14.3 mm]
Corning Gilbert Broadband Products
Tel: 800 528 5567 / 623 245 1050 • Fax: 800 344 6358 / 623 939 3538
53

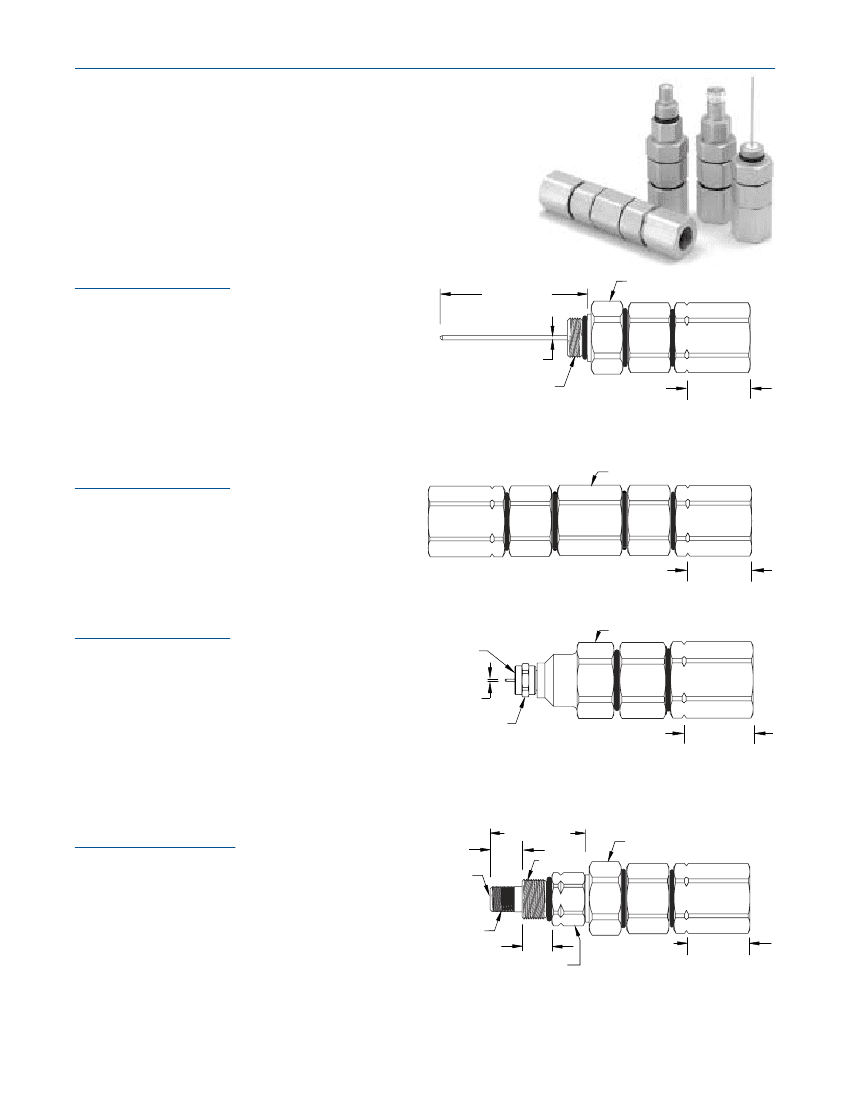

TX10-15 Connectors
The TX10-15 connectors are a three piece design that gives independent seizure activation for
center and outer conductors. These connectors use the GRS style center conductor seizing
mechanism. Two connectors address 60% through Quad-Shield Cables.
Features:
•
•
•
•
•
•
•
Return loss: >30 db to 1 GHz
Three piece design for independent seizure of center and outer conductors
Wrench tightened
No coring required
Tin plated brass pin
Aluminum body of ASTM 6262 alloy with chromate conversion coating
KS male interface meets SCTE specification IPS-SP-501
Pin Connector
Part Number
G-15-CH-TX
G-15Q-CH-TX
Cable Type
60%-Tri-Shield
Quad Shield
1.0 [25.4 mm] Hex TYP
2.31 [58.8 mm]
.067 [1.7 mm] Dia. Pin
5/8-24 THD
CENTER CONDUCTOR
CUTTING GUIDE
Splice Connector
Part Number
G-15-SP-TX
G-15Q-SP-TX
Cable Type
60%-Tri-Shield
Quad Shield
1.0 [25.4 mm] Hex TYP
CENTER CONDUCTOR
CUTTING GUIDE
Male “F” Connector
Part Number
G-15-AFM-TX
G-15Q-AFM-TX
Cable Type
60%-Tri-Shield
Quad Shield
.031 [.8 mm] Dia. Pin
7/16 [11.1 mm] Hex
3/8-32 THD
1.0 [25.4 mm] Hex TYP
CENTER CONDUCTOR
CUTTING GUIDE
Female “F” Connector
Part Number
G-15-BAFF-TX
G-15Q-BAFF-TX
Cable Type
60%-Tri-Shield
Quad Shield
1.48 [37.6 mm]
.50 [12.7 mm]
5/8-24 THD
Accepts .022 - .051 Dia.
Conductors
1.0 [25.4 mm] Hex TYP
3/8-32 THD
.47 [11.8 mm]
3/4 [19.1 mm] Hex
CENTER CONDUCTOR
CUTTING GUIDE
54
Corning Gilbert Broadband Products
Tel: 800 528 5567 / 623 245 1050 • Fax: 800 344 6358 / 623 939 3538
Power Connectors
1 1/4 [31.8 mm] Hex
2.31 [58.8 mm]
1 1/8 [28.6 mm] Hex
Pin Connector
Cable Type
CommScope 50 Ohm
Times Fiber 50 Ohm
Part Number
GRS-625/50-CH-122-T
GRS-625/50-CH-122-T
GRS-625/PF-CH-122-T
GRS-625/20-CH-122-T
Cable Type
G-JCS-625
G-JCS-625
G-JCS-625
G-JCS-625
G-JCS-625
CommScope Power Feeder® GRS-625/PF-CH-122-T
.122 [3.1 mm] Dia. Pin
5/8-24 "KS" Interface
1 1/4 [31.8 mm] Hex
1 1/8 [28.6 mm] Hex
CENTER CONDUCTOR
CUTTING GUIDE
Times Fiber P-22
Times Fiber P-20
Stripping/Coring Tool
G-SCT-625/50
G-SCT-625/50
G-SCT-625/PF
G-SCT-625/PF
G-SCT-625/P20
Features:
•
•
•
Power Rating 25 (Amps Continuous) @ 10° C Rise.
AC Operating Voltage 90 VAC 1 to 60 Hz.
Above products also available with .067" pin. Contact Corning Gilbert Technical
Support Team for information.
1-1/4 [31.8 mm] Hex TYP
1-1/8 [28.6 mm] Hex TYP
Splice Connector
Cable Type
CommScope 50 Ohm
Times Fiber 50 Ohm
Times Fiber P-22
Part Number
GRS-625/50-SP
GRS-625/50-SP
GRS-625/PF-SP
GRS-625/20-SP
CommScope Power Feeder GRS-625/PF-SP
Times Fiber P-20
Power Connector
Recommended Tools
G-SCT-625/50
G-SCT-625/50
G-SCT-625/PF
G-SCT-625/PF
G-SCT-625/P20
CENTER CONDUCTOR
CUTTING GUIDE
Features:
•
•
Power Rating 25 (Amps Continuous) @ 10° C Rise.
AC Operating Voltage 90 VAC 1 to 60 Hz.
Cable Type
G-JCS-625
G-JCS-625
G-JCS-625
G-JCS-625
G-JCS-625
2.31 [58.8 mm]
5/8-24 THD
3/4 [19.1 mm]
HEX
1 [25.4 mm] HEX
90
o
Power Adapter
Part Number
GP-90-PWR-T
1/2 [12.7 mm]
CENTER CONDUCTOR
CUTTING GUIDE
0.122" [3.1 mm] Dia. Pin
TRIM
0.34 [8.6 mm]
1.0 [25.4 mm]
5/8-24 THD
accepts center conductors of
0.151 [3.8 mm ] MAX
Features:
• Power Rating 25 (Amps Continuous)
@ 10° C Rise.
• AC Operating Voltage 90 VAC 1 to 60 Hz.
5.18 [131.6 mm]
0.122 [3.1 mm] Dia. Pin
180
o
Power Adapter
Part Number
GP-PA-PWR-T
2.31 [58.8 mm]
1/2 [12.7 mm]
CENTER CONDUCTOR
CUTTING GUIDE
5/8-24 THD
5/8-24 THD
accepts center conductors of
0.151 [3.8 mm] MAX
0.34 [8.6 mm]
TRIM
3/4 [19.1 mm]
Hex
Features:
• Power Rating 25 (Amps Continuous)
@ 10° C Rise.
• AC Operating Voltage 90 VAC 1 to 60 Hz.
Warning and Disclaimer:
USE OF THESE POWER PRODUCTS MAY RESULT IN INJURY OR
DEATH. BECAUSE THE APPLICATION AND THE CIRCUMSTANCES
CONCERNING THE USE OF THIS PRODUCT ARE BEYOND THE
CONTROL OF CORNING GILBERT INC., THE USER ASSUMES ALL
RISKS ASSOCIATED WITH THE PRODUCT. CORNING GILBERT
HEREBY DISCLAIMS ANY LIABILITY WHATSOEVER FOR INJURY
OR DEATH CAUSED BY THE USE OR MISUSE OF THIS PRODUCT.
TRIM
1 [25.4 mm]
Hex TYP
3/4 [19.1 mm]
Hex
1/2 [12.7 mm]
CENTER CONDUCTOR
CUTTING GUIDE TYP
Corning Gilbert Broadband Products
Tel: 800 528 5567 / 623 245 1050 • Fax: 800 344 6358 / 623 939 3538
55
