SSA021
7 WAY 5mm LED
ARRAY
RIGHT ANGLE MOUNT
SSA-021 is a seven element array of
5mm LEDs mounted at 12.7mm pitch.
Leads are bent at right angles and
cropped. The housing is black Nylon 6
flammability zero.
•
LEDs are matched for brightness.
•
Colour combination and polarity
to customer’s choice.
•
Compact black housing .
•
Cropped leads: 4mm standard,
other lengths available.
•
Labour saving assembly.

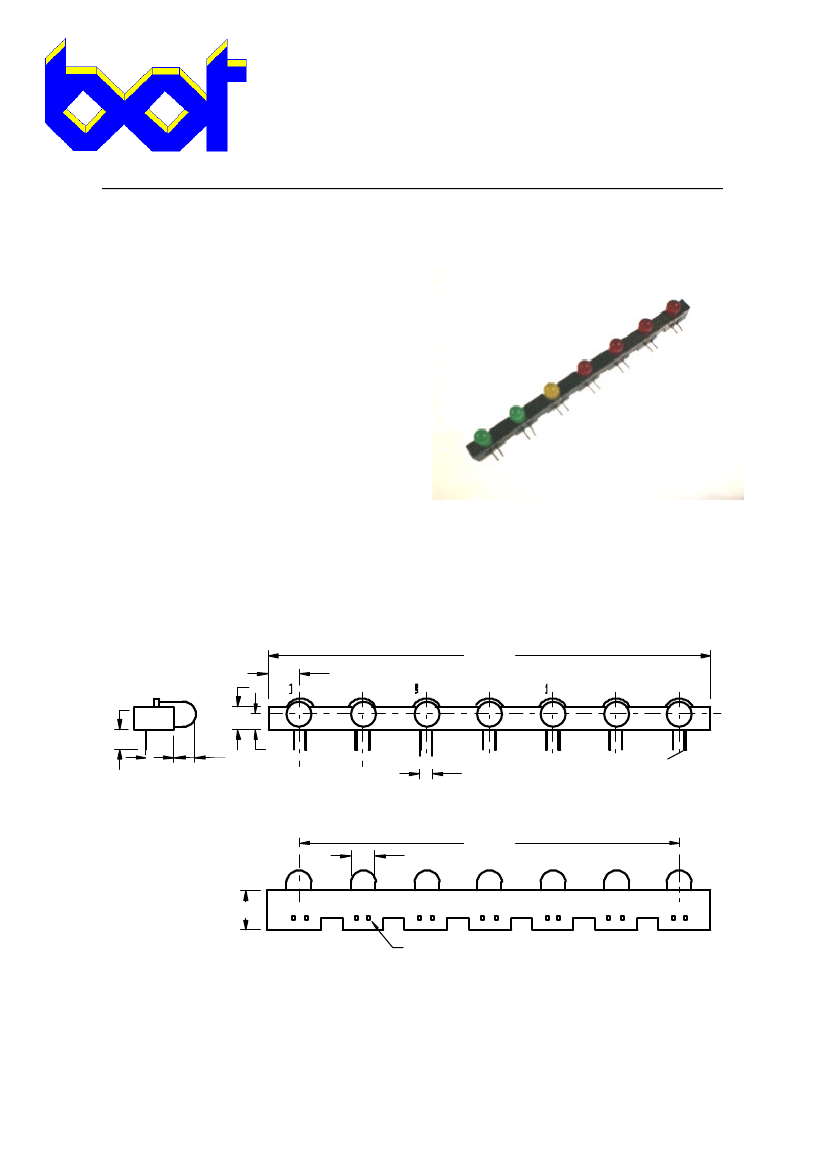

MECHANICAL DATA
88.9 ±0.3
6.35
4.6
4
2
4
6
7
5.7 4.1
3.1
2.54
LED Cathode
(Standard)
5
6 Pitches
of 12.7mm
8.0
0.63mm sq
BEDFORD OPTO TECHNOLOGY LTD
LINDSAYLANDS, BIGGAR, ML12 6NR
Tel: +44 (0) 1899 221221 Fax: +44 (0) 1899 221009
Website: bot.co.uk E-mail: bill@bot.co.uk
6.2.00 ISS A
SSA021
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25
O
C)
PARAMETER
CONTINUOUS FORWARD CURRENT
FORWARD CURRENT SURGE (Pulse
POWER DISSIPATION Tamb<60 C
REVERSE VOLTAGE
STORAGE TEMP
OPERATING TEMP
SOLDERING TEMPERATURE (1.6mm be-
High Efficiency Red
20
60
60
5
Yellow
20
60
60
5
-30 to +100
O
C
-25 to +85
O
C
Green
25
60
75
5
UNITS
mA
mA
mW
V
OPTO ELECTRONIC DATA
(If = 10mA)
COLOUR
Luminous
Intensity
mcd
Viewing
Angle
(1) deg
40
Peak Wavelength
nm
Forward
Voltage
Volts
2.0
Reverse Current
Vr = 3V
µA
RED
min
typ
min
typ
min
typ
2.2
6.3
2.2
6.3
3.6
-
650
YELLOW
40
585
2.1
GREEN
40
563
2.1
NOTES:
1
Viewing angle is the off-axis angle at which luminous intensity is half the axial
luminous intensity.
ORDERING INFORMATION
SSA-021 X X X etc
X = R = Red
Y = Yellow
G = Green
where 1st X = 1st element
To specify your requirement,please state:-
1/ SSA021
2/ The combination of LEDS in
order.A custom part number
will be issued to cover your
OPTO ELECTRONIC SOLUTIONS
BEDFORD OPTO TECHNOLOGY LTD
LINDSAYLANDS, BIGGAR, ML12 6NR
Tel: +44 (0) 1899 221221 Fax: +44 (0) 1899 221009
Website: bot.co.uk E-mail: bill@bot.co.uk
