BC36W042A

Description
PCB Connector
CategoryThe connector    The connector
File Size45KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

BC36W042A Online Shopping

Suppliers Part Number Price MOQ In stock
BC36W042A - - View Buy Now

BC36W042A Overview

PCB Connector

BC36W042A Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
Factory Lead Time8 weeks
Connector typePCB CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL (100)
Contact completed and terminatedGOLD FLASH OVER NICKEL (100)
DIN complianceNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberBC36W042A
OptionsGENERAL PURPOSE

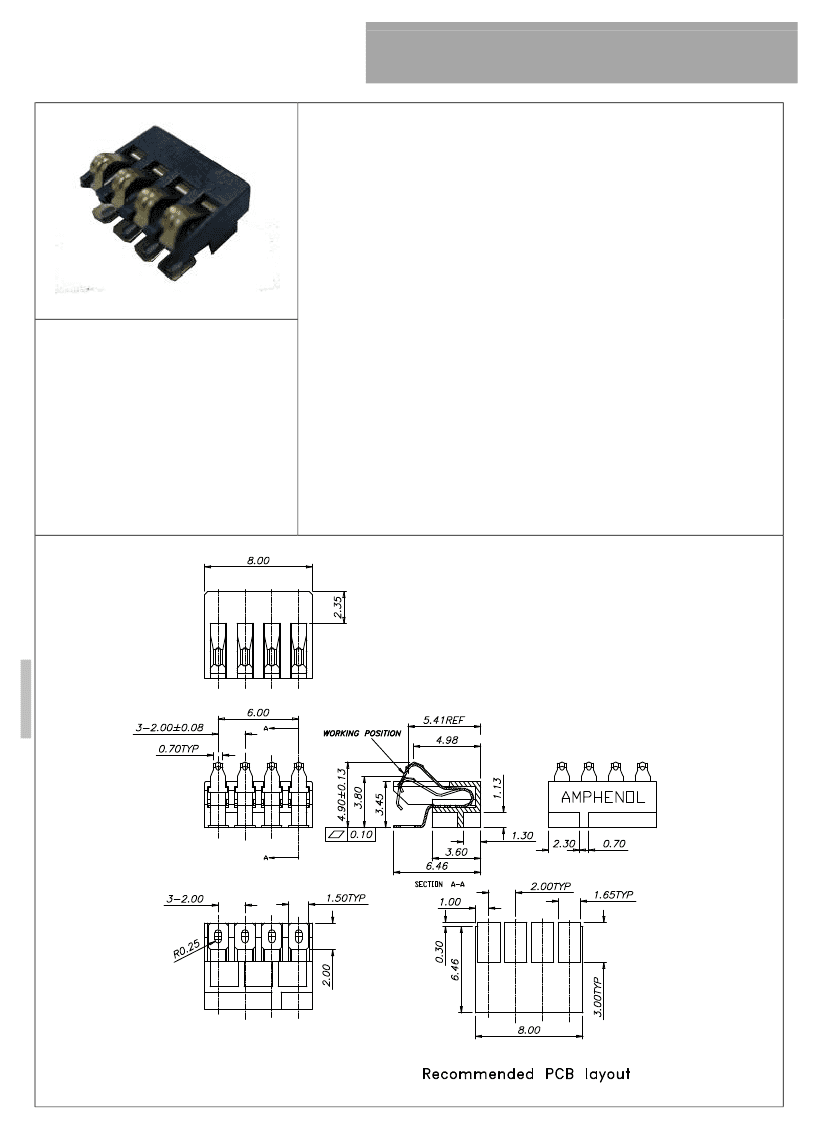

BC36W042A Preview

Amphenol
Battery Connector
1. Material:
Pin: Beryllium Copper
Insulator: High temperature Engineering Plastics UL94V-0, black
2. Finish:
30 mirco-inch(0.76 micron) Min gold plateing at mating area, gold
flash at solder tail and 50-100 micro-inch (1.27-2.54 micron) nickel
under plated.
3. Electrical specifications:
Voltage rating: 250 Vac min
Current rating: 2.0 A min
Dielectric strength: 1000 Vac for 1 minute min
Insulation resistance: 1000 MEG ohm min
Contact resistance: 30 milliohm max
Operation temperature: -55°C to +125°C
4. Mechanical specifications:
Durability: 10,000 cycles
Normal force at mated position: 100±20g
5. Packaging:
Parts to be packaged in anti-static tape and reel. All packaging
materials to be approved by Amphenol engineering.
Part Number : BC36W042A
4 Contacts Battery Connector
Straight SMT Mounting
- 3.60 mm height, 2.0 mm pitch
- 1.10 mm compression height
- Accept top press down and side
sliding battery mating
Battery
ASCA
