SBYG20DG THRU SBYG20JG
SURFACE MOUNT FAST
SWITCHING RECTIFIER
VOLTAGE:200 to 600V
:
CURRENT:1.5A
:
FEATURE
Ideal for surface mount pick and place application
Low profile package
Built-in strain relief
Low reverse current
Soft recovery characteristics
High temperature soldering guaranteed
260℃/10sec/at terminals
Glass passivated chip
Fast reverse recovery time

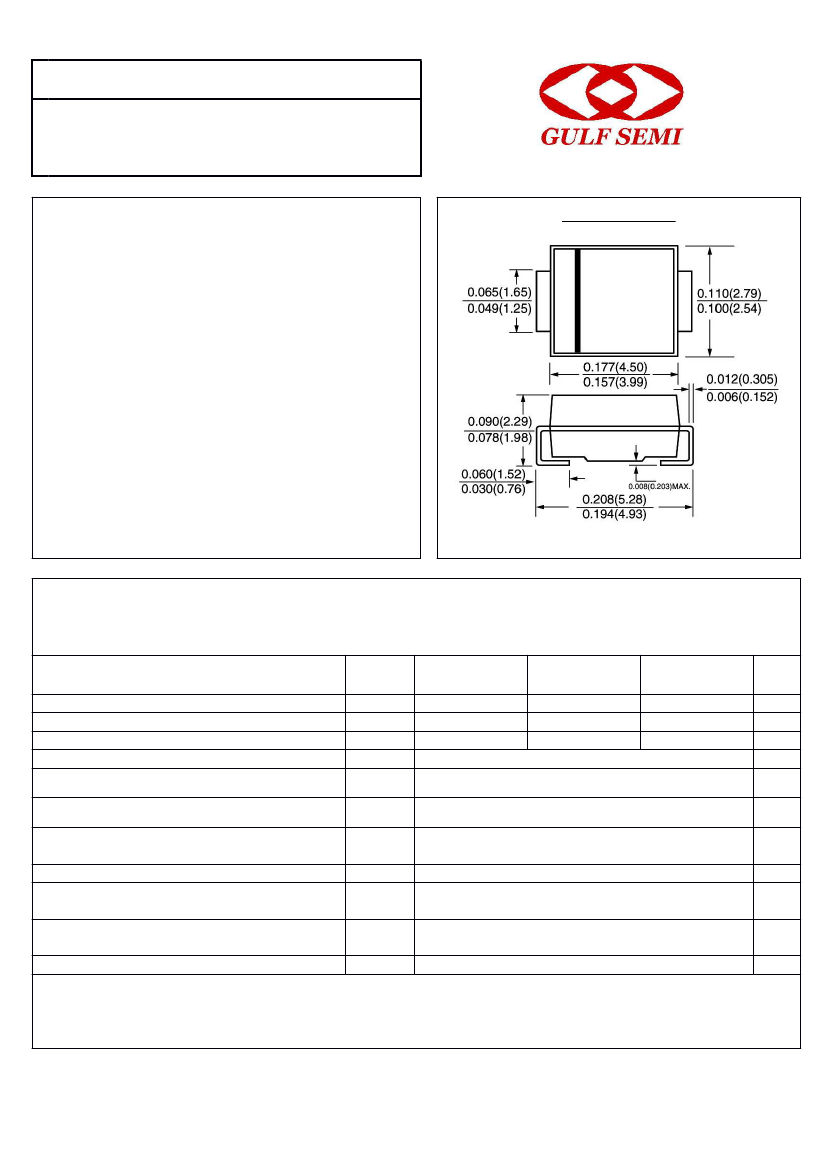

SMA/DO-214AC
/
MECHANICAL DATA
Terminal:Plated axial leads solderable per
MIL-STD 202E, method 208C
Case:Molded with UL-94 class V-0 recognized Flame
Retardant Epoxy
Polarity:Color band denotes cathode
Marking:G20D G20G G20J
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25℃, unless otherwise stated,
for capacitive load, date current by 20%)
SYMBOL
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC blocking Voltage
Maximum Average Forward Rectified
Peak Forward Surge Current 8.3ms single
half sine- wave superimposed on rated load
Maximum Instantaneous Forward Voltage at rated
forward current
Maximum DC Reverse Current
Tj =25℃
at rated DC blocking voltage
Tj =100℃
Maximum Reverse Recovery Time
(Note1 )
Pulse energy in avalanche mode,
non repetitive(inductive load switch off) (Note 2)
Typical Thermal Resistance
(Note 3)
(Note 4)
Storage and Operating Junction Temperature
Note:
1. Reverse Recovery Condition If
=0.5A,
Ir =1.0A, Irr =0.25A
2. I
(BR)R
=1.0A, Tj=25
℃
3. TL=const.
3. Thermal Resistance from Junction to terminal mounted on epoxy-glass hard tissue
SBYG20DG
200
140
200
SBYG20GG
400
280
400
1.5
50.0
1.4
1.0
10.0
75
20
25.0
150
-50 to +150
SBYG20JG
600
420
600
units
V
V
V
A
A
V
µA
nS
mJ
K/W
℃
Vrrm
Vrms
Vdc
If(av)
Ifsm
Vf
Ir
Trr
Ersm
Rth(jl)
Rth(ja)
Tstg, Tj
