SB-219-10

Description
Perma-Seal™ Hook Tongue Terminal for 14-16 AWG Wire, Stud Size 10
CategoryThe connector    terminals
File Size69KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

SB-219-10 Overview

Perma-Seal™ Hook Tongue Terminal for 14-16 AWG Wire, Stud Size 10

SB-219-10 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
ECCN codeEAR99
Manufacturer's serial numberSB-219
terminal genderFEMALE
Terminal and terminal strip typesHOOK TERMINAL
Wire gauge14 AWG

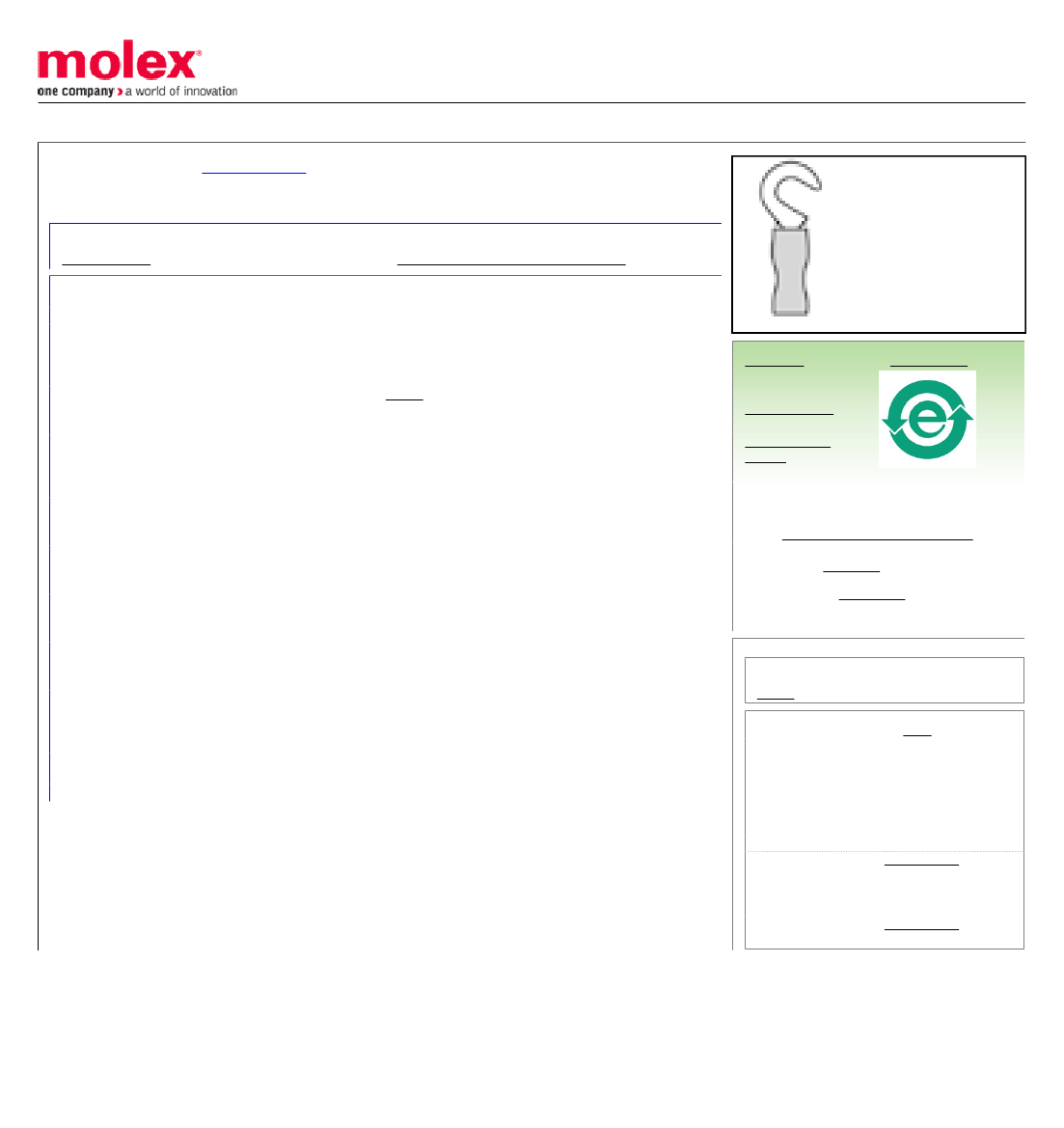

This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
Drawing (PDF)
0191640021
Active
Perma-Seal™ Hook Tongue Terminal for 14-16 AWG Wire, Stud Size 10
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19164
Yes
N/A
Perma-Seal™
Hook
Physical
Barrel Type
Flammability
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
94V-2
NiAc™
Tin
Bag
100
2.5
100
2.5
10 (M5)
5.97mm (.235")
14, 16
1.23 - 1.94
Search Parts in this Series
19164Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Power Crimp Tool
0640057400
Head for Prema-
Seal™ Terminals
10-22 AWG
Hand Crimp Tool, UL 0640017400
Approved
Material Info
Old Part Number
SB-219-10

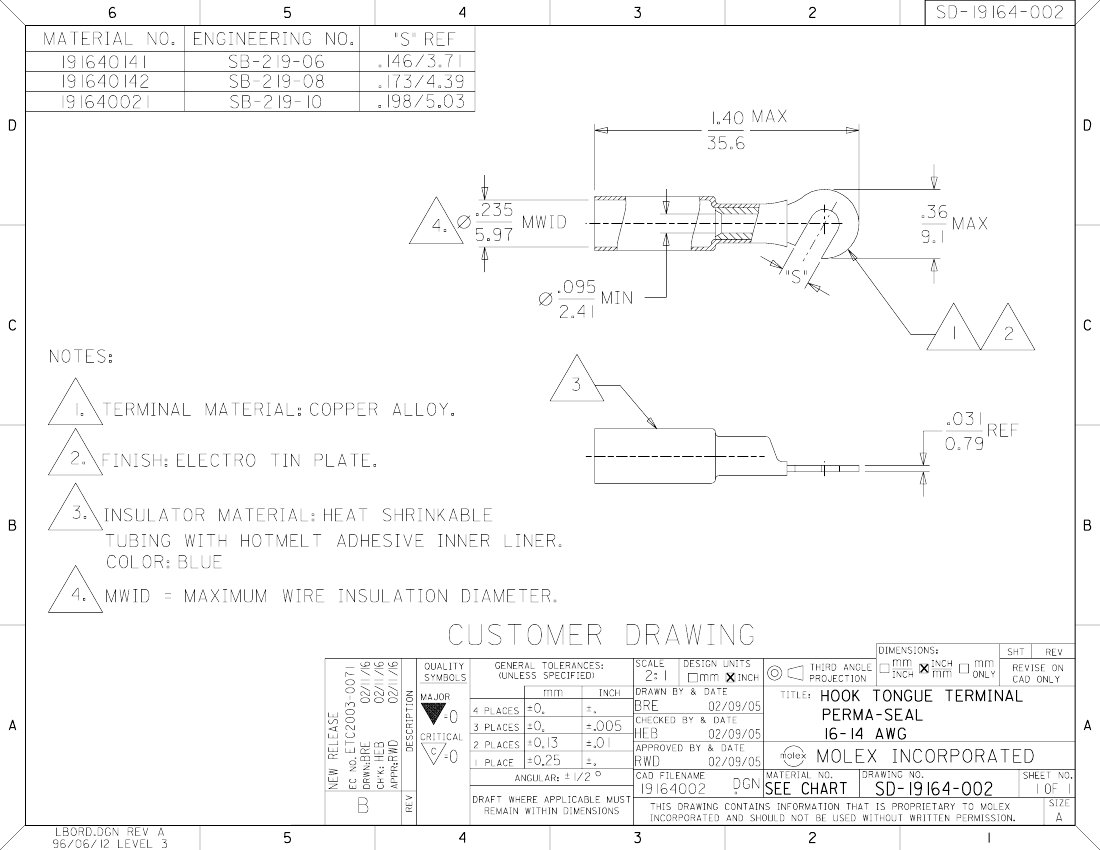

Reference - Drawing Numbers
Sales Drawing
SD-19164-002
This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
