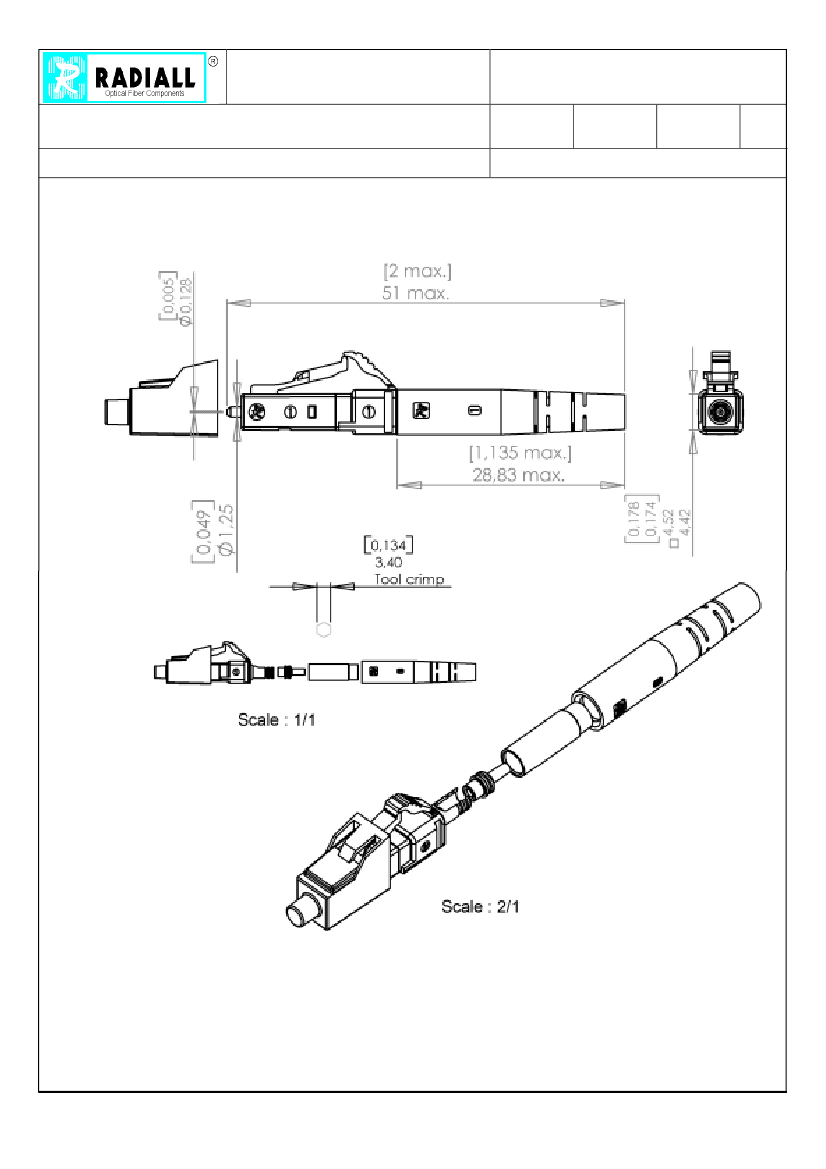

TECHNICAL DATA SHEET
LC SIMPLEX PC MULTIMODE OPTICAL PLUG
FOR Ø3.0 MM CABLE
Outer plug body : color BEIGE
F727.103.700
Packaging
100
Series
LC
Monobloc
Issue
30 JAN 06
Page
2/2
G
ENERAL
!
TYPE
IEC 61754-20 (LC )
Multimode Zirconia ferrule
RJ –45 latching connector system
128 µm
62,5/125µm multimode
∅3,0
mm Simplex
assembly instruction manual
!
!
!
!
FERRULE SIZE
FIBER SIZE
CABLE SIZE & TYPE
CABLING PROCEDURE
Refer to503.08.500
C
HARACTERISTICS
(Depending on fibre or cable construction)
!
OPTICAL
Attenuation at 1300 nm and 1550 nm
Attenuation plug mated with reference plug :
P
ARAMETER
Mean
Standard deviation
STD
≤0.10
≤0.05
IEC 61300-3-4
Method B
dB
dB
IEC 61300-3-34
Attenuation of random mated connectors :
P
ARAMETER
Mean
Standard deviation
STD
≤0.10
dB
≤
0.07 dB
Return-Loss
PC
!
Maximum loss variation :
R
L
> 35 20 dB
IEC 61300-3-6
MECHANICAL
Vibration
test
Impact test
Mechanical Endurance
Cable retention
10 to 55 Hz , 1,5 mm (peak to peak) , 2 Hr/axis
1,5 m drop , 8 cycles
200 matings
68 N
-40 °C to +85 °C
-40 °C to +70 °C
-40°C to +75°C , 21 Cycles , 168
95% , -10°C to +65°C , 14 cycles , 168 Hr
!
ENVIRONMENTAL
Storage temperature range
Operating temperature range
Thermal cycle test
Humidity/Condensation cycling test
(Performance and specification : see document
GEN – F727 001)
