VXM5-1C4-FREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> VXM5-1C4-FREQ

VXM5-1C4-FREQ: DescriptionParallel - Fundamental Quartz Crystal, 13MHz Min, 50MHz Max; CategoryPassive components Crystal/resonator; File Size62KB，2 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/; Environmental Compliance

Download Datasheet Parametric View All

VXM5-1C4-FREQ Overview

Parallel - Fundamental Quartz Crystal, 13MHz Min, 50MHz Max

VXM5-1C4-FREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vectron International, Inc.
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	1 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	50 µW
frequency stability	0.01%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	18 pF
Manufacturer's serial number	VXM5
Installation features	SURFACE MOUNT
Maximum operating frequency	50 MHz
Minimum operating frequency	13 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L4.9XB3.1XH0.7 (mm)
Series resistance	40 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

http://www.vectron.com/

VXM5 Ultra Miniature SMD Crystals

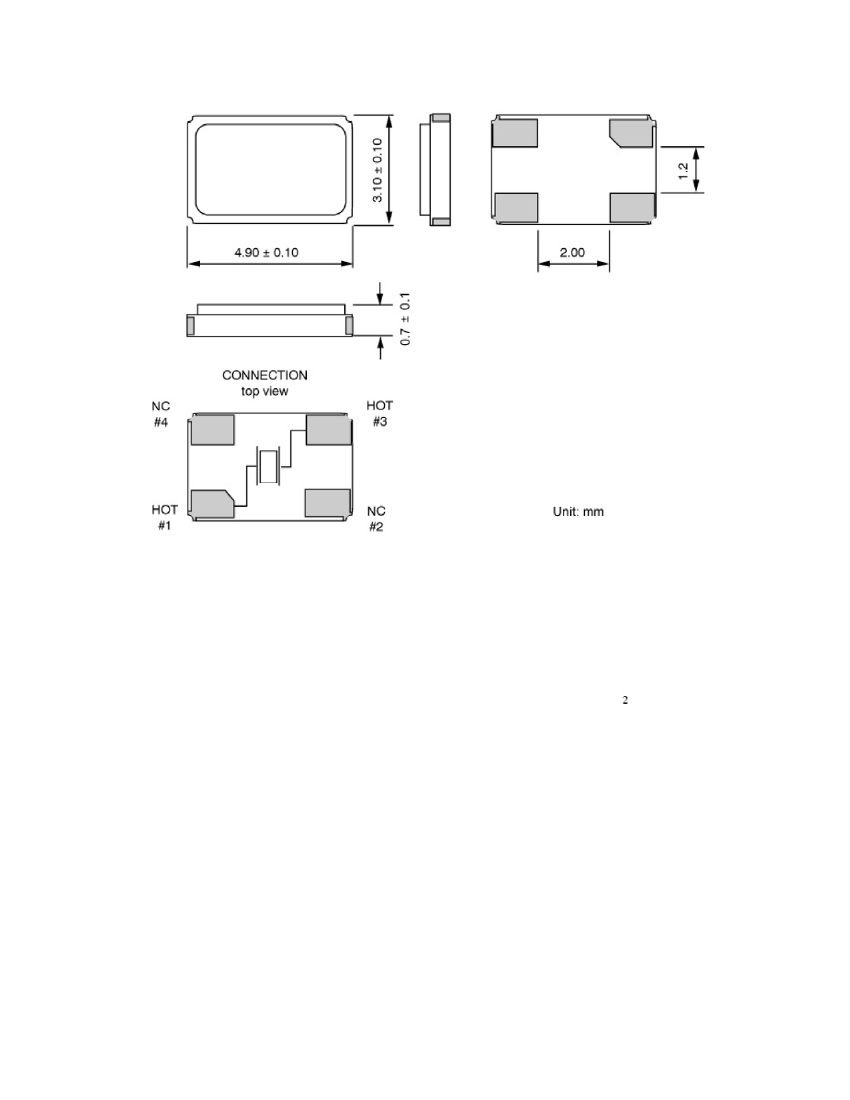

4.9 x 3.1 x 0.7mm tall 4 pads

Package:

Frequency Range:

Mode:

Stability:

13.0 to 50 MHz

1 =

Fundamental

100 PPM - 20°C to + 70°C

= ± 50 PPM –20°C to + 70°C

= ± 100 PPM - 40°C to + 85°C

= ± 50 PPM – 40°C to + 85°C

= ± 25 PPM - 20°C to + 70°C

= ± 30 PPM -20°C to + 70°C

0 =

Series Resonant

1 =

16 pF

2 =

20 pF

= 32 pF

4 =

18 pF

5 =

10 pF

6 =

30 pF

10 ppm at +25C

Load Capacitance (CL):

STD Calibration Tolerance:

ESR:

Shunt Capacitance (Co):

Drive Level:

Aging:

40 ohms Maximum

7 pF Maximum

50 uW Typical

± 1.0 PPM Maximum/ year

Reflow:

Standard Packaging:

Typical P/N:

± 1.0 PPM Maximum

Tape & Reel (1000 pcs minimum)

VXM5-1 B2-24M000

= 4.9 x 3.1 x 0.7 mm 4 pads

= Fundamental Mode

= ± 50 PPM -20°C to + 70°C

= 20 pF load

Vectron International, 267 Lowell Rd, Hudson NH 03051-4916

Tel: 1-88-VECTRON-1

Website: www.vectron.com
