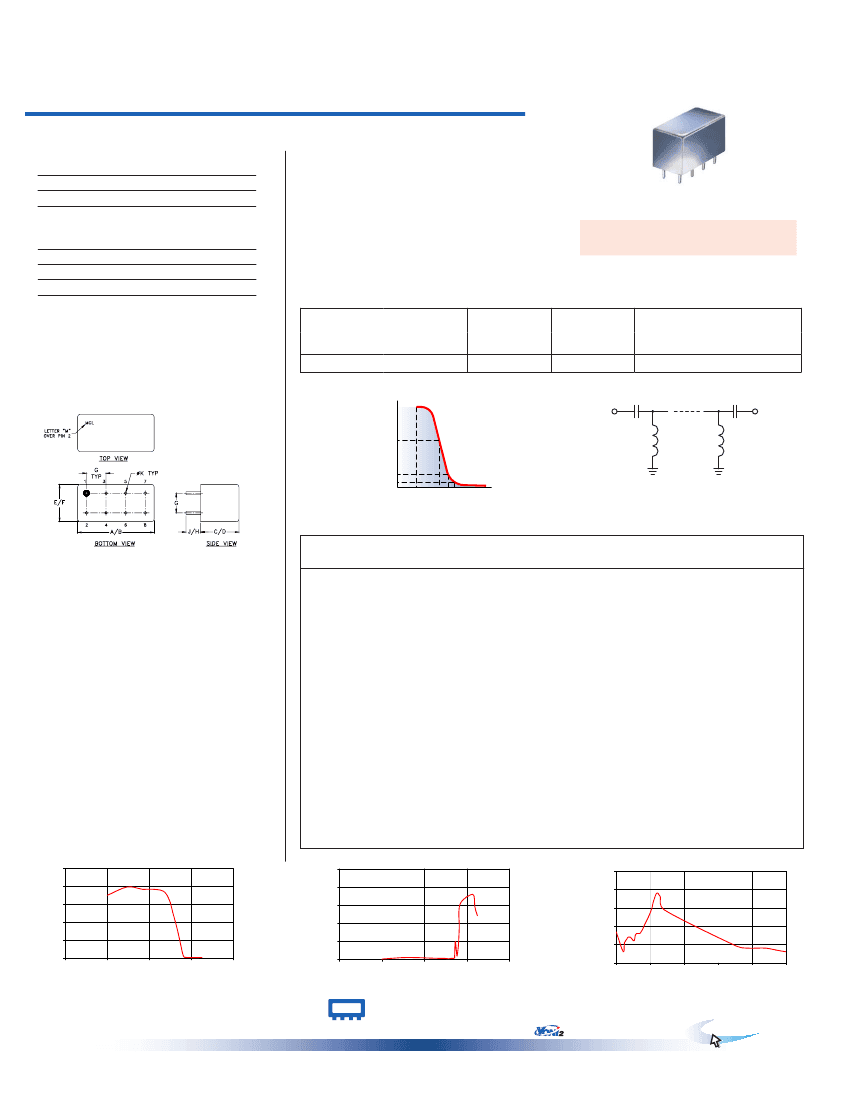

High Pass Filter, 640MHz, ROHS COMPLIANT, CASE A01, 8 PIN
PHP-700+ Parametric
Parameter Name
Attribute value
Is it Rohs certified?
conform to
Maker
Mini-Circuits
Reach Compliance Code
unknown
ECCN code
EAR99
Maximum attenuation frequency
520 MHz
Attenuation at maximum frequency
20 dB
average input power
0.5 W
Center frequency or cutoff frequency (fo/fc)
640 MHz
filter type
HIGH PASS FILTER
high
10.16 mm
input resistance
50 OHM
Maximum insertion loss
3 dB
length
20.32 mm
Installation type
THROUGH HOLE MOUNT
Maximum operating temperature
100 °C
Minimum operating temperature
-55 °C
Output impedance
50 OHM Ω
physical size
L20.32XB10.16XH10.16 (mm)/L0.8XB0.4XH0.4 (inch)
voltage standing wave ratio
1.6
width
10.16 mm
PHP-700+ Preview
Plug-In
High Pass Filter
50Ω
700 to 1800 MHz
Features
-55°C to 100°C
-55°C to 100°C
0.5W max.
PHP-700+
Maximum Ratings
Operating Temperature
Storage Temperature
RF Power Input
• rugged shielded case, hermetically sealed
• other standard and custom PHP models available
with wide selection of fco
Permanent damage may occur if any of these limits are exceeded.
CASE STYLE: A01
PRICE: $17.20 ea. QTY: (1-9)
Pin Connections
INPUT
OUTPUT
GROUND
CASE GROUND
1
8
2,3,4,5,6,7
2,3,4,5,6,7
Applications
• lab use
• transmitters/receivers
• military/hi-rel application
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffix has been added in order to identify RoHS
Compliance. See our web site for RoHS Compliance
methodologies and qualifications.
High Pass Filter Electrical Specifications
STOPBAND
(MHz)
(loss > 40 dB)
DC-400
(loss > 20 dB)
400-520
fco (MHz)
Nom.
(loss 3 dB)
640
PASSBAND
(MHz)
(loss <1 dB)
700-1800
Stopband
Typ.
17
VSWR
(:1)
Passband
Typ.
1.6
Outline Drawing
typical frequency response
40
Attenuation, dB
R F IN
electrical schematic
R F OUT
20
3
1
DC
.5
.75 1 1.1
F requency/fco
Typical Performance Data
Frequency
(MHz)
Insertion Loss
(dB)
_
x
σ
69.97
79.30
76.67
76.75
74.46
64.87
51.59
49.50
45.90
43.94
40.15
32.96
29.32
25.76
24.00
22.24
18.71
10.13
7.01
5.60
4.36
3.29
2.44
1.30
0.65
0.36
0.45
0.50
0.54
0.57
RETURN LOSS
25
RETURN LOSS (dB)
20
15
10
5
0
at RF level of 0 dBm
Return Loss
(dB)
0.1
0.5
0.5
0.4
0.3
0.3
0.2
0.2
0.2
0.2
0.3
0.3
0.3
0.3
0.4
0.4
5.0
1.0
1.7
2.3
3.0
3.9
5.1
8.7
15.2
17.9
14.7
13.5
12.7
12.0
Frequency
(MHz)
300.00
360.00
370.00
390.00
400.00
420.00
450.00
460.00
470.00
480.00
500.00
510.00
520.00
540.00
570.00
590.00
600.00
610.00
620.00
630.00
640.00
650.00
670.00
700.00
1310.00
1395.00
1475.00
1555.00
1635.00
1720.00
GROUP DELAY
5.0
GROUP DELAY (nsec)
4.0
3.0
2.0
1.0
0.0
300
at RF level of 0 dBm
Group Delay
(nsec)
1.70
0.58
1.11
1.29
1.39
1.35
1.20
1.45
1.58
1.65
1.61
1.72
1.80
2.05
2.46
2.75
3.01
3.25
3.52
3.69
3.78
3.75
3.55
2.94
0.89
0.85
0.76
0.78
0.75
0.65
Outline Dimensions (
inch
)
mm
A
B
.770
.800
19.56 20.32
G
H
.200
.20
5.08
5.08
C
D
.385
.400
9.78 10.16
J
K
.14
.031
3.56
0.79
E
F
.370
.400
9.40 10.16
wt
grams
5.2
10.00
30.00
70.00
120.00
220.00
300.00
360.00
370.00
390.00
400.00
420.00
460.00
480.00
500.00
510.00
520.00
540.00
590.00
610.00
620.00
630.00
640.00
650.00
670.00
700.00
1395.00
1555.00
1635.00
1720.00
1800.00
2.7
6.2
6.3
5.9
5.8
2.8
0.9
1.2
0.8
0.9
0.7
0.6
0.6
0.6
0.5
0.5
0.5
0.3
0.3
0.2
0.2
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
INSERTION LOSS
100
INSERTION LOSS (dB)
80
60
40
20
0
at RF level of 0 dBm
1
10
100
1000
FREQUENCY(MHz)
10000
1
10
100
1000
FREQUENCY(MHz)
10000
584
868
1152
FREQUENCY (MHz)
1436
1720
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
®
Provides ACTUAL Data Instantly at
minicircuits.com
REV. B
M113397
PHP-700+
100909
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
