SN74LS191JD: DescriptionBinary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDIP16, CERAMIC, DIP-16; Categorylogic logic; File Size334KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

SN74LS191JD Overview

Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDIP16, CERAMIC, DIP-16

SN74LS191JD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	CERAMIC, DIP-16
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	BIDIRECTIONAL
series	LS
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.495 mm
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	36 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	25 MHz

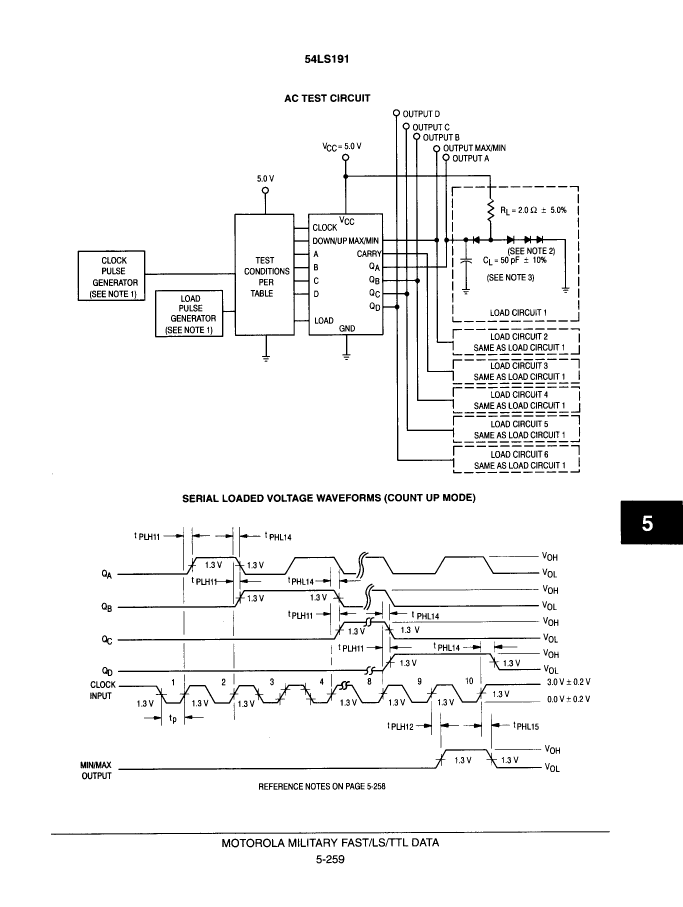

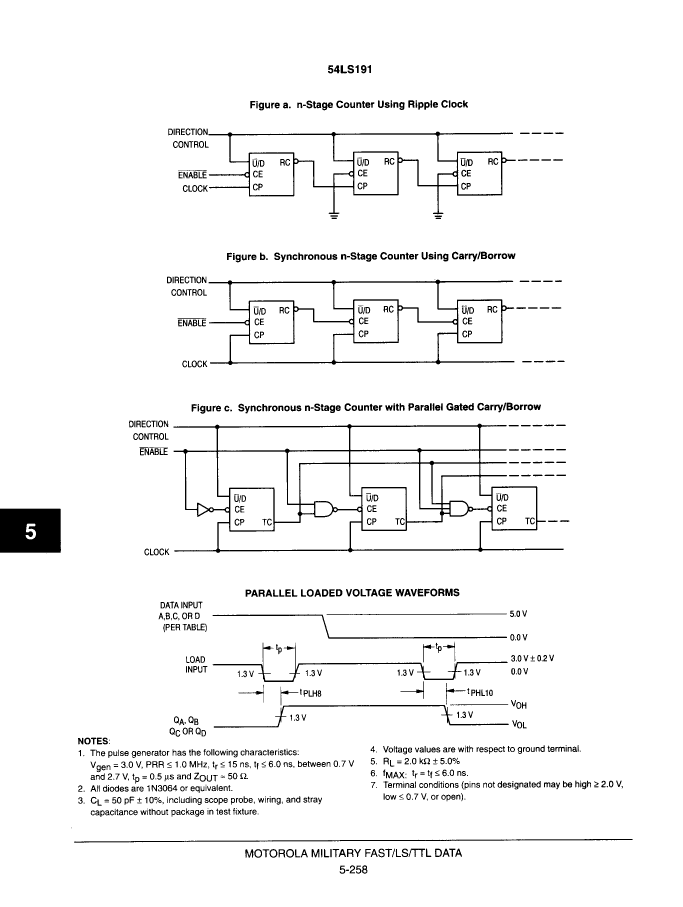

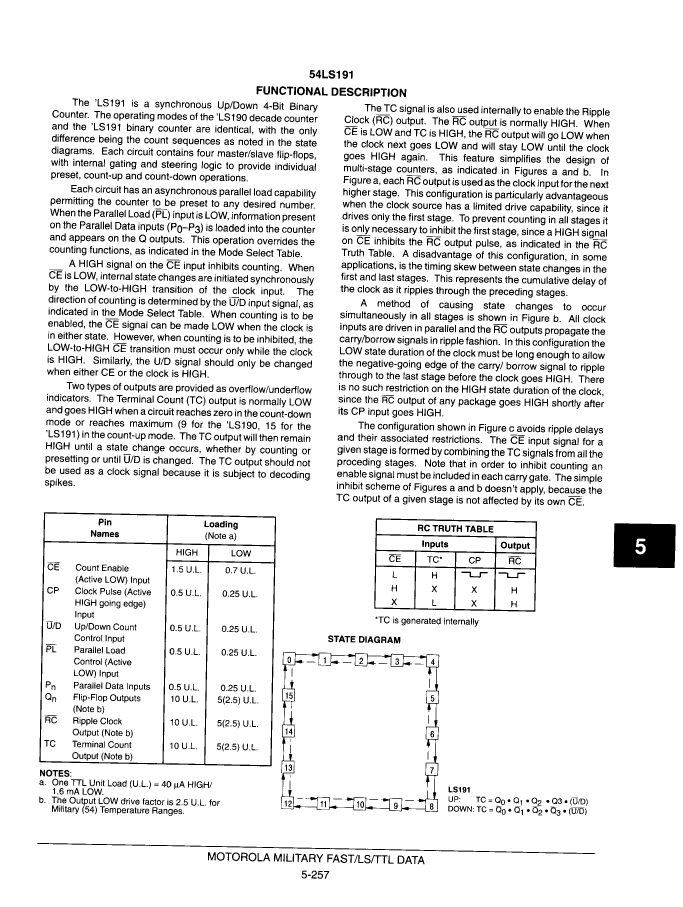

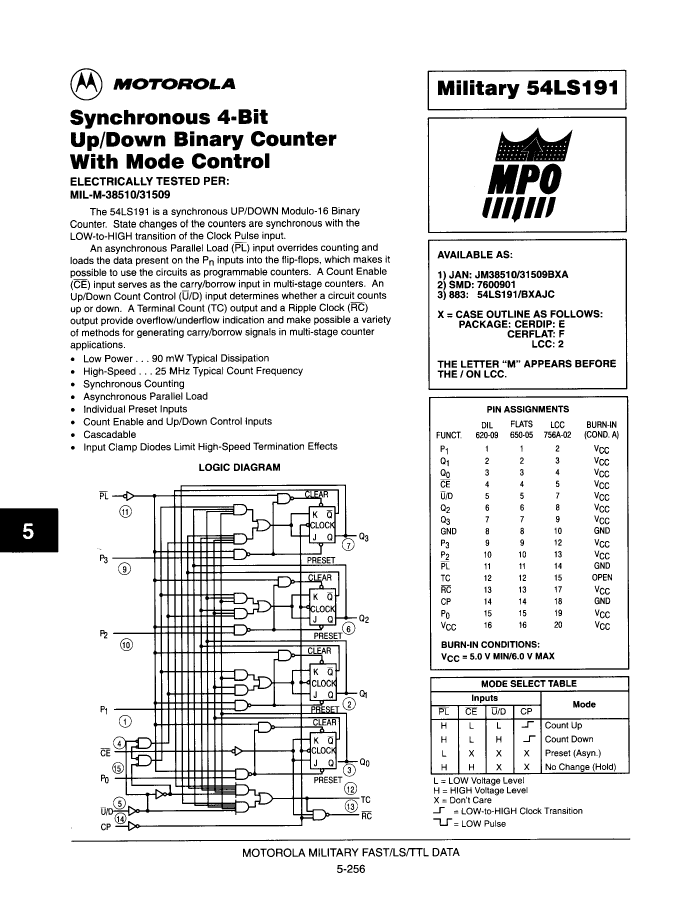

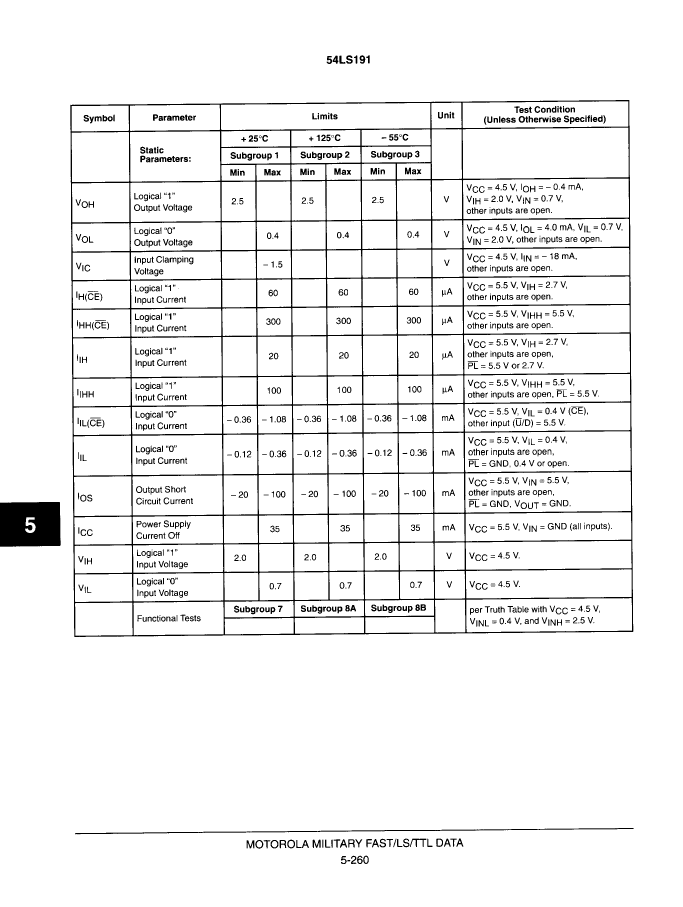

Preview

Download Datasheet

View All

SN74LS191JD Related Products

	SN74LS191JD	SN54LS191W	SN74LS191NDS
Description	Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDIP16, CERAMIC, DIP-16	Binary Counter, Synchronous, Bidirectional, TTL, CDFP16	Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDIP16, PLASTIC, DIP-16
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	CERAMIC, DIP-16	DFP, FL16,.3	PLASTIC, DIP-16
Reach Compliance Code	unknown	unknown	unknown
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-GDIP-T16	R-XDFP-F16	R-PDIP-T16
JESD-609 code	e0	e0	e0
Load/preset input	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	70 °C	125 °C	70 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DFP	DIP
Encapsulate equivalent code	DIP16,.3	FL16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Other features	TCO OUTPUT	-	TCO OUTPUT
series	LS	-	LS
length	19.495 mm	-	20.07 mm
Number of digits	4	-	4
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
propagation delay (tpd)	36 ns	-	36 ns
Maximum seat height	5.08 mm	-	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	-	5.25 V
Minimum supply voltage (Vsup)	4.75 V	-	4.75 V
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
Trigger type	POSITIVE EDGE	-	POSITIVE EDGE
width	7.62 mm	-	7.62 mm
minfmax	25 MHz	-	25 MHz
