E13C5H2F-155.52M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> E13C5H2F-155.52M

E13C5H2F-155.52M: DescriptionCRYSTAL OSCILLATOR, CLOCK, 155.52MHz, LVPECL OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size95KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

E13C5H2F-155.52M Overview

CRYSTAL OSCILLATOR, CLOCK, 155.52MHz, LVPECL OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 6 PIN

E13C5H2F-155.52M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK; COMPLEMENTARY OUTPUT
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Manufacturer's serial number	E13C5
Installation features	SURFACE MOUNT
Nominal operating frequency	155.52 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	5.0mm x 3.2mm x 1.3mm
longest rise time	0.7 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

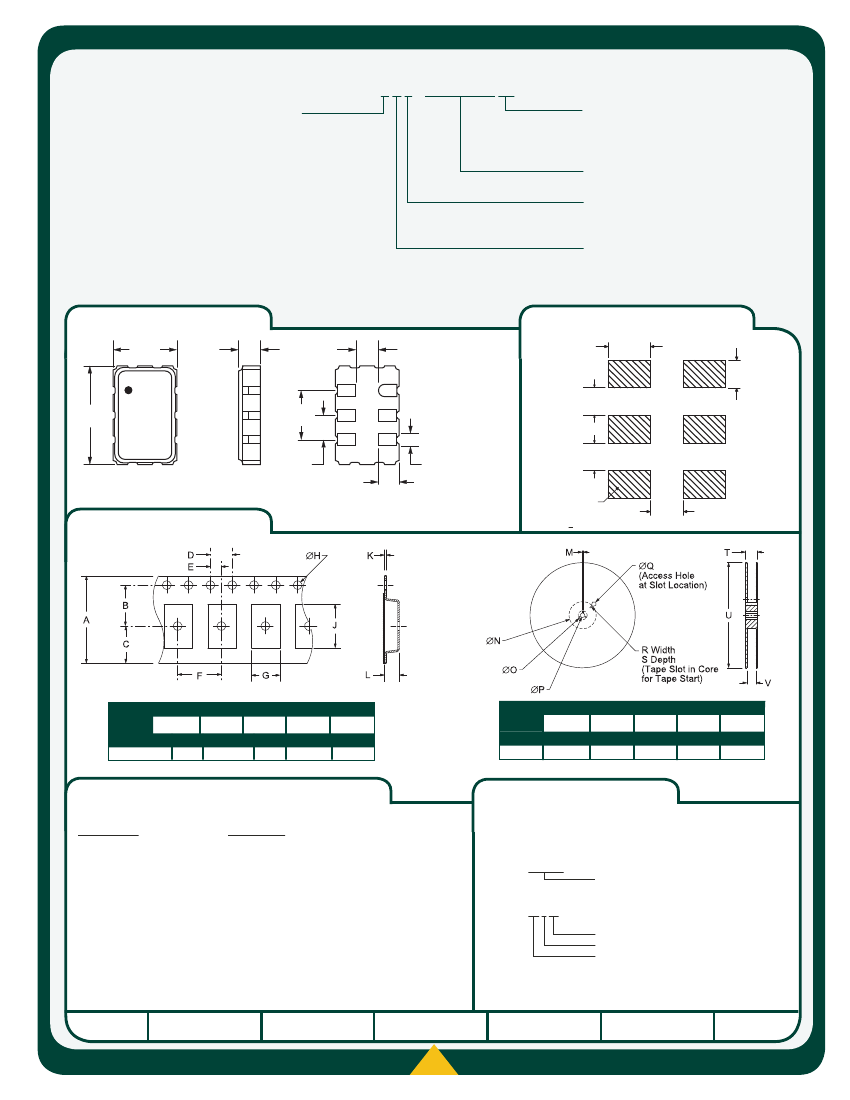

Preview

Download Datasheet

View All

E13C5

Series

• Crystal Clock Oscillators

• LVPECL Output

• +3.3V Supply Voltage

• Complementary Output

• Tri-State Output Function

• 6 Pad Ceramic SMD Package

• Low Stand-by Current

• RoHS Compliant (Pb-Free)

ELECTRICAL SPECIFICATIONS

Nominal Frequency (MHz)

E13C5

1.3

5.0

3.2

OSCILLATOR

74.25MHz, 77.76MHz, 78.125MHz, 80MHz, 80.157MHz, 85MHz, 87.125MHz, 90MHz, 100MHz, 106.25MHz,

110MHz, 119MHz, 120MHz, 122.888MHz, 124.4MHz, 125MHz, 127MHz, 128MHz, 131.072MHz, 133MHz,

133.33MHz, 133.333MHz, 135MHz, 137.472MHz, 150MHz, 155.52MHz, 156.25MHz, 159.375MHz, or

161.1328MHz

0°C to 70°C, or -40°C to +85°C

-55°C to 125°C

3.3V

±5%

75mA Maximum

±100ppm, ±50ppm, ±25ppm, or

±20ppm Maximum

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current

Frequency Tolerance / Stability

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

Duty Cycle

Load Drive Capability

Logic Control / Additional Output

Tri-State Input Voltage

of 70% of V

Minimum

No Connection

of 30% of V

Maximum

Standby Current

Without Load

Start Up Time

RMS Phase Jitter

FJ = 12kHz to 20MHz

Typical Phase Noise

Fo=156.250MHz

Inclusive of All Conditions: Calibration Tolerance at 25°C,

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, 1st Year

Aging at 25°C, Shock, and Vibration

0°C to 85°C

-40°C to 0°C

0°C to 85°C

-40°C to 0°C

20% to 80% of waveform

at 50% of waveform

-1.025V

Minimum

-1.085V

Minimum

-1.620V

Maximum

-1.555V

Maximum

300pSec Typical, 700pSec Maximum

50 ±5(%)

50 Ohms into V

-2.0V

Tri-State and Complementary Output

Enables Output

Disables Output: High Impedance

30µA Maximum

10 mSeconds Maximum

0.4pSec Typical, 1 pSec Maximum

-60dBc/Hz at 10Hz Offset

-95dBc/Hz at 100Hz Offset

-125dBc/Hz at 1kHz Offset

-143dBc/Hz at 10kHz Offset

-145dBc/Hz at 100kHz Offset

-145dBc/Hz at 1MHz Offset

-146dBc/Hz at 10MHz Offset
