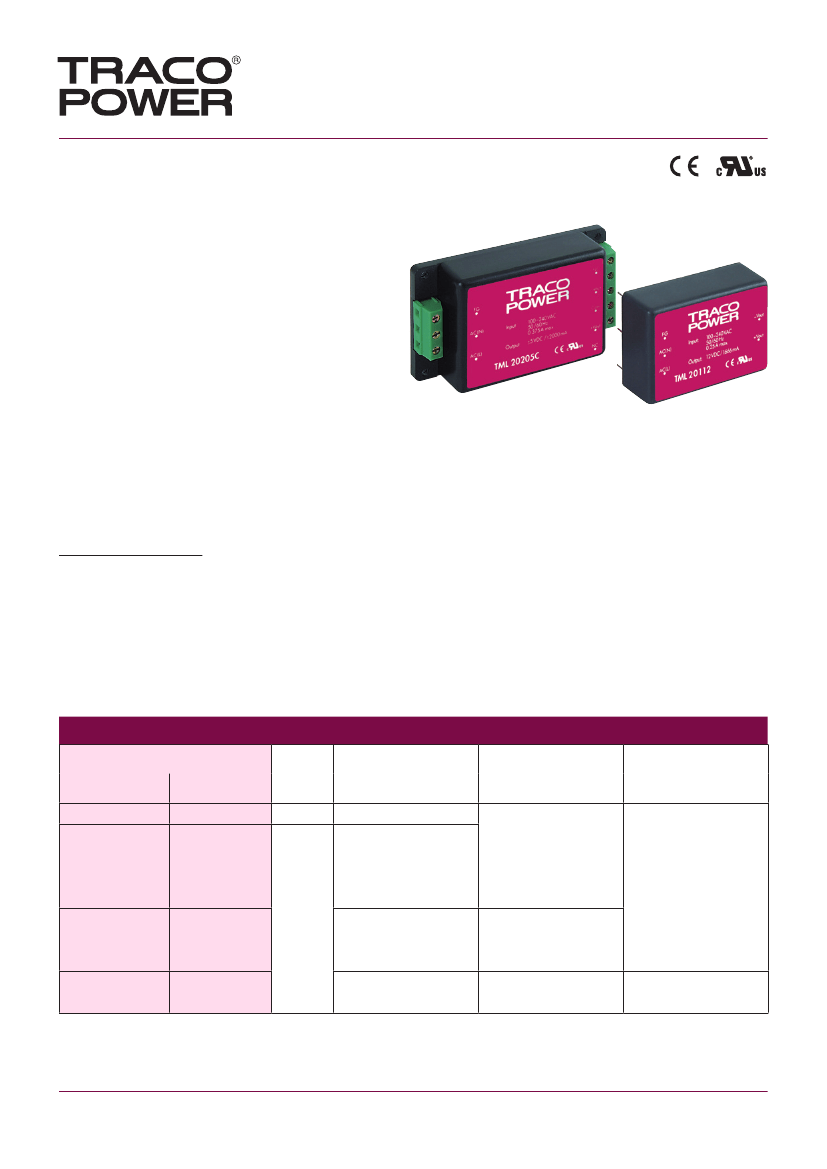

AC/DC Power Modules
TML Series, 20 & 40 Watt
CB
Features
◆
Encapsulated power supplies with
increased power density
Scheme
LVD
UL 60950-1
◆
Replaces TML 15 and TML 30 series
◆
PCB mount or chassis mount with
screw terminals
◆
Single, dual and triple output models
◆
Universal input 90–264 VAC, 47–440 Hz
◆
EMI meets EN 55022, class B and
FCC, level B
◆
Protection class ll for TML 40 models
◆
Short circuit and overload protection
◆
3-year product warranty
Also see:
TMLM Series, 4 to 20 Watt
highest power density, PCB mount.
www.tracopower.com/products/tmlm.pdf
Referance datasheet for primary TML models, see:
www.tracopower.com/products/tml-primary.pdf
(not recommended for new design in)
The TML series are ultra compact AC/DC power supplies in a fully encapsulated
plastic case. They feature versions with screw terminals for easy installation or
with solder pins for direct PCB mounting. International safety approvals qualify
this product for worldwide markets. The TML series AC/DC modules offer an
interesting solution for many space critical applications in commercial and indus-
trial electronic equipment.
20 Watt Models
Order code
PCB mount
TML 20103
TML 20105
TML 20112
TML 20115
TML 20124
TML 20205
TML 20212
TML 20215
TML 20512
TML 20515
Chassis mount
TML 20103C
TML 20105C
TML 20112C
TML 20115C
TML 20124C
TML 20205C
TML 20212C
TML 20215C
TML 20512C
TML 20515C
20 W
Output
power
max.
14.9 W
Output 1
Output 2
Output 3
3.3 VDC/4500 mA
5.0 VDC/4000 mA
12 VDC/1670 mA
15 VDC/1340 mA
24 VDC/840 mA
+5.0 VDC/2000 mA
+12 VDC/833 mA
+15 VDC/667 mA
5 VDC/2800 mA
5 VDC/2800 mA
–5.0 VDC/2000 mA
–12 VDC/833 mA
–15 VDC/667 mA
+12 VDC/250 mA
+15 VDC/200 mA
–12 VDC/250 mA
–15 VDC/200 mA
http://www.tracopower.com
Page 1 of 5
AC/DC Power Modules
TML Series
40 Watt Models
Order code
PCB mount
TML 40103
TML 40105
TML 40112
TML 40115
TML 40124
TML 40205
TML 40212
TML 40215
TML 40252
TML 40254
TML 40512
TML 40515
Chassis mount
TML 40103C
TML 40105C
TML 40112C
TML 40115C
TML 40124C
TML 40205C
TML 40212C
TML 40215C
TML 40252C
TML 40254C
TML 40512C
TML 40515C
40 W
Output
power
max.
26.4 W
Output 1
Output 2
Output 3
20 & 40 Watt
3.3 VDC/8000 mA
5.0 VDC/8000 mA
12 VDC/3333 mA
15 VDC/2666 mA
24 VDC/1667 mA
+5.0 VDC/4000 mA
+12 VDC/1666 mA
+15 VDC/1333 mA
*5.0 VDC/5000 mA
*5.0 VDC/5000 mA
*5.0 VDC/5000 mA
*5.0 VDC/5000 mA
* Output floating
–5.0 VDC/4000 mA
–12 VDC/1666 mA
–15 VDC/1333 mA
*12 VDC/1250 mA
*24 VDC/625 mA
+12 VDC/600 mA
+15 VDC/500 mA
–12 VDC/600 mA
–15 VDC/500 mA
Input Specifications
Input voltage ranges
Input frequency
Input current at full load
(115 VAC / 230 VAC nominal input)
Leakage current
External fuse
(required)
– AC input
– DC Input
90 – 264 VAC
100 – 375 VDC
47 – 440 Hz
TML 20 models:
400 mA / 270 mA typ.
TML 40 models:
860 mA / 460 mA typ
0.75 mA max.
1.5 A slow blow type
(recommendation)
TML 20 models:
±2 %
TML 40 single and symetric dual output models:
±2 %
TML 40 asymetric dual and triple output models:
±3 %
for output 1,
±5 %
for output 2&3
TML 20 single and dual
TML 20 triple
TML 40 single
TML 40 symetric dual
TML 40 asymetric dual and triple
output
output
output
output
output
models:
models:
models:
models:
models:
0%
10 %
(each output)
1%
10 %
(each output)
25 %
(each output)
operation at lower load condition will not
damage these power supplies, however, they
may not meet all listed specifications.
Output Specifications
Voltage set accuracy
Minimum load
Ripple and noise
(20 MHz bandwidth)
TML 20 models:
<0.7 % of Vout +90 mV [Vp-p]
TML 40, 3.3 VDC model:
<50 mVp-p
TML 40 other models:
<1 % of Vout [Vp-p]
Regulation – Input variation
single and symetric dual output models:
0.5 %
(each output)
TML 20 triple output models:
1 %
for output 1,
5 %
for output 2&3
TML 40 asymetric dual and triple output models:
±0.5 %
for output 1,
±5 %
for output 2&3
All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
http://www.tracopower.com
Page 2 of 5
AC/DC Power Modules
TML Series
Output Specifications
Regulation – Load variation
TML 20 single output models:
1 %,
0–100 % load
TML 20 dual output models:
3 %
(each output), 10–100 % symetric load
TML 20 triple output models:
2 %
for output 1, 20–100 % load
5 %
for output 2&3, 20–100 % symetric load
TML 40 single output models:
0.5 %
1–100 % load
TML 40 symetric dual output models:
3 %
(each output), 10–100 % symetric load
TML 40 asymetric dual output models:
2 %
for output 1, 25–100 % load
6 %
for output 2, 25–100 % load
TML 40 triple output models:
3 %
for output 1, 25–100 % load
7 %
for output 2&3, 25–100 % symetric load
above 105 % of rated output current.
120 % of Vout typ.
hiccup mode, indefinite
(automatic recovery)
at +100°C
Model series
TML 20
3.3 VDC
5.0 VDC
Single output models
12 VDC
15 VDC
24 VDC
+5.0
/ –5.0 VDC
Dual output models symetric
+12 / –12 VDC
+15 / –15 VDC
Dual output models asymetric
Triple output models
+5.0
/ +12 VDC
+5.0 / +24 VDC
+5.0
/ +12 / –12 VDC
+5.0
/ +15 / –15VDC
25‘000
13‘000
920
820
600
4300 / 4300
560 /560
220 /220
–
–
3‘500 / 220 / 220
3‘500 / 150 / 150
TML 40
60‘000
40‘000
8‘600
6‘600
1400
12‘000 / 12‘000
4‘400 / 4‘400
1‘000 / 1‘000
10‘000 / 470
10‘000 / 400
10‘000 / 780 / 780
10‘000 / 900 / 900
20 & 40 Watt
Current limitation
Overvoltage protection by Zehner diode
(main output only)
Short circuit protection
Overtemperature protection
(TML 40 models only)
Max. capacitive load [µF]
Output:
General Specifications
Temperature ranges
– Operating
– Power derating above +50°C
– Case max.
– Storage (non operating)
Temperature coefficient
Efficiency
Humidity
(non condensing)
Switching frequency
(pulse width modulation PWM)
Hold-up time
Isolation voltage
EMI / RFI conducted
EMC compliance
Protection class
– Input/Output
Reliability /calculated MTBF
(MIL-HDBK-217F, at +25°C, ground benign)
TML 20 models:
–25°C to +60°C
TML 40 models:
–40°C to +60°C
3.0 %/K
+95°C
–40°C to +85°C
0.02 %/°C
75 – 84 %
(depending on model)
95 % rel max.
TML 20 models:
100 kHz typ.
TML 40 models:
132 kHz typ.
10 ms min.
3‘000 VAC
>200’000 h
EN 55022, class B, FCC part 15, level B
EN 55024
TML 20 models:
class I
TML 40 models:
class II to IEC/EN 60536
All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
http://www.tracopower.com
Page 3 of 5
AC/DC Power Modules
TML Series
General Specifications
Safety standards
Safety approvals
Casing material
Environmental compliance
– Reach
– RoHS
– CB certificate for IEC 60950-1
– UL/cUL 60950-1
UL 60950-1, IEC/EN 60950-1
www.tracopower.com/products/tml-cb.pdf
www.ul.com
-> certifications -> File e188913
plastic resin + fiberglass
(UL 94V-0 rated)
www.tracopower.com/products/tml-reach.pdf
RoHS directive 2011/65/EU
20 & 40 Watt
Outline Dimensions
TML 20 models
for PCB mount:
3
(0.79)
20.0
7
11.5
2
Bottom view
6
11.5
5
1
4
62.0
(2.44)
70.0
(2.76)
8.5
48.0
(1.89)
(0.45)
(0.33)
(0.45)
(0.33)
8
8.5
4.0
(0.16)
24.0
(0.94)
(0.79)
20.0
22.0
(0.87)
8.0
(0.31)
Pin diameter ø 1.0 mm (0.039)
TML 20C models
for chassis mount:
Weight:
110 g
(3.9 oz)
Pinout / Connection
Pin/
con.
Single
output
Dual
output
FG
AC in (N)
AC in (L)
no pin / nc
–Vout 1
no pin
+Vout 1
no pin
no pin / nc
Vout 2
com. 1/2
+Vout 1
no pin
Vout 3
com. 2/3
Vout 2
–Vout 1
+Vout 1
Triple
output
27.6
(1.09)
(0.22)
1
2
3
4
5
6
7
4
5.5
(0.16)
4.0
4 x ø3.5
(4 x ø0.14)
8
54.6
(2.15)
46.0
(1.81)
1
2
3
Top view
5
6
7
8
nc = not to connect
5.0
(0.20)
86.0
(3.38)
96.0
(3.78)
Weight:
155 g
(5.5 oz)
Dimensions in[mm], () = Inches
Tolerances = 0.5mm (0.02)
http://www.tracopower.com
Page 4 of 5
AC/DC Power Modules
TML Series
Outline Dimensions
TML 40 models
for PCB mount:
3
8
15.24
(0.60)
20 & 40 Watt
7
55.88
(2.20)
63.5
(2.50)
(0.50)
(0.50)
Bottom view
6
12.7
5
15.24
(0.60)
12.7
2
4
81.3
(3.20)
89.0
(3.50)
3.85
(0.15)
31.75
(1.25)
25.0
(0.98)
6.0
(0.24)
Pin diameter ø 1.2 mm (0.047)
Weight :
280 g
(9.9 oz)
TML 40C models
for chassis mount:
Pinout / Connection
32.5
(1.28)
Pin/
con.
(0.22)
Single
output
Dual sym.
output
Dual asym.
output
Triple
output
1
2
3
4
4 x ø3.5
(4 x ø0.14)
no pin / nc
AC in (L)
AC in (N)
+Vout 1
no pin / nc
–Vout 1
no pin / nc
nc
Vout 1
no pin / nc
com. 1/2
no pin / nc
Vout 2
+Vout 2
+Vout 1
–Vout 2
–Vout 1
no pin / nc
Vout 2
+Vout 1
com. 2/3
–Vout 1
Vout 3
5.5
5
6
7
4
(0.23)
6.85
8
63.7
(2.50)
50.0
(1.97)
1
2
3
Top view
5
6
7
8
nc = not to connect
6.0
(0.24)
100.0
(3.94)
112.0
(4.41)
Weight :
325 g
(11.5 oz)
Dimensions in[mm], () = Inches
Tolerances = 0.5mm (0.02)
Specifications can be changed without notice! Make sure you are using the latest documentation, downloadable at www.tracopower.com
www.tracopower.com
Rev. February 14. 2014
Page 5 of 5
