D-SUBMINIATURE CONNECTORS
KYCON
RoHS
K85R1X / K85R2X Series
Click here for more information
Mounting Options *
*Metric Jack Screws also available.
No Designator - No Mounting Brackets
O-
Mounting Brackets with .120" Dia. Non-Threaded Mounting
Holes and Riveted Threaded Inserts
K85R1X/K85R2X Series
Right Angle PCB Mount Open Body
Ordering Information
OJ -
Mounting Brackets with .120" Dia. Non-Threaded Mounting
Holes and Riveted Threaded Inserts with JS-10 5 4-40 Hex
5
Jackscrews Installed
OR -
Series Shell
Contact
Number of Contact Mounting Plating
Size Construction Contacts Type
Options Options
Mounting Brackets with .120" Dia. Non-Threaded Mounting
Holes with 4-40 Round Jackscrews Riveted to Connector
Series
K85R1X - Kycon D-Subminiature Connector, Right Angle PCB
Termination .283" (7.2 mm) Foot Print
K85R2X - Kycon D-Subminiature Connector, Right Angle PCB
N-
Mounting Brackets with Grounding Boardlocks and Riveted
Threaded Inserts
Termination .370" (9.4 mm) European Foot Print
NJ -
Shell Size
E - 9 Contacts
A - 15 Contacts
B - 25 Contacts
Mounting Brackets with Grounding Boardlocks and Riveted
Threaded Inserts with JS-1055 4-40 Hex Jackscrews Installed
NR -
Contact Construction
D - Precision Formed Right Angle
Number of Contacts
9, 15, 25
Pin Contact Type
P - Pin Contact (Plug)
S - Socket Contact (Receptacle)
Plating Options and Performance Speci cations
Mounting Brackets with Grounding Boardlocks and Riveted
Threaded Inserts with 4-40 Round Jackscrews Riveted to
Connector
K-
(No Mounting Brackets) Riveted Threaded 4-40 Bushings
KJ -
(No Mounting Brackets) Riveted Threaded 4-40 Bushings
with JS-1055 4-40 Hex Jackscrews Installed
2007
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
D-SUBMINIATURE CONNECTORS
KYCON
K85R1X / K85R2X Series

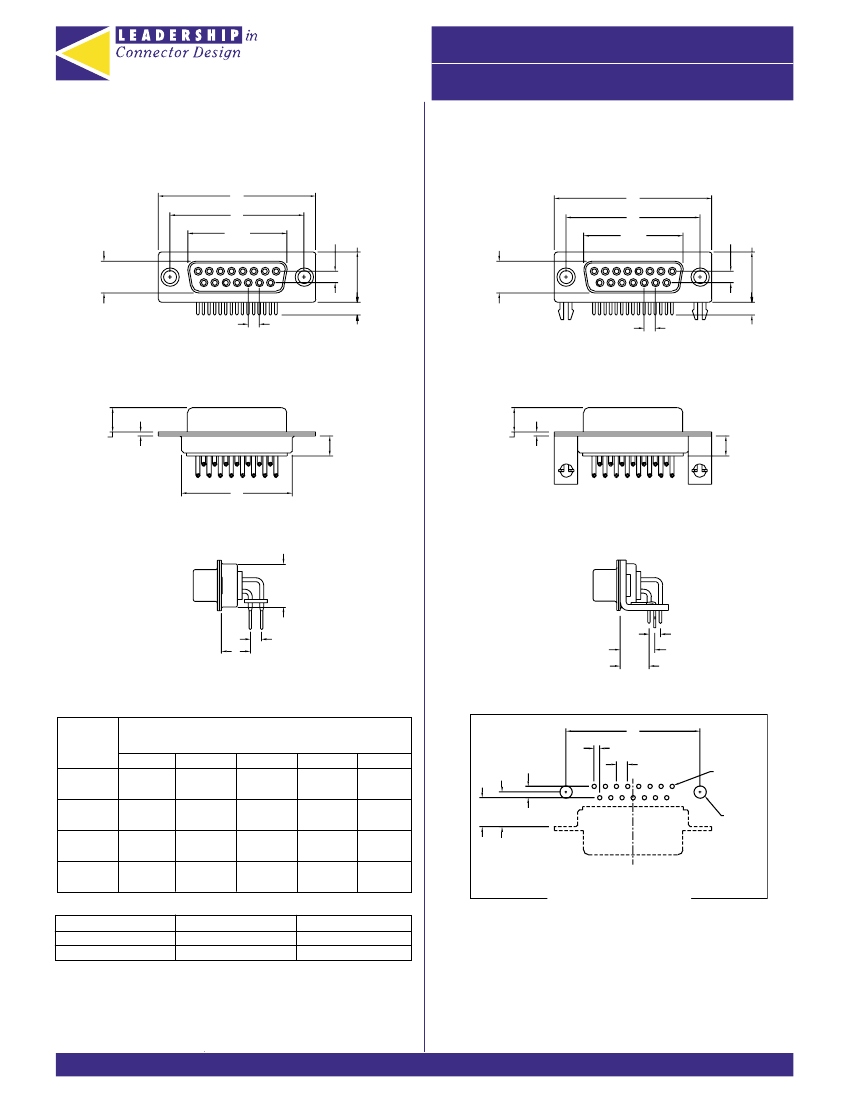

K85R1X/K85R2X Dimensions
With Mounting Brackets, and Grounding Board Locks
K85R1X/K85R2X Dimensions
Standard with No Mounting Brackets
C
12.55 [.494]
C
2.84 [.112]
2.84 [.112]
2.77 [.109]
B
A, A1
8.36 Plug Interior,
7.90 Socket Exterior
B
A, A1
8.36 Plug Interior,
7.90 Socket Exterior
3.18 [.125]
5.00 [.197]
0.99 [.039]
D
10.72 [.422]
0.99 [.039]
2.84 [.112]
E
2.84 [.112]
F
E
Dimensions in mm
Number
of Contacts
(Shell Size)
9 (E)
15 (A)
25 (B)
37 (C)
Dimensions in
mm
A
16.33
24.66
38.38
54.84
A1
16.92
25.25
38.96
55.42
B
24.99
33.32
47.04
63.50
K85R1X/K85R2X
C
30.81
39.14
53.04
69.32
D
20.19
27.51
41.96
57.71
(Top View)
2.84 [.112]
B
1.385 [.054]
2.77 [.109]
Ø1.09 [.043]
E
F
Ø3.05 [.120]
N and
O Options
Only
Recommended PCB Layout
Series
K85R1X
K85R2X
E Dimension
7.2mm
9.4mm
F Dimension
8.47mm
10.82mm
A = Exterior of Female Shell (S)
A1 = Interior of Male Shell (P)
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
5.00 [.197]
5.9 Plug,
6.0 Socket
5.9 Plug,
6.0 Socket
3.18 [.125]
2.77 [.109]
12.55 [.494]
2007
D-SUBMINIATURE CONNECTORS
KYCON
Performance Speci cations
Materials and Finish
Shell
Steel Material, Tin or Nickel Finish, and Indentations (Dimples) on Plug Only
Insert
Standard: PBT Thermoplastic, Black Color, 30% Glass Filled, 94V-0 Rated
Re ow Compatible: High Temperature Thermoplastic, Black Color,
30% Glass Filled, 94V-0 Rated
Contact Material
Plug : Brass .040 (1.00) Diameter Standard; .030 (0.76) Diameter High Density
Socket: Phosphor Bronze (Precision Formed Contact)
Brass (Precision Machined Contact)
Contact Finish-Standard
Gold Flash Over 0.0001 (0.00254) Nickel on Mating End of Contacts
Tin Over Nickel or Gold Flash Over Nickel on Solder Tails
Riveted Insert
Brass Material, Nickel Finish
KYCON continues
its leadership in
D-Subminiature
connectors by
o ering a complete
line of sizes and
options.
PC99 Colors Available:
• HD15: Blue
• DB15: Gold
• DB25: Burgundy
• DB09: Teal
Mechanical Characteristics
LR78160
Durability
500 Insertion Cycles Min
Operating Temperature Rating
-55
°
C to +105
°
C
Electrical Characteristics
Contact Current Rating
5A
Contact Resistance
30 Milliohms Max
Dielectric Withstanding Voltage
1000 V AC Min for 1 Minute
Insulation Resistance
1000 Megohms Min,at 500 V DC
Processing Characteristics
Soldering Temperature Rating
High Temperature Plastic: 260
°
C for 10 Seconds
Plating Options
Designator Plating Description
Standard
15
30
Gold Flash over Nickel on Contacts. Gold Flash over Nickel or Tin over Nickel on Solder Tails.
15µ" Gold over Nickel on Mating End of Contacts. Tin over Nickel on Solder Tails.
30µ" Gold over Nickel on Mating End of Contacts. Tin over Nickel on Solder Tails.
KYCON Tech Support:
1-888-KYCON-22
or E-mail: sales@kycon.com
