TDA08H0SK1R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > unclassified> TDA08H0SK1R

TDA08H0SK1R: DescriptionSLIDE DIP SWITCH-8SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT; Categoryunclassified; File Size41KB，1 Pages; ManufacturerETC1

Download Datasheet Parametric Compare View All

TDA08H0SK1R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TDA08H0SK1R	-	-	View	Buy Now

TDA08H0SK1R Overview

SLIDE DIP SWITCH-8SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT

TDA08H0SK1R Parametric

Parameter Name	Attribute value
Maximum DC contact current	0.0250 A
Maximum DC contact voltage	24 V
Maximum operating temperature	85 Cel
Minimum operating temperature	-20 Cel
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
seal	TAPE SEALED
Electrical life	1000 Cycle(s)
switch function	SPST
terminal coating	GOLD FLASH OVER NICKEL
Manufacturer Series	TDA
width	6.2 mm
high	2.3 mm
length or diameter	24 mm
Installation features	SURFACE MOUNT-STRAIGHT
Number of switches	8
Switch action	LATCHED
Switch type	SLIDE DIP SWITCH
Terminal type	SOLDER

Preview

Download Datasheet

View All

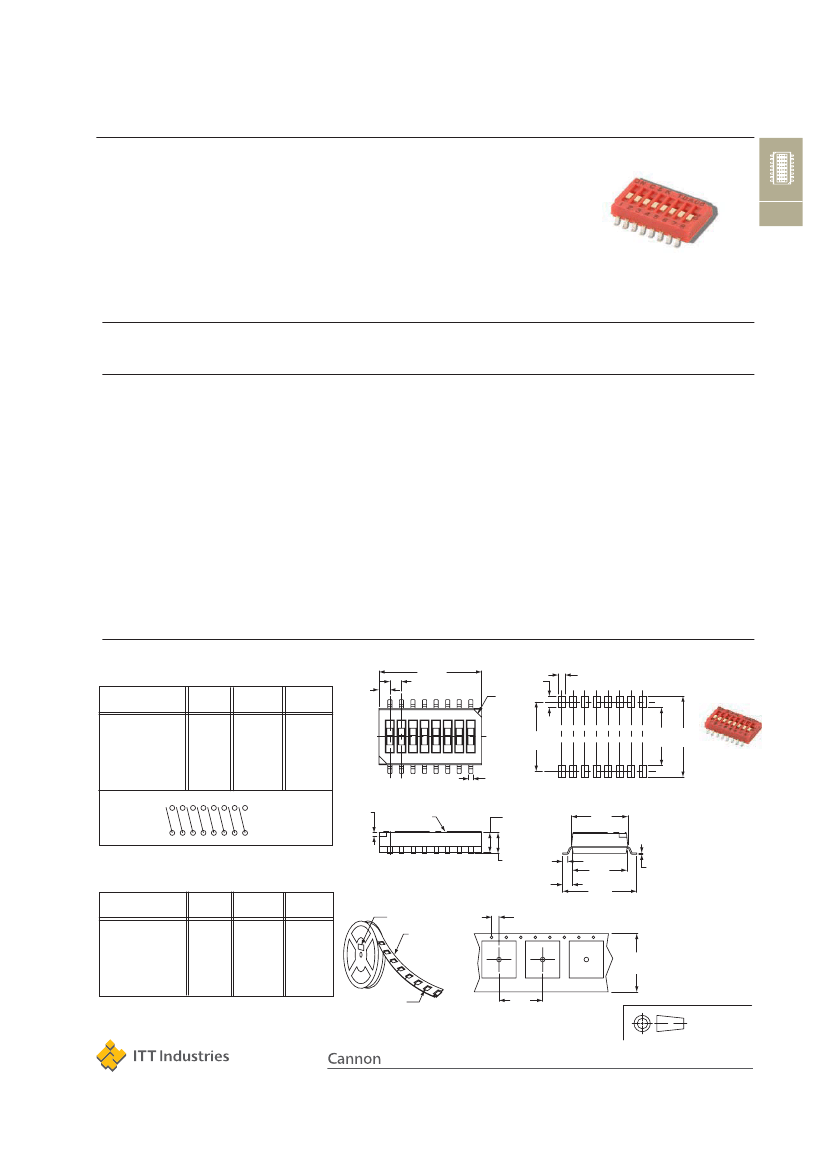

C&K TDA Series

Ultra-miniature Surface Mount Half-pitch DIP Switches

Features/Benefits

•

Bifurcated contact for

increased electrical reliability

•

Tin-lead plated terminals for

reliable solder coverage

•

Process sealed for surface

mount soldering and washable

processing

Typical Applications

•

Hand-held electronic devices

•

Portable computer and

electronic devices

•

Instrumentation and controls

DIP

How To Order

Complete part numbers for TDA Series are shown below. All switches supplied in “OFF” position.

Specifications

SWITCH FUNCTION: SPST – 2, 4, 6, 8 & 10 positions.

CONTACT RATING:

24 V DC, 25 mA (switching).

50 V DC, 100 mA (steady state).

MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles.

CONTACT RESISTANCE: 100 milliohms max.

INSULATION RESISTANCE: 100 megohms @ 100 V DC min.

DIELECTRIC STRENGTH: 300 V AC min.

STORAGE TEMPERATURE: -40°C to 85°C.

OPERATING TEMPERATURE: -20°C to 85°C.

SOLDERABILITY: Per MIL-STD-202F method 208D, or

EIA RS-186E method 9 (1 hour steam aging).

PACKAGING: Switches supplied in rigid dispensing tubes in full

tube quantities only, this may affect order quantity. Numbers of

switches per tube varies with model. Tape and reel packaging

also available.

Materials

CASE & COVER: glass filled PPA (UL94V-0).

ACTUATOR: LCP (UL94V-0).

CONTACTS: Copper alloy, with gold plate over nickel plate.

TERMINALS: Copper alloy, with tin-lead alloy over nickel plate.

All terminals are insert molded.

TAPE SEAL: Polyamide.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Tube Package

PART NUMBER

NO. POS.

DIM. ‘A’

.144 (3,67)

.244 (6,21)

.344 (8,75)

.444 (11,29)

.544 (13,83)

QUANTITY

PER TUBE

125

.047

(1,2)

DIM 'A'

.050

(1,27)

C&K

TDA08

.032

(0,8)

CHAMFER

.050

(1,27)

.030

(0,76)

TDA02H0SK1

TDA04H0SK1

TDA06H0SK1

TDA08H0SK1

TDA10H0SK1

Schematic

.300

(7,62)

1 2 3 4 5 6 7 8

.018

(0,45)

.016

(0,4)

.250 .350

(6,35) (8,89)

TDA08H0SK1

TAPE SEAL

.086

(2,2)

.244

(6,2)

SPST

.090

(2,3)

.022

(0,57)

.042

(1,06)

QUANTITY

PER REEL

2000

PIN#1

OFFSET FROM PILOT HOLE

.472

(12,0)

Third Angle

Projection

Dimensions are shown inch (mm)

Dimensions subject to change

Tape & Reel Package

PART NUMBER

NO. POS.

DIM. ‘W’

.630 (16,0)

.945 (24,0)

MARKING LABEL

EMBOSSED

CARRIER

.236

(6,0)

.320

(8,12)

.006

(0,15)

TDA02H0SK1R

TDA04H0SK1R

TDA06H0SK1R

TDA08H0SK1R

TDA10H0SK1R

.079 REF

(2,0)

DIM 'W'

SEE CHART

H-3

www.ittcannon.com

TDA08H0SK1R Related Products

	TDA08H0SK1R	TDA02H0SK1	TDA02H0SK1R	TDA04H0SK1	TDA04H0SK1R	TDA10H0SK1	TDA06H0SK1	TDA06H0SK1R	TDA08H0SK1	TDA10H0SK1R
Description	SLIDE DIP SWITCH-8SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT	SLIDE DIP SWITCH-4SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT	SLIDE DIP SWITCH-4SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT	SLIDE DIP SWITCH-4SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT	SLIDE DIP SWITCH-4SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT	SLIDE DIP SWITCH-10SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT	SLIDE DIP SWITCH-6SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT	SLIDE DIP SWITCH-6SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT	SLIDE DIP SWITCH-8SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT	SLIDE DIP SWITCH-10SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT
Maximum DC contact current	0.0250 A	0.0250 A	0.0250 A	0.0250 A	0.0250 A	0.0250 A	0.0250 A	0.0250 A	0.0250 A	0.0250 A
Maximum DC contact voltage	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V
Maximum operating temperature	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel
Minimum operating temperature	-20 Cel	-20 Cel	-20 Cel	-20 Cel	-20 Cel	-20 Cel	-20 Cel	-20 Cel	-20 Cel	-20 Cel
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	Active	Active	ACTIVE	ACTIVE
seal	TAPE SEALED	TAPE SEALED	TAPE SEALED	TAPE SEALED	TAPE SEALED	TAPE SEALED	TAPE SEALED	TAPE SEALED	TAPE SEALED	TAPE SEALED
Electrical life	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)
switch function	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
terminal coating	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	TIN LEAD OVER NICKEL	GOLD FLASH OVER NICKEL
Manufacturer Series	TDA	TDA	TDA	TDA	TDA	TDA	TDA	TDA	TDA	TDA
width	6.2 mm	6.2 mm	6.2 mm	6.2 mm	6.2 mm	6.2 mm	6.2 mm	6.2 mm	6.2 mm	6.2 mm
high	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm
length or diameter	24 mm	6.21 mm	6.21 mm	6.21 mm	16 mm	13.83 mm	8.75 mm	16 mm	11.29 mm	24 mm
Installation features	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT
Number of switches	8	4	4	4	4	10	6	6	8	10
Switch action	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
Switch type	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH
Terminal type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Lead-free	Yes	Yes	Yes	Yes	Yes	Yes	-	-	-	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	-	Yes
