TFL0816-15N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> TFL0816-15N

TFL0816-15N: DescriptionGeneral Purpose Inductor, 0.015uH, 2%, 1 Element, Alumina-Core, SMD; CategoryPassive components inductor; File Size276KB，1 Pages; ManufacturerThin Film Technology Corp (TFT)

Download Datasheet Parametric View All

TFL0816-15N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TFL0816-15N	-	-	View	Buy Now

TFL0816-15N Overview

General Purpose Inductor, 0.015uH, 2%, 1 Element, Alumina-Core, SMD

TFL0816-15N Parametric

Parameter Name	Attribute value
Maker	Thin Film Technology Corp (TFT)
Reach Compliance Code	unknown
ECCN code	EAR99
core material	ALUMINA
DC Resistance	1 Ω
Nominal inductance(L)	0.015 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Minimum quality factor (at nominal inductance)	15
Maximum rated current	0.3 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 300 MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	2%

Preview

Download Datasheet

View All

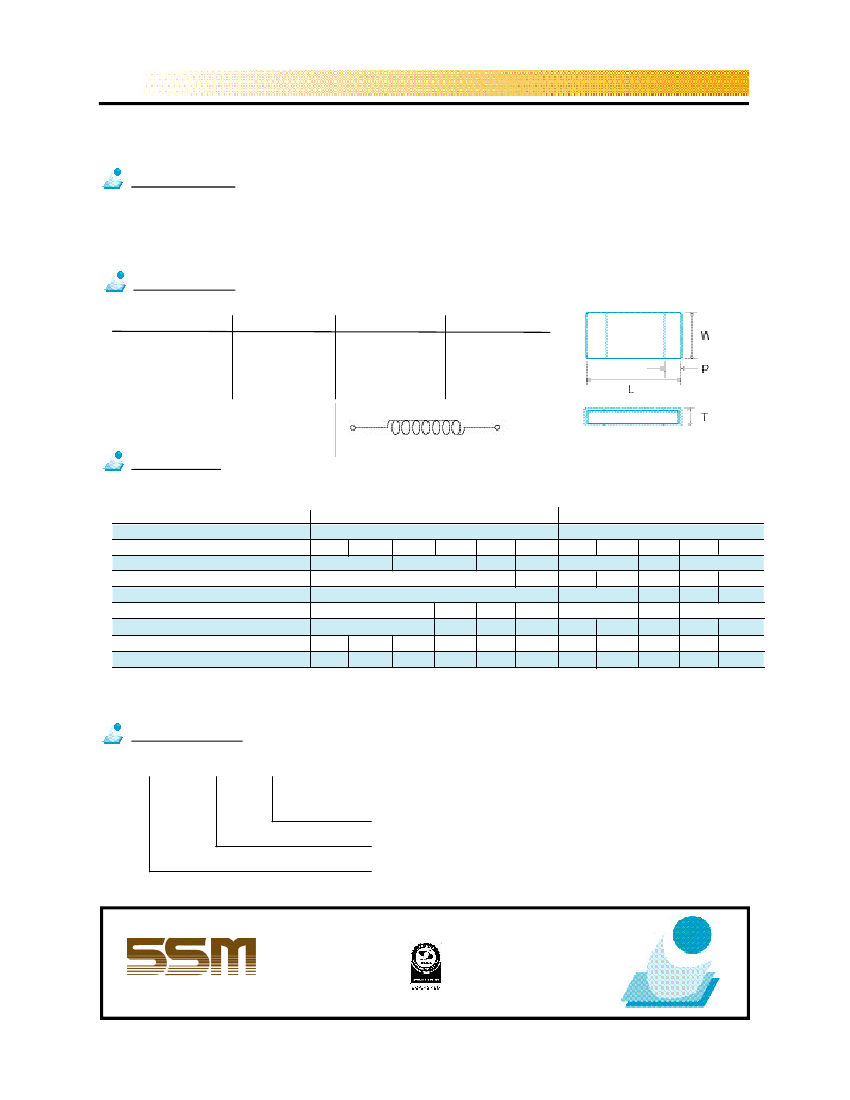

Thin Film Chip Inductors

TFL Series

1.0 Description

These 0603 and 0402 size chip inductors are adjustment free due to their tight tolerance.

Additionally, this part also offers a high self-resonance frequency of 1GHz and a very excellent rated

current. The package size and dimensions make it very similar to the chip resistor products.

2.0 Mechanical

dimension mm

Dimension

(mm)

TFL0306(0201) TFL0510

(0402)

TFL0816

(0603)

0.60±0.05

1.00 ± 0.10

1.60 ± 0.10

0.30±0.05

0.50 ± 0.10

0.80 ± 0.10

0.08±0.05

0.15 ± 0.10

0.30 ± 0.20

0.35 max

0.40 ± 0.10

0.45 ± 0.10

schematic

3.0 Electrical

Type

TFL0510

(0402)

TFL0816

(0603)

Inductance range

E-24

E-12

Inductance range (nH)

1.0-1.2 1.3-2.2 2.4-3.9 4.9-9.1 10-15 18-39 1.0-4.7 5.6-8.2 10-27 33-68 82-100

Inductance tolerance

±0.1nH, ±0.2nH

±0.2nH

±2% ±3,±5%

±0.2nH

±2%

Q min.Meas.frequency 300mHz

*10

*15

*10

Typical Meas.frequency800mHz

34-30

30-25

Typical Meas.frequency1.5GHz

25-20

**20

38-35

35-30

Self resistance frequency(GHz)min

7.0

5.5-4.0 4.0 2.0-1.5 6.0-5.0 5.0-4.0 4.0-2.0 1.5-1.0 1.0

DC resistance (ohm) max

0.1 0.15 -0.20 0.20-0.40 0.60-1.50 1.50-2.55 2.55-4.00 0.10-0.25 0.50 1.0-2.0 2.0-4.5 6.0-8.5

Rated current (A)

1.2 0.93-0.60 0.58-0.42 0.34-0.21 0.21-0.16 0.16-0.12 1.0-0.6

0.40 0.3-0.2 0.2-0.14 0.12-0.1

* Measured at 200MHz in case of 33, 36, 39nH(TFL0510) and 33-100nH(TFL0816)

** No measurement in case of 33, 36 and 39nH(TFL0510) and 33-100nH(TFL0816)

4.0 Part Number

TFL

0816 - 1NO

Inductance value (1N0 = 1.0nH)

Package size

Product designator
