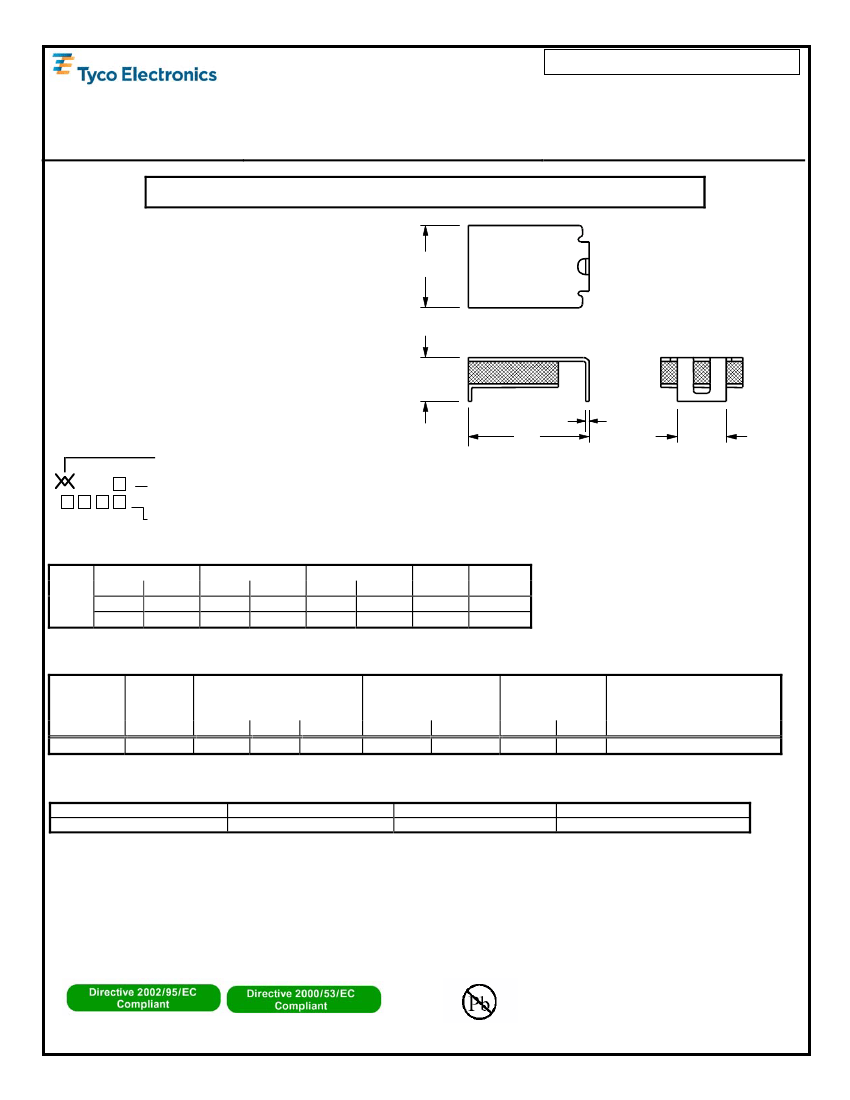

308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
www.circuitprotection.com
PolySwitch®
PTC Devices
Overcurrent Protection Device
Raychem Circuit Protection Products
PRODUCT: TS250-130F-RC-B-0.5
DOCUMENT: SCD 26242
PCN: REFER TO TABLE III BELOW
REV LETTER: D
REV DATE: MAY 23, 2007
PAGE NO.: 1 OF 1
Specification Status: RELEASED
Maximum Operating Voltage:
60V
DC
Fault Ratings at 20°C:
250 V
RMS
, 3A, 10 applications
600 V
RMS
, 1A, 5 applications
Additional Info at 20°C:
Resistance matched: 0.5 ohm
Lightning withstand: 1.5kV per ITU-T
Helps equipment meet ITU-T K.20/K.21 specifications
Terminal Material:
Tin-Plated Brass
Marking:
Raychem Logo
C
Top View
B
A
Side View
D
E
End View
T13
Part Identification
& Bin #
Lot Identification
TABLE I. DIMENSIONS:
A
MIN
MAX
MIN
mm:
8.5
9.4
--
in:
(0.335) (0.370)
--
*Rounded off approximation
B
MAX
3.4
(0.135)
MIN
--
--
C
MAX
7.4
(0.290)
D
NOM
0.3
(0.011)
E
NOM
3.8
(0.150)
TABLE II. PERFORMANCE RATINGS @ 20°C (unless otherwise noted):
HOLD
TRIP
CURRENT CURRENT
(A)
(A)
OPERATING
TEMPERATURE
(°C)
R MIN R MAX R
1 MAX
*
TYP
MAX
MIN
MAX
0.130
0.260
7.0
10.0
17.0
1.1
2.0
-40
85
*Maximum device resistance at 20°C measured 1 hour post trip and 24 hours post reflow
RESISTANCE (Ω)
TIME TO TRIP(Sec)
@ 1A
TRIPPED
POWER DISSIPATION
(W)
TYP @ 60V
DC
1.1
TABLE III. APPLICABLE PART DESCRIPTIONS:
PART DESCRIPTION
TS250-130F-RC-B-0.5-2
PCN # (INTERNAL ONLY)
A05570-000
PACKAGING TYPE
Tape and Reel
NOTE
N/A
Agency Recognitions:
Reference Documents:
Precedence:
Effectivity:
Caution:
UL, CSA, TUV
UL File #E74889, CSA File #78165C
Raychem PS300, ITU-T K.20/K.21
This specification takes precedence over documents referenced herein.
Reference documents shall be the issue in effect on the date of invitation for bid.
Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.
ELV Compliant
Pb-Free
Materials Information
ROHS Compliant
© 2007 Tyco Electronics Corporation. All rights reserved
