XC4062XLTBGG432: DescriptionField Programmable Gate Array, 2304 CLBs, 40000 Gates, CMOS, PBGA432, CAVITY DOWN, PLASTIC, BGA-432; CategoryProgrammable logic devices Programmable logic; File Size752KB，12 Pages; ManufacturerXILINX; Websitehttps://www.xilinx.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

XC4062XLTBGG432 Overview

Field Programmable Gate Array, 2304 CLBs, 40000 Gates, CMOS, PBGA432, CAVITY DOWN, PLASTIC, BGA-432

XC4062XLTBGG432 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	XILINX
Parts packaging code	BGA
package instruction	CAVITY DOWN, PLASTIC, BGA-432
Contacts	432
Reach Compliance Code	compliant
JESD-30 code	S-PBGA-B432
JESD-609 code	e1
length	40 mm
Humidity sensitivity level	3
Configurable number of logic blocks	2304
Equivalent number of gates	40000
Number of terminals	432
organize	2304 CLBS, 40000 GATES
Package body material	PLASTIC/EPOXY
encapsulated code	LBGA
Package shape	SQUARE
Package form	GRID ARRAY, LOW PROFILE
Peak Reflow Temperature (Celsius)	260
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Terminal surface	TIN SILVER COPPER
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	30
width	40 mm

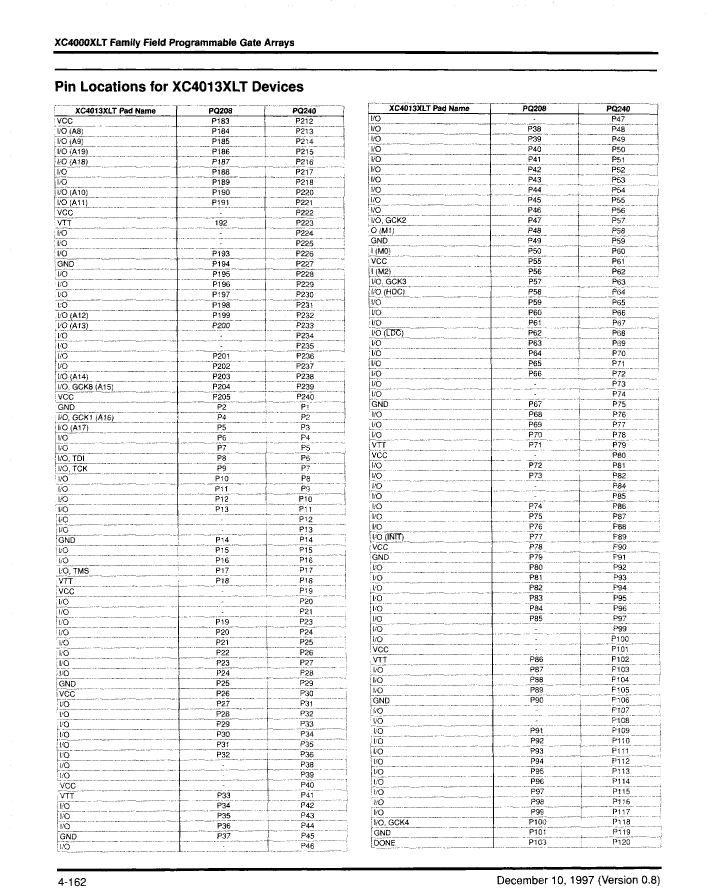

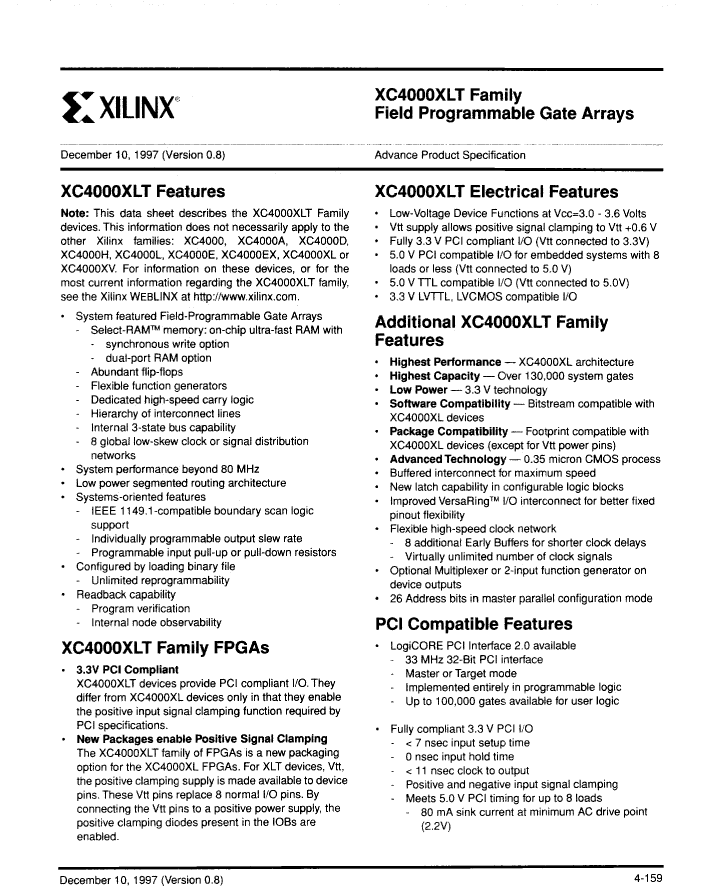

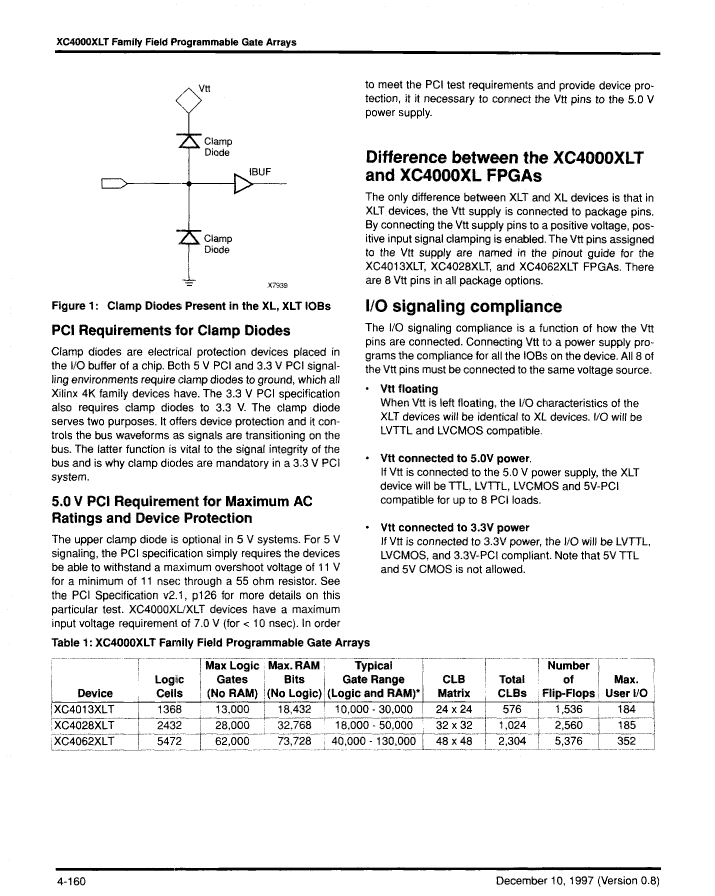

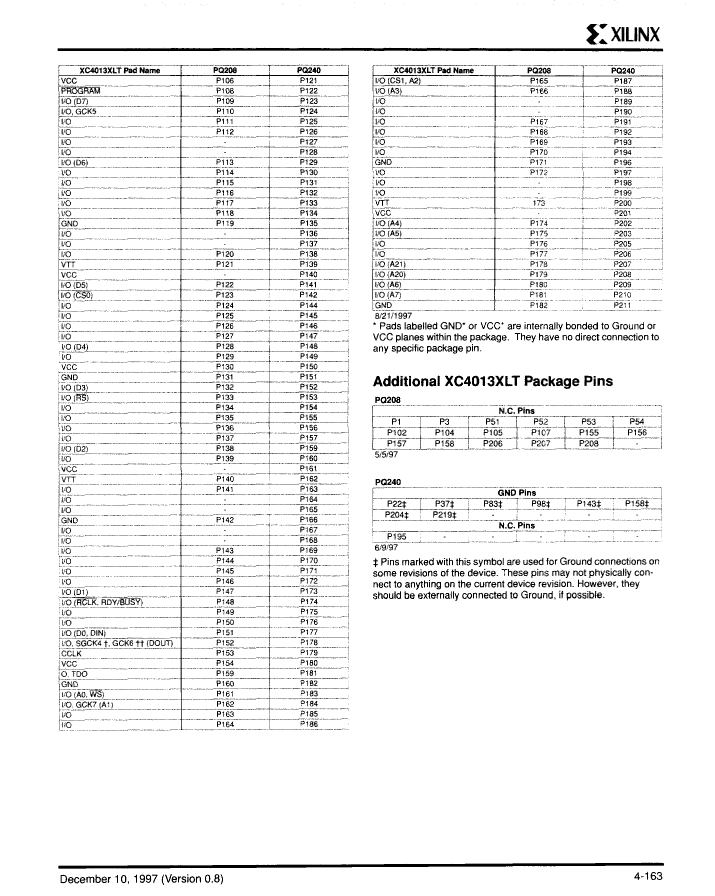

Preview

Download Datasheet

View All

XC4062XLTBGG432 Related Products

	XC4062XLTBGG432	XC4062XLTHQ240	XC4062XLTBG432	XC4028XLTHQ240
Description	Field Programmable Gate Array, 2304 CLBs, 40000 Gates, CMOS, PBGA432, CAVITY DOWN, PLASTIC, BGA-432	Field Programmable Gate Array, 2304 CLBs, 40000 Gates, CMOS, PQFP240, HEAT SINK, PLASTIC, QFP-240	Field Programmable Gate Array, 2304 CLBs, 40000 Gates, CMOS, PBGA432, CAVITY DOWN, PLASTIC, BGA-432	Field Programmable Gate Array, 1024 CLBs, 18000 Gates, CMOS, PQFP240, HEAT SINK, PLASTIC, QFP-240
Is it lead-free?	Lead free	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	conform to	incompatible	incompatible	incompatible
Parts packaging code	BGA	QFP	BGA	QFP
package instruction	CAVITY DOWN, PLASTIC, BGA-432	HFQFP,	CAVITY DOWN, PLASTIC, BGA-432	HEAT SINK, PLASTIC, QFP-240
Contacts	432	240	432	240
Reach Compliance Code	compliant	compliant	compliant	compliant
JESD-30 code	S-PBGA-B432	S-PQFP-G240	S-PBGA-B432	S-PQFP-G240
JESD-609 code	e1	e0	e0	e0
length	40 mm	32 mm	40 mm	32 mm
Humidity sensitivity level	3	3	3	3
Configurable number of logic blocks	2304	2304	2304	1024
Equivalent number of gates	40000	40000	40000	18000
Number of terminals	432	240	432	240
organize	2304 CLBS, 40000 GATES	2304 CLBS, 40000 GATES	2304 CLBS, 40000 GATES	1024 CLBS, 18000 GATES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LBGA	HFQFP	LBGA	HFQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY, LOW PROFILE	FLATPACK, HEAT SINK/SLUG, FINE PITCH	GRID ARRAY, LOW PROFILE	FLATPACK, HEAT SINK/SLUG, FINE PITCH
Peak Reflow Temperature (Celsius)	260	225	225	225
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	4.1 mm	1.7 mm	4.1 mm
Maximum supply voltage	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage	3 V	3 V	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Terminal surface	TIN SILVER COPPER	TIN LEAD	TIN LEAD	Tin/Lead (Sn85Pb15)
Terminal form	BALL	GULL WING	BALL	GULL WING
Terminal pitch	1.27 mm	0.5 mm	1.27 mm	0.5 mm
Terminal location	BOTTOM	QUAD	BOTTOM	QUAD
Maximum time at peak reflow temperature	30	30	30	30
width	40 mm	32 mm	40 mm	32 mm
Maker	XILINX	-	XILINX	XILINX
