TC74HC76AP: DescriptionIC HC/UH SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDIP16, 0.300 INCH, PLASTIC, DIP-16, FF/Latch; Categorylogic logic; File Size98KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HC76AP Overview

IC HC/UH SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDIP16, 0.300 INCH, PLASTIC, DIP-16, FF/Latch

TC74HC76AP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Other features	MASTER SLAVE OPERATION
series	HC/UH
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.25 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	J-K FLIP-FLOP
Maximum Frequency@Nom-Sup	25000000 Hz
MaximumI(ol)	0.004 A
Number of digits	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2/6 V
propagation delay (tpd)	31 ns
Certification status	Not Qualified
Maximum seat height	4.45 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE
width	7.62 mm
minfmax	25 MHz

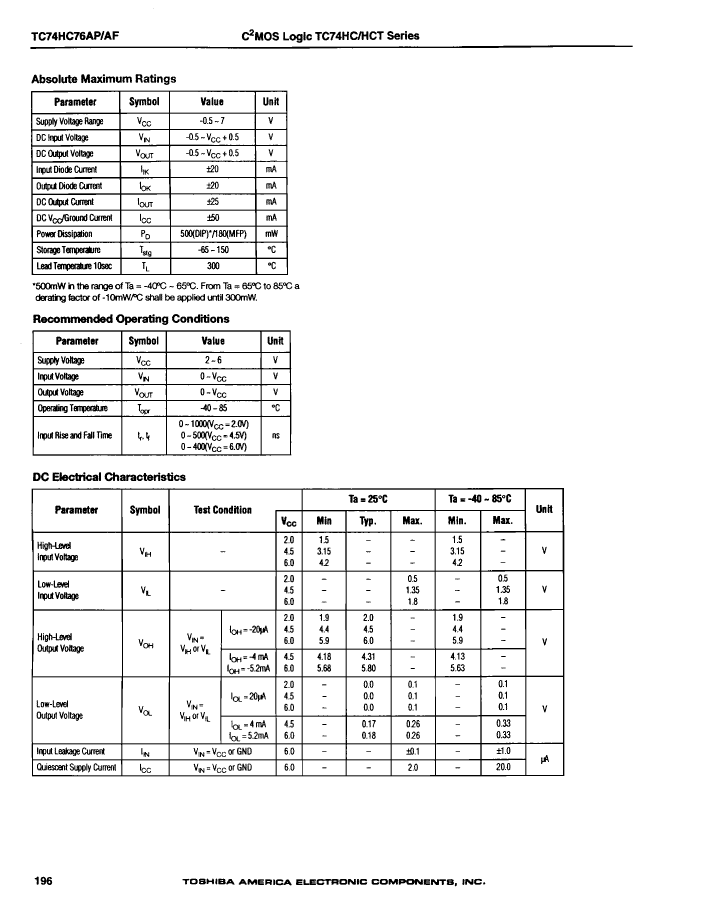

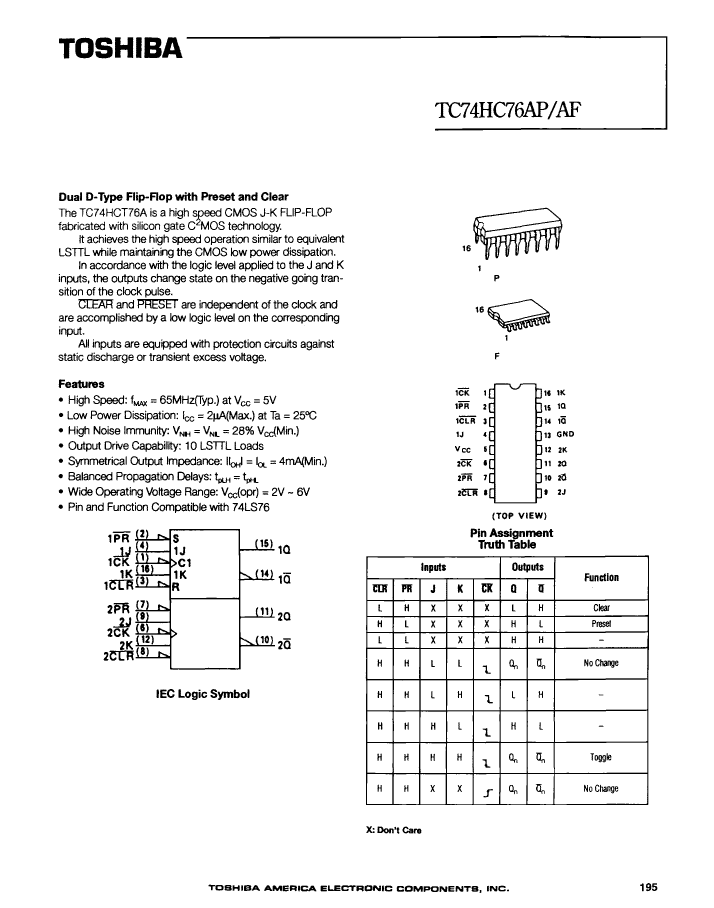

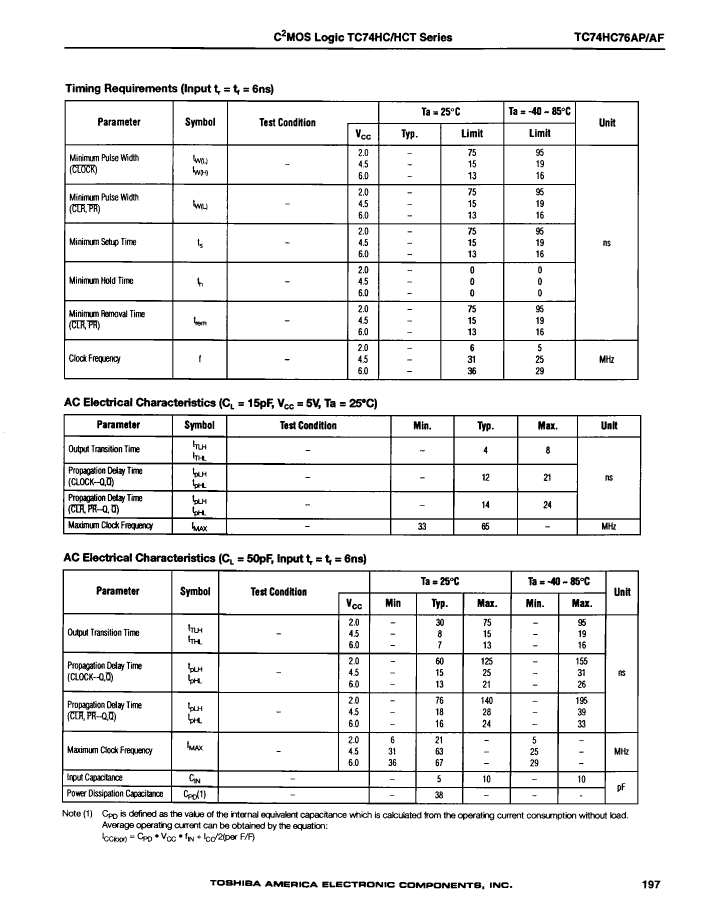

Preview

Download Datasheet

View All

TC74HC76AP Related Products

	TC74HC76AP	TC74HC76AF-TP1EL	TC74HC76AF-EL	TC74HC76AF-TP2EL	TC74HC76AF-TP2	TC74HC76AF	TC74HC76AF-TP1
Description	IC HC/UH SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDIP16, 0.300 INCH, PLASTIC, DIP-16, FF/Latch	IC HC/UH SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch	IC HC/UH SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch	IC HC/UH SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch	IC HC/UH SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch	IC HC/UH SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch	IC HC/UH SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch
Parts packaging code	DIP	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	DIP, DIP16,.3	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,
Contacts	16	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
length	19.25 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP
Number of digits	2	2	2	2	2	2	2
Number of functions	2	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	31 ns	31 ns	31 ns	31 ns	31 ns	31 ns	31 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.45 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
width	7.62 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm
minfmax	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	-	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Is it lead-free?	-	-	Contains lead	Contains lead	Contains lead	-	Contains lead
Peak Reflow Temperature (Celsius)	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
