SRN7111: DescriptionNarrow Band Low Power Amplifier, 10MHz Min, 100MHz Max, SM-19, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size202KB，4 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

SRN7111 Overview

Narrow Band Low Power Amplifier, 10MHz Min, 100MHz Max, SM-19, 4 PIN

SRN7111 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	SM-19, 4 PIN
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	11 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	100 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2

SRN7111 Preview

Cross Reference Guide

RN7111 / SRN7111*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

10.0 - 100.0 MHz

12.5 dB Typical

11.0 dB Min

1.4 dB Typical

2.0 dB Max

17.0 dBm Typical

15.5 dBm Min

33.0 dBm Typical

47.0 dBm Typical

1.8/2.0 Input Typ/Max

1.8/2.0 Output Typ/Max

-15.0 dB Typical

-14.0 dB Min

15.0 Volts

14.0 mA

-55.0 - 85.0 °C

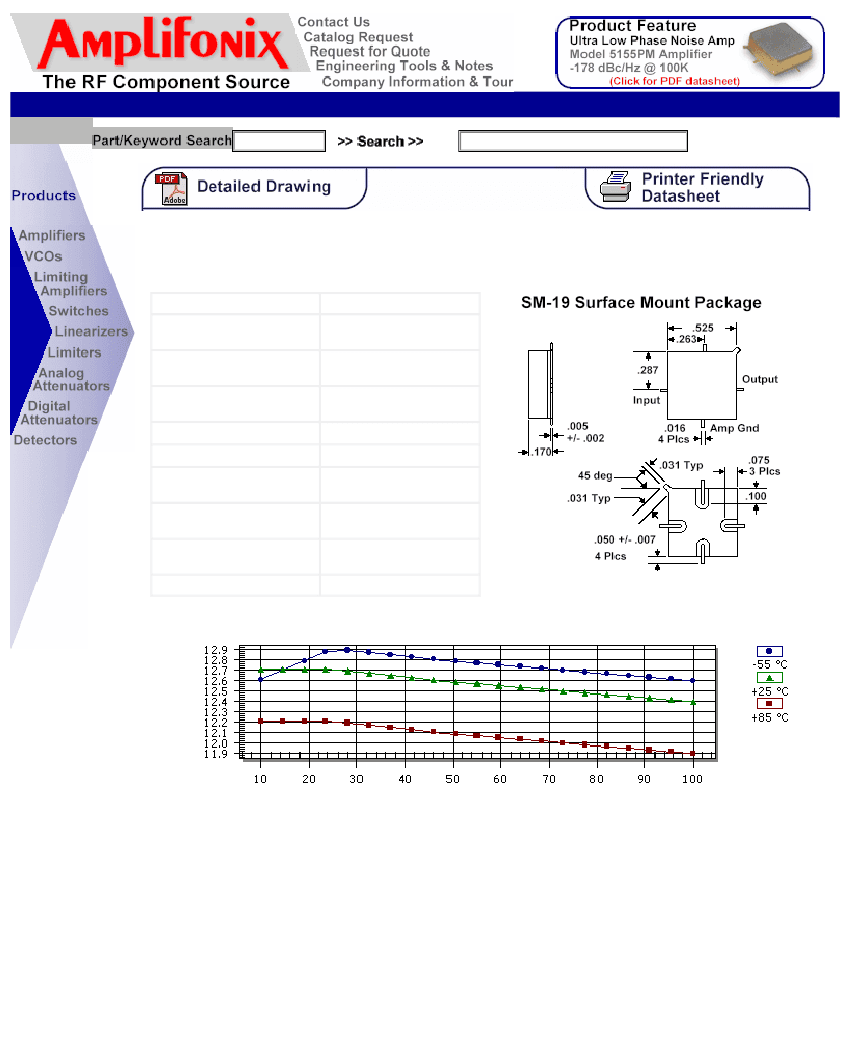

Package Drawing

Gain

Frequency (MHz)

Noise Figure

Frequency (MHz)

1dB

Compression Point

dBm

Frequency (MHz)

Reverse Isolation

Frequency (MHz)

Input VSWR

Frequency (MHz)

Output VSWR

Frequency (MHz)

S-Parameters

Frequency S11 Mag S11 Ang S21 Mag S21 Ang S12 Mag S12 Ang S22 Mag S22 Ang

10.0

25.0

50.0

100.0

0.150

0.160

0.210

0.280

178.00

-178.00

175.00

141.00

4.320

4.260

4.170

-3.00

-18.00

-38.00

-77.00

0.170

0.160

0.150

-3.00

-17.00

-36.00

-74.00

0.110

0.150

0.210

0.290

-6.00

-46.00

-80.00

-119.00

Absolute Maximum Conditions

Maximum Operating Temperature

Maximum Case Temperature

Continuous RF Input Power

Maximum Peak Power

(3 µsec max)

-55.0 - 100.0 °C

125.0 °C

13.0 dBm

0.5 W

Maximum Storage Temperature

Maximum Supply Voltage

Short Term RF Input Power

(1 minute max)

-62.0 - 125.0 °C

18.0 Volts

50.0 mW

Amplifonix | 2707 Black Lake Place | Philadelphia, PA 19154

Tel: 215.464.4000 | FAX: 215.464.4001 | Email:
