8303 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8303

8303: DescriptionRF Connector Adapter, N-SMA, Female-Male, ROHS COMPLIANT; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric View All

8303 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8303	-	-	View	Buy Now

8303 Overview

RF Connector Adapter, N-SMA, Female-Male, ROHS COMPLIANT

8303 Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Adapter type	N-SMA
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE-MALE
Contact material	BERYLLIUM COPPER
Coupling type	THREADED-THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.5 dB
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	BETWEEN
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.35

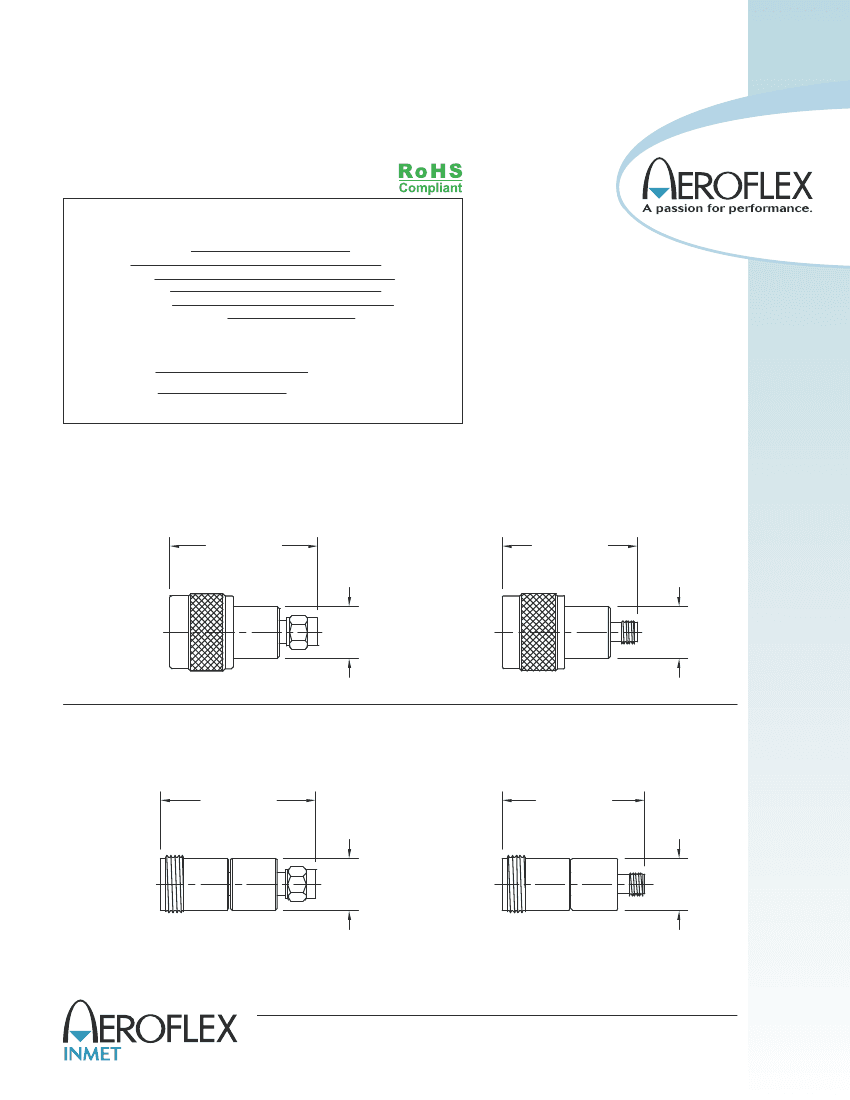

8303 Preview

DC BLOCKS

Between Series

Type N / SMA, 10 MHz - 18 GHz, Inner Only

SPECIFICATIONS:

Models: 8301, 8302, 8303, 8304

Electrical:

Frequency Range

VSWR

Impedance

Insertion Loss

Voltage Rating

Operating Temp. Range

10 MHz - 18 GHz

1.35:1 Max.

50 Ohms

0.5 dB Max.

200 Volts

-65°C to +125°C

Mechanical:

Connectors

Mates with MIL

-STD-348

Passivated Stainless Steel

Gold Plated Beryllium Copper

Conductors

Model Number:

8301

Type N Male / SMA Male

Model Number:

8302

Type N Male / SMA Female

1.58 ±.05

[40.1 ±1.3]

1.45 ±.05

[36.8 ±1.3]

Ø.56

[14.2]

Ø.56

[14.2]

Model Number:

8303

Type N Female / SMA Male

Model Number:

8304

Type N Female / SMA Female

1.66 ±.05

[42.2 ±1.3]

1.53 ±.05

[38.9 ±1.3]

.56

[14.2]

.56

[14.2]

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

8301: REV B

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • inmetsales@aeroflex.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
