M87164A04FD822J datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> M87164A04FD822J

M87164A04FD822J: DescriptionMica Capacitor, Mica, 500V, 0/+70ppm/Cel TC, 0.0082uF, 8336; CategoryPassive components capacitor; File Size145KB，2 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric Compare View All

M87164A04FD822J Overview

Mica Capacitor, Mica, 500V, 0/+70ppm/Cel TC, 0.0082uF, 8336

M87164A04FD822J Parametric

Parameter Name	Attribute value
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.0082 µF
Capacitor type	MICA CAPACITOR
dielectric materials	MICA
high	23.36 mm
length	21.08 mm
Manufacturer's serial number	M87164A04
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Radial
positive tolerance	5%
Rated (DC) voltage (URdc)	500 V
Guideline	MIL-C-87164
series	M87164A04
size code	8336
Temperature Coefficient	0/+70ppm/Cel ppm/°C
Terminal pitch	11.1 mm
width	9.14 mm

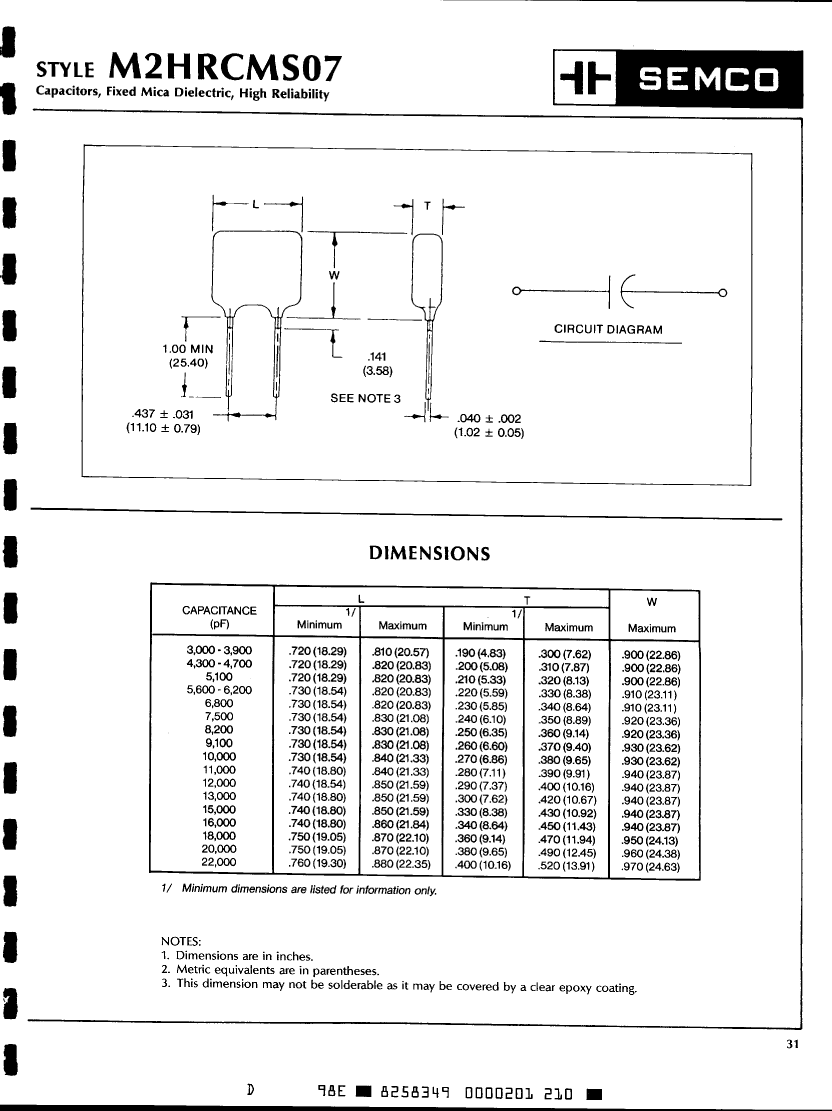

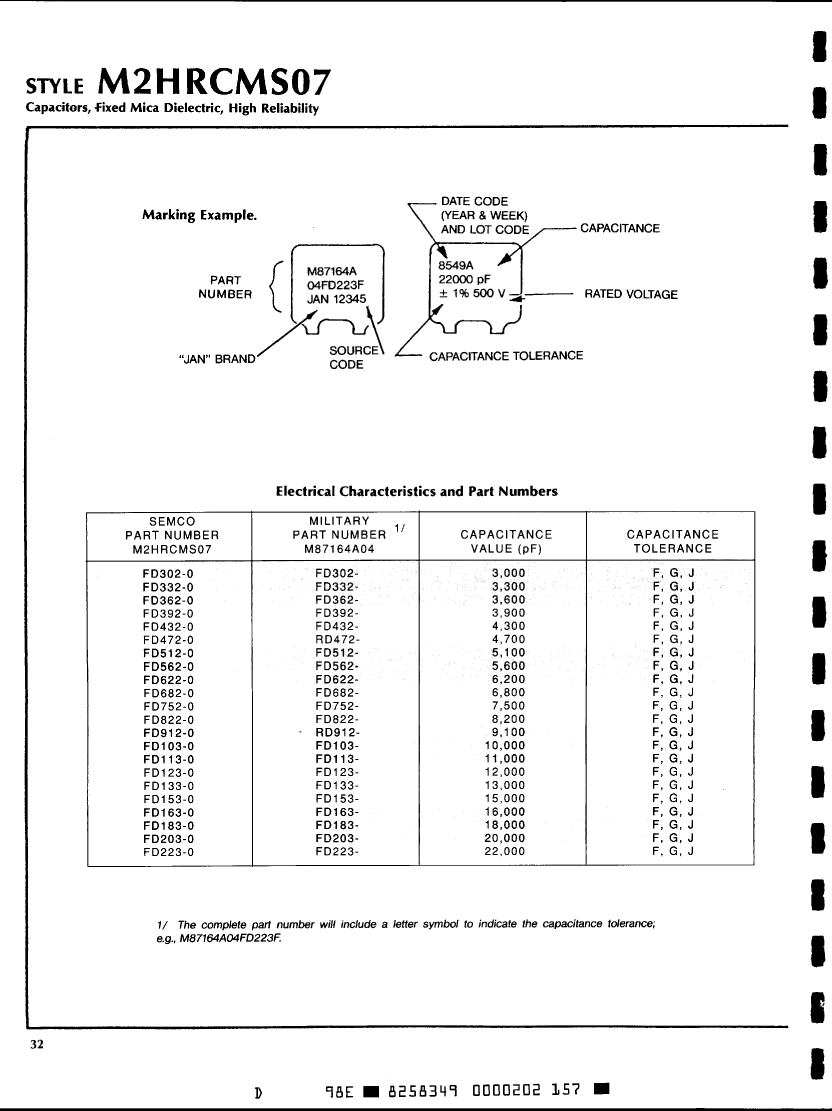

Preview

Download Datasheet

View All

M87164A04FD822J Related Products

	M87164A04FD822J	M87164A04FD183G	M87164A04FD183F	M87164A04FD183J	M87164A04FD203J	M87164A04FD203G	M87164A04FD203F	M87164A04FD822F	M87164A04FD752F	M87164A04FD752J
Description	Mica Capacitor, Mica, 500V, 0/+70ppm/Cel TC, 0.0082uF, 8336	Mica Capacitor, Mica, 500V, 0/+70ppm/Cel TC, 0.018uF, 8747	Mica Capacitor, Mica, 500V, 0/+70ppm/Cel TC, 0.018uF, 8747	Mica Capacitor, Mica, 500V, 0/+70ppm/Cel TC, 0.018uF, 8747	Mica Capacitor, Mica, 500V, 0/+70ppm/Cel TC, 0.02uF, 8749	Mica Capacitor, Mica, 500V, 0/+70ppm/Cel TC, 0.02uF, 8749	Mica Capacitor, Mica, 500V, 0/+70ppm/Cel TC, 0.02uF, 8749	Mica Capacitor, Mica, 500V, 0/+70ppm/Cel TC, 0.0082uF, 8336	Mica Capacitor, Mica, 500V, 0/+70ppm/Cel TC, 0.0075uF, 8335	Mica Capacitor, Mica, 500V, 0/+70ppm/Cel TC, 0.0075uF, 8335
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.0082 µF	0.018 µF	0.018 µF	0.018 µF	0.02 µF	0.02 µF	0.02 µF	0.0082 µF	0.0075 µF	0.0075 µF
Capacitor type	MICA CAPACITOR	MICA CAPACITOR	MICA CAPACITOR	MICA CAPACITOR	MICA CAPACITOR	MICA CAPACITOR	MICA CAPACITOR	MICA CAPACITOR	MICA CAPACITOR	MICA CAPACITOR
dielectric materials	MICA	MICA	MICA	MICA	MICA	MICA	MICA	MICA	MICA	MICA
high	23.36 mm	24.13 mm	24.13 mm	24.13 mm	24.38 mm	24.38 mm	24.38 mm	23.36 mm	23.36 mm	23.36 mm
length	21.08 mm	22.1 mm	22.1 mm	22.1 mm	22.1 mm	22.1 mm	22.1 mm	21.08 mm	21.08 mm	21.08 mm
Manufacturer's serial number	M87164A04	M87164A04	M87164A04	M87164A04	M87164A04	M87164A04	M87164A04	M87164A04	M87164A04	M87164A04
negative tolerance	5%	2%	1%	5%	5%	2%	1%	1%	1%	5%
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial
positive tolerance	5%	2%	1%	5%	5%	2%	1%	1%	1%	5%
Rated (DC) voltage (URdc)	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V
Guideline	MIL-C-87164	MIL-C-87164	MIL-C-87164	MIL-C-87164	MIL-C-87164	MIL-C-87164	MIL-C-87164	MIL-C-87164	MIL-C-87164	MIL-C-87164
series	M87164A04	M87164A04	M87164A04	M87164A04	M87164A04	M87164A04	M87164A04	M87164A04	M87164A04	M87164A04
size code	8336	8747	8747	8747	8749	8749	8749	8336	8335	8335
Temperature Coefficient	0/+70ppm/Cel ppm/°C	0/+70ppm/Cel ppm/°C	0/+70ppm/Cel ppm/°C	0/+70ppm/Cel ppm/°C	0/+70ppm/Cel ppm/°C	0/+70ppm/Cel ppm/°C	0/+70ppm/Cel ppm/°C	0/+70ppm/Cel ppm/°C	0/+70ppm/Cel ppm/°C	0/+70ppm/Cel ppm/°C
Terminal pitch	11.1 mm	11.1 mm	11.1 mm	11.1 mm	11.1 mm	11.1 mm	11.1 mm	11.1 mm	11.1 mm	11.1 mm
width	9.14 mm	11.94 mm	11.94 mm	11.94 mm	12.45 mm	12.45 mm	12.45 mm	9.14 mm	8.89 mm	8.89 mm
package instruction	-	, 8747	, 8747	, 8747	, 8749	, 8749	, 8749	-	, 8335	, 8335
Base Number Matches	-	1	1	1	1	1	1	-	-	-
