800-10-009-62-001 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 800-10-009-62-001

800-10-009-62-001: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size197KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

800-10-009-62-001 Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, Press Fit Terminal

800-10-009-62-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACT: 5602-0-01-15-00-00-03-0
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	800
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	9
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

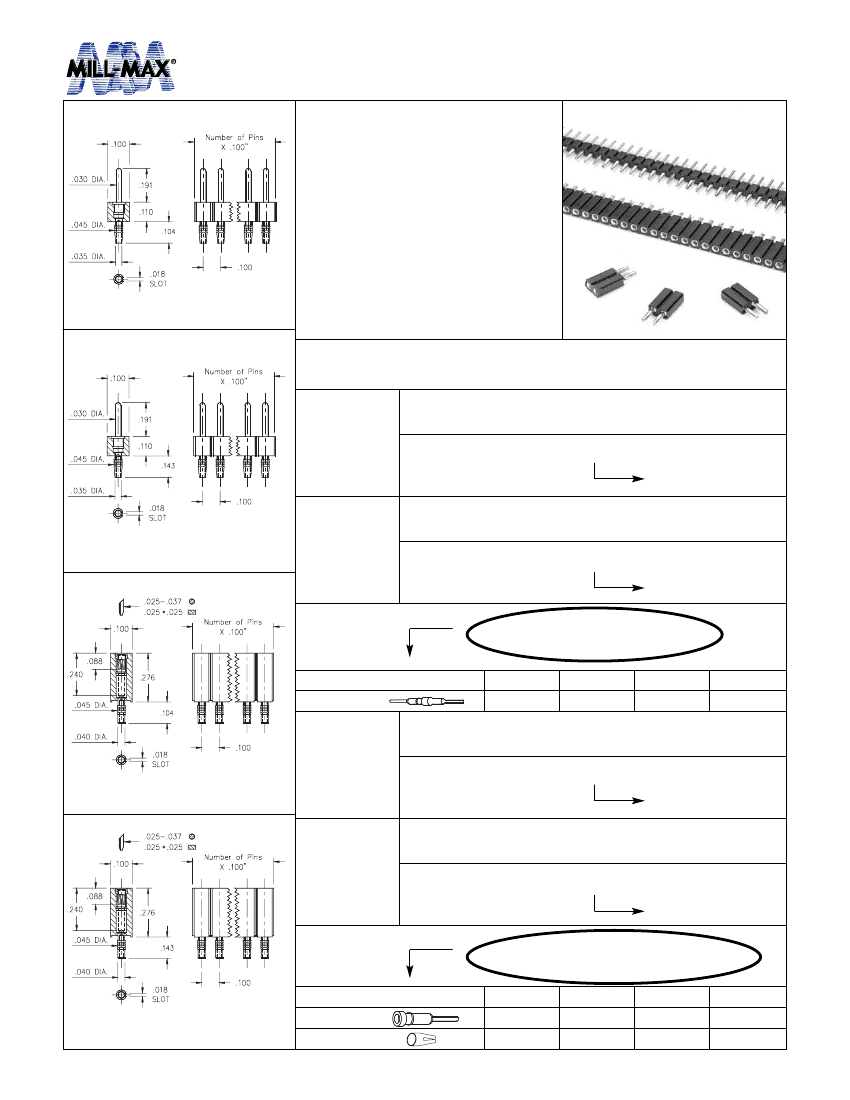

INTERCONNECTS

Solderless Press-Fit

Single Row

•

The unique compliant tail pins

conform to .040”

±.003

finished

hole without stressing inner layers.

•

Pin headers are offered in two tail

lengths for .060”-.100” (MM# 5601)

and .090”-.130” (MM# 5602) thick

panels. (See page 178 for details)

•

Sockets use Hi-Rel, six-finger

clips which accept .030” dia. pins

and also .025” square pins.

(MM# 4614 or 4615). (See page

147 for details)

Series 800, 801

Fig. 1

Ordering Information

Compliant Tail Pin Header

for .060 - .100” thick boards

Fig. 1

800-XX-0 _ _-61-001

Specify # of pins

01-64

Compliant Tail Pin Header

for .090 - .130” thick boards

Fig. 2

800-XX-0 _ _-62-001

Specify # of pins

01-64

XX=

Plating Code See Below

SPECIFY PLATING CODE XX=

10µ” Au

200µ” Sn/Pb

Pin Plating

Compliant Tail Socket

for .060 - .100” thick boards

Fig. 3

801-XX-0 _ _-61-001

Specify # of pins

01-50

Compliant Tail Socket

for .090 - .130” thick boards

Fig. 4

801-XX-0 _ _-62-001

Specify # of pins

01-50

XX=

Plating Code See Below

SPECIFY PLATING CODE XX=

30µ” Au

200µ”Sn/Pb

Sleeve (Pin)

200µ” Sn/Pb 200µ”Sn/Pb

Fig. 4

Contact (Clip)

w w w. m i l l - m a x . c o m

516-922-6000
