HLE-104-02-L-DV-LC-K-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> HLE-104-02-L-DV-LC-K-TR

HLE-104-02-L-DV-LC-K-TR: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size771KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HLE-104-02-L-DV-LC-K-TR Overview

Board Connector, 8 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT

HLE-104-02-L-DV-LC-K-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Other features	TIGER BEAM CONTACT
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HLE
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	8

Preview

Download Datasheet

View All

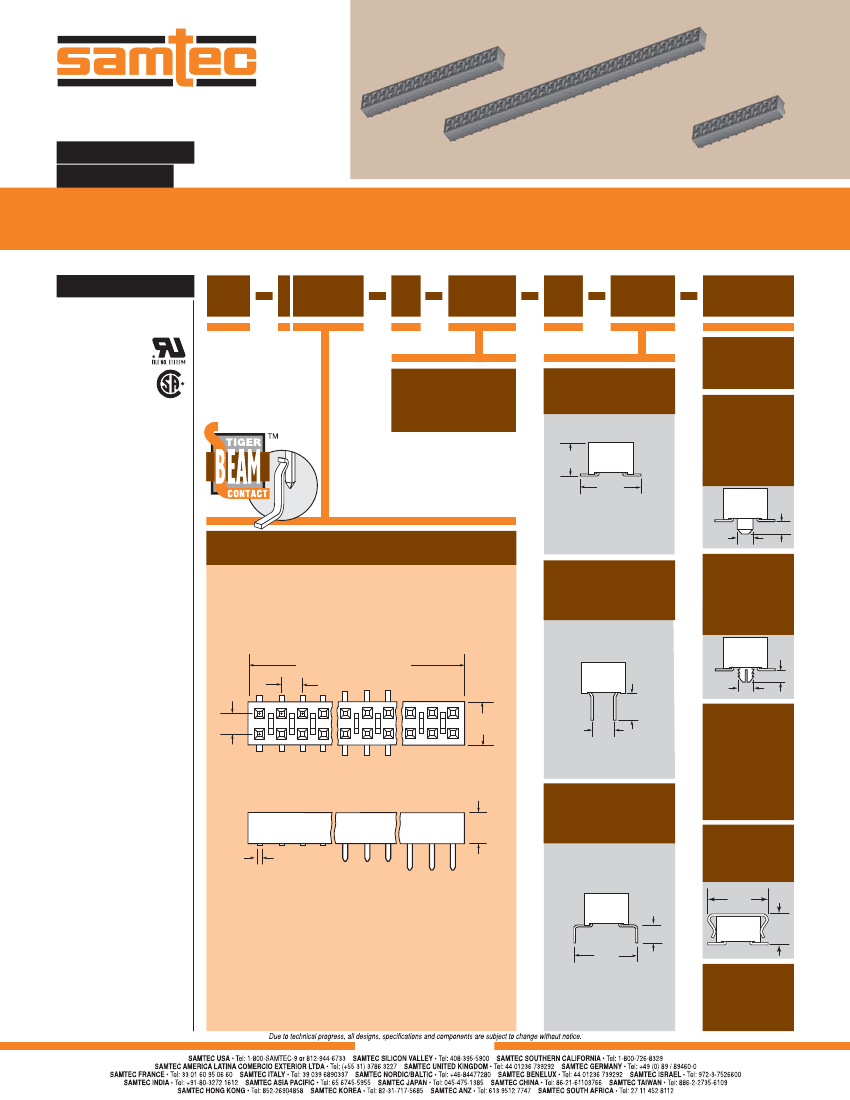

F-211

HLE–116–02–L–DV

HLE–110–02–L–DV–A

HLE–130–02–L–DV

(2,54mm) .100"

HLE SERIES

COST-EFFECTIVE RELIABLE SOCKET

SPECIFICATIONS

For complete speciﬁcations

and recommended PCB layouts

see www.samtec.com?HLE

Insulator Material:

Black Liquid

Crystal Polymer

Contact Material:

BeCu

Plating:

Au or Sn over

50µ" (1,27µm) Ni

Current Rating:

2.5A @ 80°C ambient

Voltage Rating:

400 VAC

Operating Temp Range:

-55°C to +125°C

Insertion Depth:

(1,78mm) .070" to

(3,43mm) .135", pass-through,

or (2,59mm) .102" min for

bottom entry

Insertion Force:

(Single contact only)

2oz (0,56N) avg.

Withdrawal Force:

(Single contact only)

1.6oz (0,44N) avg.

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max (02-20)

(0,15mm) .006" max (21-50)

HLE

NO.

PER PINS

ROW

PLATING

OPTION

TAIL

OPTION

OTHER

OPTION

Mates With:

TSW, MTSW, DW,

EW, ZW, TLW, TSM,

MTLW, HW

–BE

–L

= 10µ" (0,25µm)

Gold on contact,

Matte Tin on tail

Note:

Other Gold plating

options available.

Contact Samtec.

Leave blank for

Surface Mount

= Bottom Entry

(N/A with –TE)

–A

= Alignment Pin

(4 positions min.)

Metal or plastic at

Samtec discretion

(N/A with -TE,

-PE & -LC)

(1,27)

.050

(3,66)

.144

(6,60)

.260

(Requires –BE for Bottom Entry)

02 thru 50

–TE

= Through-Hole

Top Entry

(1,60)

.063

DIA

–LC

= Locking Clip

(2 positions min.)

(N/A with -A)

(Manual placement

required)

(1,27)

.050

Processing:

No. of Positions x (2,54) .100

(2,54)

.100

(1,42)

.056

(2,54)

.100

(5,08)

.200

(3,05)

.120

(2,54)

.100

–K

= (6,50mm) .256"

DIA Polyimide

Film Pick &

Place Pad

(3 positions min.)

Not available

with –TE or

–PE tail option

–PE

(3,51)

.138

(0,51)

.020

= Through-hole

Pass Through Entry

–P

= Metal Pick &

Place Pad

(3 positions min.)

(7,11) .280

(5,71) .225

–PE

–TE

(2,30)

.090

(7,62)

.300

(Requires –BE for Bottom Entry)

(3,86)

.152

–TR

= Tape & Reel

Packaging

(29 positions max.)

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

WWW.SAMTEC.COM
