SM-4MIN-D-I-TL-26

Description
RF Coaxial Relay, SP5T, Failsafe, 0.09A (Coil), 28VDC (Coil), 2520mW (Coil), 26500MHz, DC Input, DC Output, Panel Mount, MINIATURE PACKAGE
CategoryMechanical and electronic products    relay
File Size156KB,1 Pages
ManufacturerRLC Electronics Inc
Download Datasheet Parametric View All

SM-4MIN-D-I-TL-26 Overview

RF Coaxial Relay, SP5T, Failsafe, 0.09A (Coil), 28VDC (Coil), 2520mW (Coil), 26500MHz, DC Input, DC Output, Panel Mount, MINIATURE PACKAGE

SM-4MIN-D-I-TL-26 Parametric

Parameter NameAttribute value
MakerRLC Electronics Inc
package instructionMINIATURE PACKAGE
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresSMA, BUILT-IN TTL DRIVER AND INDICATOR
body height39.12 mm
Body length or diameter30.23 mm
Characteristic impedance50 Ω
Maximum coil current (DC)0.09 A
Coil power2520 mW
Coil resistance311.1 Ω
Maximum coil voltage (DC)28 V
Coil/Input Power TypeDC
Contact/Output Power TypeDC
Electrical life1000000 Cycle(s)
Maximum insertion loss1 dB
Maximum isolation50 dB
Manufacturer's serial numberSM
Installation featuresPANEL MOUNT
Maximum operating frequency26500 MHz
Minimum operating frequency
Relay actionFAILSAFE
Relay functionSP5T
Relay typeRF COAXIAL RELAY
surface mountNO
switching time15 ms
Termination typeCONNECTOR
voltage standing wave ratio2
Miniature Multi-Position
Coaxial Switches
RLC Electronics' Miniature Multi-Position Coaxial Switch line
provides extremely high reliability, long life and outstanding
electrical performance by utilizing high density packaging.
The “Multi-Min” electrical characteristics feature low insertion
loss and VSWR over the entire DC-18GHz range, with an option
to 26.5 GHz, while maintaining high isolation.
Specifications
S
1-2
RF Positions
Switch Type:
Frequency Range:(GHz)
Insertion Loss (Max dB)
DC-4
4.0-12.4 GHz
12.4-18 GHz
18-26.5 GHz (option)
VSWR (Max)
DC-4
4.0-12.4 GHz
12.4-18 GHz
18-26.5 GHz (option)
Isolation (dB Min)
DC-18 GHz
18-26.5 GHz (option)
3
SP-3T
DC-18
(18-26.5 option)
0.20
0.30
0.50
1.00
1.25
1.40
1.50
2.00
60
50
MIN
-3-4-5-6
4
SP-4T
DC-18
(18-26.5 option)
0.20
0.30
0.50
1.00
1.25
1.40
1.50
2.00
60
50
5
SP-5T
DC-18
(18-26.5 option)
0.20
0.30
0.50
1.00
1.25
1.40
1.50
2.00
60
50
6
SP-6T
DC-18
(18-26.5 option)
0.20
0.30
0.50
1.00
1.25
1.40
1.50
2.00
60
50
Power Rating, RF Cold Switching: See page 5.
Impedance: 50 Ohms
Operating Power 25°C:
(Failsafe): 12Vdc at 300 ma nom.
28Vdc at 90 ma nom. 115 Vac at 25 ma nom.
Connectors, RF: SMA Female
Connectors, Power: Feed through solder lugs.
Life: 1,000,000 operations.
Switching Time: 15 mS Max.
Weight: 3 position 3.5oz, others 7oz.
Environmental Conditions: MIL-S-3928
Operating Mode: Manual or failsafe.
Switching Sequence: Break before make.
To designate the switch desired use:
(1) “M” for Manual, “R” for Remote.
(4) “I” for indicators if desired.
(2) “3”, “4”, “5” or “6” throw operation
(5) “TL” for TTL Driver if desired
(3) “A” for 115 Vac, “D” for 28 Vdc or “H” for 12 Vdc.
(6) “26” for the 26.5GHz option
Example: SR-4 Min-D-26 is a remote, 28 Vdc; without indicators, failsafe switch, 26.5 GHz operation

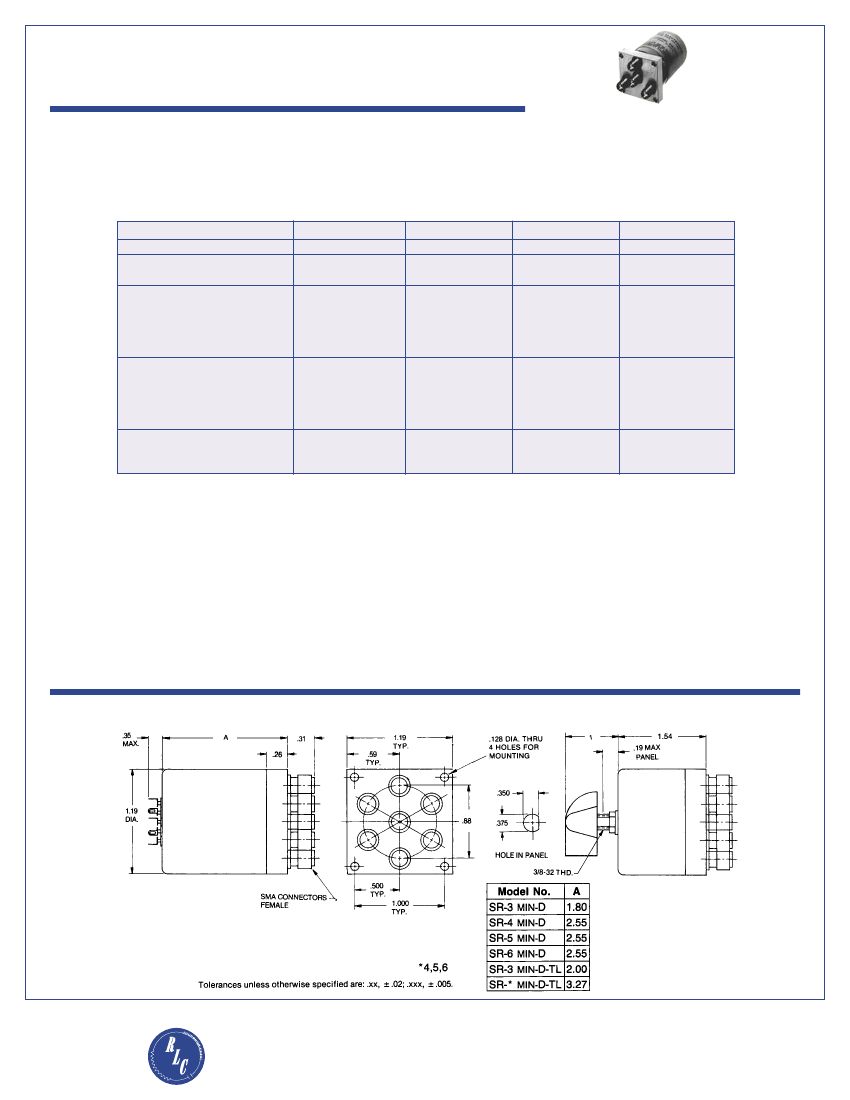

Outline Drawing
RLC ELECTRONICS, INC.
83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753
e-mail: sales@rlcelectronics.com • www.rlcelectronics.com
