QS3L2384Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> QS3L2384Z

QS3L2384Z: DescriptionBus Driver, 1-Func, 10-Bit, True Output, CMOS, PZIP24,; Categorylogic logic; File Size145KB，6 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric Compare View All

QS3L2384Z Overview

Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PZIP24,

QS3L2384Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Quality Semiconductor Inc
Reach Compliance Code	unknown
Other features	TTL COMPATIBLE BUS SWITCH; MAX RON = 48 OHM @ VIN = 2.4V & ION = 15MA
JESD-30 code	R-PZIP-T24
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	10
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	ZIP
Encapsulate equivalent code	ZIP24,.1
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	1.25 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	ZIG-ZAG
Maximum time at peak reflow temperature	NOT SPECIFIED

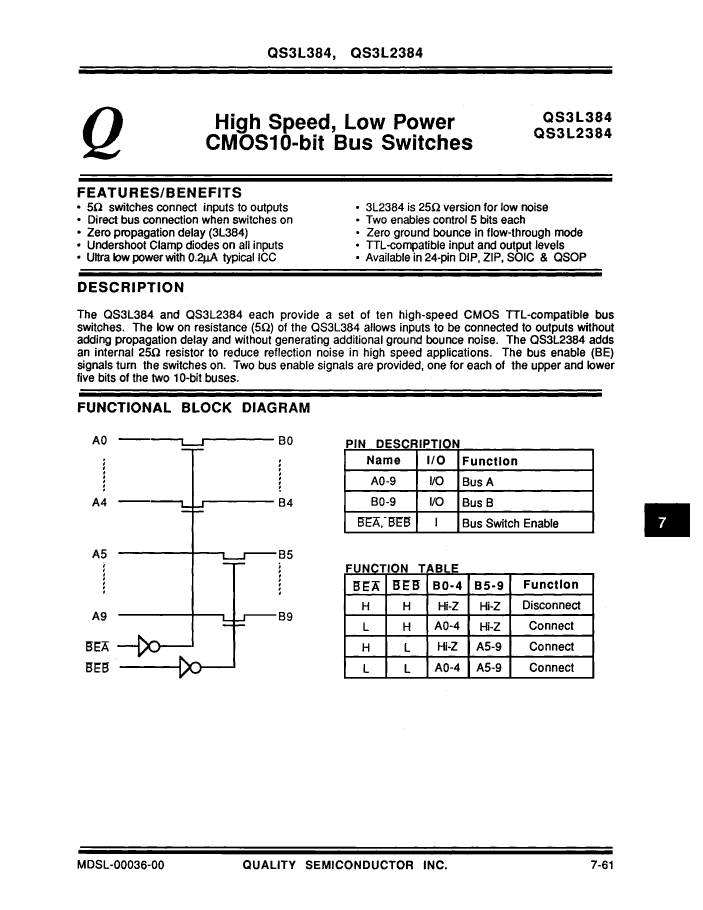

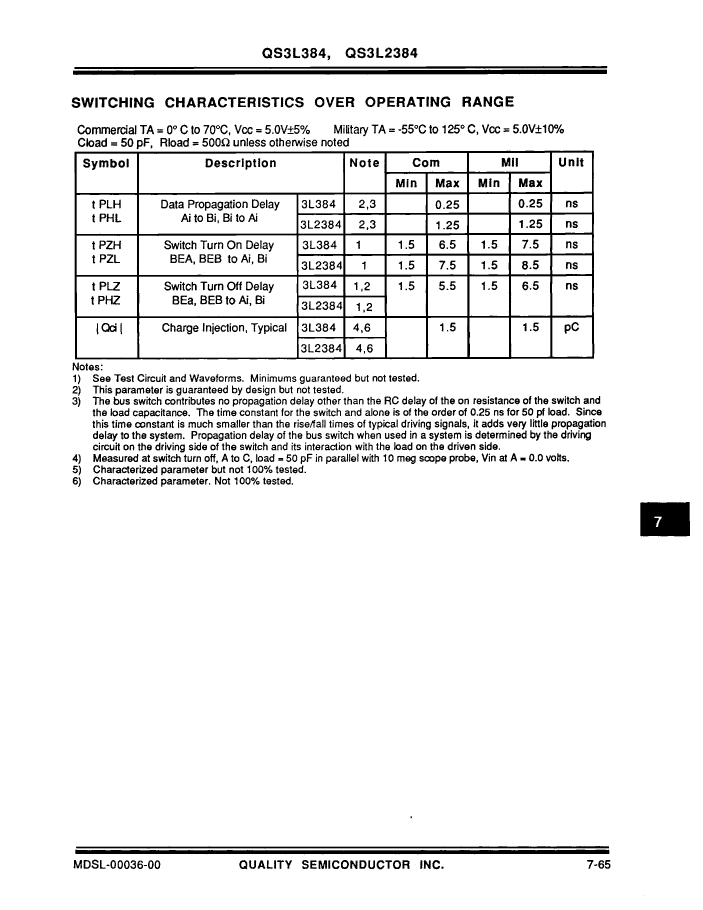

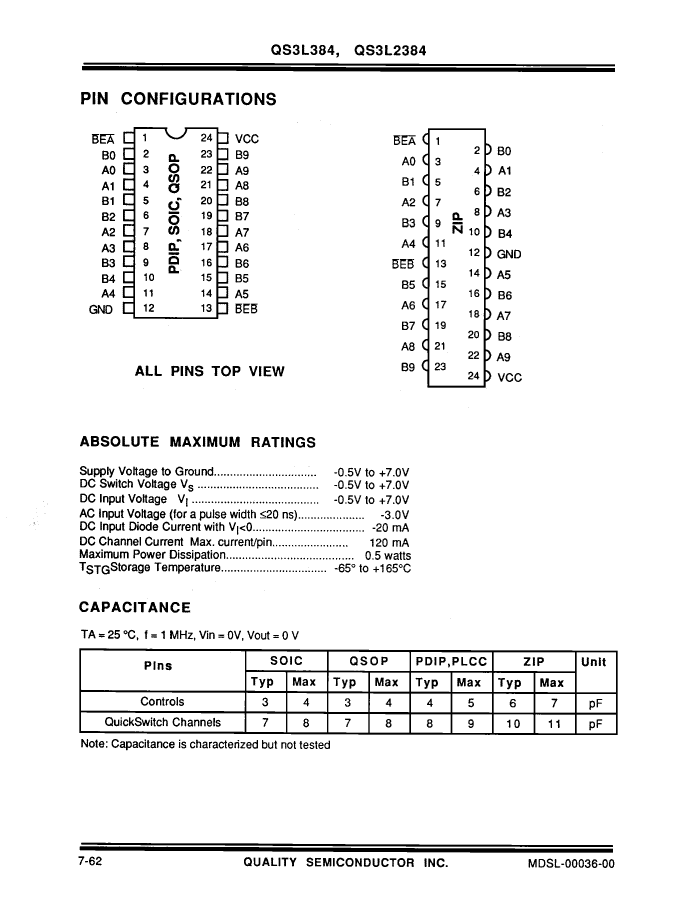

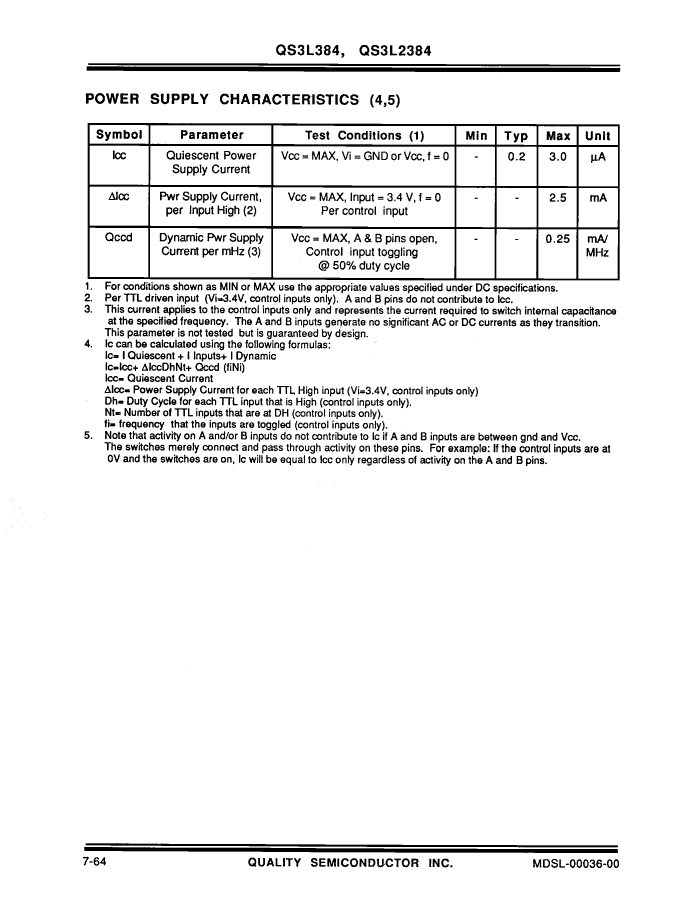

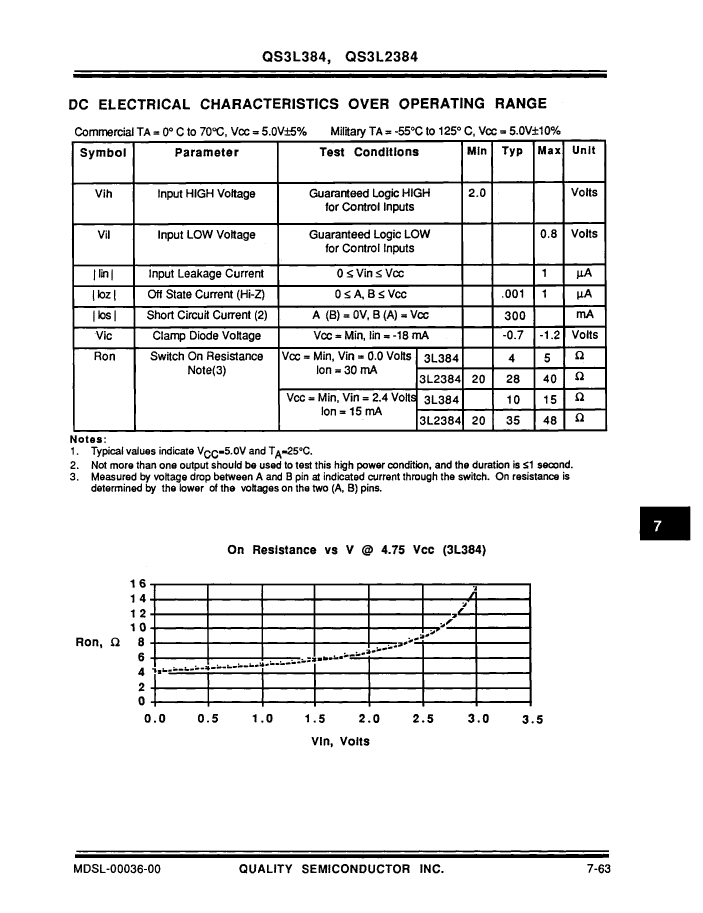

Preview

Download Datasheet

View All

QS3L2384Z Related Products

	QS3L2384Z	QS3L2384QM	QS3L2384ZM	QS3L384ZM	QS3L2384PM	QS3L2384P	QS3L2384SOM	QS3L384Z
Description	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PZIP24,	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PDSO24,	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PZIP24,	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PZIP24,	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PDIP24,	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PDIP24,	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PDSO24,	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PZIP24,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	TTL COMPATIBLE BUS SWITCH; MAX RON = 48 OHM @ VIN = 2.4V & ION = 15MA	TTL COMPATIBLE BUS SWITCH; MAX RON = 48 OHM @ VIN = 2.4V & ION = 15MA	TTL COMPATIBLE BUS SWITCH; MAX RON = 48 OHM @ VIN = 2.4V & ION = 15MA	TTL COMPATIBLE BUS SWITCH; MAX RON = 15 OHM @ VIN = 2.4V & ION = 15MA; LOW POWER VERSION	TTL COMPATIBLE BUS SWITCH; MAX RON = 48 OHM @ VIN = 2.4V & ION = 15MA	TTL COMPATIBLE BUS SWITCH; MAX RON = 48 OHM @ VIN = 2.4V & ION = 15MA	TTL COMPATIBLE BUS SWITCH; MAX RON = 48 OHM @ VIN = 2.4V & ION = 15MA	TTL COMPATIBLE BUS SWITCH; MAX RON = 15 OHM @ VIN = 2.4V & ION = 15MA; LOW POWER VERSION
JESD-30 code	R-PZIP-T24	R-PDSO-G24	R-PZIP-T24	R-PZIP-T24	R-PDIP-T24	R-PDIP-T24	R-PDSO-G24	R-PZIP-T24
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	10	10	10	10	10	10	10	10
Number of functions	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	24	24	24	24	24	24	24	24
Maximum operating temperature	70 °C	125 °C	125 °C	125 °C	125 °C	70 °C	125 °C	70 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-
Output characteristics	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
propagation delay (tpd)	1.25 ns	1.25 ns	1.25 ns	0.25 ns	1.25 ns	1.25 ns	1.25 ns	0.25 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.5 V	5.5 V	5.5 V	5.5 V	5.25 V	5.5 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.5 V	4.5 V	4.5 V	4.5 V	4.75 V	4.5 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	ZIG-ZAG	DUAL	ZIG-ZAG	ZIG-ZAG	DUAL	DUAL	DUAL	ZIG-ZAG
Maker	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc	-	-	-	Quality Semiconductor Inc	Quality Semiconductor Inc
Base Number Matches	-	1	1	1	1	1	-	-
