LESHAN RADIO COMPANY, LTD.
Zener Voltage Regulators
200 mW SOD-323 Surface Mount
This series of Zener diodes is packaged in a SOD–323 surface mount package that
has a power dissipation of 200 mW. They are designed to provide voltage regulation
protection and are especially attractive in situations where space is at a premium. They
are well suited for applications such as cellular phones, hand held portables, and
high density PC boards.
LUDZS2.0BT1G
Series
S-LUDZS2.0BT1G
Series
1
Specification Features:
• High demand voltage range (3.6V-36V)
• Steady State Power Rating of 200 mW
• Small Body Outline Dimensions: 0.067" x 0.049"(1.7 mm x 1.25 mm)
Low Body Height: 0.035" (0.9 mm)
• Package Weight: 4.507 mg/unit
• ESD Rating of Class 3 per Human Body Model
• Pb-Free package is available.
• S- Prefix for Automotive and Other Applications Requiring Unique Site and Control
Change Requirements; AEC-Q101 Qualified and PPAP Capable.
• We declare that the material of product compliance with RoHS requirements.
2
.
SOD– 323
MARKING DIAGRAM
xx
Mechanical Characteristics:
CASE:
Void-free, transfer-molded plastic
FINISH:
All external surfaces are corrosion resistant
x x =Device Marking Code
M =Date Code
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
260°C for 10 Seconds
POLARITY:
Cathode indicated by polarity band
FLAMMABILITY RATING:
UL94 V-0
MOUNTING POSITION:
Any
M
2
ANODE
Rev.B 1/5
1
CATHODE
ORDERING INFORMATION
Device
LUDZS2.0BT1G Series
LUDZS2.0BT3G Series
*See specific marking table.
Package
SOD-323
SOD-323
Shipping
3000/Tape&Reel
10000/Tape&Reel
ABSOLUTE MAXIMUM RATINGS (Ta=25°C)
Parameter
Power dissipation
Symbol
P
Limits
200
Unit
mW
Thermal Resistance from
Junction to Ambient
Junction temperature
Storage temperature
Operating temperature
R
θJA
Tj
Tstg
Topr
635
150
−55
to
+150
−55
to
+150
°C/W
°C
°C
°C
LESHAN RADIO COMPANY, LTD.
LUDZS2.0BT1G Series , S-LUDZS2.0BT1G Series
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted,
V
F
= 0.9 V Max. @ I
F
= 10 mA for all types)
Symbol
V
Z
I
ZT
Z
ZT
I
ZK
Z
ZK
I
R
V
R
I
F
V
F
QV
Z
C
Parameter
Reverse Zener Voltage @ I
ZT
Reverse Current
Maximum Zener Impedance @ I
ZT
Reverse Current
Maximum Zener Impedance @ I
ZK
Reverse Leakage Current @ V
R
Reverse Voltage
Forward Current
Forward Voltage @ I
F
Maximum Temperature Coefficient of V
Z
Max. Capacitance @V
R
= 0 and f = 1 MHz
V
Z
V
R
I
R
V
F
I
ZT
V
I
F
I
Zener Voltage Regulator
Rev.B 2/5
LESHAN RADIO COMPANY, LTD.
LUDZS2.0BT1G Series , S-LUDZS2.0BT1G Series
ELECTRICAL CHARACTERISTICS
(Ta=25 C)
Device
Device
Marking
Min.
LUDZS2.0BT1G
LUDZS2.2BT1G
LUDZS2.4BT1G
LUDZS2.7BT1G
LUDZS3.0BT1G
LUDZS3.3BT1G
LUDZS3.6BT1G
LUDZS3.9BT1G
LUDZS4.3BT1G
LUDZS4.7BT1G
LUDZS5.1BT1G
LUDZS5.6BT1G
LUDZS6.2BT1G
LUDZS6.8BT1G
LUDZS7.5BT1G
LUDZS8.2BT1G
LUDZS9.1BT1G
LUDZS10BT1G
LUDZS11BT1G
LUDZS12BT1G
LUDZS13BT1G
LUDZS15BT1G
LUDZS16BT1G
LUDZS18BT1G
LUDZS20BT1G
LUDZS22BT1G
LUDZS24BT1G
LUDZS27BT1G
LUDZS30BT1G
LUDZS33BT1G
LUDZS36BT1G
Zener voltage
V
Z
(V)
Max.
2.200
2.410
2.630
2.910
3.220
3.530
3.845
4.160
4.430
4.750
5.200
5.730
6.330
6.930
7.600
8.360
9.230
10.210
11.220
12.240
13.490
14.980
16.510
18.350
20.390
22.470
24.780
27.530
30.690
33.790
36.870
I
Z
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Operating
resistance
Z
Z
(Ω)
Max.
100
100
100
110
120
120
100
100
100
100
80
60
60
40
30
30
30
30
30
30
37
42
50
65
85
100
120
150
200
250
300
I
Z
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Rising operating
resistance
Z
zk
(Ω)
Max.
1000
1000
1000
1000
1000
1000
1000
1000
1000
800
500
200
100
60
60
60
60
60
60
80
80
80
80
80
100
100
120
150
200
250
300
I
Z
(mA)
0.5
0.5
0.5
0.5
0.5
0.5
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Reverse current
I
R
(µA)
Max.
120
120
100
100
50
20
10
5
5
2
2
1
1
0.5
0.5
0.5
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
V
R
(V)
0.5
0.7
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.5
2.5
3.0
3.5
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
15.0
17.0
19.0
21.0
23.0
25.0
27.0
02
12
22
32
42
52
62
72
82
92
A2
C2
E2
F2
H2
J2
L2
05
15
25
35
45
55
65
75
85
95
A5
C5
E5
F5
2.020
2.220
2.430
2.690
3.010
3.320
3.600
3.890
4.170
4.550
4.980
5.490
6.060
6.650
7.280
8.020
8.850
9.770
10.760
11.740
12.910
14.340
15.850
17.560
19.520
21.540
23.720
26.190
29.190
32.150
35.070
Notes) 1. The Zener voltage (V
z
) is measured 40ms after power is supplied.
2. The operating resistances (Z
z
, Z
zk
) are measured by superimposing a minute alternating current on the regulated current (I
z
).
Rev.B 3/5
LESHAN RADIO COMPANY, LTD.
LUDZS2.0BT1G Series , S-LUDZS2.0BT1G Series

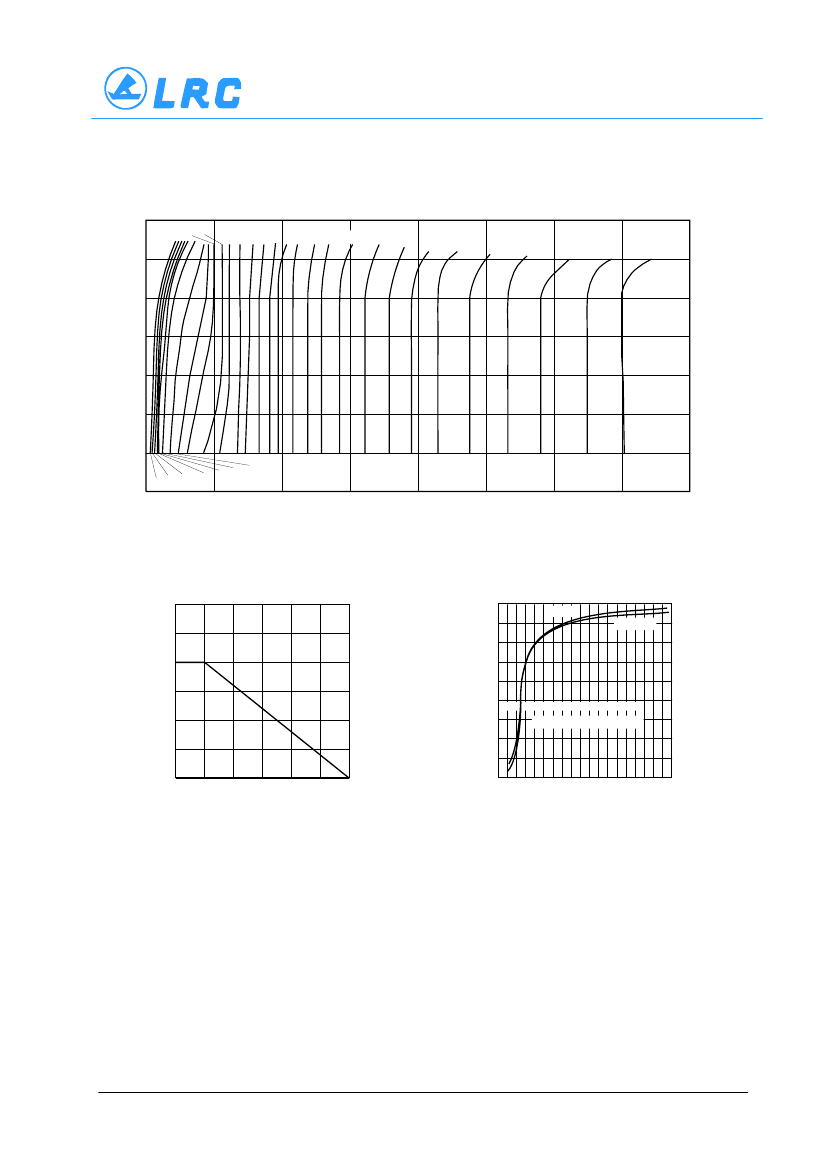

ELECTRICAL CHARACTERISTIC CURVES
(Ta=25 C)
5.1
5.6
100m
6.2
6.8
8.2
9.1
7.5
15
11
10
12
13
16
18
20
20
10m
1m
ZENER CURRENT : I
Z
(A)
100µ
10µ
1µ
100n
4.7
2.4
10n
0
2.0
2.2
2.7
5
3.0
3.3
4.3
10
15
22
25
30
35
40
ZENER VOLTAGE : V
Z
(V)
Fig.1 Zener voltage characteristics
300
POWER DISSIPATION : Pd (mW)
TEMP. COEFFICIENT CHARACTERISTICS (% /
°C)
0.10
Iz=5mA
0.08
0.06
0.04
0.02
0.00
−0.02
−0.04
−0.06
−0.08
2
10
20
Iz=500µA
200
30
100
ZENER VOLTAGE : Vz (V)
0
0
25
50
100
150
AMBIENT TEMPERATURE : Ta (°C)
Fig.2 Derating curve
Fig.3 Zener voltage-temp.
coefficient characteristics
Rev.B 4/5
LESHAN RADIO COMPANY, LTD.
LUDZS2.0BT1G Series , S-LUDZS2.0BT1G Series
SOD–323
H
E
D
b
1
2
E
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. LEAD THICKNESS SPECIFIED PER L/F DRAWING
WITH SOLDER PLATING.
4. DIMENSIONS A AND B DO NOT INCLUDE MOLD
FLASH, PROTRUSIONS OR GATE BURRS.
5. DIMENSION L IS MEASURED FROM END OF RADIUS.
MILLIMETERS
DIM MIN
NOM MAX
A
0.80
0.90
1.00
A1
0.00
0.05
0.10
A3
0.15 REF
b
0.25
0.32
0.4
C
0.089
0.12 0.177
D
1.60
1.70
1.80
E
1.15
1.25
1.35
L
0.08
H
E
2.30
2.50
2.70
INCHES
NOM MAX
0.035 0.040
0.002 0.004
0.006 REF
0.010 0.012 0.016
0.003 0.005 0.007
0.062 0.066 0.070
0.045 0.049 0.053
0.003
0.090 0.098 0.105
MIN
0.031
0.000
A3
A
L
NOTE 5
C
NOTE 3
A1
SOLDERING FOOTPRINT*
0.63
0.025
0.83
0.033
1.60
0.063
2.85
0.112
Rev.B 5/5
