TKJB7S13A98TSA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> TKJB7S13A98TSA

TKJB7S13A98TSA: DescriptionMIL Series Connector, 10 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

TKJB7S13A98TSA Overview

MIL Series Connector, 10 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle

TKJB7S13A98TSA Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-38999, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	TKJB7
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	13
Termination type	CRIMP
Total number of contacts	10

Preview

Download Datasheet

View All

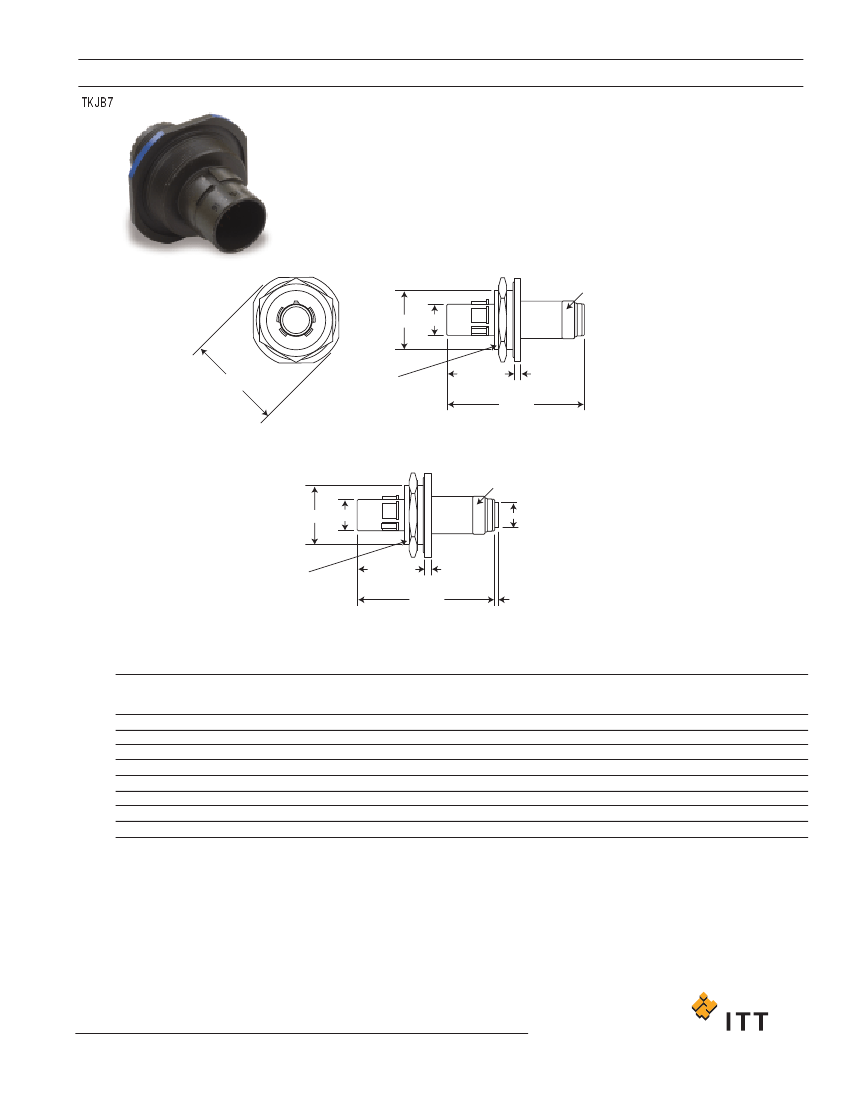

MIL-DTL-38999 Series IV Filter Connectors

Jam Nut Receptacle

TKJB7

TKJB

D THREAD

MTG FLAT A DIA.

E DIA. MAX

C THREAD

1.118 (28.4)

1.082 (27.5)

1.403

(35.636)

MAX

.106 (2.7)

.075 (1.9)

D THREAD

MTG FLAT A DIA.

F DIA.

C THREAD

1.118 (28.4)

1.082 (27.5)

1.960

(49.636)

MAX

.106 (2.7)

.075 (1.9)

.090 (2.286)

MAX

Crimp Piggyback

Shell Shell size

Code

Size

Dia.

Max.

B Mtg.

Flat (Max.)

Thread

1.0-6g 0.100 R

Thread

1.0-6g 0.100 R

E Dia.

Max.

F Dia.

Max.

.509 (12.93)

.634 (16.10)

.759 (19.28)

.885 (22.48)

1.009 (25.63)

1.134 (28.80)

1.259 (31.98)

1.384 (25.15)

.942 (23.93)

1.066 (27.08)

1.191 (30.26)

1.321 (33.56)

1.441 (36.61)

1.566 (39.78)

1.691 (42.96)

1.816 (46.13)

1.520 (38.6)

1.642 (41.7)

1.768 (44.9)

1.957 (49.7)

2.035 (51.7)

2.157 (54.8)

2.283 (58.0)

2.409 (61.2)

.427 (10.85)

.541 (13.74)

.666 (16.92)

.791 (20.09)

.880 (22.35)

1.005 (25.52)

1.130 (28.70)

1.255 (31.880)

Dimensions shown in inch (mm)

Specifications and dimensions subject to change

www.ittcannon.com
