XFX2-12-H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> XFX2-12-H

XFX2-12-H: DescriptionTransfer Switch, 8000MHz Min, 12000MHz Max, 2.2dB Insertion Loss-Max, HERMETIC SEALED, CASE XF; CategoryWireless rf/communication Radio frequency and microwave; File Size238KB，2 Pages; ManufacturerAeroflex; Websitehttp://www.aeroflex.com/

Download Datasheet Parametric View All

XFX2-12-H Overview

Transfer Switch, 8000MHz Min, 12000MHz Max, 2.2dB Insertion Loss-Max, HERMETIC SEALED, CASE XF

XFX2-12-H Parametric

Parameter Name	Attribute value
Maker	Aeroflex
Reach Compliance Code	unknown
Other features	SMA-F, TTL COMPATIBLE
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	26.99 dBm
Maximum insertion loss	2.2 dB
JESD-609 code	e4
Maximum operating frequency	12000 MHz
Minimum operating frequency	8000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	TRANSFER SWITCH
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.8

XFX2-12-H Preview

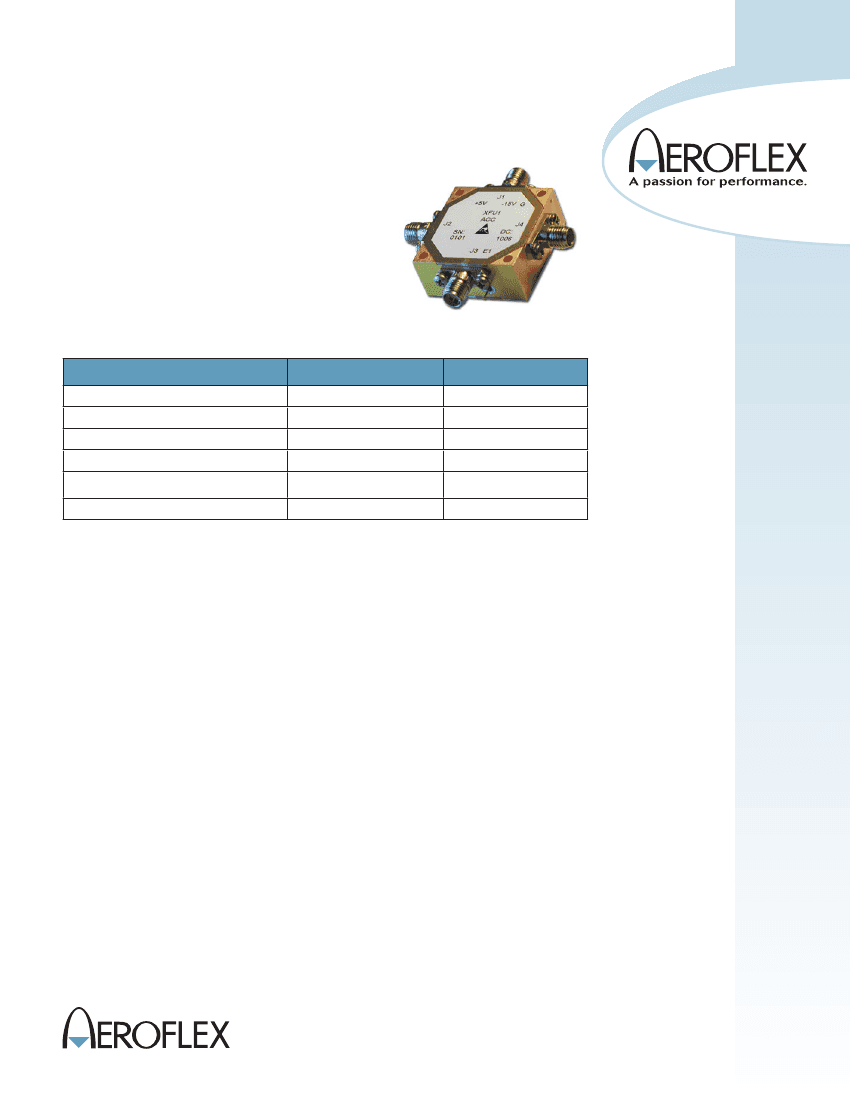

XFX2 Transfer Switch

Features:

•

Incorporated TTL-compatible driver for

convenient system integration and operates

from +5 V and -15 V DC power supplies.

DC blocks at all RF ports.

Ruggedized construction.

RoHS-compliant versions available.

Hermetic versions available.

•

Specifications:

Parameter

Frequency Range

Insertion Loss (max)

VSWR (max) 50 ohms

Isolation (min)

Switching Speed (max)

CW RF Power, Operating (max)

Specification

8 – 12

2.2

1.8

100

0.5

Units

GHz

ratio

nsec

Notes:

DC Bias:

(Standard)

DC Bias:

(-5 option)

DC Bias:

(-12 option)

Control:

+5 V +/- 0.5 V @ 100 mA max

-15 V +/- 3 V @ 100 mA max

+5 V +/- 0.5 V @ 120 mA max

-5 V +/- 0.5 V @ 100 mA max

+15 V +/- 3 V @ 120 mA max

-15 V +/- 3 V @ 100 mA max

TTL 0:

TTL 1:

J1-J2, J3-J4 Low Loss

J1-J4, J2-J3 Isolation

J1-J4, J2-J3 Low Loss

J1-J2, J3-J4 Isolation

Mechanical Specifications:

Case Style:

Finish:

Bias & Control Pins:

Weight:

Mounting:

XF Outline

Gold Plate per MIL-G-45204,

Chem film per MIL-C-5541

ø0.02” x 0.15” long

35 g max

ø0.10” through holes

(4) places

Switching speed is defined as 50% TTL to 90% RF (t-on) and 50%

TTL to 10% RF (t-off).

Screening:

Internal Visual per MIL-STD-883, Method 2017

Temperature Cycle: -65 °C to +100 °C, 10 cycles

Hermetically-sealed switches are fine and gross leak checked per

MIL-STD-883, Method 1014.

Optional High-Rel screening available upon request. Contact the

factory to discuss your screening requirements.

Environmental Specifications:

MIL-E-5400, MIL-STD-202, MIL-E-16400

Operating Temp:

-55 °C to +85 °C

Storage Temp:

-65 °C to +125 °C

Humidity:

MIL-STD-202F, M103, Cond B

Shock:

MIL-STD-202F, M213, Cond B

Altitude:

MIL-STD-202F, M105, Cond B

Vibration:

MIL-STD-202F, M204, Cond B

Thermal Shock:

MIL-STD-202F, M107, Cond A

Temperature Cycle:

MIL-STD-202F, M105C, Cond D

SIGNAL & CONTROL SOLUTIONS

Revision Date: 2/28/2014

40 Industrial Way East, Eatontown , NJ 07724 [USA]

Phone: (732) 460-0212, Fax: (732) 460-0214

www.aeroflex.com/ascs, email: ascs-sales@aeroflex.com

XFX2 Transfer Switch

SIGNAL & CONTROL SOLUTIONS

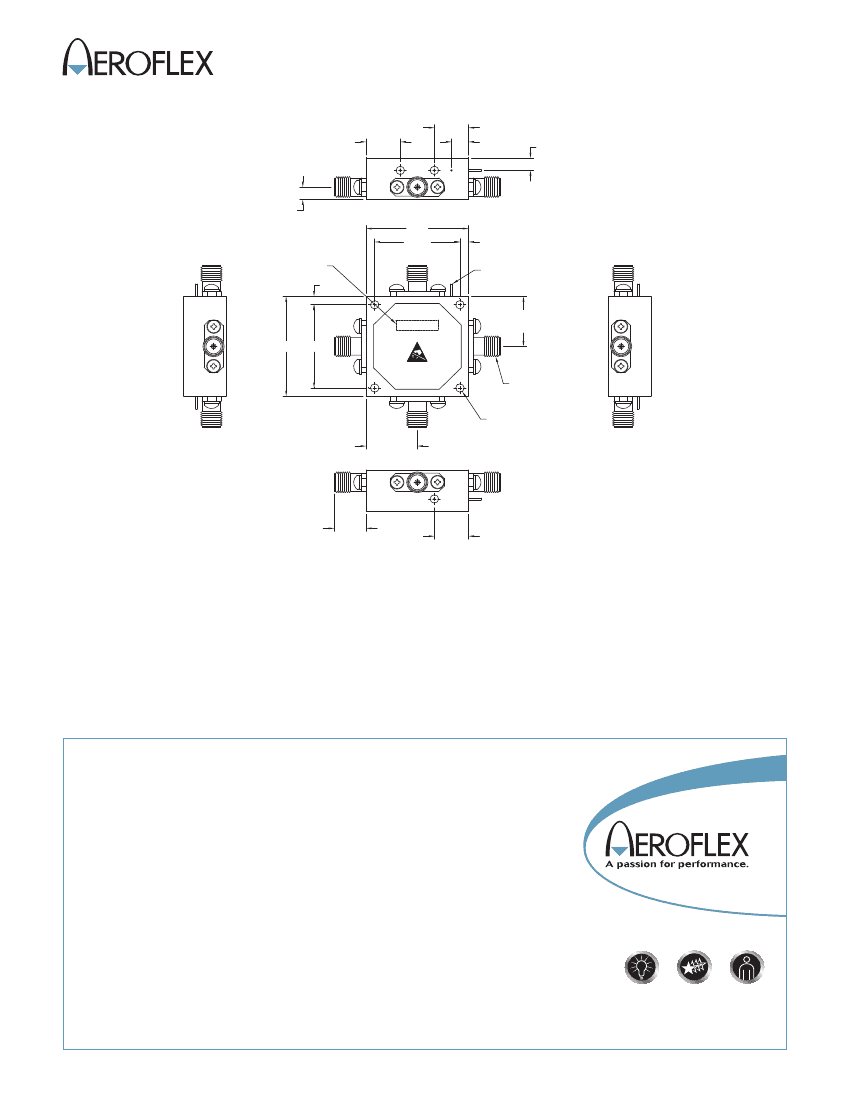

Outline Drawing:

0.40

0.20

0.15

TYP.

0.15

TYP.

1.20

1.000

0.10

MODEL NUMBER

0.10

Ø0.020 X 0.15 LG

SOLDER PIN

(6) PLCS.

-V

ACC

0.60

(2) PLCS.

1.20

1.000

SN:

0000

DC:

WWYY

SMA FEMALE

(4) PLCS.

0.100 THRU

MOUNTING HOLE

(4) PLCS.

0.60

(2) PLCS.

0.38

REF

0.40

OUTLINE CASE STYLE XF

Part Number Ordering Information:

•

Add

“-RC” suffix: RoHS-compliant

“-H” suffix: Hermetic seal

“-5” suffix: +/-5 V DC supplies

“-5-RC” suffix: +/-5 V DC supplies, RoHS-compliant

“-5-H” suffix: +/-5 V DC supplies, Hermetic seal

“-12” suffix: +/-15 V DC supplies

“-12-RC” suffix: +/-15 V DC supplies, RoHS-compliant

“-12-H” suffix: +/-15 V DC supplies, Hermetic seal

Aeroflex Signal & Control Solutions

Aeroflex Microelectronic Solutions

40 Industrial Way East

Eatontown , NJ 07724 [USA]

Fax: (732) 460-0214

Sales

Phone: (732) 460-0212

ASCS-sales@aeroflex.com

ISO 9001:2008 certified

www.aeroflex.com/Microwave www.aeroflex.com/ASCS

Aeroflex Signal & Control Solutions reserves the right to make changes to any products

and services herein at any time without notice. Consult Aeroflex or an authorized sales

representative to verify that the information in this data sheet is current before using

this product. Aeroflex does not assume any responsibility or liability arising out of the

application or use of any product or service described herein, except as expressly

agreed to in writing by Aeroflex; nor does the purchase, lease, or use of a product or

service from Aeroflex convey a license under any patent rights, copyrights, trademark

rights, or any other of the intellectual rights of Aeroflex or of third parties.

Revision Date: 2/28/2014

Our passion for performance is defined by three

attributes represented by these three icons:

solution-minded, performance-driven and customer-focused.
