M55302/170B30X2: DescriptionBoard Connector, 90 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size230KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

M55302/170B30X2 Overview

Board Connector, 90 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal,

M55302/170B30X2 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-55302, POLARIZED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	M55302/170
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	90
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

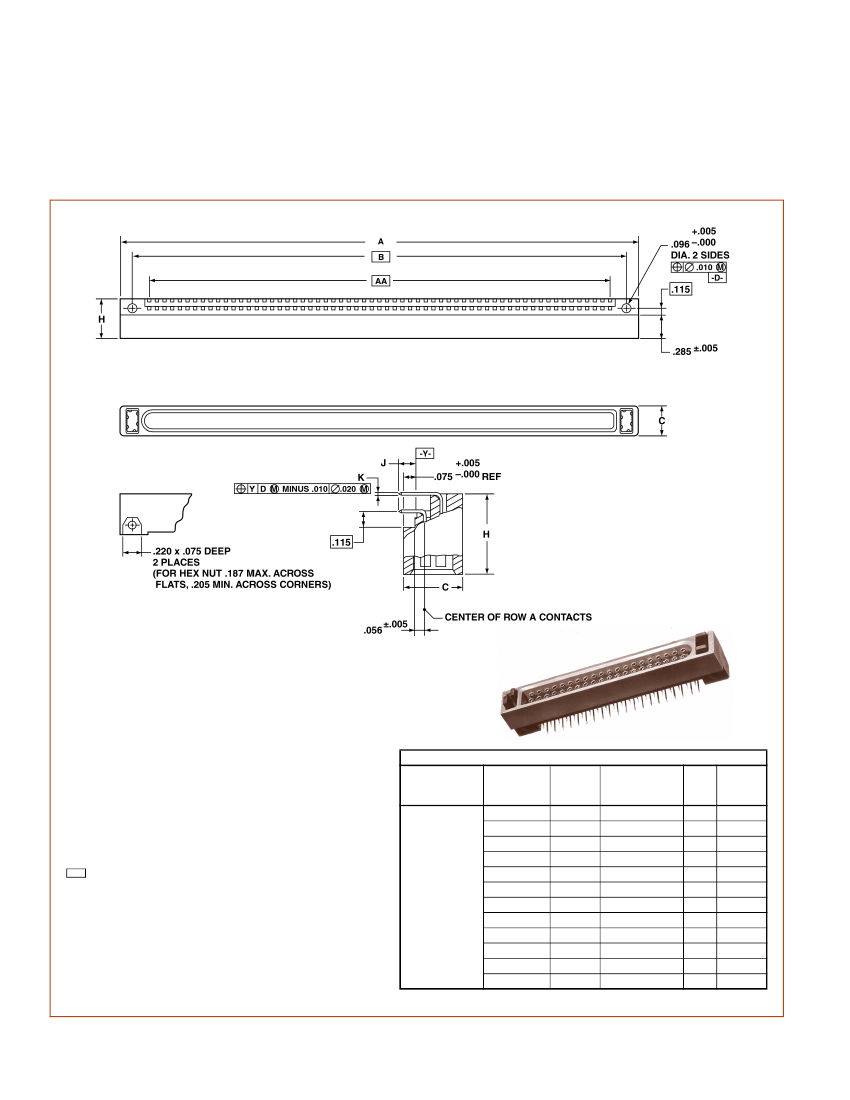

Low Mating .orce

daughter board connector

MATES WITH MB AND PC SERIES CONNECTORS

Notes:

When mating with MB or PC connector, a total of .035 inch mini-

mum radial pilot is available for connector body alignment.

All dimensions for reference only.

Polarization keys are not supplied as part of DB Connector Series

assemblies. See How to Order, page 7 and further description,

page 28.

Designates Basic Dimension

Round PCB

Stud, 90°

Solder

Termination

Description

Contact Data

Termination Arrange-

Contact

Style

ment

Part

Letter

Row

Number

10-502400-111

10-502400-211

10-502400-311

10-502400-411

P-(705)

10-502400-121

P-(705)

10-502400-221

P-(705)

10-502400-321

P-(705)

10-502400-421

P-(709)

10-502400-131

P-(709)

10-502400-231

P-(709)

10-502400-331

P-(709)

10-502400-431

±.020

.085

.120

.300

±.002

.021 Dia.

NOTE: Other variations available - see pages 7 and 8, or consult Sidney, NY.
