AHV1004 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> AHV1004

Preview

AHV1004: DescriptionVariable Capacitance Diode, 10pF C(T), Silicon, Hyperabrupt, SOT-23, 3 PIN; CategoryDiscrete semiconductor diode; File Size46KB，1 Pages; ManufacturerAdvanced Semiconductor, Inc.

Download Datasheet Parametric Compare View All

AHV1004 Overview

Variable Capacitance Diode, 10pF C(T), Silicon, Hyperabrupt, SOT-23, 3 PIN

AHV1004 Parametric

Parameter Name	Attribute value
Maker	Advanced Semiconductor, Inc.
Parts packaging code	SOT-23
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode Capacitance Tolerance	10%
Minimum diode capacitance ratio	6
Nominal diode capacitance	10 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
minimum quality factor	250
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Varactor Diode Classification	HYPERABRUPT

AHV1004 Preview

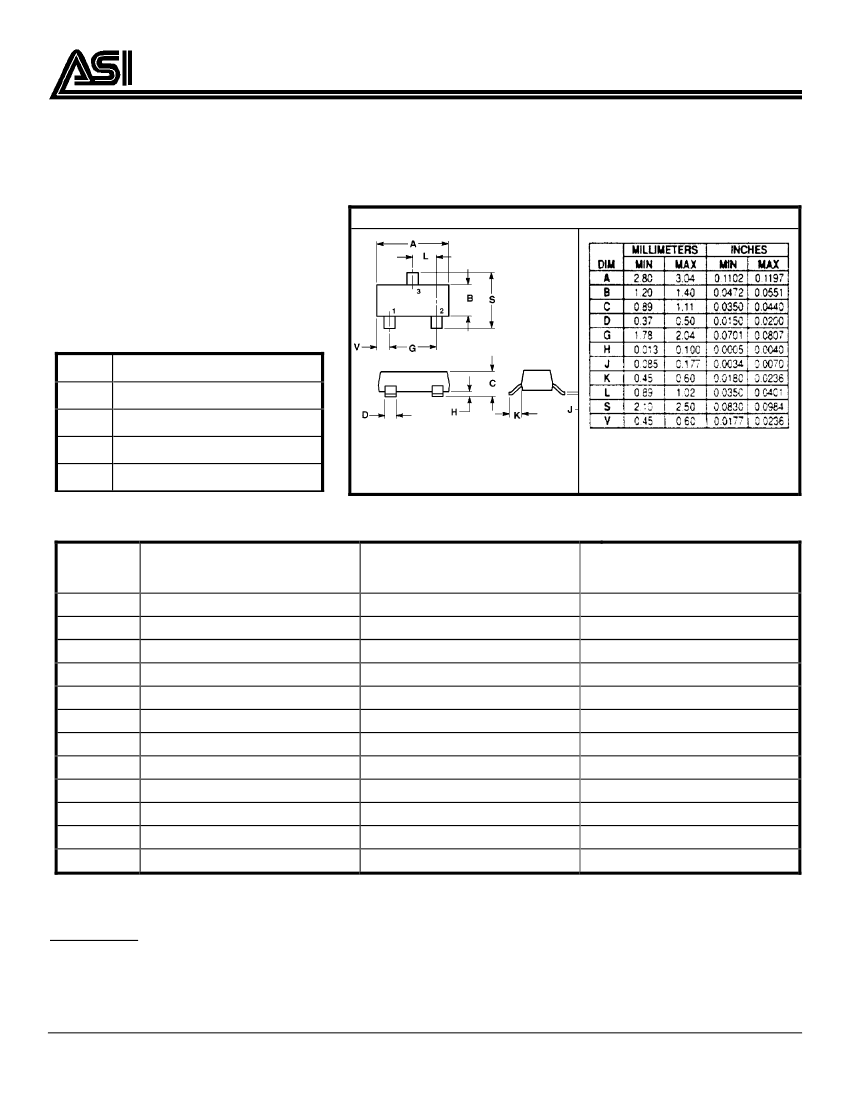

AHV1000 SERIES

SILICON HYPERABRUPT TUNING VARACTOR

DESCRIPTION:

The

ASI AHV1000

Series is a Silicon

Hyperabrupt Tuning Varactor in a

SOT-23

package

.

PACKAGE STYLE SOT-23

MAXIMUM RATINGS

I

R

V

P

DISS

T

J

T

SGT

100 nA @ V

R

= 20 V

22 V @ 10 µA

250 mW @ T

C

= 25 °C

-65 °C to +150 °C

ELECTRICAL CHARACTERISTICS

Model

Number

AHV1001

AHV1002

AHV1003

AHV1004

AHV1005

AHV1006

AHV1007

AHV1008

AHV1009

AHV1010

AHV1011

AHV1012

Total Capacitance

C

T4

(±10%) (pF)

f = MHz V

R

= 4.0 V

5.6

6.8

8.2

10.0

12.0

15.0

18.0

22.0

27.0

33.0

39.0

47.0

T

C

= 25 C

O

Minimum Capacitance Ratio

C

T2

/C

T20

f = 1 MHz

5.3

5.5

6.0

6.5

7.0

7.5

8.0

9.0

9.5

Minimum Q

f = 50 MHz

V

R

= 4.0 V

300

250

175

150

1. AVAILABLE AS SINGLE OR COMMON CATHODE PAIRS.

ADD SUFFIX “CC” TO MODEL NUMBER FOR COMMON CATHODE PAIRS.

Pin Configuration:

Single:

Common Cathode:

Pin #1=Anode, Pin #2=N.C., Pin #3=Cathode

Pin #1=Anode, Pin #2=Anode, Pin #3= Cathode/Cathode

A D V A N C E D S E M I C O N D U C T O R, I N C.

7525 ETHEL AVENUE

•

NORTH HOLLYWOOD, CA 91605

•

(818) 982-1200

•

FAX (818) 765-3004

Specifications are subject to change without notice.

REV. A

1/1

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

AHV1004 Related Products

	AHV1004	AHV1003CC	AHV1010	AHV1007
Description	Variable Capacitance Diode, 10pF C(T), Silicon, Hyperabrupt, SOT-23, 3 PIN	Variable Capacitance Diode, 8.2pF C(T), Silicon, Hyperabrupt, SOT-23, 3 PIN	Variable Capacitance Diode, 33pF C(T), Silicon, Hyperabrupt, SOT-23, 3 PIN	Variable Capacitance Diode, 18pF C(T), Silicon, Hyperabrupt, SOT-23, 3 PIN
Maker	Advanced Semiconductor, Inc.	Advanced Semiconductor, Inc.	Advanced Semiconductor, Inc.	Advanced Semiconductor, Inc.
Parts packaging code	SOT-23	SOT-23	SOT-23	SOT-23
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Contacts	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	COMMON CATHODE, 2 ELEMENTS	SINGLE	SINGLE
Diode Capacitance Tolerance	10%	10%	10%	10%
Minimum diode capacitance ratio	6	6	9	7
Nominal diode capacitance	10 pF	8.2 pF	33 pF	18 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	2	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.25 W	0.25 W	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum quality factor	250	250	150	175
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Varactor Diode Classification	HYPERABRUPT	HYPERABRUPT	HYPERABRUPT	HYPERABRUPT
