FM1150-L-H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FM1150-L-H

FM1150-L-H: DescriptionRectifier Diode, Schottky, 1 Element, 1A, 150V V(RRM), Silicon, DO-214AC, SMA-L, 2 PIN; CategoryDiscrete semiconductor diode; File Size99KB，7 Pages; ManufacturerFORMOSA; Websitehttp://www.formosams.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

FM1150-L-H Overview

Rectifier Diode, Schottky, 1 Element, 1A, 150V V(RRM), Silicon, DO-214AC, SMA-L, 2 PIN

FM1150-L-H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FORMOSA
package instruction	R-PDSO-F2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW POWER LOSS
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.92 V
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-F2
Maximum non-repetitive peak forward current	30 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	150 V
surface mount	YES
technology	SCHOTTKY
Terminal form	FLAT
Terminal location	DUAL

Preview

Download Datasheet

View All

Chip Schottky Barrier Rectifier

FM120-L THRU FM1200-L

List

Formosa MS

List................................................................................................. 1

Package outline............................................................................... 2

Features.......................................................................................... 2

Mechanical data............................................................................... 2

Maximum ratings ............................................................................. 2

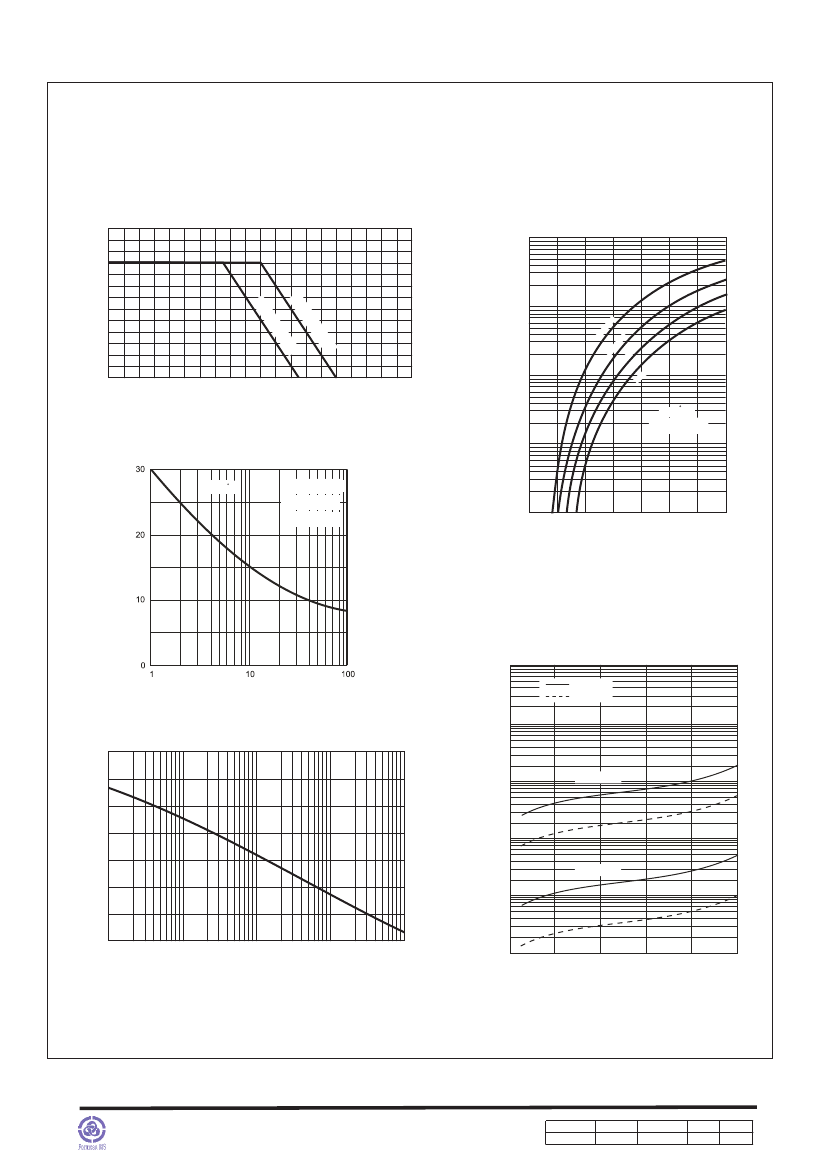

Rating and characteristic curves........................................................ 3

Pinning information........................................................................... 4

Marking........................................................................................... 4

Suggested solder pad layout............................................................. 4

Packing information.......................................................................... 5

Reel packing.................................................................................... 6

Suggested thermal profiles for soldering processes............................. 6

High reliability test capabilities........................................................... 7

http://www.formosams.com/

TEL:886-2-22696661

FAX:886-2-22696141

Document ID

Issued Date

2008/02/10

Revised Date

2010/03/10

Revision

Page.

Page 1

DS-121618

FM1150-L-H Related Products

	FM1150-L-H	FM130-L-H	FM140-L-H	FM160-L-H	FM120-L-H	FM150-L-H	FM1100-L-H	FM180-L-H
Description	Rectifier Diode, Schottky, 1 Element, 1A, 150V V(RRM), Silicon, DO-214AC, SMA-L, 2 PIN	Rectifier Diode, Schottky, 1 Element, 1A, 30V V(RRM), Silicon, DO-214AC, SMA-L, 2 PIN	Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-214AC, SMA-L, 2 PIN	Rectifier Diode, Schottky, 1 Element, 1A, 60V V(RRM), Silicon, DO-214AC, SMA-L, 2 PIN	Rectifier Diode, Schottky, 1 Element, 1A, 20V V(RRM), Silicon, DO-214AC, SMA-L, 2 PIN	Rectifier Diode, Schottky, 1 Element, 1A, 50V V(RRM), Silicon, DO-214AC, SMA-L, 2 PIN	Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, DO-214AC, SMA-L, 2 PIN	Rectifier Diode, Schottky, 1 Element, 1A, 80V V(RRM), Silicon, DO-214AC, SMA-L, 2 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.92 V	0.5 V	0.5 V	0.7 V	0.5 V	0.7 V	0.85 V	0.85 V
JEDEC-95 code	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC
JESD-30 code	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Number of components	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	125 °C	125 °C	150 °C	125 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum repetitive peak reverse voltage	150 V	30 V	40 V	60 V	20 V	50 V	100 V	80 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	FORMOSA	-	-	-	FORMOSA	FORMOSA	FORMOSA	FORMOSA
